DIN-Rail Industrial 802.3at Gigabit PoE Splitter Output Voltage 19VDC

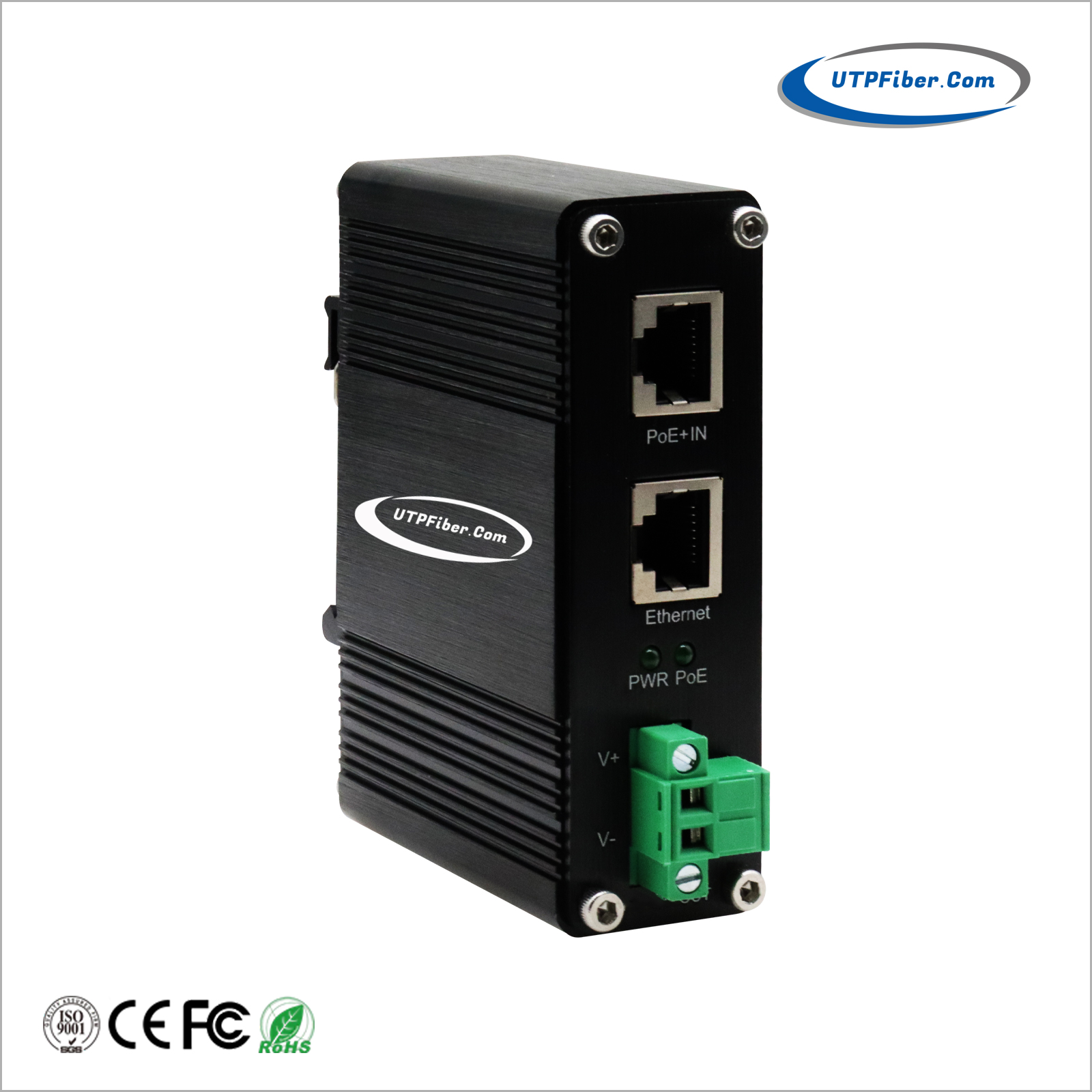

Model:UF-IPSAT-19V

►     Splits an IEEE 802.3at PoE+ connection into power and Gigabit Ethernet for non-PoE devices

►     One DC output with power up to 19V / 1.32A / 25W via 2-pin terminal block

►     One RJ45 input port up to 30W from an IEEE 802.3at/af-compliant PoE injector or PoE switch (PSE)

►     One RJ45 output port with 10/100/1000 data rates

UTP UF-IPSAT-19V is an Industrial High Power PoE Splitter that can split the 48~56V DC over the existing Ethernet cable into the 19VDC power output. It supports passive 10/100/1000Mbps Ethernet connection ability and complies with IEEE 802.3at High Power over Ethernet standard that supports up to 25-watt output power to powered device. To fulfill the growing industrial applications, the UF-IPSAT-19V is designed to work under the operating temperature range from -40 to 80 degrees C (-40 to 176 degrees F). The UF-IPSAT-19V is an ideal solution to transferring power to traditional network device with high power demand directly without the need to install additional power outlets and electrical cabling in the industrial environment.

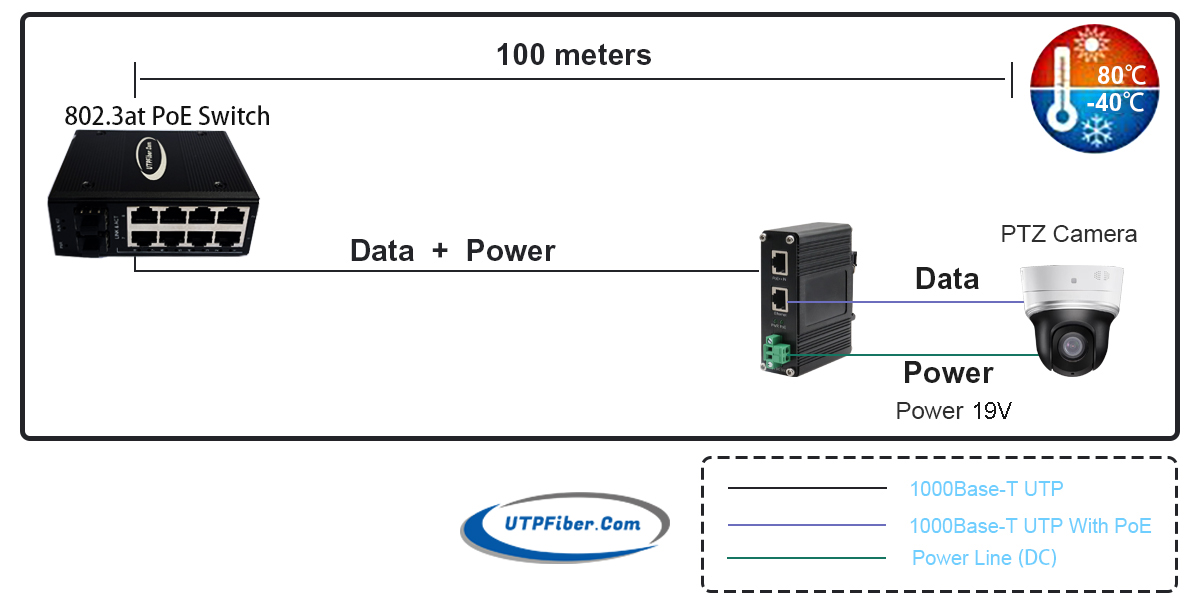

The data transmission, up to Gigabit speeds, with power output voltages of 19VDC, run simultaneously up to the Ethernet limit of 100 meters. With a simple Ethernet cable connected to your PoE+ Switch or injector, this Splitter can give up to 25W to a non-PoE device in tough or industrial environments via your choice of output — a 2-pin terminal block — and still provide a gigabit network connection. It’s a great choice for non-PoE cameras, laptops, and other devices that require a power adapter, and it’s cheaper in both time and money than hiring an electrician.



Industrial Gigabit POE+ Splitter with DC19V, Industrial Network POE+ Gigabit Splitter 19V, Industrial POE+ Splitter Gigabit Ethernet 19V, High Power POE+ Splitter Gigabit Industrial 19V, 19V DC POE+ Splitter Gigabit for Industrial Applications, Gigabit POE+ Splitter with 19V DC for Industrial Use, Industrial Grade POE+ Gigabit Splitter 19V DC, 19V Output Industrial POE+ Splitter Gigabit, Industrial POE+ Ethernet Splitter with 19V Output, Gigabit Ethernet POE+ Splitter Industrial 19V DC, Industrial Ethernet POE+ Splitter 19V, POE+ Gigabit Splitter Industrial 19V, 19V DC Gigabit POE+ Splitter Industrial, Industrial POE+ Gigabit Splitter 19V Output, Gigabit POE+ Splitter Industrial Grade

►     Splits an IEEE 802.3at PoE+ connection into power and Gigabit Ethernet for non-PoE devices

►     One DC output with power up to 19V / 1.32A / 25W via 2-pin terminal block

►     One RJ45 input port up to 30W from an IEEE 802.3at/af-compliant PoE injector or PoE switch (PSE)

►     One RJ45 output port with 10/100/1000 data rates

►     IP40-rated metal housing to withstand harsh industrial conditions

►     Suitable for extreme operating temperatures of -40 to 80ºC (-40 to 176ºF)

►     Option for DIN-rail installation

►     Distance support: up to 100 m (328 ft.)

►     Short-circuit, overload and high-voltage protection

►     ESD protection up to 8 kV (air) and 6 kV (contact)

►     Port surge protection up to 2 kV


Hardware Specifications

Interface

PoE Input Port

1 10/100/1000 BASE-T RJ45

Data Output Port

1 10/100/1000 BASE-T RJ45

DC Out Plug Connector

1 removable 2-pin terminal block

DC output

19VDC output

LED Indicators

PWR (Green)

PoE (Green)

Data Rate

10/100/1000Mbps

Dimensions (L x W x H)

95 x 70 x 30 mm

Weight

260g

Installation

DIN-Rail mountable

ESD Protection

6KV

EFT Protection

6KV

Enclosure

IP40-rated Aluminum Housing

Power Requirements

IEEE 802.3at PoE+

PoE DC 48 ~ 56V

Power Consumption

System on with PoE input

<5 watts

Full loading with maximum

19VDC, 1.32A output

25 watts

Power Output

802.3 at PoE+ input

19VDC, 1.32A (max.)

Network Cable

802.3at 30W PoE+ input

2-pair UTP Cat. 5, 5e, 6, up to 100m (328ft)

Power over Ethernet

PoE Standard

IEEE 802.3at High Power over Ethernet

Power Output

19VDC

PoE Power Supply Type

Mid-span

Power Pin Assignment

4/5 (+), 7/8 (-)

Standards Conformance

Standards Compliance

IEEE 802.3 10BASE-T Ethernet

IEEE 802.3u 100BASE-TX Fast Ethernet

IEEE 802.3ab 1000BASE-T Gigabit Ethernet

IEEE 802.3at Power over Ethernet Plus

Regulatory Compliance

FCC Part 15 Class A, CE

Environment

Operating Temperature

-40~ 80 degrees C

Storage Temperature

-40~ 85 degrees C

Humidity

5 ~ 95% (non-condensing)

  • Download FileName:UF-IPSAT-19V Industrial 802.3at Gigabit PoE Splitter-19V Datasheet V1.0.pdf Size: 817KB

Model

Description

UF-IPSAT-19V

Industrial 802.3at Gigabit PoE Splitter, up to 30W Input, DC outputs with power up to 19V / 1.32A / 25W via 2-pin terminal block

Mounting Options

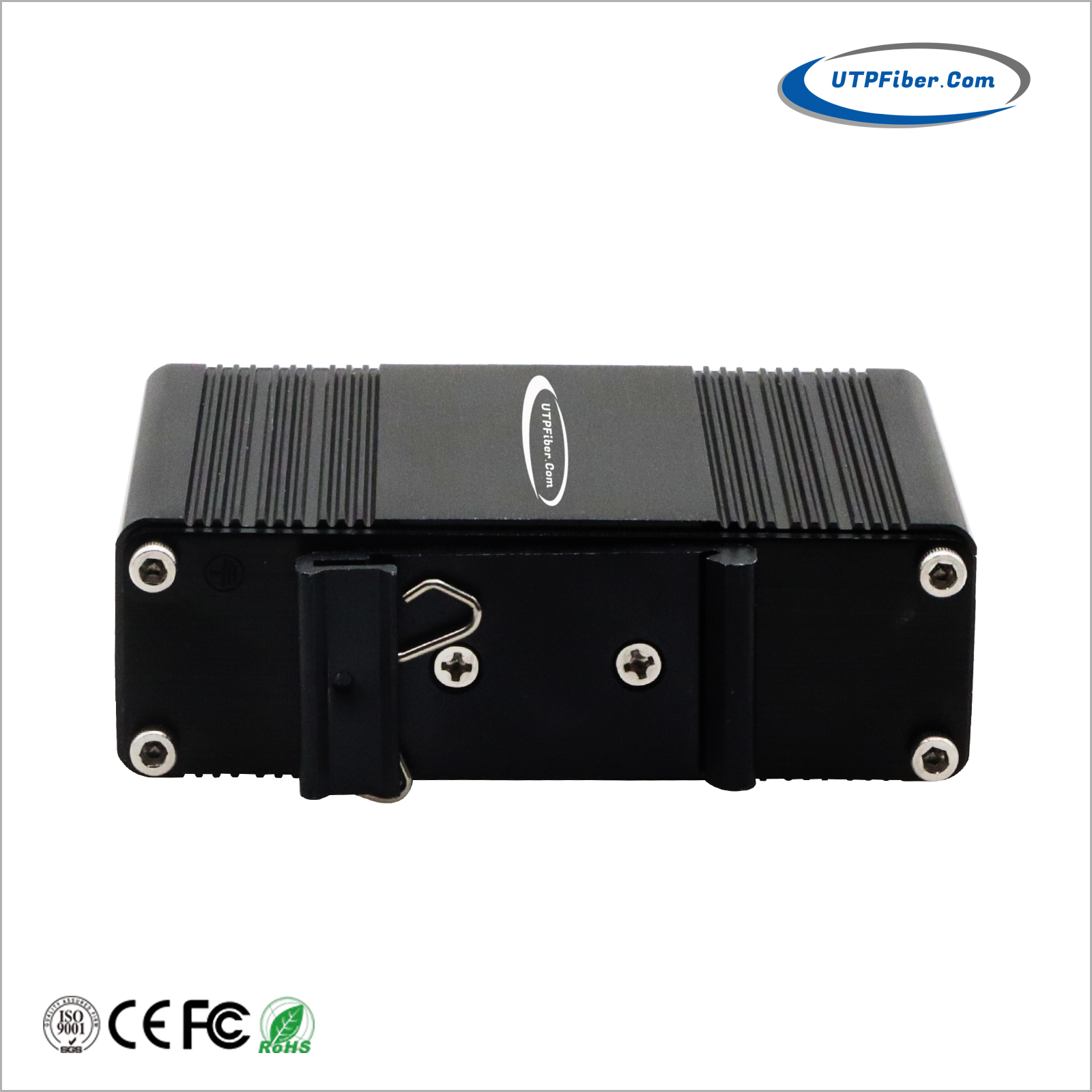

► DIN-Rail Mount Installation
