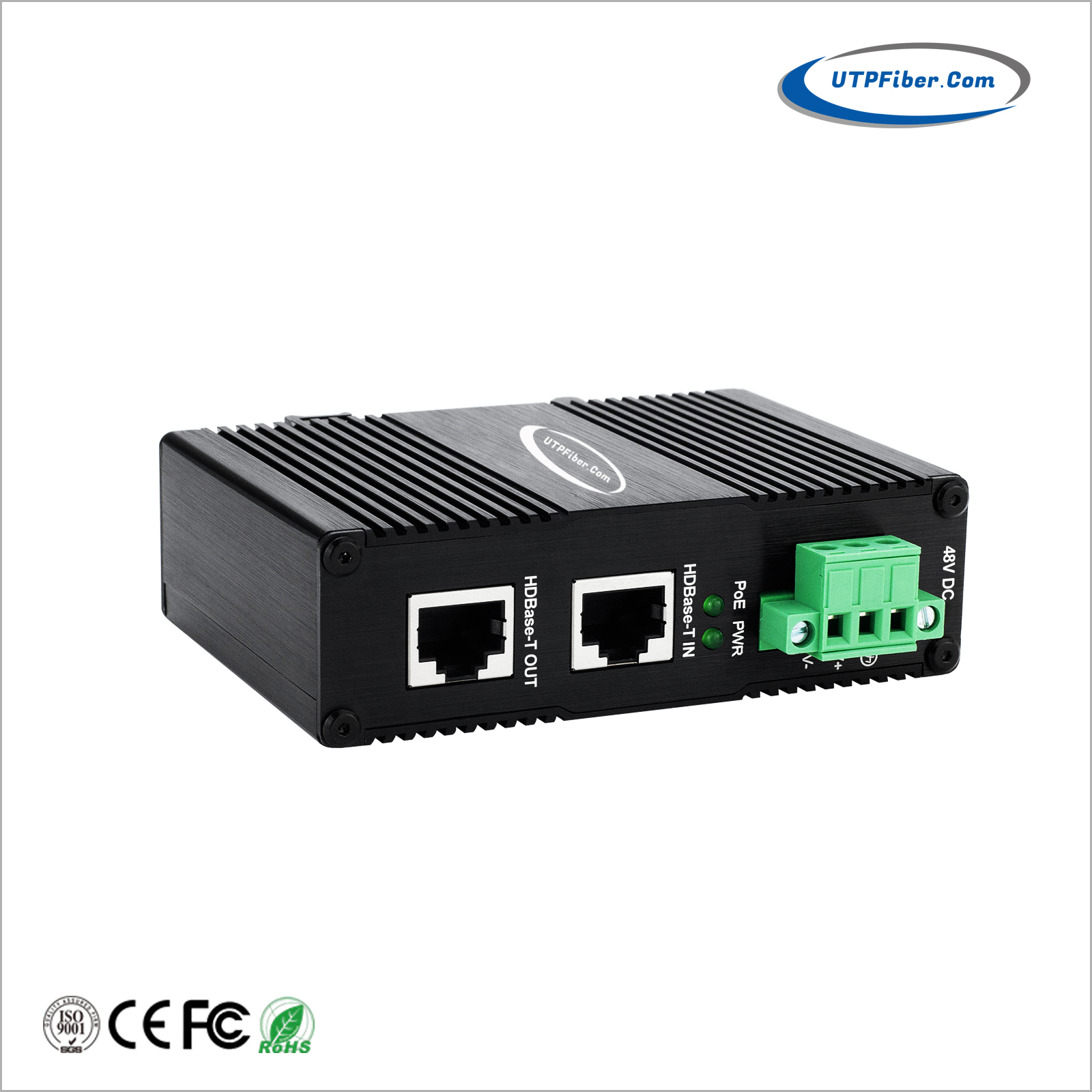

Industrial 10G HDBaseT IEEE 802.3at PoE+ Injector
Model:UF-HDBT-30W
► Supports 4K/UHD signal transmission
► HDBaseT 10.2Gbps bandwidth support
► HDCP 1.x & 2.2 compliant for secure content protection
► Compliant with IEEE 802.3af/at PoE standard
The UF-HDBT-30W HDBaseT Power Injector is designed to provide remote power to HDBaseT-compatible devices, ensuring seamless signal and power transmission in AV installations. When placed between two HDBaseT products, it delivers PoE (Power over Ethernet) or PoH (Power over HDBaseT) in either direction, making it versatile for various setup configurations.
This injector supports the full HDBaseT specification with bandwidth up to 10.2Gbps, ensuring high-performance data transfer for 4K/UHD signals while maintaining compliance with HDCP 1.x and 2.2. Its compact design ensures minimal disruption while providing reliable power injection for professional and consumer-grade AV setups.
► Supports 4K/UHD signal transmission
► HDBaseT 10.2Gbps bandwidth support
► HDCP 1.x & 2.2 compliant for secure content protection
► Compliant with IEEE 802.3af/at PoE standard
► 48-57VDC Power Input
► Compact, discreet enclosure for flexible placement
► Works with PoE & PoH power delivery
► Support DIN-Rail & Wall-mount installation.
► Support 6KV Ethernet ESD protection
► Extensive LED indicators for PoE diagnostics
► Environmentally Hardened -40°C to 80°C (-40°F to 176°F) operating temperature
Ideal for:
- Professional AV installations
- Hobby & education setups
- Low-voltage systems
- Signal processing environments
- Business & consumer electronics
|
HDBaseT/LAN |
|
|
Input: |
1x RJ45 (HDBaseT PoH HDMI & Proprietary Data) |
|
Output: |
1x RJ45 (HDBaseT PoH HDMI & Proprietary Data) |
|
Cabling: |
Cat5e/6/7 Cable |
|
Operation Bandwidth: |
Up to 10.2Gbps |
|
Compliance with HDMI Standard: |
Supports HDMI, HDCP |
|
Total Range |
Up to 100m (328ft) @4K on shielded Kramer HDBaseT cable (or equivalent) |
|
Environmental |
|
|
Operating Temperature: |
-40°C to 80°C (-40°F to 176°F) |
|
Storage Temperature: |
-40°C to 85°C (-40°F to 185°F) |
|
Relative Humidity: |
5% to 95% non-condensing |
|
MTBF: |
>200,000hrs |
|
Electrical and Mechanical |
|
|
Input Power: |
48~57VDC (Terminal Block) |
|
Power Consumption: |
36W Max. |
|
PoE (Power over Ethernet) |
|
|
Standard: |
IEEE802.3af Power over Ethernet |
|
IEEE802.3at Power over Ethernet Plus |
|
|
Port: |
RJ45 |
|
Power Pin Assignment |
4/5(+), 7/8(-) |
|
Max. Power per Port: |
30W Max per port (Alternative B Mode) |
|
LED Indicators: |
|
|
Power: |
Power Status |
|
PoE: |
PoE Status |
|
Dimensions (WxDxH): |
95 x 70 x 30 mm |
|
Weight: |
0.25Kg |
|
Casing: |
Aluminum Case |
|
Mounting Options: |
DIN-Rail / Wall-mount |
|
Regulatory Approvals |
|
|
ISO9001 |
|
|
FCC part 15, Class A |
|
|
EN55022:2006+A1: 2007 Class A |
|
|
Surge Protection: |
|
|
RJ45: 1KV |
|
|
Power: 500V |
|
|
ESD: 4KV/8KV |
|
- Download FileName：UF-HDBT-30W Industrial 10G HDBaseT 30W PoE Injector Datasheet V1.0.pdf Size： 399KB
|
Model |
Description |
|
UF-HDBT-30W |
Industrial 10G HDBaseT IEEE 802.3at PoE+ Injector with 48-57VDC Power Input |
|
Mounting Options |
► Default DIN-Rail Bracket installed; Wall Mount Bracket is included. |
|
Power Options |
► Power Supply is to be purchased separately |
