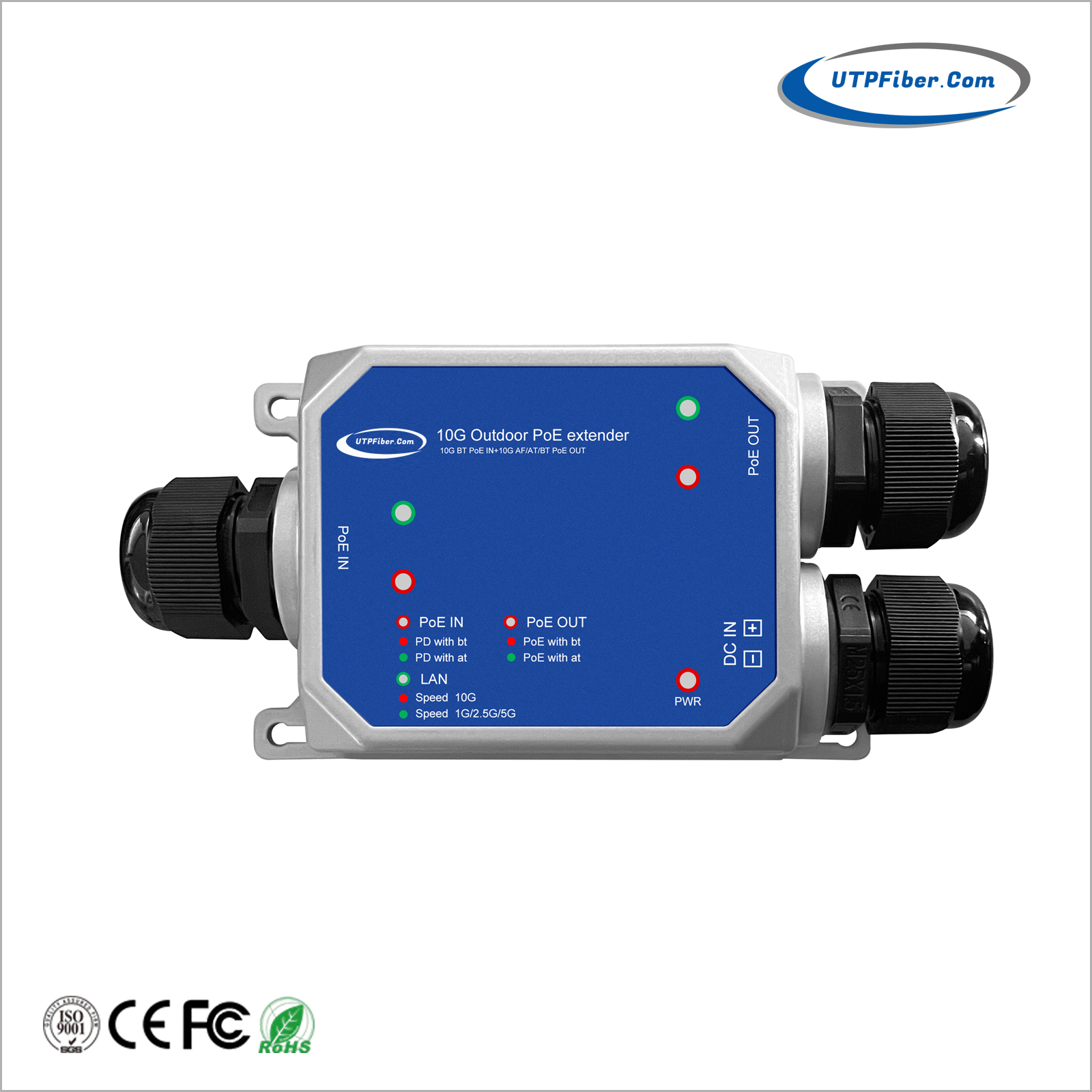

Industrial 10G IP67 Waterproof 1-Port 120W 802.3bt PoE++ Extender with DC Input 37-57V

Model:UF-IWP10GP

► Redundant Power Supplies: Support 802.3bt 120W PoE IN and Passive DC37-57V IN MAX 120W

► PoE OUT supports IEEE802.3af/at/bt, max 90W PoE out

► IP67-rated, dustproof and waterproof

► IK10-rated, vandal-proof

► Supports 10M/100M/1G/2.5G/5G/10G data rates

► Switch fabric of 40 Gbps

► Packet forwarding rate up to 29.75Mpps

上一张

下一张

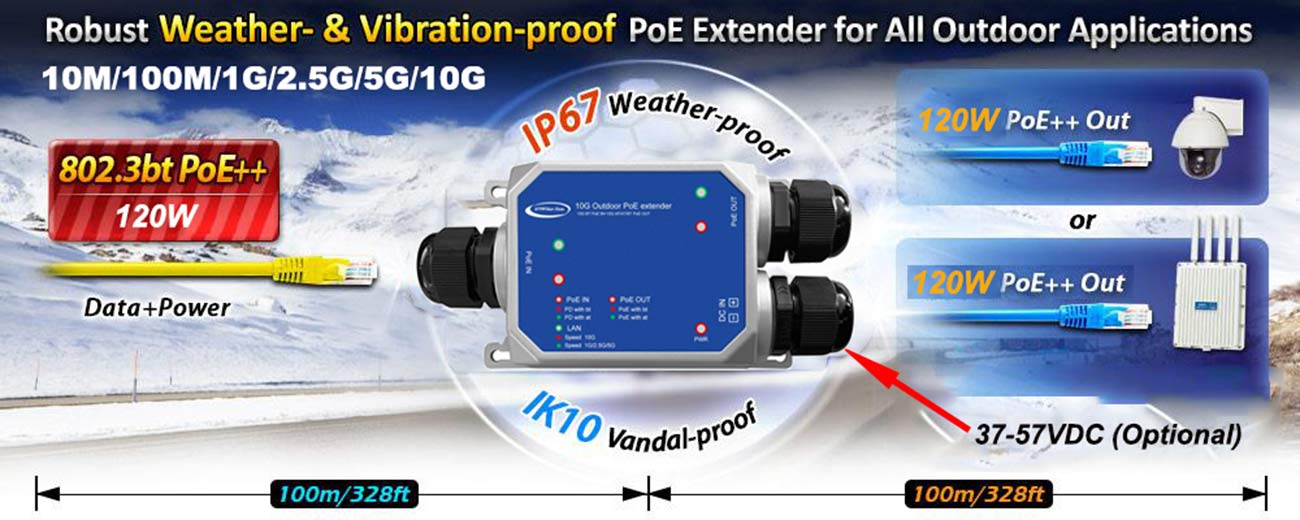

UF-IWP10GP is an industrial 10G IP67-rated 1-port 802.3bt PoE++ to 1-port 802.3bt/at Gigabit PoE Extender with DC Input 37-57V designed especially for point to multipoint PoE application. The UF-IWP10GP can obtain a maximum of 120-watt PoE power from 802.3bt PoE++ input port or 37-57VDC power supply, and its output port can supply a maximum of 90-watt power, extending both the 10 Gigabit Ethernet Data and 802.3bt Power over Ethernet over the UTP cable. The UF-IWP10GP provides a simple solution for adding PoE ports without running more cabling and achieves more flexible network applications without requiring an external power adapter. The UF-IWP10GP is equipped with 2-port 10M/100M/1G/2.5G/5G/10GBase-T auto-negotiation RJ45 connectors and 3 waterproof cable glands for direct-attach applications. Assembled with waterproof cable gland, it can make the general RJ45 connector weather-proof and provides tight and strong connection, and ensures it comes with the industrial protection rating of IP67 capable of withstanding humidity, dirt, dust, shock, vibrations, heat and cold. It offers a cost-effective and quick solution to double the standard range of PoE from 100 to 200 meters.

The UF-IWP10GP is with redundant power supplies to support both 802.3bt 120W PoE IN and Passive DC37-57V IN MAX 120W. Each of the power supplies will have the capacity to run the device on its own, which will allow it to operate even if one goes down. Also it can be used as PoE Injector when using the DC power input only.

► Doubles the maximum connection distance between PoE source and device from 100 m (328 ft.) to 200 m (656 ft.)

► Redundant Power Supplies: Support 802.3bt 120W PoE IN and Passive DC37-57V IN MAX 120W

► PoE OUT supports IEEE802.3af/at/bt, max 90W PoE out

► IP67-rated, dustproof and waterproof

► IK10-rated, vandal-proof

► Supports 10M/100M/1G/2.5G/5G/10G data rates

► Short-circuit, overload and high-voltage protection

► Port surge protection up to 6 kV

► Complies with IEEE 802.3bt PoE++ PSE standard

► One IEEE 802.3at/802.3bt PoE devices powered

► Switch fabric of 40 Gbps

► Packet forwarding rate up to 29.75Mpps

► Mounting holes for wall mounting

► Earthing kit included

Hardware Specifications
Network Connector	PoE in Port
	1 x 10M/100M/1G/2.5G/5G/10GBase-T Ethernet with 802.3bt PoE++ “Data + DC” in
	Auto MDI/MDI-X, auto-negotiation RJ45 connector
	PoE out Port
	1 x 10M/100M/1G/2.5G/5G/10GBase-T Ethernet with IEEE 802.3at/bt PoE++ “Data + DC” out
	Auto MDI/MDI-X, auto-negotiation RJ45 connector
LED Display	PoE in: PoE in BT red LED/ PoE in AT Green LED POE out: PoE out BT red LED/ PoE out AT Green LED Port: LAN link on Green LED、LAN SPEED 10G Red LED PWR: Power LED
Dimensions (W x D x H)	160 x 43 x 43 mm (Product Size)
Dimensions (W x D x H)	170 x 49 x 48 mm (Packing Size)
Weight	210g
Weight	240g(with three waterproof cable glands)
Power Consumption	100 watts / 341.21BTU (Full loading with PoE function)
ESD Protection	Air 8KV DC
ESD Protection	Contact 6KV DC
Surge Protection	6KV
Enclosure	IP67-rated and IK10 aluminum case
Installation	Wall-mount ear
Switching Specifications
Switch Architecture	Store-and-Forward switch architecture
Bandwidth	40Gbps
Packet Forwarding	29.75Mpps
Flow Control	IEEE 802.3x pause frame for full duplex
Flow Control	Back pressure for half duplex
Jumbo Frame	16Kbytes
Power over Ethernet
PoE Standard	PoE in Port
	IEEE 802.3bt PoE++ Type 4 standard PD
	IEEE 802.3bt PoE++ Type 3 standard PD
	IEEE 802.3at PoE+ end-span/mid-span PD
	Per PoE out Port
	IEEE 802.3bt PoE++ end-span/mid-span PSE
PoE IN	Supports IEEE802.3af/at/bt, max 120W PoE in Supports Passive DC37-57V in MAX 120W
PoE IN Port Pin	1/2 (+), 3/6 (-), 4/5 (+), 7/8 (-)
PoE OUT	Supports IEEE802.3af/at/bt, max 90W PoE out
PoE OUT Port Pin	1/2 (+), 3/6 (-), 4/5 (+), 7/8 (-)
PoE Dog	PoE auto execution, detection and resets fault device, when PoE is on
Working Type	1: PoE in 10G----PoE 10G/5G/2.5 out 2: PoE in 10G/5G/2.5----PoE 10G out 3: PoE in 5G----PoE 5G out 4: PoE in 2.5G----PoE 2.5G out 5: PoE in 1G----PoE 1G out
POE in/POE out Transmission Distance	10BASE-T: Cat3,4,5 UTP (≤250 meter) 100BASE-TX: Cat5 or later UTP (150 meter) 1000BASE-TX: Cat6 or later UTP (100 meter) 2500BASE-TX: Cat6 or later UTP (100 meter) 5000BASE-TX: Cat6 or later UTP (100 meter) 10000BASE-TX: Cat6 or later UTP (80 meter)
Standards Conformance
Regulatory Compliance	FCC Part 15 Class A
Regulatory Compliance	CE
Stability Testing	IEC 60068-2-32 (Free fall)
	IEC 60068-2-27 (Shock)
	IEC 60068-2-6 (Vibration)
Standards Compliance	IEEE 802.3 Ethernet
	IEEE 802.3u Fast Ethernet
	IEEE 802.3ab Gigabit Ethernet
	IEEE 802.3bz 2.5G/5GBASE-T
	IEEE 802.3an 10GBASE-T
	IEEE 802.3ae 10Gbps Ethernet
	IEEE 802.3x Flow Control
	IEEE 802.3af Power over Ethernet
	IEEE 802.3at Power over Ethernet Plus
	IEEE 802.3bt Power over Ethernet Plus Plus
Environment
Operating	Temperature: -40 ~ 80 degrees C
Operating	Relative Humidity: 5 ~ 95% (non-condensing)
Storage	Temperature: -40 ~ 85 degrees C
Storage	Relative Humidity: 5 ~ 95% (non-condensing)

Download FileName：UF-IWP10GP Industrial 10G Waterproof 120W PoE Extender Datasheet V1.0.pdf Size： 1010KB

Model	Description
UF-IWP10GP	Industrial 10G IP67 Waterproof 1-Port 120W 802.3bt PoE++ Extender with DC Input 37-57V
Mounting Options	► Wall Mount or Desktop Installation
Power Options	►Requires no additional power supply; draws power directly from the PoE input
