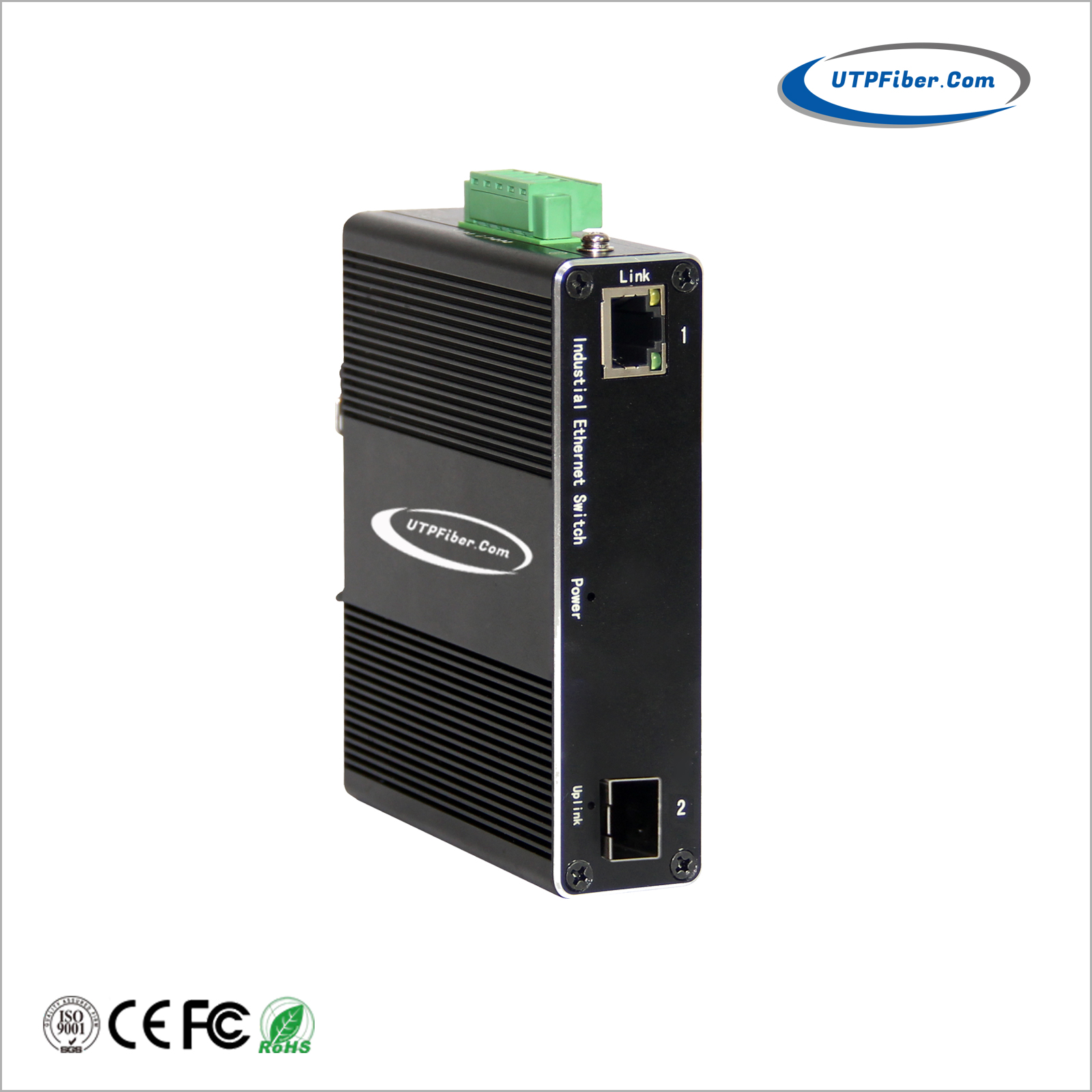

Industrial 1-Port 10/100/1000T to 1-Port 100/1000/2500X SFP Media Converter

Model:UF-IMG-1T1S


►     1-Port 10/100/1000BASE-T RJ45 with auto MDI / MDI-X function

►     1-Port 100/1000/2500X SFP

►     Slim IP40 metal case protection

►     DIN-rail Installation

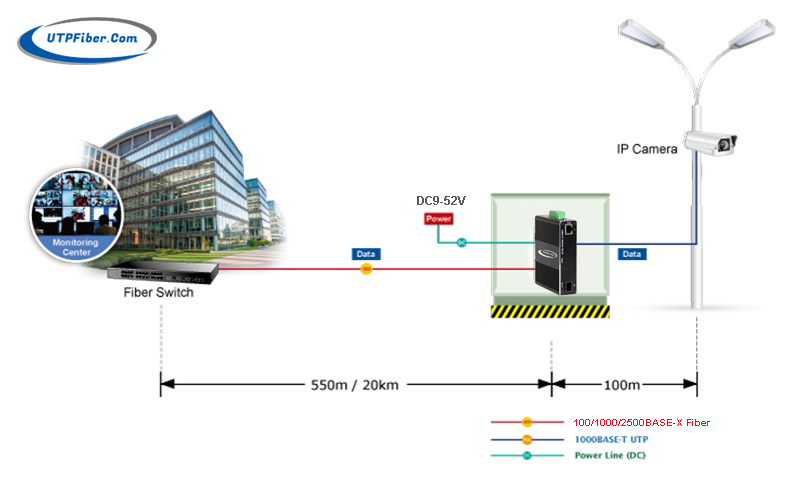

UTP UF-IMG-1T1S is an Industrial Gigabit Media Converter providing non-blocking wire-speed performance and great flexibility for Gigabit Ethernet extension in harsh industrial environment. It is equipped with one 10/100/1000BASE-T RJ45 copper port and one 100/1000/2500BASE-X SFP fiber optic interfaces delivered in an IP40 rugged strong case with redundant power system. The UF-IMG-1T1S is well suited for applications in deploying surveillance system, and securing control and wireless service in climatically demanding environments with wide temperature range from -40 to 80 degrees C.




Industrial 2.5g Fiber Media Converter, Hardened 2.5g SFP Media Converter, Industrial 2.5g SFP Converter, 2.5g SFP Media Converter, GigaPort 100M/1.25 G/2.5 G Fiber Media Converter

►     The products are compatible with mainstream industrial automation protocols, not limited to Modbus TCP, Ethernet/IP, Profinet RT, EthernetCat, etc.

►     Using high-performance chips and the latest industrial design

►     Reliable anti-surge, anti-lightning, anti-electromagnetic interference, anti-vibration, stable and resistant to harsh working environments.

►     Supports redundant DC 9-52V wide voltage and reverse connection protection

►     The wide temperature design is resistant to long-term operation at a temperature from -40℃ to 80℃

►     Long service life, MTBF 300,000 hours, 5-year warranty

►     Din-rail installation (in the control cabinet or directly on the automation equipment)

►     Fan-less design efficient wavy aluminum housing cooling surface, IP40 protection level


Product Introduction

Model No.

UF-IMG-1T1S

Product description

Industrial 1-Port 10/100/1000T to 1-Port 100/1000/2500X SFP Media Converter

Port description

1-Port RJ45 + 1-Port SFP

Ethernet interface

RJ45 Port

1 x 10/100/1000BASE-T

Optical port

1 x 100/1G/2.5GBASE-X SFP

Port Description

 RJ45 port: 10/100/1000BaseT (X) automatic detection, full/half duplex MDI/MDI-X adaptive

Optical port: 100M/1G/2.5GBase-X SFP port

Power Parameters

Power

Connection: 1 removable 5-contact terminal block(s)

Input voltage: DC 9-52V redundant dual inputs support reverse connection protection

LED Indicator

Uplink: Green

Interface indicator:

Left of RJ45: Orange (N/A)

Right of RJ45: Green (Data light)

Standards

Network Protocols

IEEE802.3 10BASE-T

IEEE802.3i 10Base-T

IEEE802.3u 100Base-TX/FX;

IEEE802.3ab 1000Base-T

IEEE802.3z 1000Base-X, 2500Base-X

IEEE 802.3x Full-Duplex Flow Control

Twisted Pair

10BASE-T: Cat3,4,5 UTP (≤100 meter)

100BASE-TX: Cat5 or later UTP (≤100 meter)

1000BASE-TX: Cat6 or later UTP (≤100 meter)

Switch Properties

Processing Type:

Store and Forward

MAC Table Size

4K

Packet Buffer Size

2Mbit

Bandwidth

20G

Switching Delay

10μs

Power Consume

5W

Physical Characteristics

Protection level

IP40

Enclosure

Wavy aluminum alloy

Installation

DIN-rail

Weigh

0.40kg

Dimensions (LxWxH)

115 x 86 x 30mm

Environmental Limits

Working temperature

-4080 (-40176 °F)

Storage Temperature

-40 to 85°C (-40 to 185°F)

Ambient Relative Humidity

5 to 95% (non-condensing)

Standards and Certifications

Safety

EN 62368-1(LVD)

EMI

FCC Part 15 Subpart B Class AEN 55022 Class A

EMS

IEC(EN)61000-4-2(ESD): ±4kV Contact discharge, ±8kV Air discharge

IEC(EN)61000-4-3(RS):10V/m(801000MHz)

IEC(EN)61000-4-4(EFT): power line: ±2kV; data line: ±2kV

IEC(EN)61000-4-5(Surge): power: ±2kV CM/±1kV DM; data: ±1kV

IEC(EN)61000-4-6(RF conduction):3V(10kHz150kHz),10V(150kHz80MHz)

IEC(EN)61000-4-16(Common mode conduction):30V cont. 300V,1s

IEC (EN )61000-4-8

Shock

IEC 60068-2-27

Freefall

IEC 60068-2-32

Vibration

IEC 60068-2-6

MTBF

Time

300 000hrs

Warranty

Warranty Period

5 years

Package Contents

Device

1 x UF-IMG-1T1S Media Converter

Documentation

1 x Quick Installation Guide

1 x Warranty Card


  • Download FileName:UF-IMG-1T1S Industrial 2.5G SFP Media Converter Datasheet V1.0.pdf Size: 707KB

Model

Description

UF-IMG-1T1S

Industrial 1-Port 10/100/1000T to 1-Port 100/1000/2500X SFP Media Converter, not including SFP module, standalone, Support DIN-Rail mounting and installation, not including power supply adapter

SFP Options

► SFP option. Please select your SFP on our SFP Options Page (Industrial SFP).

► SFP module is to be purchased separately.

Mounting Options

► Default DIN-Rail Bracket installed; Wall Mount Bracket is included.

Power Options

►24W/1A 24VDC Power Supply. Open Wire for Terminal Block.

► Power Supply is to be purchased separately.
