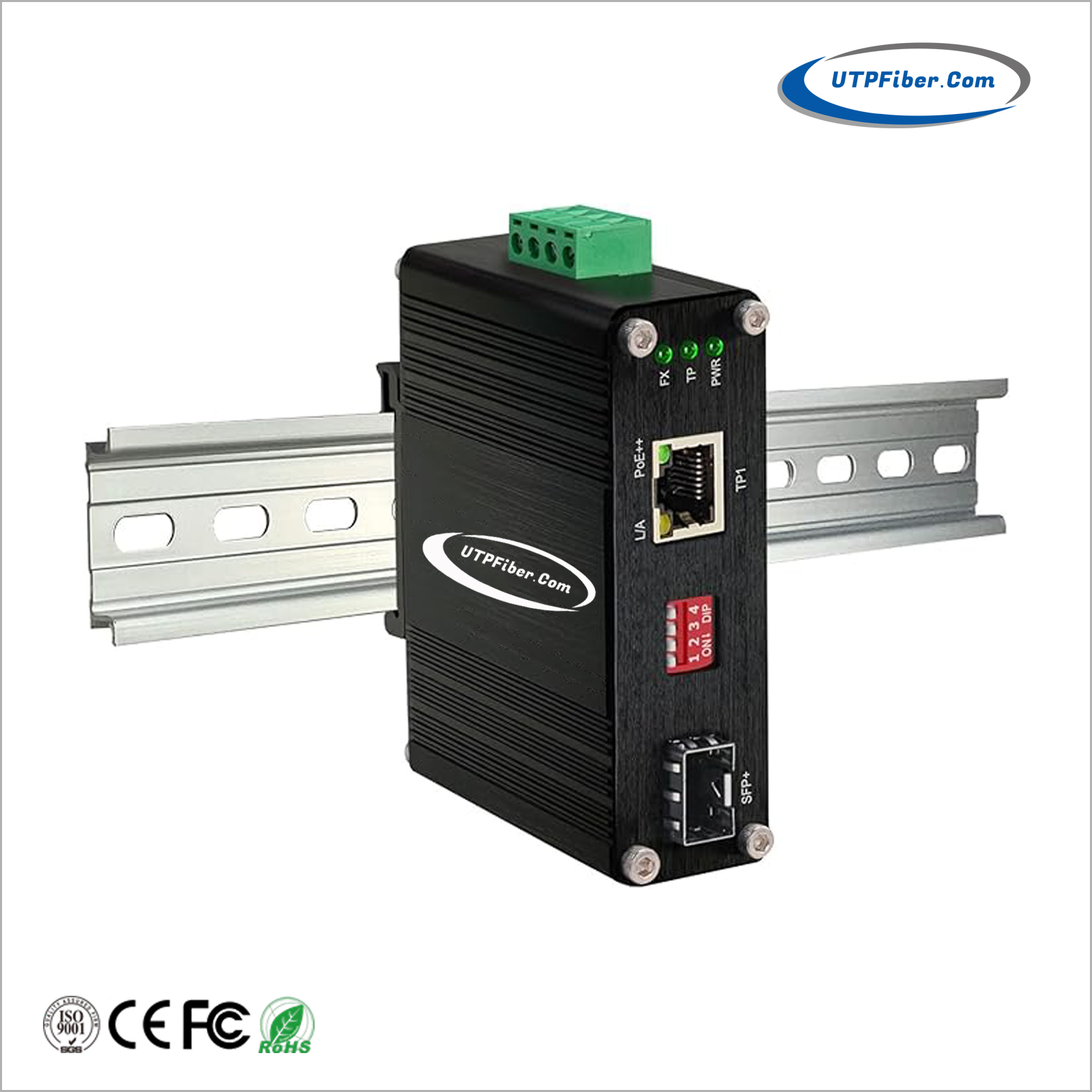

Mini Industrial 1-Port 10G/5G/2.5G/1G/100BASE-T + 1-Port 10GBASE-X SFP+ Media Converter
Model:UF-IES10G-SFP
► 100/1G/2.5G/5G/10G BASE-T RJ45 interface with auto MDI/MDI-X function, 10GBASE-X SFP+ slot interface
► IEEE 802.3u/802.3ab/802.3bz/802.3ae Ethernet standard compliant
► 12~48VDC Terminal Block Power Input
► Supports DIN-Rail & Wall-mount installation
UF-IES10G-SFP is a mini
Industrial-grade 10G Ethernet Media Converter providing non-blocking wire-speed
performance and great flexibility for 10 Gigabit Ethernet extension in harsh
industrial environment. It is equipped with one 100Mbps, 1Gbps, 2.5Gbps, 5Gbps
and 10GBASE-T RJ45 copper interface and one 10GBASE-X SFP+ fiber optic
interface delivered in an IP40 rugged but compact-sized case with redundant
power system.

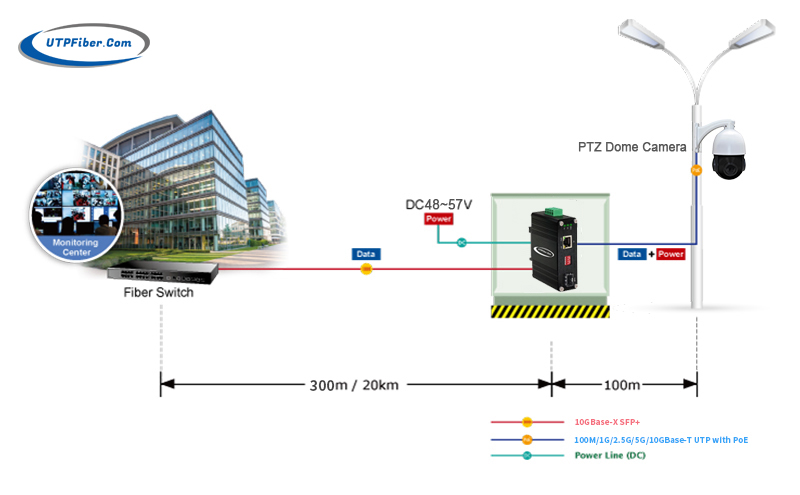

The UF-IES10G-SFP is ideal
for wide applications from copper to fiber media conversion wherever 10Gigabit
bandwidth is required in climatically demanding environments with wide
temperature ranging from -40 to 80 degrees C. The Ethernet port supports both half-duplex and full-duplex mode. Users
can use different type of SFP+ modules (single-mode/multi-mode fiber, 1/2 core)
as needed.
► 100/1G/2.5G/5G/10G BASE-T RJ45 interface with auto MDI/MDI-X function, 10GBASE-X SFP+ slot interface
► IEEE 802.3u/802.3ab/802.3bz/802.3ae Ethernet standard compliant
► Supports auto-negotiation 100Mbps, 1Gbps half/full duplex and 2.5/5/10Gbps full duplex mode
► IEEE 802.3az Energy Efficient Ethernet (EEE) compliant
► Extensive LED indicators for network diagnostics
► 12~48VDC Terminal Block Power Input
► Supports DIN-Rail & Wall-mount installation
► Environmentally hardened -40°C to 80°C
(-40°F to 176°F) operating temperature
|
Ethernet |
|
|
Ports |
1 x 10000/5000/2500/1000/100 BASE-T RJ45 |
|
Pors Mode (Tx) |
Auto Negotiation Speed |
|
Full/Half Duplex Mode |
|
|
Auto MDI/MDI-X Connection |
|
|
Standards |
IEEE 802.3u 100BASE-TX |
|
IEEE 802.3ab 1000BASE-T |
|
|
IEEE 802.3bz 2.5G/5GBASE-T |
|
|
IEEE 802.3an 10GBASE-T |
|
|
IEEE 802.3ae 10Gbps Ethernet |
|
|
IEEE 802.3x full-duplex flow control |
|
|
IEEE 802.3az Energy Efficient Ethernet (EEE) |
|
|
Forward Filter Rate |
100Mbps |
|
1000Mbps |
|
|
2.5Gbps |
|
|
5Gbps |
|
|
10Gbps |
|
|
Transmission Mode |
Store and Forward (full/half duplex mode) |
|
Fabric |
20Gbps |
|
Jumbo Frame |
16K |
|
Address Table |
9K entries, automatic source address learning and aging |
|
Transmission Distance |
|
|
SFP+ Port |
10GBASE-LR/SR/BX: 50/125μm or 62.5/125μm multi-mode fiber optic cable, up to 300m 9/125μm single-mode fiber optic cable, up to 80km |
|
RJ45 Port Transmission Distance |
10G/5G/2.5G/1G/100M BASE-T: 10G – Cat 6A/7 5G – Cat 6/6A/7 1G/2.5G – Cat 5e/6/6A/7 100M – Cat 5/5e/6/6A/7 Cat 5/5e/6/6A/7 UTP cable (100 meters, max.) EIA/TIA-568 100-ohm STP (100 meters, max.) |
|
Power Information |
|
|
Input Power |
12-48VDC |
|
Power Consumption |
5W Max. |
|
Physical Characteristics |
|
|
Housing |
Aluminum case |
|
IP Rating |
IP40 |
|
Dimensions |
95 x 70 x 30 mm |
|
Installation Mode |
DIN-Rail/Wall-mount |
|
Weight |
0.25Kg |
|
Working Environment |
|
|
Operating Temperature |
-40℃~80℃ (-40 to 176 ℉) |
|
Operating Humidity |
5%~95% (non-condensing) |
|
Storage Temperature |
-40℃~85℃ (-40 to 185 ℉) |
|
DIP Switch |
|
|
#1 |
Reserved |
|
#2 |
Reserved |
|
#3 |
Reserved |
|
#4 |
Reserved |
|
Note: DIP Switch’s function can be customized based on client’s requirements. |
|
|
LED Indicator |
|
|
PWR |
Power Status |
|
L/A |
Link/Activity at Ethernet Port |
|
TP |
Ethernet Status |
|
FX |
SFP+ Fiber Port Status |
|
Certification Standard |
|
|
EMC/EMI/EMS |
FCC Part15 Class A |
|
Shock |
IEC60068-2-27 |
|
Vibration |
IEC60068-2-6 |
|
Freefall |
IEC60068-2-31 |
|
Safety |
EN 60950-1 |
|
Package Contents |
|
|
Device |
1 x Mini Industrial 10-Gigabit SFP Media Converter |
|
Installation Kit |
1 x DIN-Rail Kit |
|
Documentation |
1 x Quick installation guide |
|
Warranty |
|
|
MTBF |
＞ 300,000 hours |
|
Defects Liability Period |
5 years warranty, lifetime technical support |
- Download FileName：UF-IES10GP90-SFP Mini Industrial 10G 90W PoE Media Converter Datasheet V1.0.pdf Size： 719KB
|
Model |
Description |
|
UF-IES10G-SFP |
Mini Industrial 1-Port 10G/5G/2.5G/1G/100BASE-T + 1-Port 10GBASE-X SFP+ Media Converter |
|
SFP Options |
► SFP+ option. Please select your SFP+ on our SFP+ Options Page (Industrial SFP). |
|
► SFP+ module is to be purchased separately. |
|
|
Mounting Options |
► Default DIN-Rail Bracket installed; Wall Mount Bracket is included. |
|
Power Options |
► 24W/1A 24VDC Power Supply. Open Wire for Terminal Block |
|
► Power Supply is to be purchased separately. |
