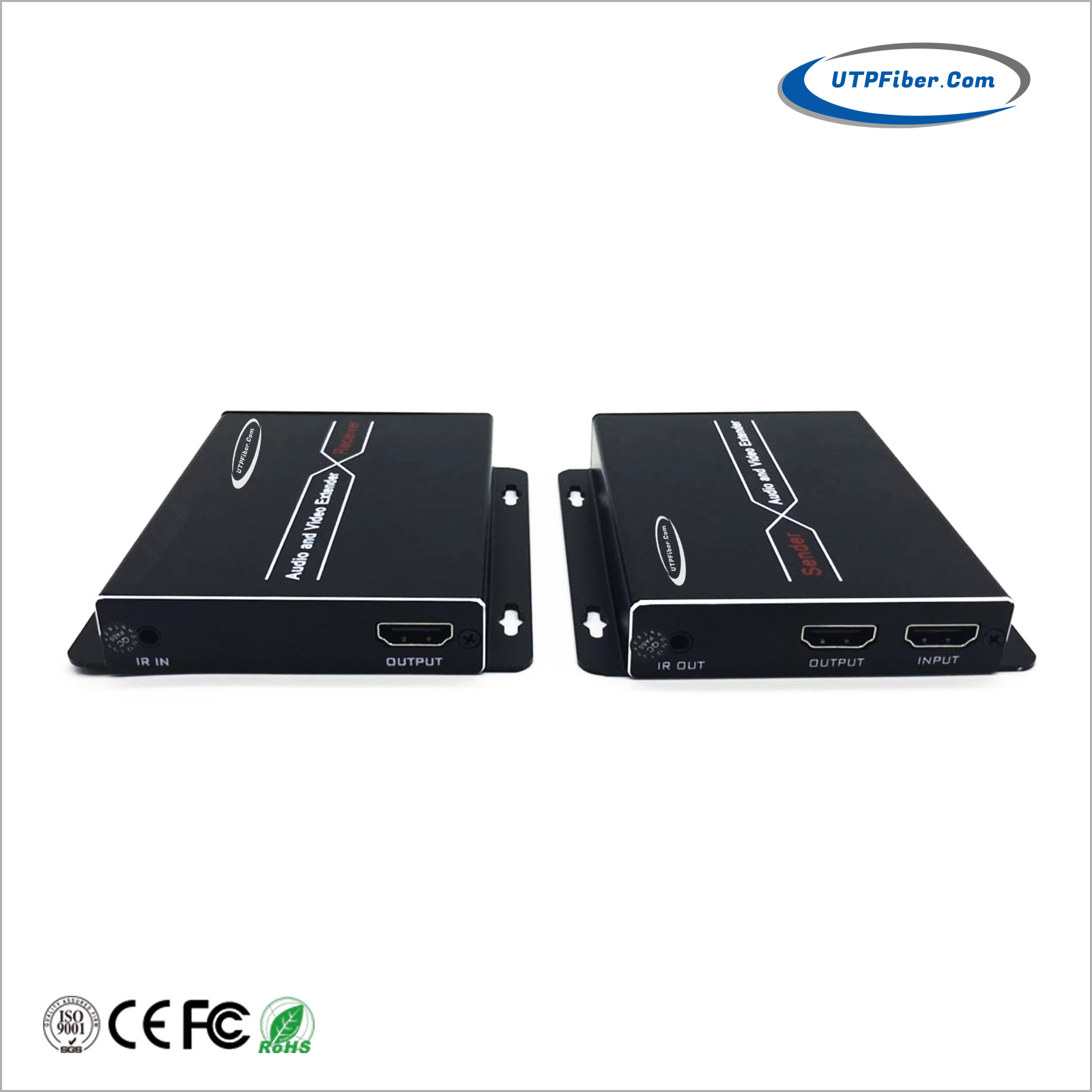

HDMI KVM over TCP/IP Extender with IR and Loop-out - 492 ft (150m)
Model:UF-HDE150K
► Aluminum housing, compact size and slim design
► Distance up to 120m over UTP CAT5E/6 cable.
► Video resolution max up to 1920*1080@60Hz.
► Support keyboard and mouse control
► Support 1 to many receivers’ transmission (1pcs TX connect 253pcs RX over 100M or 1000M Ethernet switch)
► Have a local HDMI loop-out
► Support IR (38khz) signal pass back control

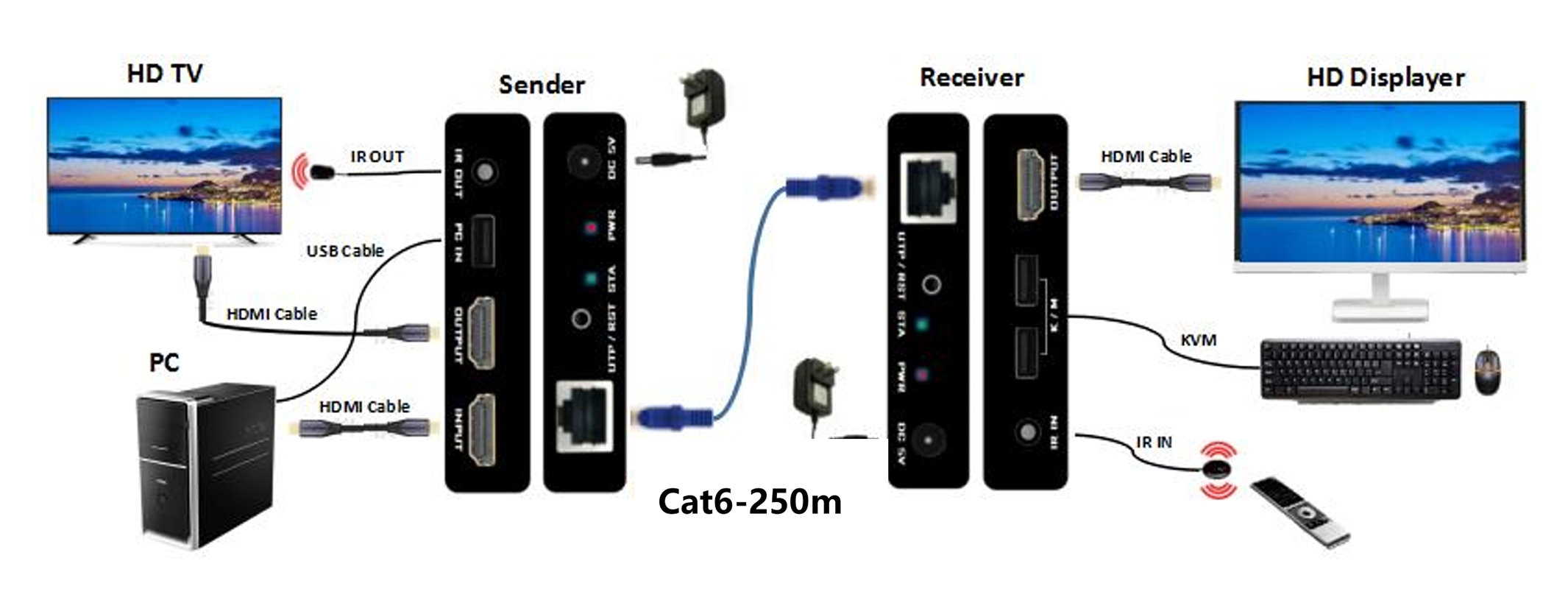

This HDMI KVM Extender includes a transmitter unit (TX) and a receiver unit (RX), working as a pair. It allows for transmission and extension full HD 1080p@60Hz HDMI signal via CAT5e/6 UTP network cable, the transmission distance is up to 120meters; Support point to multi-point over Ethernet switch over IP. It supports keyboard & mouse remote control and local loop-out. At the same time, the signal is stable, and the built-in EDID greatly improves the compatibility of the device. This product is perfect for AV transmission in applications of HD conference system, HD video shooting, HD multimedia education system, HD digital advertising and signage etc.
► Aluminum housing, compact size and slim design, strong anti-interference, wall-mounted type
► Distance up to 120m over UTP CAT5E/6 cable.
► Video resolution max up to 1920*1080@60Hz.
► Support keyboard and mouse control
► Support 1 to many receivers’ transmission (1pcs TX connect 253pcs RX over 100M or 1000M Ethernet switch)
► Have a local HDMI loop-out
► Support IR (38khz) signal pass back control
► HDMI 1.3 and HDCP 1.2 standard
► High compatibility, can auto-match source and display device
► Built-in automatic adjustment system, make the image smooth, clear and stable
► Built-in ESD protection system; Simple to install, plug and play
► TCP/IP Ethernet communication
► Real-Time Video/Audio Transmission over IP
|
Video |
|
|
HDMI Compliance |
HDMI 1.3 |
|
HDCP Compliance |
HDCP 1.2 |
|
Maximum Pixel Clock: |
165MHz Digital |
|
Maximum Data Rate: |
6.75 Gbps |
|
Resolution: |
3D: 1920x1080@60Hz; 1080i@50/60Hz, 720p@50/60Hz, 576i@50Hz, 576p@50Hz, 480i@60Hz, 480p@60Hz |
|
Color Space: |
RGB, YCbCr 4:4:4, YCbCr 4:2:2 |
|
Color Depth: |
10-bit, 12-bit |
|
Audio Formats: |
PCM 2CH, LPCM 5.1, LPCM 7.1, Dolby Digital, DTS 5.1, Dolby Digital+ |
|
ESD Protection: |
Human body model — ±8kV (air-gap discharge) & ±4kV (contact discharge) |
|
Impedance: |
100Ω |
|
Connector: |
HDMI-A [19-pin female] |
|
HDMI Cable: |
Less than 5m at 1080p@60hz |
|
IR Control |
|
|
Interface: |
3.5mm earphone seat |
|
Signal Direction: |
Unidirectional |
|
Signal Type: |
Digital |
|
IR Frequency: |
38kHz |
|
KVM (USB) |
|
|
Interface: |
PC: Standard MINI-USB or PS2 |
|
USB Signal: |
HID Signal |
|
UTP |
|
|
Interface: |
RJ45 (IEEE - 568b connectioN) |
|
Transmission Distance: |
CAT6--- 150m at 1080p@60hz CAT5e--- 120m at 1080p@60hz NOTE: Distance depends on the characteristics and quality of the cables and the type of HDMI source and display. Higher resolutions and longer transmission distances require low-skew cables (<25 ns/100 m) for best performance. We recommend using unshielded solid core CAT6/7 cable. |
|
Network Cable: |
Low resistance and consumption oxygen-free copper core (CAT5e, CAT6, CAT6A or CAT7)-UTP |
|
Environmental |
|
|
Operating Temperature: |
-5°C to 70°C (23°F to 158°F) |
|
Storage Temperature: |
-40°C to 80°C (-40°F to 176°F) |
|
Relative Humidity: |
5% to 95% non-condensing |
|
Storage Humidity: |
5% to 95% non-condensing |
|
Electrical and Mechanical |
|
|
Input Power: |
5V DC, 1A max. |
|
Power Consumption: |
4W max. |
|
LED Indicators |
|
|
PWR: |
Power Status |
|
STA: |
Signal Status |
|
Dimensions (WxDxH): |
100 x 97.5 x 17mm (3.94' 'x 3.84'' x 0.67'') |
|
Weight: |
0.6KG |
|
Casing: |
Aluminum Case |
|
Mounting Options: |
Desktop, Wall Mount |
|
Regulatory Approvals |
|
|
CE, RoHS, FCC |
|
- Download FileName：UF-HDE150K HDMI KVM over TCP,IP Extender with IR and Loop-out 150m Datasheet V1.0.pdf Size： 728KB
|
Model |
Description |
|
UF-HDE150K |
HDMI KVM over TCP/IP Extender with IR and Loop-out - 492 ft (150m) |
|
Mounting Options: |
► Desktop, wall mountable |
|
Power Options: |
► 1A 5VDC Power Supply |
