Optical Fiber

Standards:

IEEE 802.3z, 1000BASE-SX/LX

IEEE 802.3x full-duplex flow control

Flow Control:

Back pressure for half duplex

IEEE 802.3x pause frame for full duplex

Data Rate:

1.25Gbps

Conversion Means:

Cut-Through mode

Transmission Fiber:

Multi mode: 50/125, 62.5/125 or 100/140um;

Single mode: 8.3/125, 8.7/125, 9/125 or 10/125um;

Wavelength:

Single mode: 1300nm, 1310nm, 1550nm;

Multi mode: 1310nm, 1300nm, 850nm;

Optical Port:

Fiber A: 1 x 1000Base-X SFP (Multimode)

Fiber B: 1 x 1000Base-X SFP (Single Mode)

Transmission Distance:

Multi mode: 220m, 550m or 2km;

Single mode: 2-80km.

Environmental

Operating Temperature:

0°C to 55°C (32°F to 131°F)

Storage Temperature:

-10°C to 70°C (14°F to 158°F)

Relative Humidity:

5% to 95% non-condensing

Storage Humidity:

5% to 95% non-condensing

Electrical and Mechanical

Input Power:

5VDC, 1A max.

Power Consumption:

2.5W

LED Indicators

PWR:

Power Status

LINK A:

Port A multimode fiber status

LINK B:

Port B single mode fiber status

Dimensions (LxWxH):

95 x 70 x 26mm

Gross Weight:

230g

Casing:

Iron case

Mounting Options:

Desktop

14-Slot Media converter Chassis installation

Regulatory Approvals

CE, RoHS, FCC

Model

Description

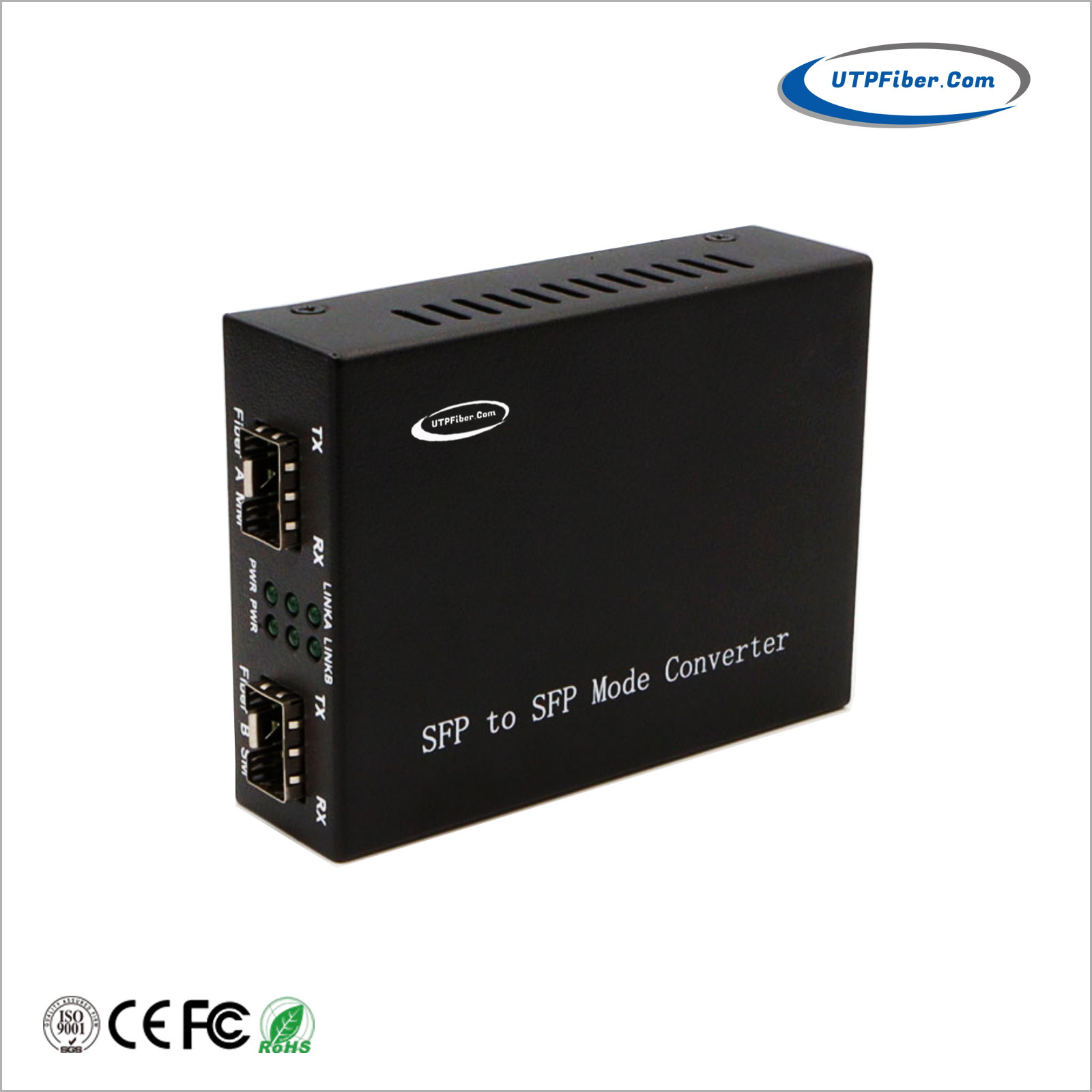

UF-F2F-GSFP

Gigabit SFP to SFP Fiber Mode Converter, supports rate up to 1250Mbps

SFP Options:

► SFP option. Please select your SFP on our SFP Options Page

► SFP module is to be purchased separately.

Mounting Options:

► Desktop, wall mountable (not including wall-mount bracket)

►Media converter Chassis installation

Power Options:

► 1A 5VDC Power Supply
