Ethernet

Standards:

IEEE 802.3, 10BASE-T

IEEE 802.3u, 100BASE-TX/100BASE-FX

IEEE 802.3ab, 1000BASE-T

IEEE 802.3z, 1000BASE-SX/LX

IEEE 802.3x Full-duplex flow control

Flow Control:

Back pressure for half duplex

IEEE 802.3x pause frame for full duplex

Jumbo Frame:

9K

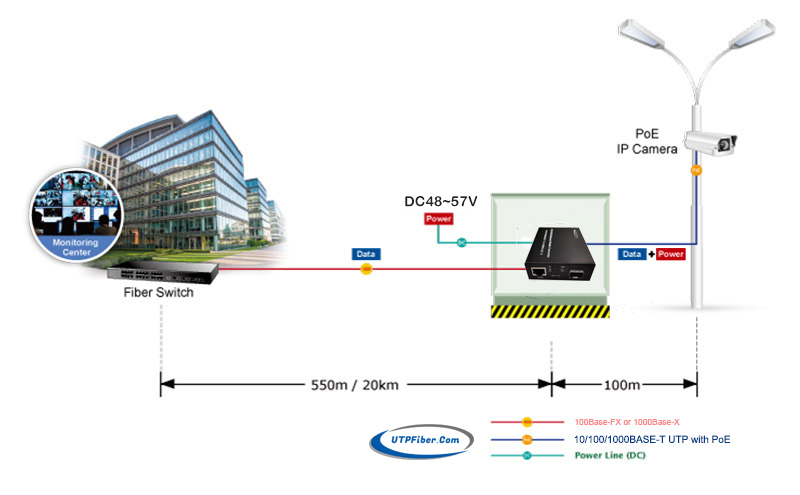

Network Cables:

Twisted-pair

  10BASE-T: 2-pair UTP Cat. 3,4,5, up to 100m

  100BASE-TX: 2-pair UTP Cat. 5, up to 100m

  1000BASE-T: 4-pair STP Cat 5 up to 100m

Fiber-optic Cable

1000BASE-SX:

  50/125μm or 62.5/125μm multi-mode fiber cable, up to 220/550m/2km.

1000BASE-LX:

  9/125μm single-mode cable, providing long distance for 10/20/40/80/120km (vary on SFP module)

Connector:

1 x 10/100/1000BASE-T RJ45

Optical Port:

1x 1000Base-X SFP

Power over Ethernet

PoE Standard

IEEE 802.3at Power over Ethernet Plus standard

IEEE 802.3af Power over Ethernet standard

PoE Output

IEEE 802.3af: PoE 48V DC, max. 15.4 watts, 350mA

IEEE 802.3at: PoE 48~56V DC, max. 30 watts, 650mA

Power Pin Assignment:

1/2(+), 3/6(-)

DIP Switch

#1 LFP

OFF: LFP Disable

ON: LFP Enable

#2 ALS

OFF: ALS Disable

ON: ALS Enable

#3 FX Reset

OFF: FX Reset Disable

ON: FX Reset Enable

#4 FX 100M

OFF: FX 1000M

ON: FX 100M

Notes

1. LFP: Link fault pass through. When enabled, the UTP receiver is passed to the fiber transmitter to make the media converter appear transparent to the connected end devices. It uses link fault pass-through to indicate when far-end fault issues occur. If a fault occurs, the end device indicates a failure for troubleshooting.

2. ALS: Automatic laser shutdown is a procedure to automatically shut down the laser when there is no input light and stop emitting optical signals.

3. FX: Optical Fiber Port

4. FX Reset: When enabled, the PoE will restart if there is no data input to the UTP receiver.

Environmental

Operating Temperature:

0°C to 55°C (32°F to 131°F)

Storage Temperature:

-10°C to 70°C (14°F to 158°F)

Relative Humidity:

5% to 95% non-condensing

Storage Humidity:

5% to 95% non-condensing

Electrical and Mechanical

Power Supply:

52V DC, 0.58A external AC-to-DC adapter

Power Consumption:

4.6 watts (PoE not in use)

36W Max. (PoE in use)

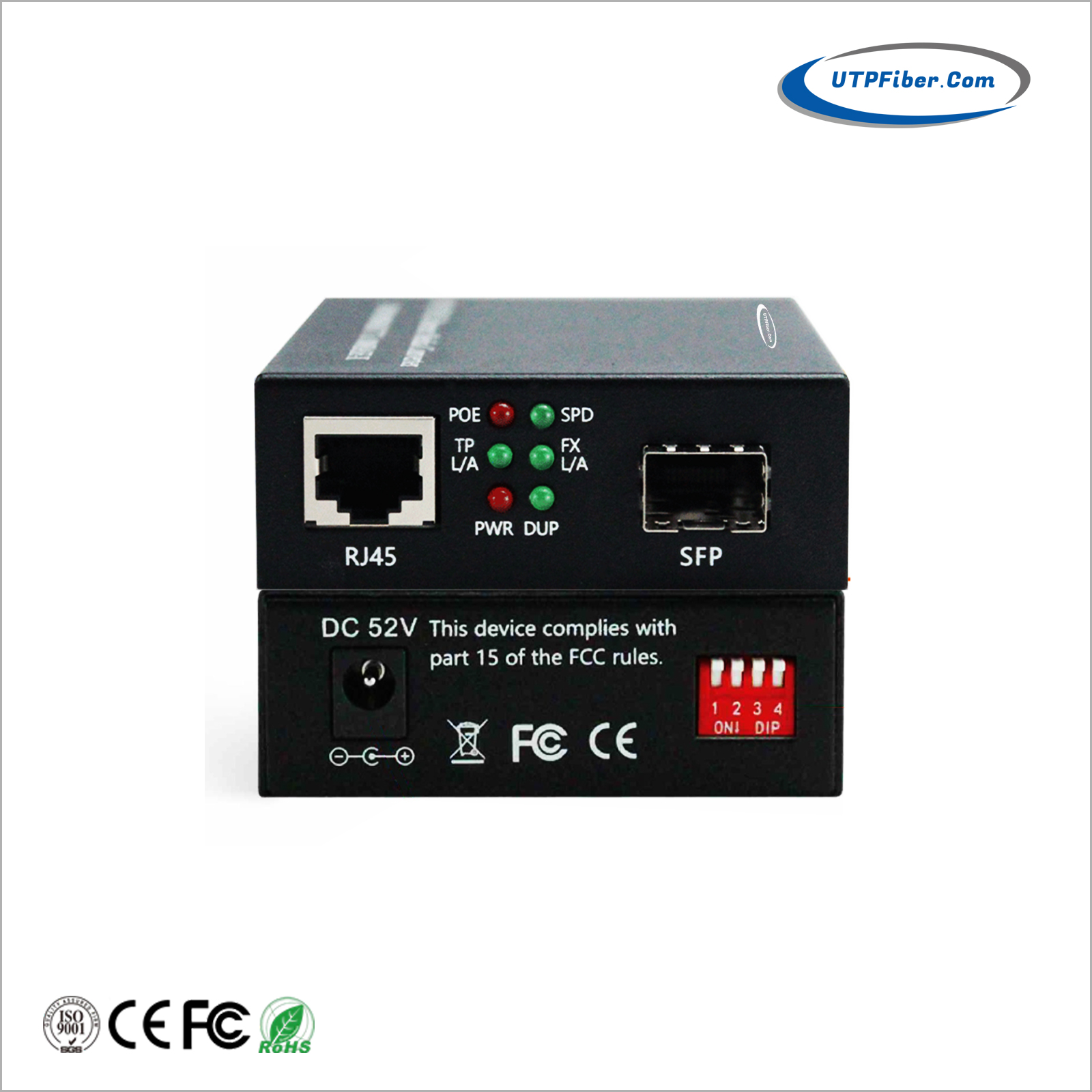

LED Indicators

PWR:

Power Status

POE:

PoE Power

TP L/A

Ethernet Link Status

FX L/A

Fiber Link Status

DUP:

Duplex Mode

SPD:

1000M Ethernet Speed

Dimensions (WxDxH):

94 x 71 x 26mm (1.02''x 2.8''x 3.7'')

Weight:

200g (device only, not including power adapter & power cord)

Casing:

Compact-sized metal case

Mounting Options:

Desktop, wall mountable (wall-mount bracket not included)

Media converter Chassis installation

Regulatory Approvals

CE, RoHS, FCC
