PoE to 5V DC USB Converter w/ PoE Passthrough, 802.3af/at Gigabit PoE Power Splitter and Extender
Model:UF-SPE102G-5VUB

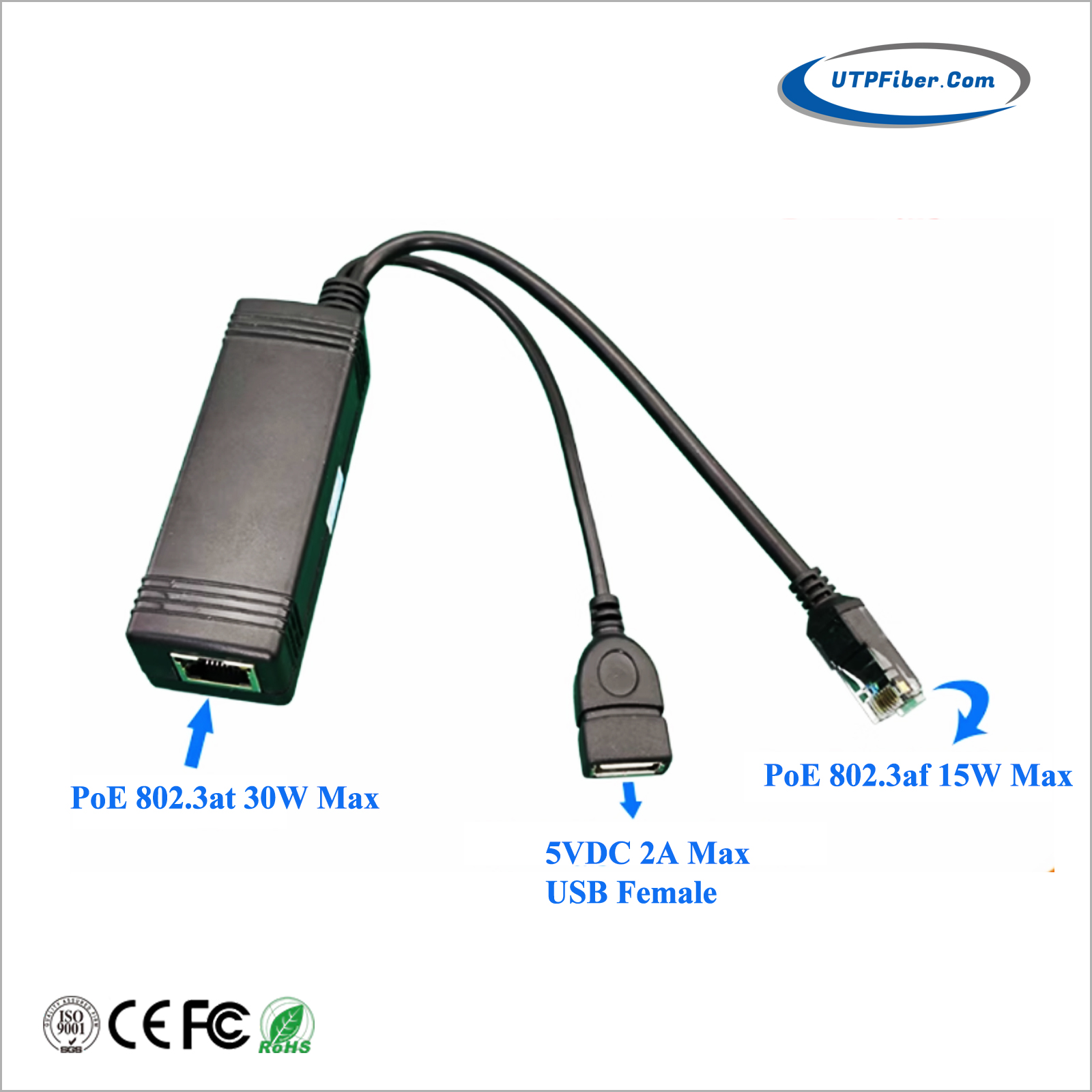

► Converts incoming POE to a 5V DC USB output and a POE output
► Accepts up to 30 watts of active POE Input
► Outputs a maximum of 15 watts of active POE output (802.3af standard)
► Also Outputs a maximum of 2 amps of 5V DC Output
► The POE output also functions as a network extender, extend cable runs by an additional 328 feet (100 meters)
► Ideal for scenarios where you need to power a POE camera along with any 5V DC device simultaneously
The UF-SPE102G-5VUB 5VDC PoE Splitter with PoE Passthrough function converts incoming POE to a 5V DC output and a POE output. Unlike traditional POE splitters that only convert POE to 5V DC and pass through network traffic, the POE splitter not only performs these functions but also passes through POE. This unique feature allows you to power both an IP camera and an additional 5V DC USB device while maintaining network connectivity with speeds up to 1 Gigabit Per Second (10/100/1000).
The UF-SPE102G-5VUB accepts up to 30 watts of active POE Input (802.3at standard). Outputs a maximum of 15 watts of active POE output (802.3af standard). Also Outputs a maximum of 2 amps of 5V DC Output. The splitter consumes a maximum of 3 watts for self-operation while passing through a maximum of 25 watts to be shared between the POE output and the 5V DC Output. The strength of your POE Injector/Switch and Cable Length Runs can cause these performance specifications to vary.
The The UF-SPE102G-5VUB's POE output also functions as a network extender, allowing you to extend cable runs by an additional 328 feet (100 meters) to another downstream POE device. Alternatively, it can be used to daisy-chain to another UTP POE Splitter, providing greater flexibility and reach for your security network.

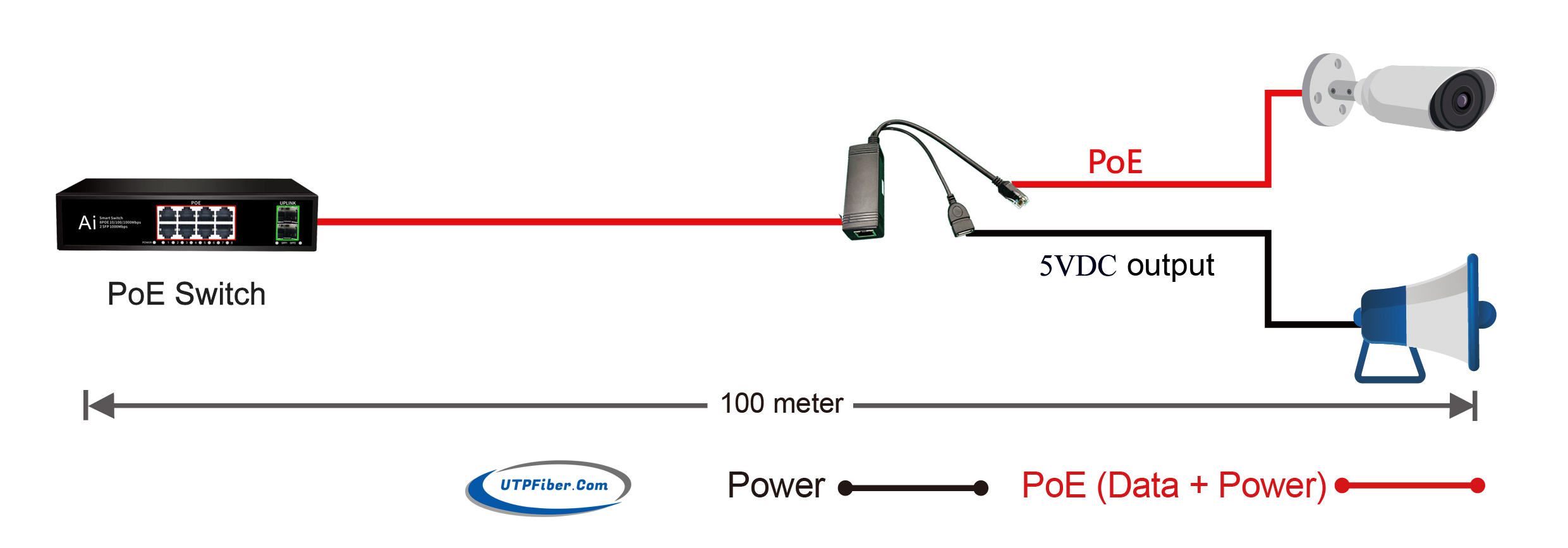

The UF-SPE102G-5VUB is ideal for scenarios where you need to power a POE camera along with any 5V DC device simultaneously. Examples of 5V DC devices include IR illuminators, standard white lights, horns, sirens, and strobes. These devices can be installed next to a POE-powered camera to enhance its functionality. Let your creativity flow and design a setup that meets your specific needs!
► Converts incoming POE to a 5V DC USB output and a POE output
► Accepts up to 30 watts of active POE Input
► Comply to IEEE802.3af/at standard
► Outputs a maximum of 15 watts of active POE output (802.3af standard)
► Also Outputs a maximum of 2 amps of 5V DC Output
► The POE output also functions as a network extender, extend cable runs by an additional 328 feet (100 meters)
► Plug & Play
► Ideal for scenarios where you need to power a POE camera along with any 5V DC device simultaneously
|
Hardware Specifications |
|
|
Interface |
PoE Input Port |
|
1 10/100/1000 BASE-T RJ45 |
|
|
Data Output Port |
|
|
1 10/100/1000 BASE-T RJ45 |
|
|
DC Out Plug Connector |
|
|
1 USB Female Connector |
|
|
DC output |
|
|
5VDC output |
|
|
LED Indicators |
PWR (Green) |
|
PoE (Green) |
|
|
Data Rate |
10/100/1000Mbps |
|
Dimensions (L x W x H) |
90 x 32 x 28 mm (Cable length: 200mm) |
|
Weight |
60g |
|
Installation |
Desktop |
|
ESD Protection |
18KV |
|
EFT Protection |
18KV |
|
Enclosure |
ABS Plastic |
|
Power Requirements |
IEEE 802.3at PoE+ |
|
PoE DC 48 ~ 56V |
|
|
Power Consumption |
System on with PoE input |
|
<3 watts |
|
|
Full loading with maximum |
|
|
5VDC, 2A output |
|
|
30 watts |
|
|
Power Output |
802.3 at PoE+ input |
|
5VDC, 2A (max.) |
|
|
Network Cable |
802.3at 30W PoE+ input |
|
2-pair UTP Cat. 5, 5e, 6, up to 100m (328ft) |
|
|
Power over Ethernet |
|
|
PoE Standard |
IEEE 802.3at High Power over Ethernet |
|
PoE Input |
IEEE 802.3at 30W |
|
Power Output |
IEEE 802.3af 15W |
|
PoE Power Supply Type |
End-span |
|
Power Pin Assignment |
1/2 (+), 3/6 (-) |
|
Standards Conformance |
|
|
Standards Compliance |
IEEE 802.3 10BASE-T Ethernet |
|
IEEE 802.3u 100BASE-TX Fast Ethernet |
|
|
IEEE 802.3ab 1000BASE-T Gigabit Ethernet |
|
|
IEEE 802.3at Power over Ethernet Plus |
|
|
Regulatory Compliance |
FCC Part 15 Class A, CE |
|
Environment |
|
|
Operating Temperature |
-20 ~ +80 degrees C |
|
Storage Temperature |
-40 ~ +85 degrees C |
|
Humidity |
5 ~ 95% (non-condensing) |
- Download FileName：UF-SPE102G-5VUB 5VDC PoE Splitter with PoE Passthrough Datasheet V1.0.pdf Size： 478KB
|
Model |
Description |
|
UF-SPE102G-5VUB |
5VDC PoE Splitter w/ PoE Passthrough: 1x10/100/1000T 802.3at PoE input + 1x10/100/1000T 802.3af/at PoE output +1xUSB DC output (5V) |
|
Mounting Options |
► Desktop |
