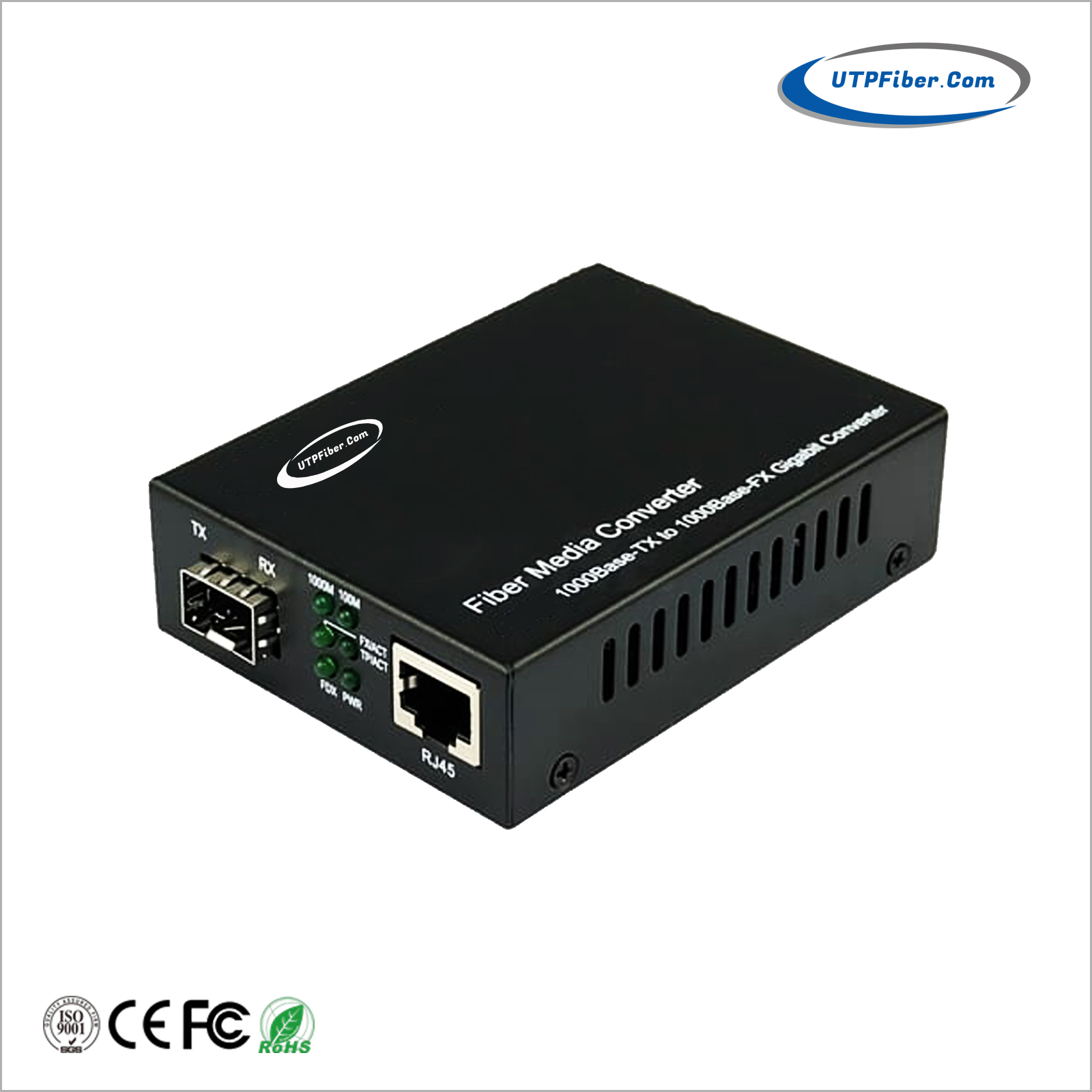

1000BASE-T to 1000BASE-X SFP Gigabit Media Converter
Model:UF-2100SFP
► 1x1000Base-T RJ45 and 1x1000Base-X SFP
► Support 1000Base-FX optical fiber transmission standard
► Support automatic MDI / MDIX without cable selection
► SFP (Small Form Factor Pluggable) optical transceiver module port
The UF-2100SFP Gigabit Straight-Through SFP Media Converter is capable of photoelectric conversion between 1000Base-T and 1000Base-X networks. The product contains one 1000M electrical port and one 1000M optical port, which can meet the needs of users of the Fast Ethernet working group at long distances, high speeds and high bandwidths, and achieve transmission distances up to 80KM (depend on SFP module). The product performance is stable and reliable, and the product design conforms to IEEE802 .3z 1000BaseFX and 1000BaseT standards.
It is especially suitable for various broadband data networks such as telecommunications, cable TV, railways, military, financial securities, customs, civil aviation, shipping, power, water conservancy, oil fields, etc. and the fields that require reliability data or the establishment of a dedicated IP data transmission network. It is the construction of broadband Ideal equipment for campus network, cable TV and intelligent broadband residential fiber to building and fiber to home.
► 1x1000Base-T RJ45 and 1x1000Base-X SFP
► Support 1000Base-FX optical fiber transmission standard
► Support automatic MDI / MDIX without cable selection
► SFP (Small Form Factor Pluggable) optical transceiver module port (SFP
module not included)
► Complete LED status indicator for easy network troubleshooting
► Status LEDs for power and Link/TX for both ports
► External power adapter, 5 VDC

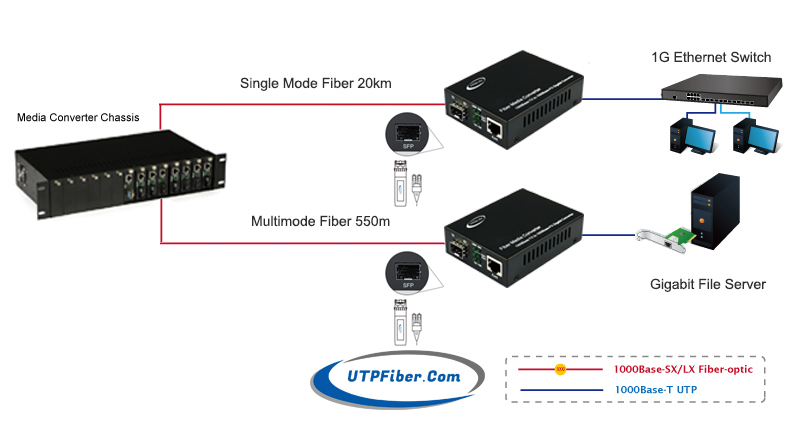

► Functions as a stand-alone converter or can be used with the 14-slot media
converter chassis
► Compact in size, easy installation
|
Hardware Specifications |
|
|
Standards: |
IEEE 802.3ab, 1000BASE-T |
|
IEEE 802.3z, 1000BASE-SX/LX |
|
|
Network Cables: |
Twisted-pair 1000BASE-T: 4-pair STP Cat 5 up to 100m Fiber-optic Cable 1000BASE-SX: 50/125μm or 62.5/125μm multi-mode fiber cable, up to 220/550m/2km. 1000BASE-LX: 9/125μm single-mode cable, providing long distance for 10/20/40/80km (vary on SFP module) |
|
Conversion means |
Media conversion/Pass-through mode |
|
BER |
<10-9 |
|
MTBF |
100,000 hours |
|
Connector: |
1 x 1000BASE-T RJ45 |
|
Optical Port: |
1 x 1000Base-X SFP |
|
Environmental |
|
|
Operating Temperature: |
0°C to 55°C (32°F to 131°F) |
|
Storage Temperature: |
-10°C to 70°C (14°F to 158°F) |
|
Relative Humidity: |
5% to 95% non-condensing |
|
Storage Humidity: |
5% to 95% non-condensing |
|
Electrical and Mechanical |
|
|
Input Power: |
5V DC, 2A max. |
|
Power Consumption: |
4.6 watts/15 BTU (maximum) |
|
LED Indicators |
|
|
PWR: |
Power |
|
SD: |
Fiber port signal detect |
|
Link/ACT FP: |
Fiber port link/action status |
|
1000M: |
UTP port speed 1000M |
|
Link/ACT TP: |
UTP port link/action status |
|
FDX/COL: |
UTP port duplex |
|

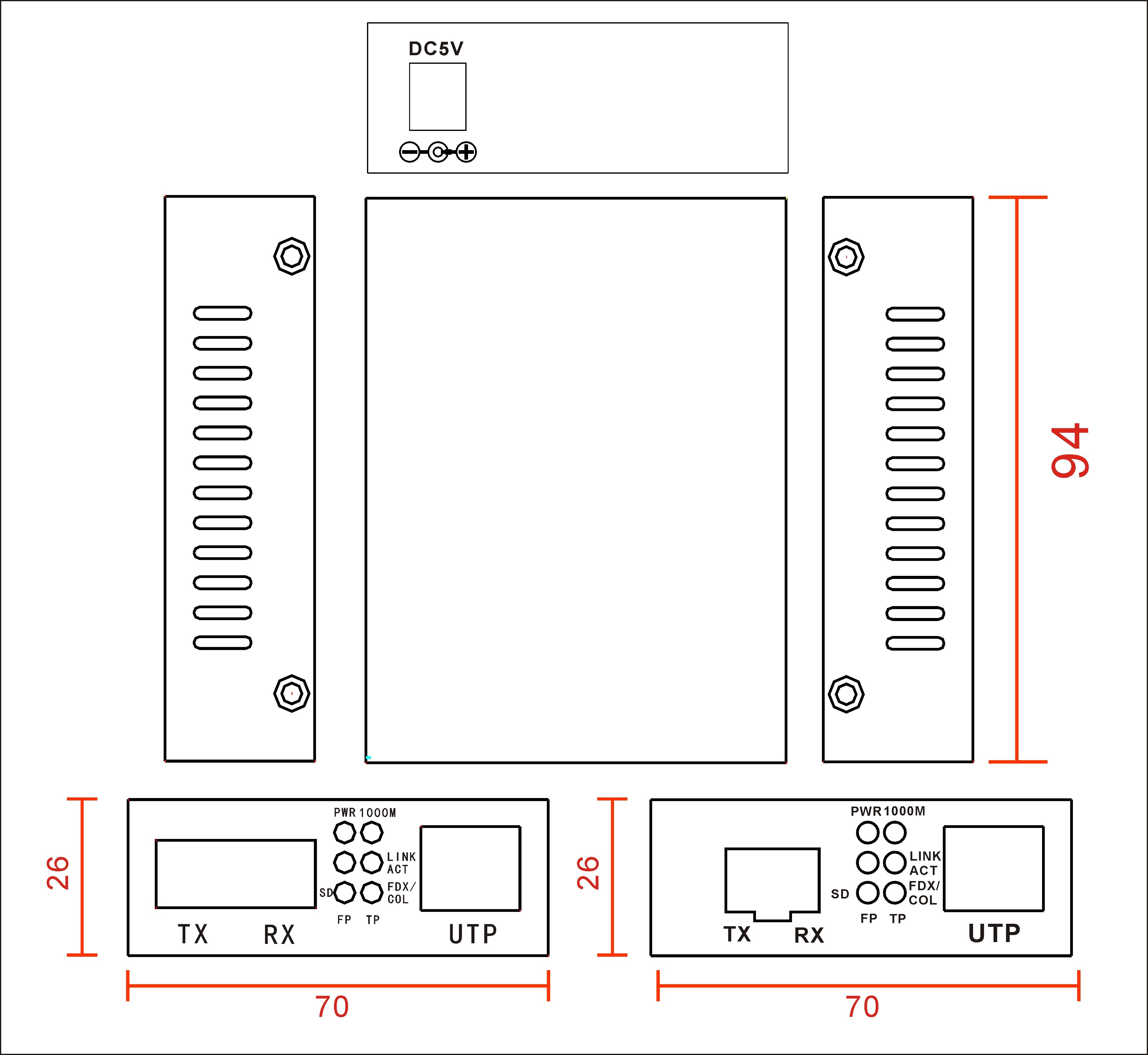

Dimensions (WxDxH): |
94 x 70 x 26mm (1.02''x 2.76''x 3.7'') |
|
Weight: |
160g (device only) |
|
Casing: |
Compact-sized metal case |
|
Mounting Options: |
Desktop, wall mountable Media converter Chassis installation |
|
Regulatory Approvals |
|
|
CE, RoHS, FCC |
|
- Download FileName：UF-2100SFP 1000M SFP Media Converter Datasheet V1.0.pdf Size： 772KB
|
Model |
Description |
|
UF-2100SFP |
1000BASE-T to 1000BASE-X SFP Media Converter |
|
Mounting Options: |
► Desktop ►Media converter Chassis installation |
|
Power Options: |
► 2A 5VDC Power Supply |
