1000BASE-TX to 1000BASE-FX Gigabit Media Converter
Model:UF-2100 Series
► 1x1000Base-TX and 1x1000Base-FX
► Support 1000Base-FX optical fiber transmission standard
► Support automatic MDI / MDIX without cable selection

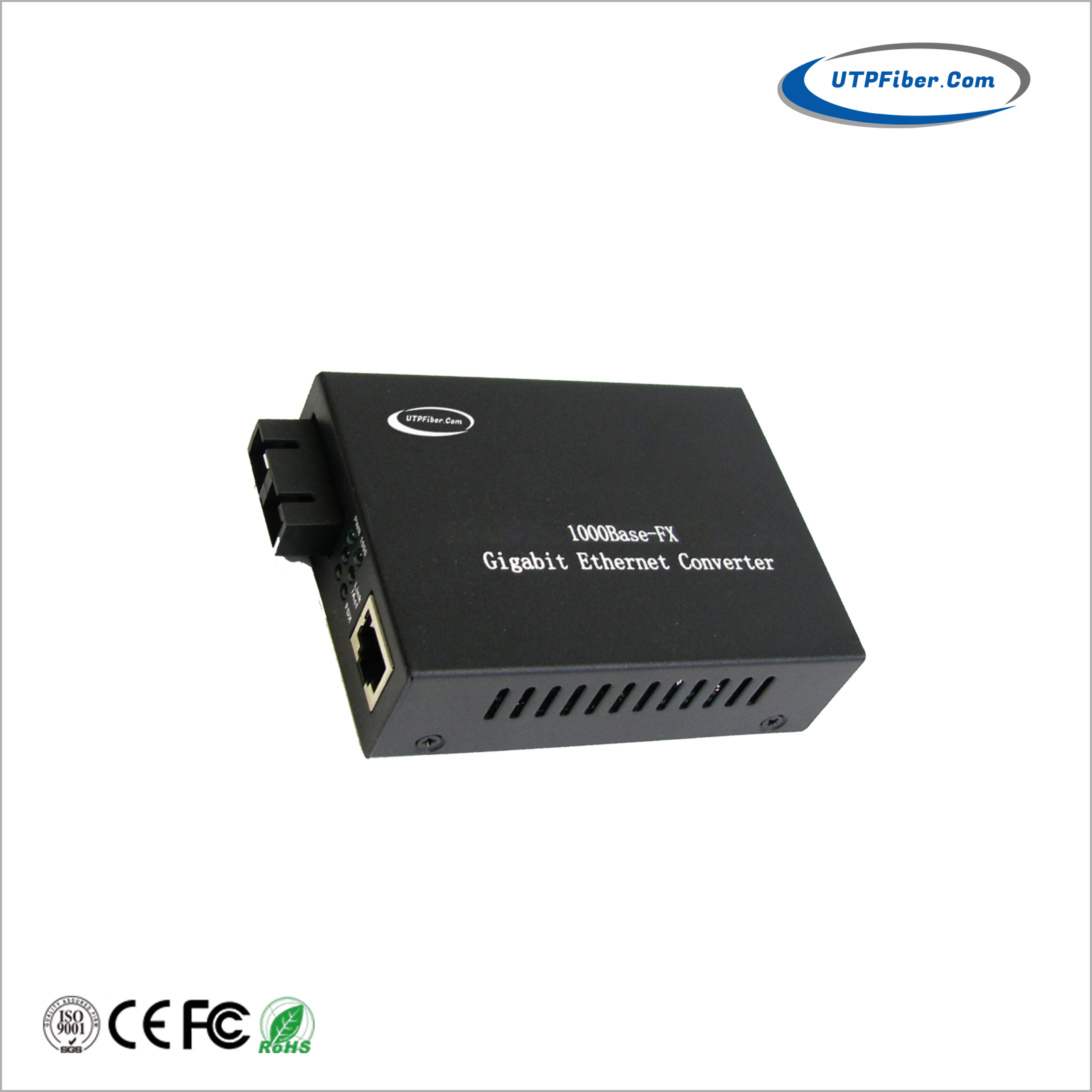

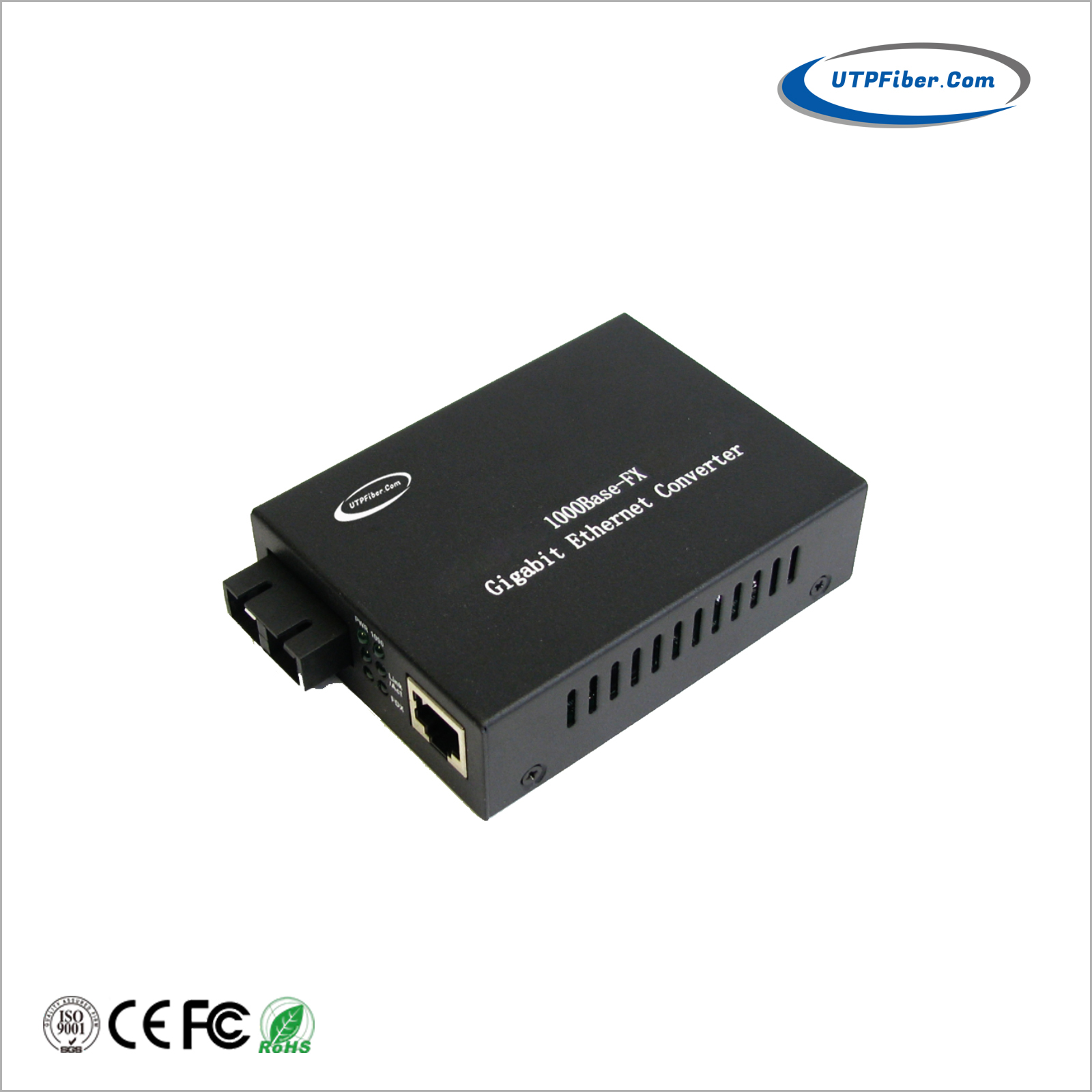

The UF-2100 Gigabit Straight-Through Optical Fiber
Transceiver is capable of photoelectric conversion between 1000Base-TX and
1000Base-FX networks. The product contains one 1000M electrical port and one
1000M optical port, which can meet the needs of users of the Fast Ethernet
working group at long distances, high speeds and high bandwidths, and achieve
transmission distances up to 80KM. The product performance is stable and
reliable, and the product design conforms to IEEE802 .3z 1000BaseFX and 1000BaseT
standards.
It is especially suitable for various broadband data
networks such as telecommunications, cable TV, railways, military, financial
securities, customs, civil aviation, shipping, power, water conservancy, oil
fields, etc. and the fields that require reliability data or the establishment
of a dedicated IP data transmission network. It is the construction of
broadband Ideal equipment for campus network, cable TV and intelligent
broadband residential fiber to building and fiber to home.
► 1x1000Base-TX and 1x1000Base-FX
► Support 1000Base-FX optical fiber transmission standard
► Support automatic MDI / MDIX without cable selection
► The longest transmission distance can reach 80Km
► Complete LED status indicator for easy network troubleshooting
► Wavelength: 850 nm/1310 nm/1550 nm
► Status LEDs for power and Link/TX for both ports
► External power adapter, 5 VDC

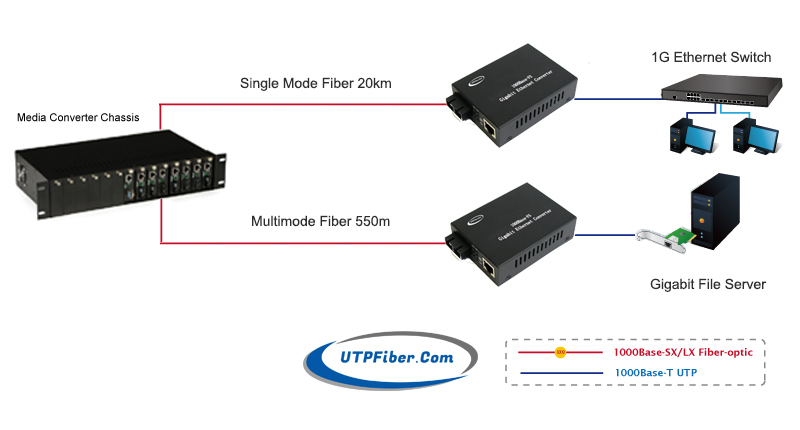

► Functions as a stand-alone converter or can be used with the 14-slot media
converter chassis
► Compact in size, easy installation
|
Hardware Specifications |
|
|
Standards: |
IEEE 802.3ab, 1000BASE-T |
|
IEEE 802.3z, 1000BASE-SX/LX |
|
|
Network Cables: |
Twisted-pair 1000BASE-T: 4-pair STP Cat 5 up to 100m Fiber-optic Cable 1000BASE-SX: 50/125μm or 62.5/125μm multi-mode fiber cable, up to 220/550m/2km. 1000BASE-LX: 9/125μm single-mode cable, providing long distance for 10/20/40/80km |
|
Conversion means |
Media conversion/Pass-through mode |
|
BER |
<10-9 |
|
MTBF |
100,000 hours |
|
Connector: |
1 x 1000BASE-T RJ45 |
|
Optical Port: |
1 x 1000Base-X SC (in default)/ST/FC (Optional) |
|
Environmental |
|
|
Operating Temperature: |
0°C to 55°C (32°F to 131°F) |
|
Storage Temperature: |
-10°C to 70°C (14°F to 158°F) |
|
Relative Humidity: |
5% to 95% non-condensing |
|
Storage Humidity: |
5% to 95% non-condensing |
|
Electrical and Mechanical |
|
|

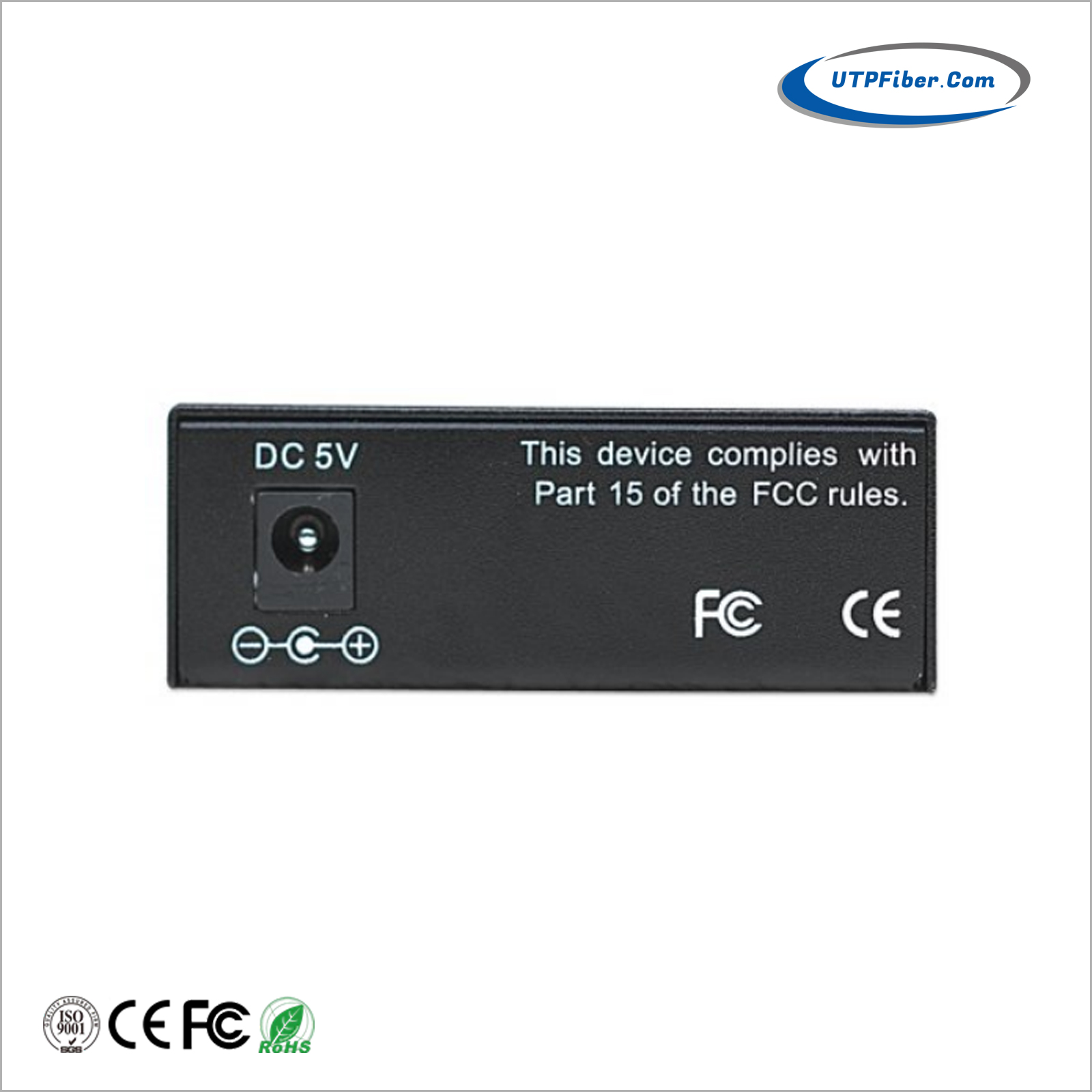

Input Power: |
5V DC, 2A max. |
|
Power Consumption: |
4.6 watts/15 BTU (maximum) |
|
LED Indicators |
|
|
PWR: |
Power |
|
SD: |
Fiber port signal detect |
|
Link/ACT FP: |
Fiber port link/action status |
|
1000M: |
UTP port speed 1000M |
|
Link/ACT TP: |
UTP port link/action status |
|
FDX/COL: |
UTP port duplex |
|
Dimensions (WxDxH): |
94 x 70 x 26mm (1.02''x 2.76''x 3.7'') |
|
Weight: |
180g (device only) |
|
Casing: |
Compact-sized metal case |
|
Mounting Options: |
Desktop Media converter Chassis installation |
|
Regulatory Approvals |
|
|
CE, RoHS, FCC |
|
- Download FileName：UF-2100 1000M Fiber Media Converter Datasheet V1.0.pdf Size： 476KB
|
Model |
Description |
|
UF-2100 |
1000BASE-T to 1000BASE-SX Media Converter (SC, MM) -220/550m |
|
UF-2100T |
1000BASE-T to 1000BASE-SX Media Converter (ST, MM) -220/550m |
|
UF-2100F |
1000BASE-T to 1000BASE-SX Media Converter (FC, MM) -220/550m |
|
UF-2100-20 |
1000BASE-T to 1000BASE-LX Media Converter (SC, SM) -20km |
|
UF-2100T-20 |
1000BASE-T to 1000BASE-LX Media Converter (ST, SM) -20km |
|
UF-2100F-20 |
1000BASE-T to 1000BASE-LX Media Converter (FC, SM) -20km |
|
UF-2100-40 |
1000BASE-T to 1000BASE-LX Media Converter (SC, SM) -40km |
|
UF-2100-80 |
1000BASE-T to 1000BASE-LX Media Converter (SC, SM) -80km |
|
UF-2100-120 |
1000BASE-T to 1000BASE-LX Media Converter (SC, SM) -120km |
|
UF-2100S-20A * |
1000BASE-T to 1000BASE-LX (WDM TX:1310nm, SC, SM) Gigabit Media Converter -- 20km |
|
UF-2100S-20B * |
1000BASE-T to 1000BASE-LX (WDM TX:1550nm, SC, SM) Gigabit Media Converter -- 20km |
|
Remarks * |
UF-2100S-20A and UF-2100S-20B should run in pair. It means you must connect UF-2100S-20A to one end while UF-2100S-20B to the other end. |
|
Mounting Options: |
► Desktop, wall mountable ►Media converter Chassis installation |
|
Power Options: |
► 2A 5VDC Power Supply |
