DWDM Mux Demux Module

Model:UF-DM Series

Wide Pass Band
Low Insertion Loss
High Channel Isolation
High Stability and reliability

上一张

下一张

Shenzhen UTP Fiber Technology Co., Ltd. (hereinafter “UF”) DWDM technology provides the flexibility to increase capacity of existing fiber infrastructure by enabling multiple channels/wavelengths over the same fiber cabling. Each channel carries data independently from each other, allowing network designers to transport different data rates. It's protocol and rate transparent supporting such applications as 1G/10G Ethernet, SDH/SONET and 8/4/2/1G Fiber Channel across the same fiber link.

Low Insertion Loss
High Isolation
Low PDL
Compact Design
Good channel-to-channel uniformity
Wide Operating Wavelength: From 1460nm to 1620nm
Wide Operating Temperature: From -40℃ to 85℃
High Reliability and Stability
Telcordia GR-1209-CORE-2001
Telcordia GR-1221-CORE-1999
RoHS

For installation in horizontal patch extension
High Density Fiber Management
Telecommunications networks and Broadband
DWDM System
PON Networks
CATV Links

Parameters
Channel Space (GHz)		100			200
Channel Number		1*4	1*8	1*16	1*4	1*8	1*16
Center Wavelength (nm)		ITU Grid
Center Wavelength Accuracy (nm)		± 0.05			± 0.1
Channel Passband (@-0.5dB) (nm)		0.22			0.5
Fiber Type		SMF-28e with 900um loose tube or customer specified
IL (dB)		1.8	3.0	4.0	1.7	2.9	3.8
Passband Ripple (dB)		0.35	0.4	0.5	0.35	0.4	0.5
Isolation (dB)	Adjacent Channel	25			28
	Non-Adjacent Channel	40
PDL (dB)		0.2
PMD (ps)		0.1
RL (dB)		45
Directivity (dB)		50
Maximum Optical Power (mw)		300
Operating Temperature (℃)		-40~85
Storage Temperature (℃)		-40~85

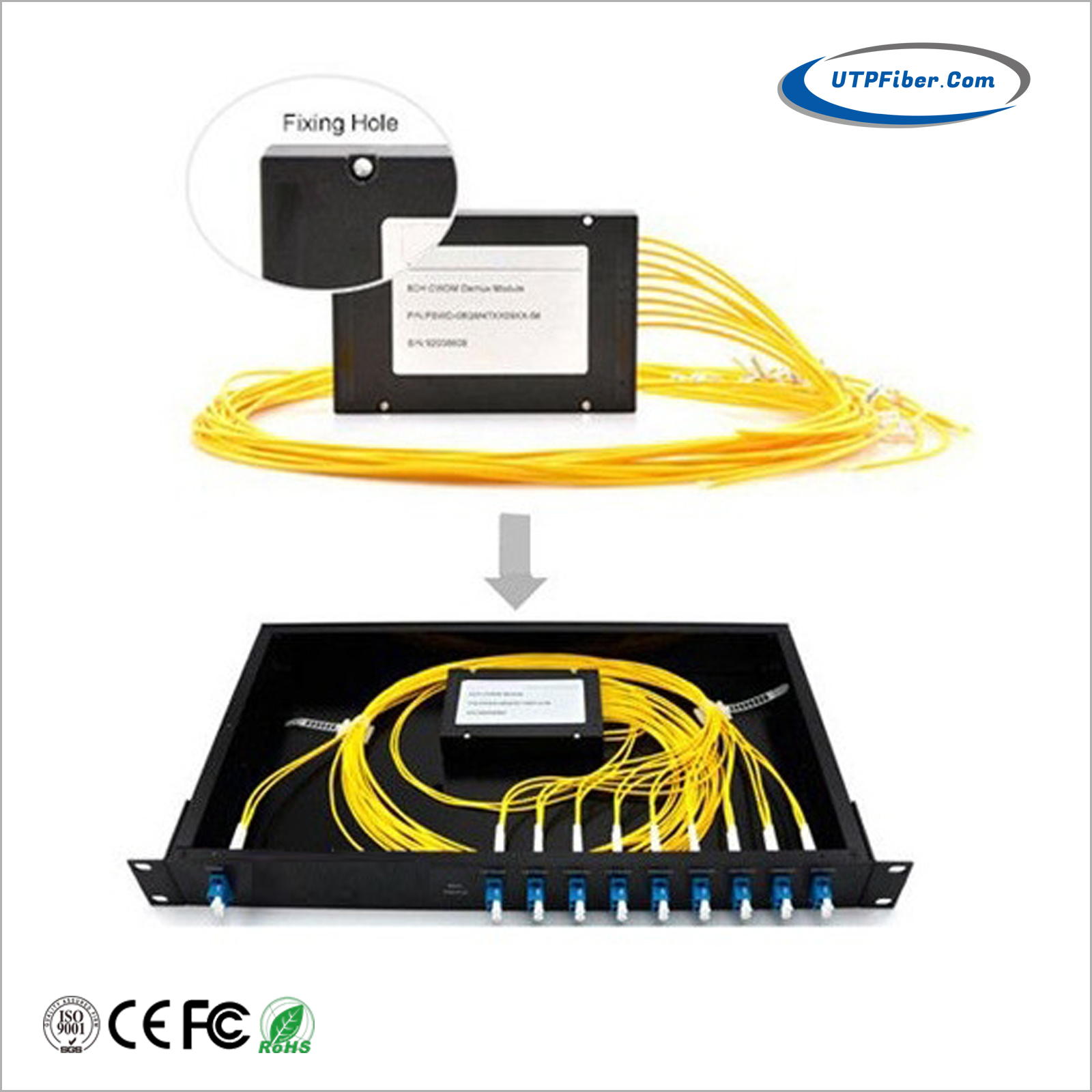

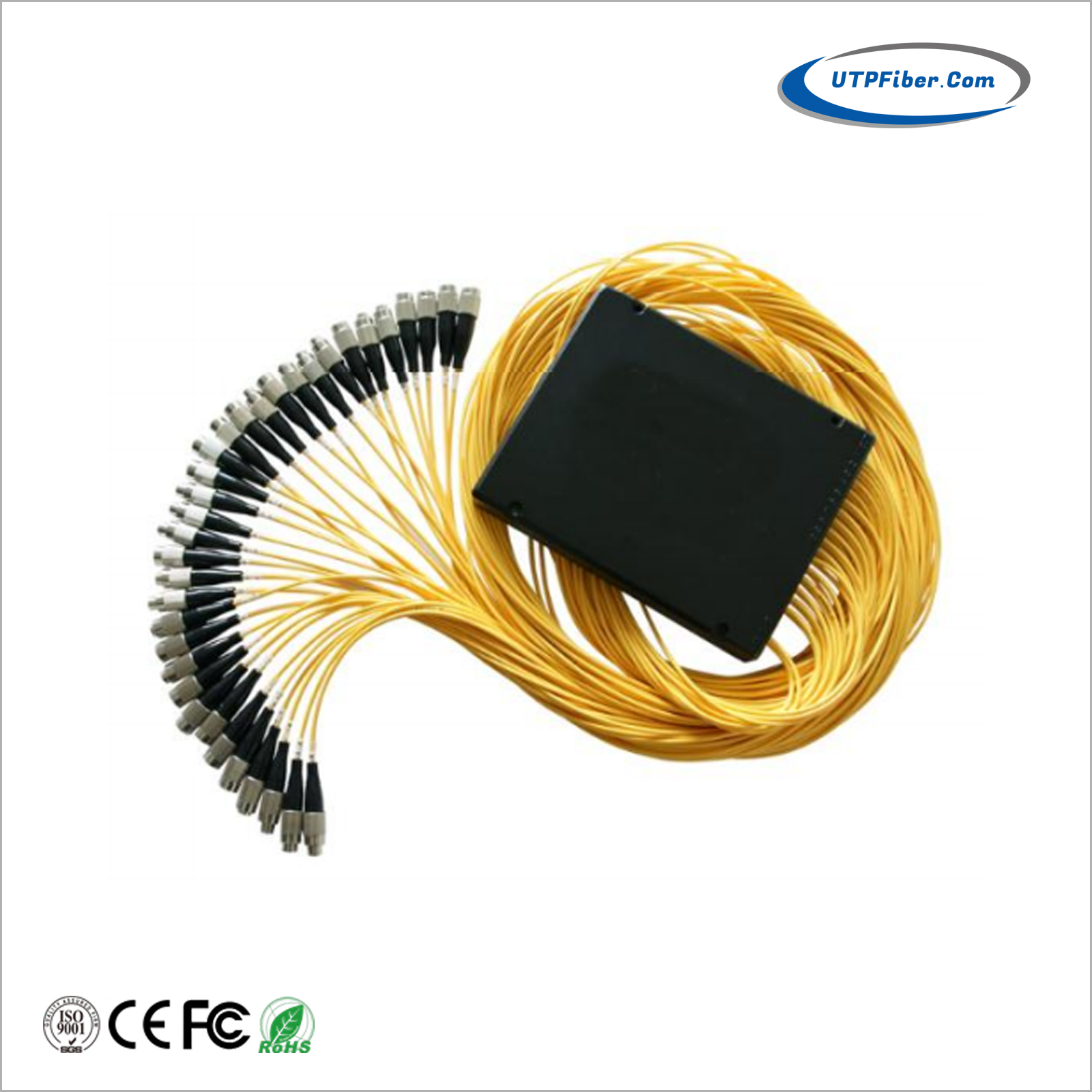

BOX Package (mm)		1008010 or 14011518

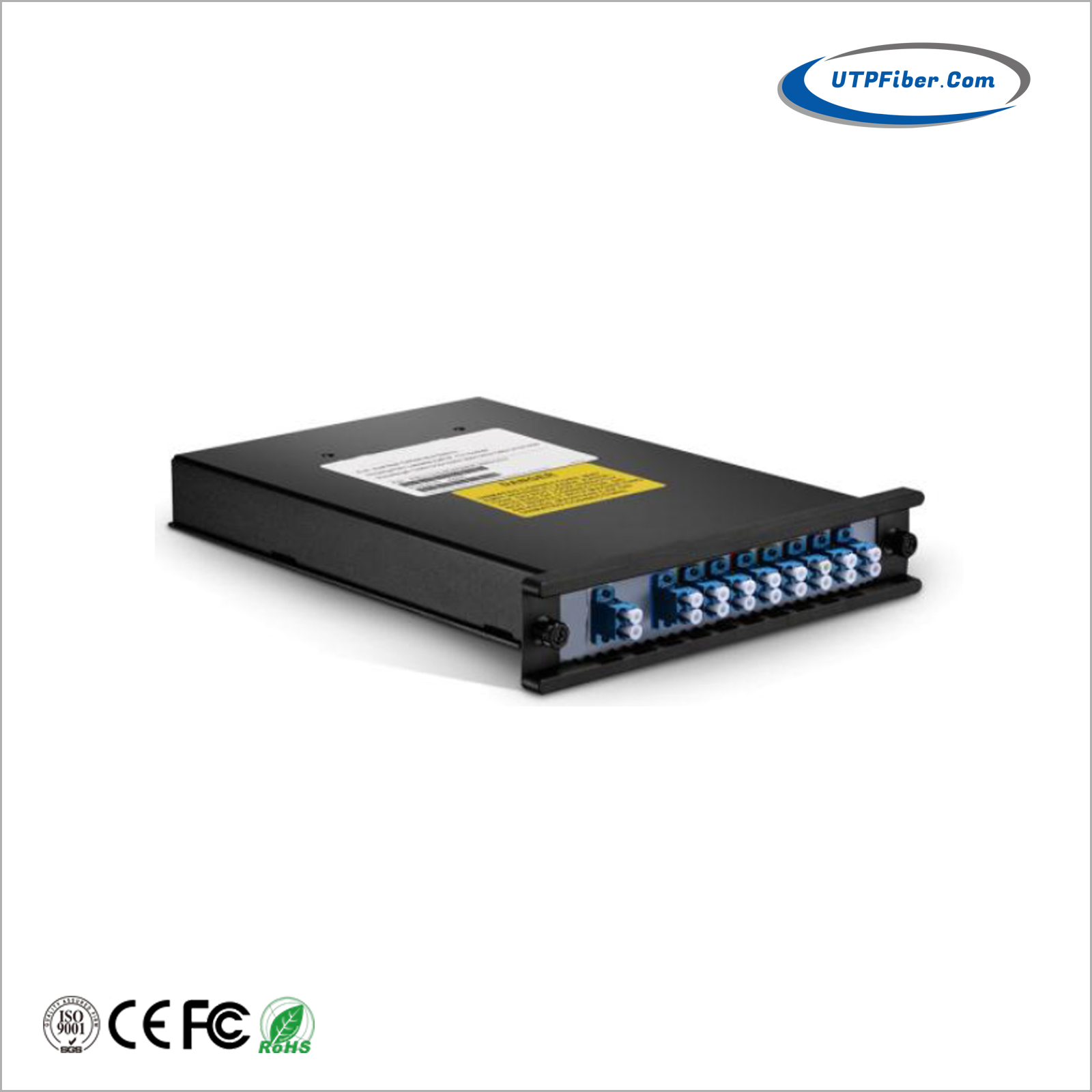

LGX Package		1U,2U

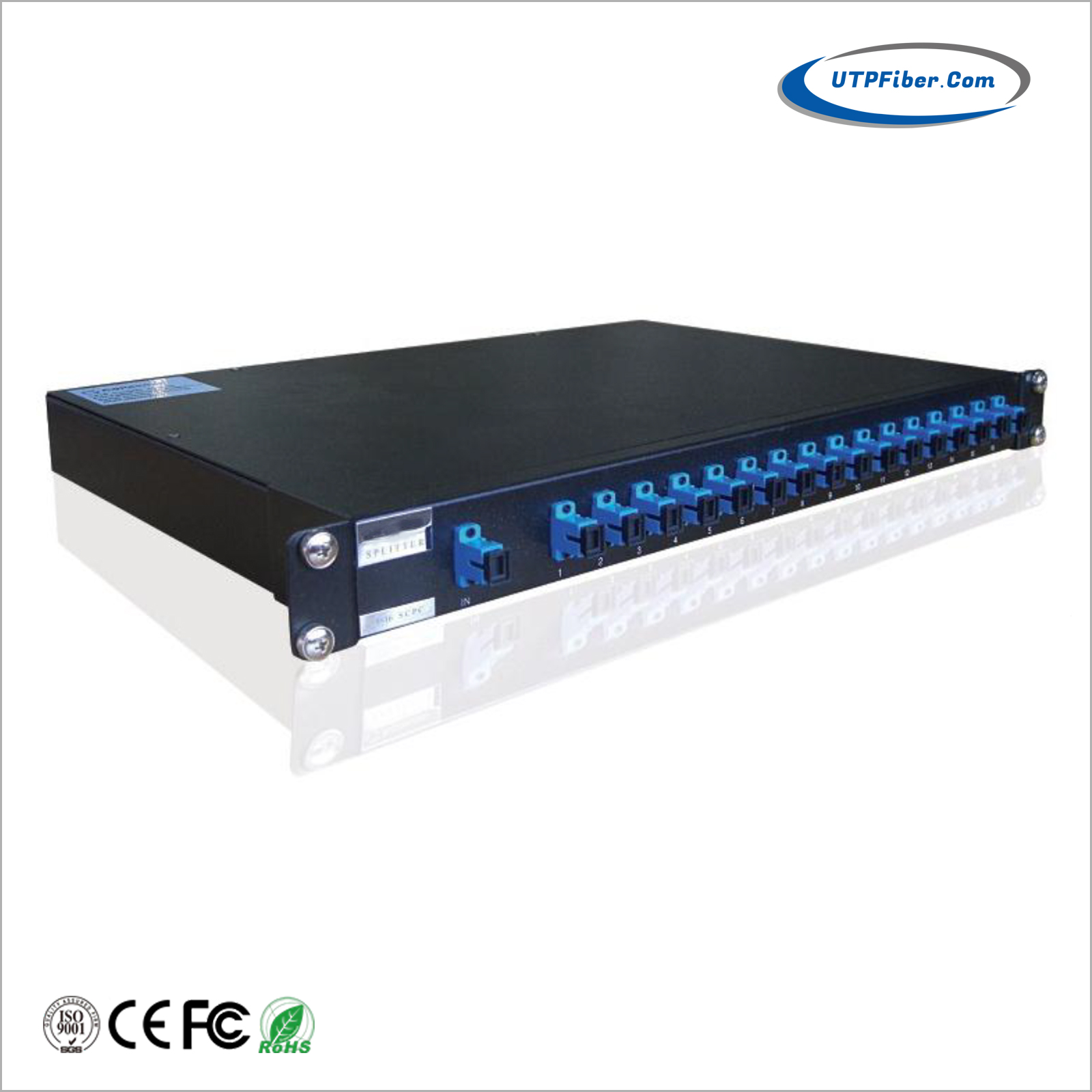

19’’ Rack mount Package		1U

Download FileName：UF-DM Series DWDM MUX DEMUX Module Datasheet V1.0.pdf Size： 456KB

Brand	Type	Channel No.	Module Type	Wavelength	Modules Type	Fiber Type	Fiber Length	Connector Type
UF=UTP Fiber	DM=DWDM	2=1*2	M=MUX	27=1270/1271nm	A=1008010	B=250Bare	05=0.5 meter	SU=SC/UPC
	CM=CWDM	4=1*4	D=DEMUX	34=ITU34Ch	B=1208018	L=0.9Loose	10=1 meter	LA=LC/APC
	FM=FWDM	N=1*N	1=MUX&1310		C=14011518	T=0.9
			2=DEMUX&1310		LGX=LGX BOX	20=2.0
			3=MUX&UPG		19=19" Rack	30=3.0
			4=DEMUX&UPG		192=19" 2+1 Rack
			5=MUX&MON		193=19" 3+1 Rack
			6=DEMUX&MON		194=19" 4+1 Rack
			X=Customized
