► Transmits DVI video signals and audio up to 20km over a single fiber optic cable
► Support 1920*1200 1080P@60Hz
► USB KVM function supports keyboard and mouse
► Support external audio bi-directional transmission
► Support reverse RS232 data

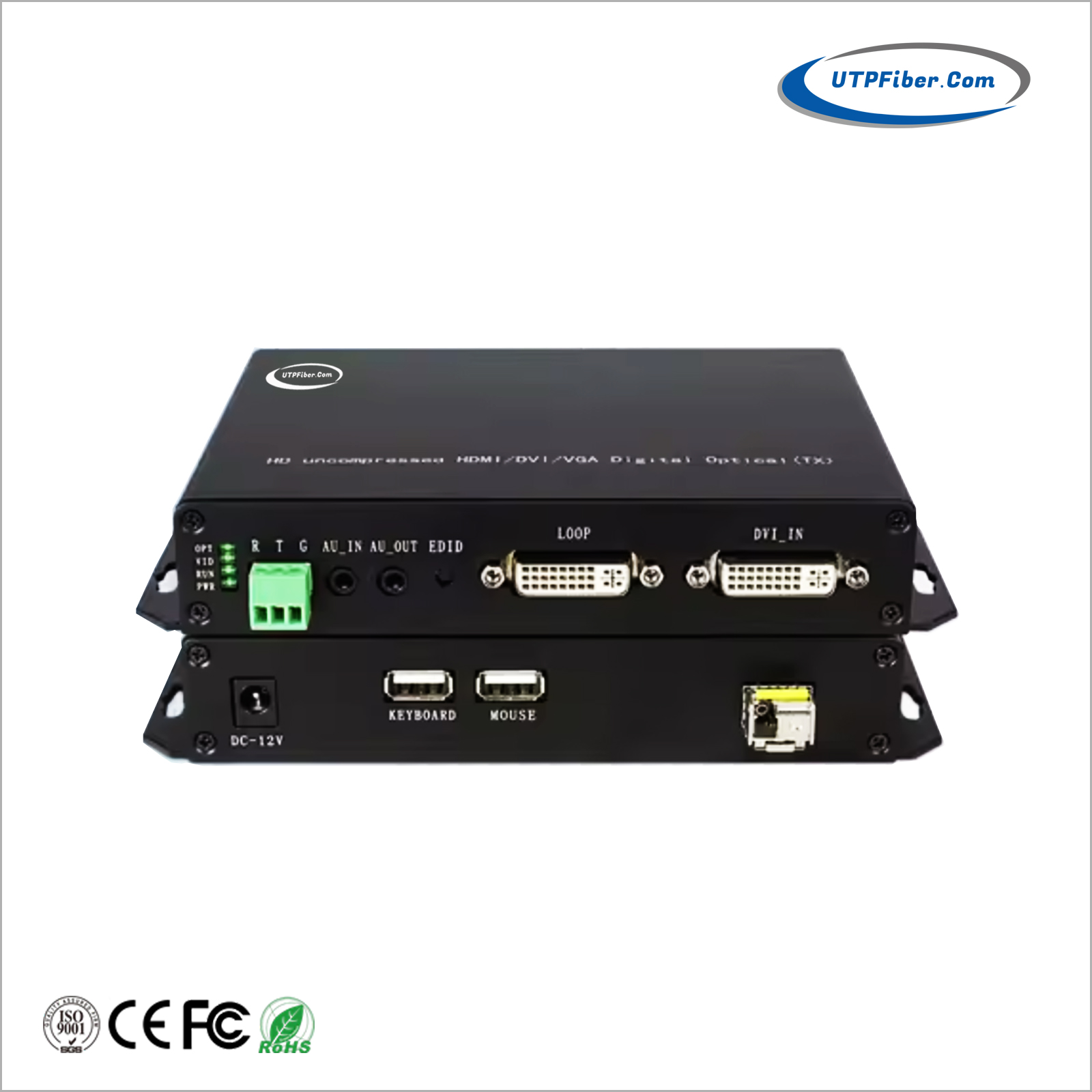

The UF-DVF1V1K1D1BA Series supports 1Ch 1080P DVI with Loop Out + 1Ch USB KVM + 1Ch Reverse RS232 + 1Ch Bidi Stereo Audio over Fiber Extender provides extension of DVI-D & stereo audio signals long distances over one fiber optic cable, it supports DVI 1.0 specifications, high resolution up to 1920*1200@60Hz. The extender can use for a wide range of applications requiring long distance transmission of high resolution with high quality by its good stability and powerful security.
► Transmits DVI video signals and audio up to 20km over a single fiber optic cable
► Compliant with DVI 1.0 specifications
► Support 1920*1200 1080P@60Hz
► DTV resolutions: 480i, 576i, 480p, 576p, 720p, 1080i up to 1080p
► USB KVM function supports keyboard and mouse
► Support external audio bi-directional transmission
► Support reverse RS232 data
► High compatibility, can auto-match source and display device
► Built-in automatic adjustment system, make the image smooth, clear and stable
► Built-in ESD protection system
► Simple to install, plug and play
Parameter |
Description |
||||||||||||||||||||
Video |
Interface |
DVI-I |
|||||||||||||||||||
Protocol |
DVI1.0 |
||||||||||||||||||||
Pixel Bandwidth |
165MHz |
||||||||||||||||||||
Resolution |
|
||||||||||||||||||||
Audio |
Interface |
3.5mm audio jack |
|||||||||||||||||||
Format |
44.1K,48K,96K,176K,192K |
||||||||||||||||||||
Keyboard/Mouse |
Transmitter interface |
Type A USB port |
|||||||||||||||||||
Receiver interface |
USB Type B |
||||||||||||||||||||
RS232 |
Interface |
3-port industrial terminal |
|||||||||||||||||||
Baud rate |
115200 backward compatible |
||||||||||||||||||||
Data bits |
8-bit |
||||||||||||||||||||
Optical fiber |
Interface |
LC |
|||||||||||||||||||
Type |
SFP single mode |
||||||||||||||||||||
Wavelength |
1550/1310nm |
||||||||||||||||||||
Bandwidth |
3Gbps |
||||||||||||||||||||
Distance |
20KM |
||||||||||||||||||||
Attenuation |
-3db |
||||||||||||||||||||
Other |
Temperature |
-20 to +75°C |
|||||||||||||||||||
Humidity |
5 to 90% |
||||||||||||||||||||
Power consumption |
Single 4W |
||||||||||||||||||||
Power Supply |
DC 12V1A |
||||||||||||||||||||
Dimensions (LxWxH) |
110 x 152 x 30mm |
||||||||||||||||||||
Packing Size (LxWxH) |
328 x 273 x 90mm |
||||||||||||||||||||
Weight |
1500g |
Model |
Description |
UF-DVF1V1K1D1BA |
DVI Fiber Extender: 1Ch 1080P DVI with Loop Out + 1Ch USB KVM + 1Ch Reverse RS232 + 1Ch Bidi Stereo Audio over Fiber Extender, Single Mode, Single Fiber, LC, 20KM |
