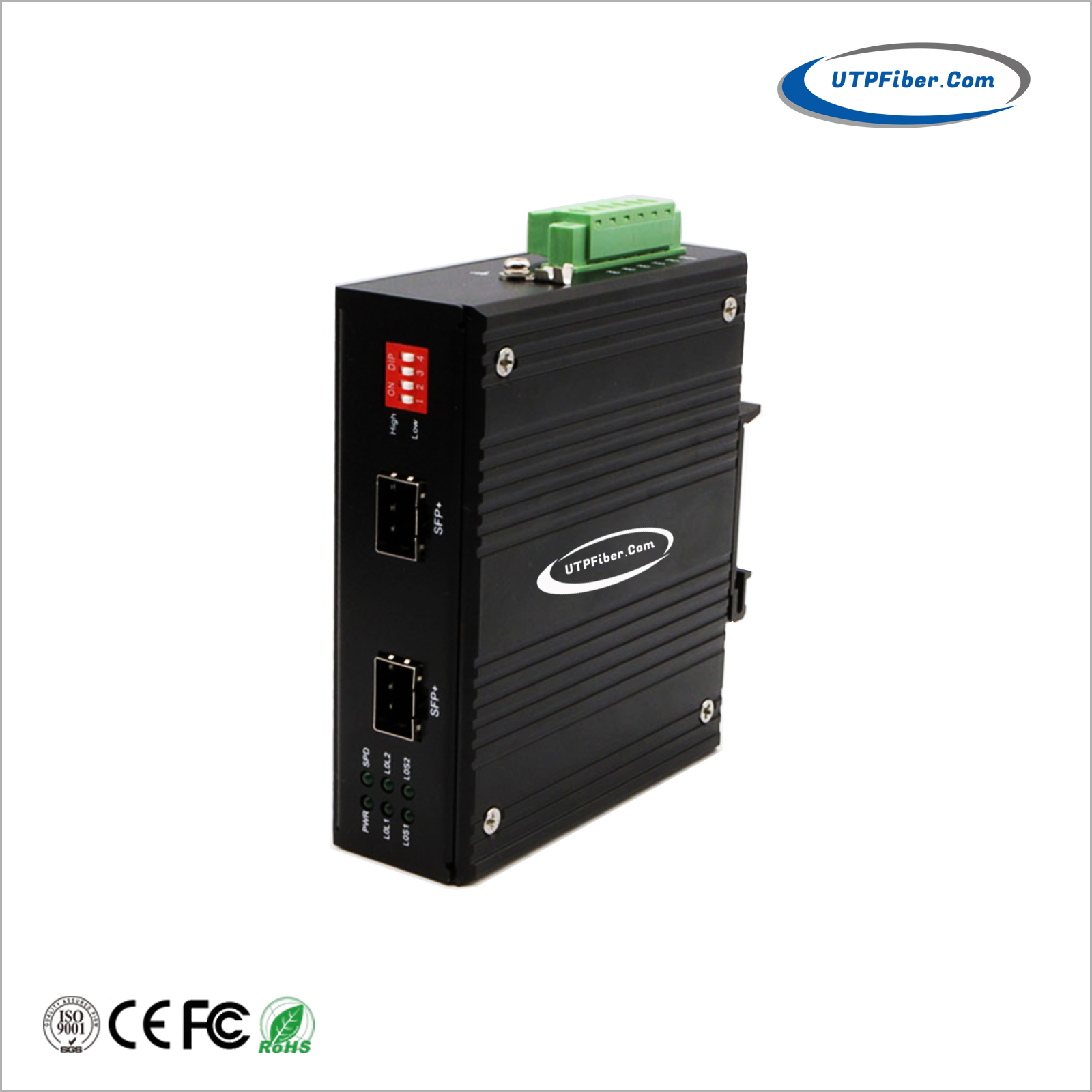

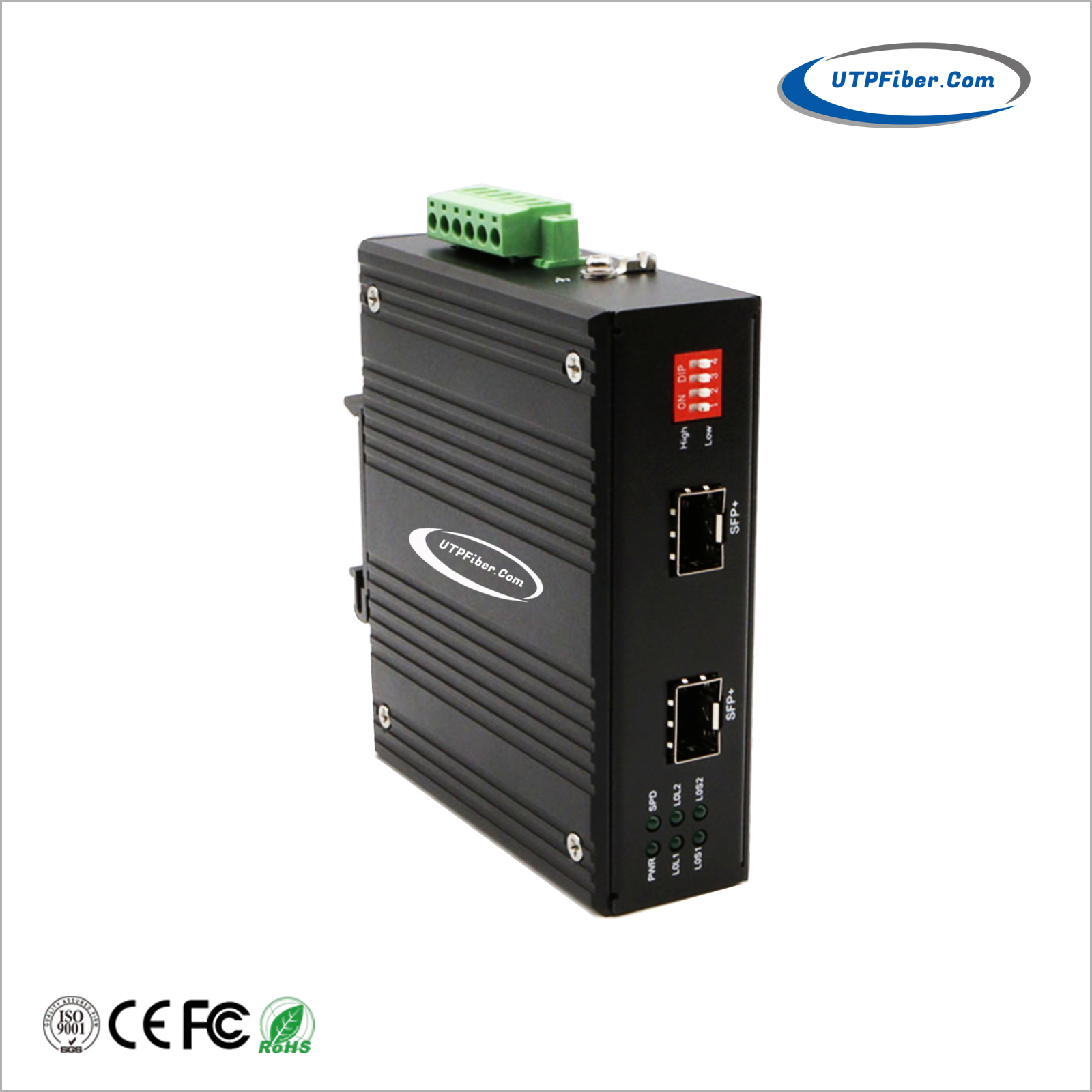

DIN-Rail Industrial 1G/10G SFP+ to SFP+ OEO Repeater/Extender
Model:UF-IEC10G-OEO
► Transparent Transport and very low delay
► 3R function (Regeneration, Reshaping, Re-timing)
► Support Loop-back and Jumbo Frame
► DIP Switch supports 1.25G/10G fiber data rate switching
► Can be as 1G Ethernet Media Converter if using Ethernet
► Supports DIN-Rail installation

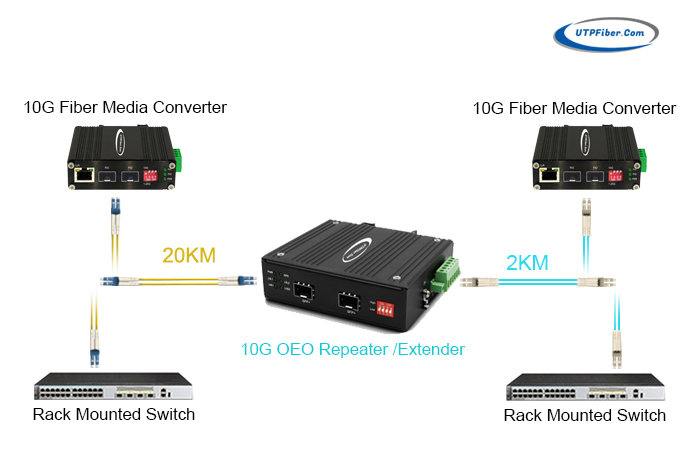

UF-IES10GFF-SFP series DIN-Rail Industrial 1G10G OEO Converter is a connection between fiber to fiber 1G or 10Gbps equipment function as fiber media converter, or as fiber repeater for long distance transmission in harsh environment at operating temperature -40~ 80℃.
It is for network backbone (SAN, LAN, MAN) application. Support SDH/SONET STM-64/OC-192, 10G fiber channel, 10G Ethernet, which can be applied in R&D laboratory, data center, telecommunication room. It supports optical wavelength conversion 1310nm/1550nm/CWDM/DWDM with Loop-back.
► Transparent Transport and very low delay
► 3R function (Regeneration, Reshaping, Re-timing)
► Support hot plugging, full state led display, easy installation
► Support ITUT prescribed DWDM/CWDM wavelength, and can also display it’s DDM function
► Support Loop-back and Jumbo Frame
► DIP Switch supports 1.25G/10G fiber data rate switching
► IP40 Aluminum Case
► Supports DIN-Rail installation
► -40°C to 80°C (-40°F to 176°F) operating temperature
|
Performance Data |
Technical Indexes |
|||
|
Equipment function |
3R Repeater |
|||
|
Transmission Speed |
10G:
8.5Gb/s-11.7Gb/s |
|||
|
Protocols |
1.25G Fiber Channel 8.5G Fiber Channel SONET OC-192, SDH STM-64 (9.95Gbps) 10G WAN (10Gbps) 10G LAN (10.31Gbps) OTN OTU-2 (G.709) (10.70Gbps) 10G LAN with 255/237 FEC coding (11.09Gbps) 10G Fiber Channel (11.32Gbps) 10G POS |
|||
|
Interface Type |
SFP to SFP or SFP+ to SFP+ |
|||
|
Transmission Distance |
SFP or SFP+ module: up to 80km |
|||
|
Maximum Packet Forwarding Rate |
14,880,950/S |
|||
|
Operating Temperature |
-40°C to 80°C (-40°F to 176°F) |
|||
|
Storage Temperature |
-40°C to 85°C (-40°F to 185°F) |
|||
|
Relative Humidity |
5% to 95% non-condensing |
|||
|
MTBF |
> 200,000 hrs |
|||
|
Electrical and Mechanical |
||||
|
Input Power |
12~48VDC, Redundant Power (6-pin Terminal Block) |
|||
|
Power Consumption |
4W Max |
|||
|
Protection |
||||
|
Power Input Overload |
Automatic Resettable |
|||
|
Reverse Polarity |
Present |
|||
|
DIP Switch |
||||
|
4-digit DIP switch function |
DIP |
Function |
Settings |
|
|
SW 1 |
1.25G/10G |
ON - 1.25~8.5G |
OFF - 10.3G or 14.025G |
|
|
SW 2 |
Reserved |
ON - Reserved |
OFF - Reserved |
|
|
SW 3 |
Reserved |
ON - Reserved |
OFF - Reserved |
|
|
SW 4 |
Reserved |
ON - Reserved |
OFF - Reserved |
|
|
LED Indicators |
||||
|
PWR |
Power Status |
|||
|
SPD |
Flashing: 10G Slow flash: 1.25~8.5G |
|||
|
LOS1 |
ON: The left module optical signal is received normally. OFF: The left module optical signal reception is abnormal. |
|||
|
LOL1 |
ON: The link is connected properly and the CDR is locked. OFF: The link is connected properly and the CDR is not locked. |
|||
|
LOS2 |
ON: The right module optical signal is received normally. OFF: The right module optical signal reception is abnormal. |
|||
|
LOL2 |
ON: The link is connected properly and the CDR is locked. OFF: The link is connected properly and the CDR is not locked. |
|||
|
Mechnical |
||||
|
Dimensions (WxDxH) |
110 x 96.5 x 35 mm |
|||
|
Weight |
0.35Kg |
|||
|
Casing |
Aluminum Case |
|||
|
Mounting Options: |
DIN-Rail mount |
|||
|
Regulatory Approvals |
||||
|
ISO9001, CE, RoHS, FCC |
||||
|
EN55022:2010+AC: 2011, Class A |
||||
|
EN 61000-3-2: 2006+A1: 2009+A2: 2009 |
||||
|
EN 61000-3-3: 2013 |
||||
|
EN55024:2010 |
||||
|
IEC 61000-4-2: 2008 (ESD) |
||||
|
IEC 61000-4-3: 2010 (RS) |
||||
|
IEC 61000-4-4: 2012 (EFT) |
||||
|
IEC 61000-4-5: 2014 (Surge) |
||||
|
IEC 61000-4-6: 2013 (CS) |
||||
|
IEC 61000-4-8: 2009 (PFMF) |
||||
- Download FileName：UF-IES10GFF-SFP Industrial 10G OEO Converter (3R Repeater) Datasheet V1.0.pdf Size： 726KB
|
Model |
Description |
|
UF-IES10GFF-SFP |
DIN-Rail Industrial 1G/10G SFP+ to SFP+ OEO Converter (3R Repeater) |
|
SFP Options |
► SFP option. Please select your SFP on our SFP Options Page |
|
► SFP module is to be purchased separately. |
|
|
Mounting Options |
► Default DIN-Rail Bracket installed |
|
Power Options |
► DIN-Rail Power Supply. Open Wire for Terminal Block. |
|
► Power Supply is to be purchased separately. |
