DIN-Rail Industrial 1-Port Serial RS232/422/485 to Ethernet Device Server
Model:UF-DSE01 series
► Support 1-Port 10/100M Fast Ethernet
► Provide 1-Port RS232/422/485 serial port, support 300bps-921600bps line speed non-blocking communication
► DC9-70V or AC85-265V Power Input Optional
► Support DIN-Rail or Wallmount installation
► Working temperature -40℃~ +85℃
► Aluminum casing, IP40 protection grade
The UF-DSE01 series DIN-rail industrial device server is IP40 protection grade serial port networking server that enables serial port devices to have networking capabilities immediately, and can centrally manage scattered serial devices, hosts, etc. through the network. This product supports 1 channel of RS-232/RS-422/RS-485 to 1 channel of Fast Ethernet, and can be installed in 35mm rail or wall mount to meet the needs of different application sites.
The serial port server supports a variety of network protocols, such as TCP, UDP, ARP, ICMP, HTTP, DNS, DHCP, and SNMP protocols; it has complete management functions, supports access control, rapid configuration, online upgrade, etc.; each serial port supports 4 channels TCP Or UDP session connection, support Modbus TCP, TCP Server, TCP Client, UDP Server, UDP Client, and other working modes; support WEB access mode. In addition, the provided management and configuration tool based on the Windows platform can guide users to manage and configure the device step by step, and realize the immediate networking of serial devices through simple settings. The interface design of the network management system is friendly, the operation is simple and convenient, and it can bring you a good user experience.
The hardware adopts fanless, low power consumption, wide temperature and wide voltage design. It has passed strict tests in line with industry standards, and can adapt to industrial field environments with strict EMC requirements. It can be widely used in PLC control and management, building automation, and healthcare automation systems, measuring instruments and environmental dynamic monitoring systems, etc.

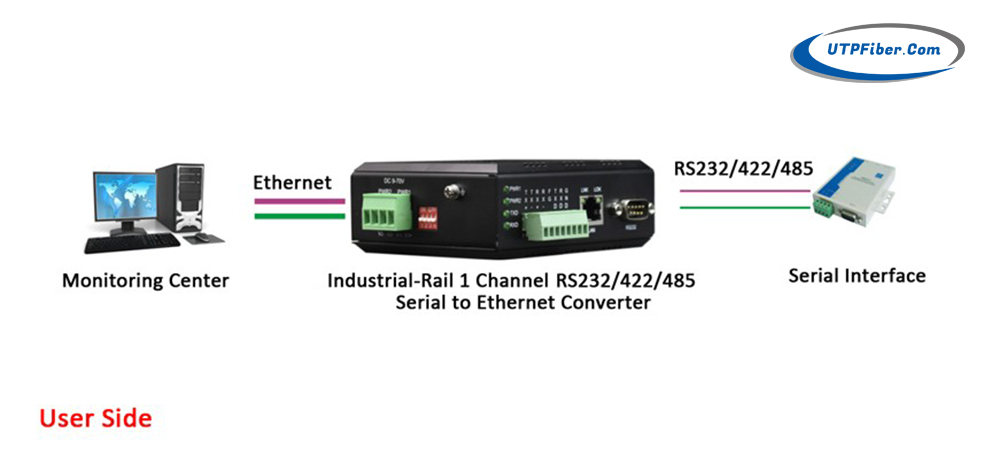

Can be used in many embedded network control applications:
- Industrial automation production
- Security access control: network access control, alarm equipment, infrared detection alarm, remote card reader
- Smart home equipment: smart home gateway, smart socket, smart switch
- Network IO Controller: Industrial Remote IO Input, Remote Relay Control
- Building intelligence and energy monitoring
- Medical monitoring equipment
► Support 1-Port 10/100M Fast Ethernet
► Provide 1-Port RS232/422/485 serial port, support 300bps-921600bps line speed non-blocking communication
► Support Modbus TCP, TCP Server, TCP Client, UDP Server, UDP Client, and other working modes
► Complete the transparent conversion from Modbus-RTU to Modbus-TCP
► Support standard TCP/IP SOCKET application access
► In UDP mode, it supports single-machine or multi-machine communication
► Support Windows configuration tool, serial port and WEB and other configuration forms, SNMP network management
► DC9-70V or AC85-265V Power Input Optional
► Support DIN-Rail or Wallmount installation
► Working temperature -40℃~ +85℃
► Aluminum casing, IP40 protection grade
|
Serial Interface |
|
|
Standard |
EIA/TIA-232 RS-232 (ITU-T V.28) EIA/TIA-422 RS-422 (ITU-T V.11) EIA/TIA-485 RS-485 (ISO/IEC8284) |
|
Serial Port |
1 x RS232/422/485 serial terminal interface 1 x DB9 male port |
|
Signals |
RS-422: TxD+ TxD- RxD+ RxD- |
|
RS-485 4 wires: TxD+ TxD- RxD+ RxD- |
|
|
RS-485 2 wires: A(TX+) B(TX-) Ground |
|
|
RS-232: |
|
|
Terminal: RXD TXD GND |
|
|
DB9 (male): RXD TXD GND, CTS, RTS |
|
|
Ethernet Interface |
|
|
Agreement |
IEEE 802.3, IEEE 802.1q (VLAN) |
|
Speed rate |
10/100M self-adaptive, full/half duplex fully self-adaptive |
|
MAC address table |
can learn 4096 MAC addresses |
|
Physical interface |
RJ45, support Auto-MDIX |
|

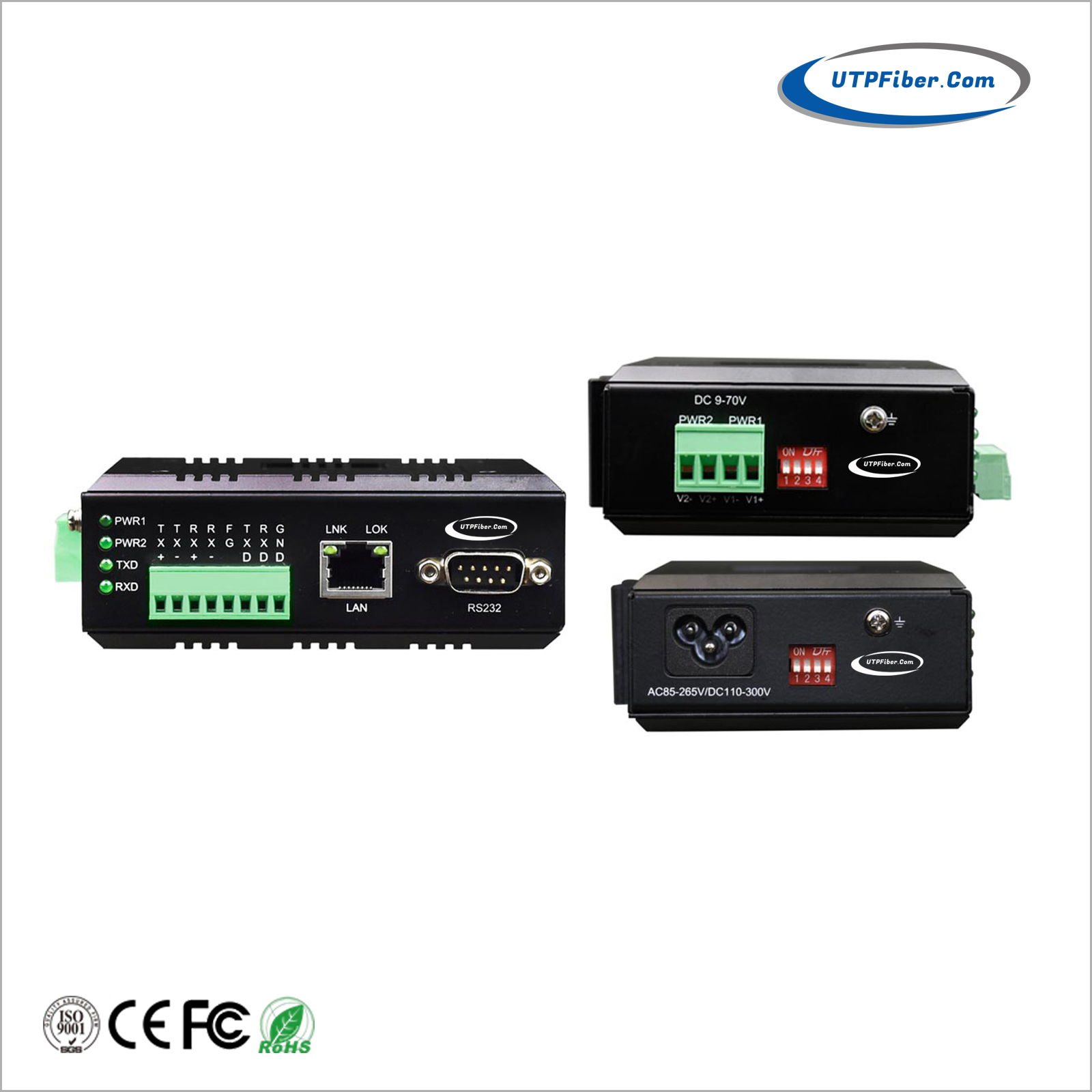

Hardware |
|
|
Dimensions (L x W x H) |
110 x 86 x 40.5mm |
|
Weight |
495g |
|
LED Indicators |
PWR1/PW2: Power Status |
|
TXD: Serial Data Transmitting |
|
|
RXD: Serial Data Receiving |
|
|
LNK: Ethernet Transmitting |
|
|
LOK: Ethernet Receiving |
|
|
Power Supply |
DC power supply: Redundant dual power input DC9-70V or AC7-50V Overload protection: support; Reverse polarity protection: support; Redundancy protection: support Access terminal: 4-core 5.08mm pitch plug-in terminal |
|
AC built-in power supply: AC~85-265V AC, or DC110-300V DC wide range input Overload protection: support; Access interface: AC Cross style sockets |
|
|
Power Consumption |
< 5 watts |
|
Material |
Aluminum alloy shell |
|
Installation |
DIN-Rail or Wallmount |
|
MTBF |
>100,000 hours |
|
Management |
|
|
Management Interfaces |
Web management |
|
Telnet Console management |
|
|
IP Acquisition Method |
Static IP (default), DHCP |
|
DNS Domain Name Resolution |
Support |
|
IP Address |
192.168.0.148 |
|
User Name |
admin |
|
Password |
admin |
|
Subnet Mask |
255.255.255.0 |
|
Gateway |
192.168.1.1 |
|
Operation Mode |
■ TCP Server Mode |
|
■ TCP Client Mode |
|
|
■ UDP Server Mode |
|
|
■ UDP Client Mode |
|
|
Standards Conformances |
|
|
Regulatory Compliance |
FCC Part 15 Class A, |
|
CE Certification Class A |
|
|
Standards |
IEEE 802.3 10BASE-T |
|
IEEE 802.3u 100BASE-TX |
|
|
RFC 768 UDP |
|
|
RFC 793 TFTP |
|
|
RFC 791 IP |
|
|
RFC 792 ICMP |
|
|
RFC 958 NTP |
|
|
RFC 2068 HTTP |
|
|
RFC 2131 DHCP Client |
|
|
RFC 2732 Format for Literal IPv6 Addresses in URL's |
|
|
RFC 3315 DHCPv6 Client |
|
|
RFC 3513 IPv6 Addressing Architecture |
|
|
RFC 4443 ICMPv6 |
|
|
EIA/TIA RS232/422/485 |
|
|
Regulatory Approval |
CE, RoHS, FCC |
|
Environment |
|
|
Operating Temperature |
-40 ~ 85 degrees C |
|
Storage Temperature |
-40 ~ +105 degrees C |
|
Humidity |
5 ~ 95% (non-condensing) |
- Download FileName：UF-DSE01 DIN-Rail Industrial 1Ch Serial Device Server Datasheet V1.0.pdf Size： 717KB
|
Model |
Description |
|
UF-DSE01-D |
DIN-Rail Industrial 1-Port Serial RS232/422/485 to Ethernet Device Server, , DC9-70V input, redundant dual power supply, Din-rail installation. Operation temperature: -40℃～+80℃ |
|
UF-DSE01-A |
DIN-Rail Industrial 1-Port Serial RS232/422/485 to Ethernet Device Server, , AC85-265V input, redundant dual power supply, Din-rail installation. Operation temperature: -40℃～+80℃ |
|
Mounting Options |
► DIN-Rail or Wall Mount |
|
Power Options |
► 9-70VDC or 85-265VAC Power Supply |
|
► DC Power Supply is to be purchased separately. |
