DIN-Rail Industrial Gigabit 802.3bt 95W PoE++ Injector with 90-240VAC Power Input
Model:UF-IPOE-A95W
► Support 95W LTPoE++ Power Sourcing Equipment
► Integrated 90-240VAC power input, no need extra power adapter
► Complies with IEEE 802.3at/bt PoE end-span/mid-span PSE
► Support 10/100/1000Base-TX

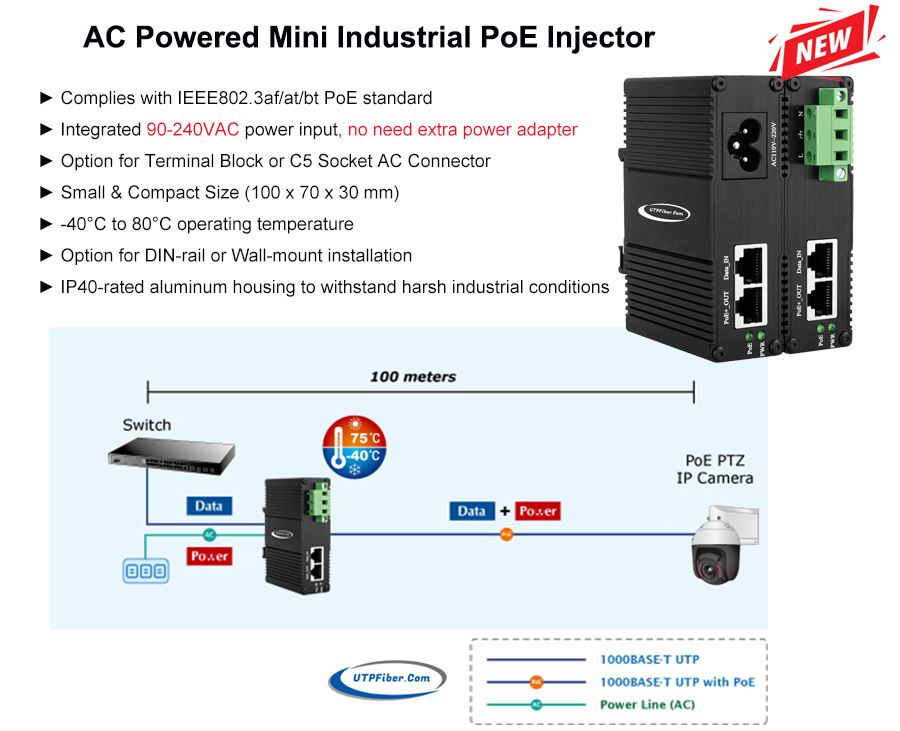

The UF-IPOE-A95W series is an Industrial hardened Gigabit single-port PoE++ IEEE 802.3bt / LTPoE++ 95W 10/100/1000Base-TX PoE Injector with 90-240VAC Power Input. It allows you to connect the PoE device such as camera and access point with a non PoE LAN switch within the distance of 100m. Both the Ethernet port (to switch) and the PoE Out port (to PoE device) support 10/100/1000Base-T and are compliant with IEEE 802.3ab. It provides 95W PoE output.
With 90-240VAC input, the PoE injectors don't need extra power adapter which will save cost and space for industrial power supply. It's suitable for small cabinet or box without AC-DC power supply. They are the best choice for heavy industrial factory, transportation, oil & gas, chemical, IP Surveillance and processing automation area where environmental conditions exceed commercial product specifications.
► 1 RJ45 Ethernet Data Input Port + 1 RJ45 Power over Ethernet Output Port (Data + Power)
► Support 95W LTPoE++ Power Sourcing Equipment
► Integrated 90-240VAC power input, no need extra power adapter
► Terminal Block or C5 Socket AC connector optional
► Complies with IEEE 802.3at/bt PoE end-span/mid-span PSE
► Support 10/100/1000Base-TX
► Extensive LED indicators for PoE diagnostics
► Supports DIN-Rail and Wall-mount installation
► Environmentally Hardened -40°C to 80°C (-40°F to 176°F) operating temperature
|
Ethernet |
|
|
Standards: |
IEEE802.3 10 BASE-T Ethernet IEEE802.3u 100 BASE-TX Fast Ethernet IEEE 802.3ab 1000BASE-T Gigabit Ethernet IEEE802.3 x Flow Control |
|
Processing Type: |
Forward |
|
Half-duplex, Full-duplex |
|
|
Forward Filter Rate: |
1,488,000pps (1000Mbps) |
|
Cabling: |
Twisted-pair cable up to 100 meters (328ft) 10BASE-T: 4-pair UTP Cat. 3, 4, 5, 5e, 6, 6A 100BASE-TX: 4-pair UTP Cat. 5, 5e, 6, 6A 1000BASE-T: 4-pair UTP Cat. 5e, 6, 6A |
|
Maximum Distance: |
Cat5 UTP up to 100m |
|
Connector: |
2 x RJ45 |
|
Environmental |
|
|
Operating Temperature: |
-40°C to 80°C (-40°F to 176°F) |
|
Storage Temperature: |
-40°C to 85°C (-40°F to 185°F) |
|
Relative Humidity: |
5% to 95% non-condensing |
|
MTBF: |
>200,000hrs |
|
Electrical and Mechanical |
|
|
Input Power: |
90-240VAC (Terminal Block or C13 Socket Optional) |
|
Power Consumption: |
100W Max. |
|
Power over Ethernet: |
|
|
Standard: |
IEEE 802.3bt 4-pair Power over Ethernet |
|
IEEE 802.3at Power over Ethernet Plus |
|
|
IEEE 802.3af Power over Ethernet |
|
|
Port: |
RJ45 |
|
Power Pin Assignment |
Data provide over pairs 1,2TX and 3,6RX Power over spare pairs 1,2,4,5(+) and 3,6,7,8(-) |
|
PoE Budget: |
Up to 95-watt PoE budget |
|
LED Indicators: |
|
|
PWR: |
Power Status |
|
PoE: |
PoE Status |
|
Dimensions (WxDxH): |
100 x 70 x 30 mm |
|
Weight: |
0.28Kg |
|
Casing: |
IP40 Aluminum Case |
|
Mounting Options: |
DIN-Rail / Wall-mount |
|
Standard Accessories |
|
|
Package Contents |
UF-IPOE-A95W |
|
User's manual |
|
|
Wall-mount kit |
|
|
DIN-mount kit |
|
|
Regulatory Approvals |
|
|
ISO9001 |
|
|
FCC part 15, Class A |
|
|
EN55022:2006+A1: 2007 Class A |
|
|
Surge Protection: |
|
|
RJ45: 1KV |
|
|
Power: 500V |
|
|
ESD: 4KV/8KV |
|
- Download FileName：UF-IPOE-A95W Mini AC Powered Industrial 95W PoE Injector Datasheet V1.0.pdf Size： 356KB
|
Model |
Description |
|
UF-IPOE-A95W-TB |
DIN-Rail Industrial Gigabit 802.3bt 95W PoE++ Injector with 90-240VAC Power Input- Terminal Block |
|
UF-IPOE-A95W-C5 |
DIN-Rail Industrial Gigabit 802.3bt 95W PoE++ Injector with 90-240VAC Power Input- C5 Socket |
|
Mounting Options |
► Default DIN-Rail Bracket installed; Wall Mount Bracket is included. |
|
Power Cable Options |
► Cable not included. |
