Ethernet

Standards:

IEEE802.3 10Base-T

IEEE802.3u 100Base-TX/FX

IEEE802.3ab 1000Base-T

IEEE802.3z 1000Base-X

IEEE 802.3az Energy Efficient Ethernet (EEE)

Processing Type:

Store-and-Forward

Forward Filter Rate:

14,880pps (10Mbps)

148,800pps (100Mbps)

1,488,000pps (1000Mbps)

Packet Buffer Memory:

1 Mbit

Max Packet Length:

9K Bytes

Address Table Size

2K MAC Addresses

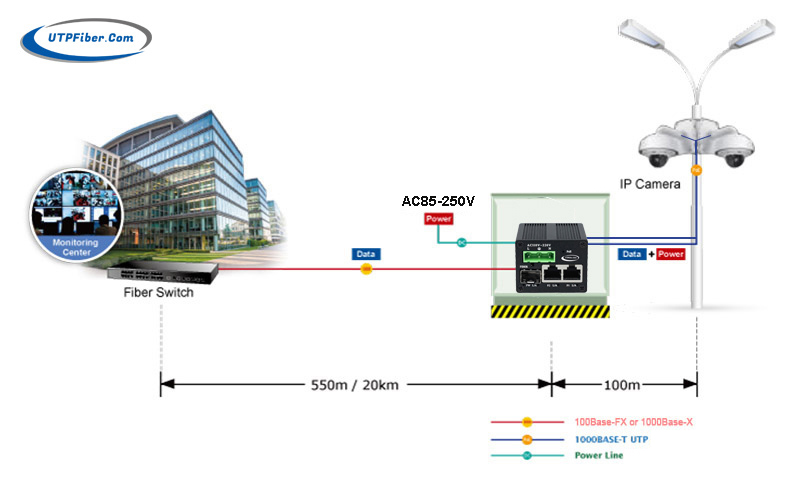

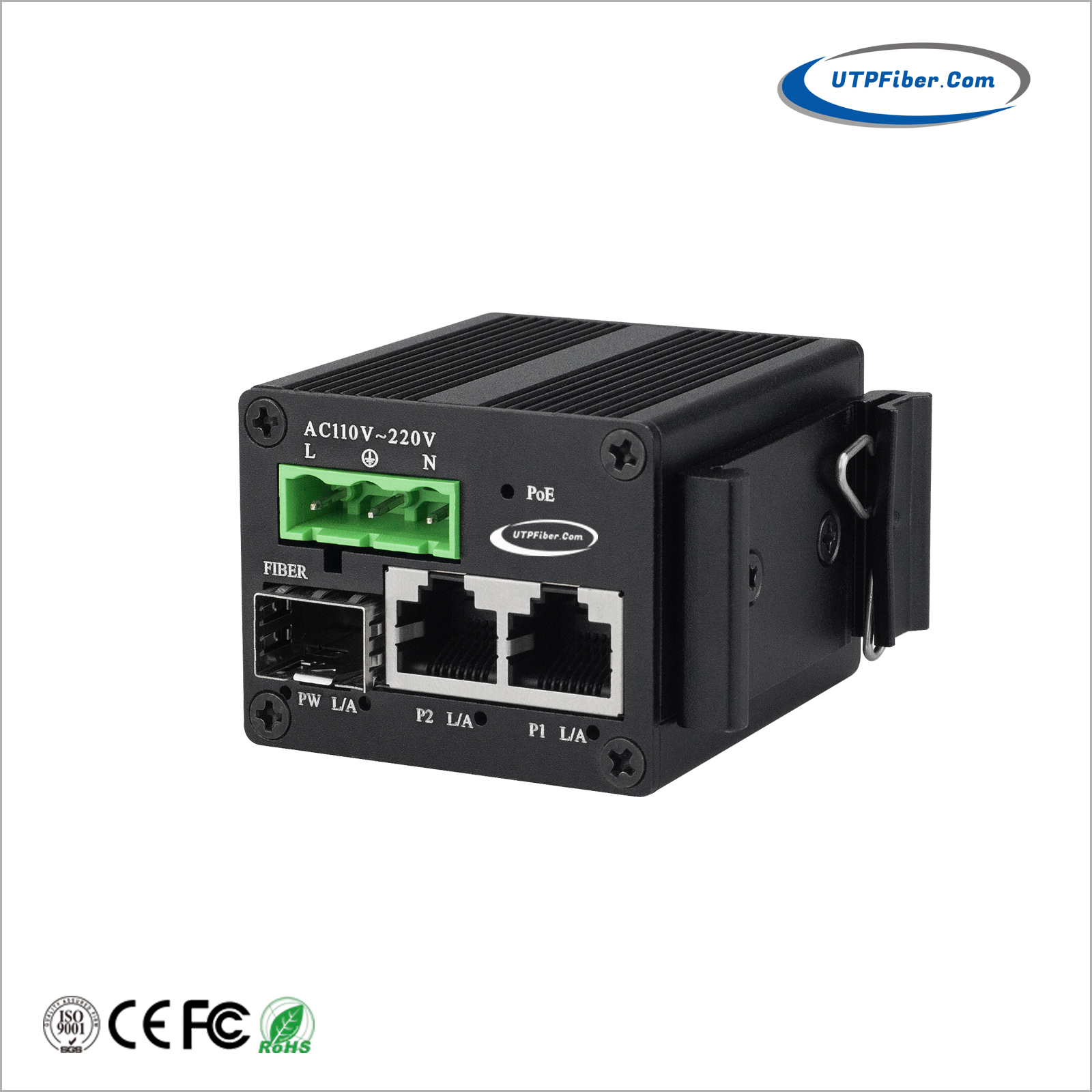

Interface

Connector:

2x RJ45 10/100/1000Base-T

Optical Port:

1 x SFP 1000Base-X or 100Base-FX

Electrical and Mechanical

Input Power:

85~250VAC, 3-pin terminal block

Power Consumption:

5W Max.

Dimensions (WxDxH):

53 x 40 x 58 mm

Weight:

0.15Kg

Casing:

Aluminum Case

Mounting Options:

DIN-Rail Mount

LED Indicators:

PW:

On: Power Supply Normal；Off: Power not connected

L/A (TP)

On: A network device is connected；Off: No network device connected

Blinking: Data transmission

L/A (FX)

On: Fiber connected；Off: Fiber not connected

Blinking: Data transmission

Environmental

Operating Temperature:

-40°C to 80°C (-40°F to 176°F)

Storage Temperature:

-40°C to 85°C (-40°F to 185°F)

Relative Humidity:

5% to 95% non-condensing

MTBF

> 200,000 hrs

Standards Conformance

EMC/EMI/EMS

FCC Part15 Class A

CE-EMC/LVD

RoHS

EN61000-4-2 (ESD): LEVEL 4

IEC 6100-4-2 (EFT): LEVEL 4

IEC 6100-4-2 (Surge): LEVEL 4

IEC 6100-4-2 (CS): LEVEL 3

IEC 61000-4-2(PFMP): LEVEL 5

EN61000-4-3 (RS): LEVEL 4

Stability Testing

IEC 60068-2-32 (free fall)

IEC 60068-2-27 (shock)

IEC 60068-2-6 (vibration)

Safety

EN 60950-1, UL 60950-1, CSA C22.2 No.60950-1, UL 508
