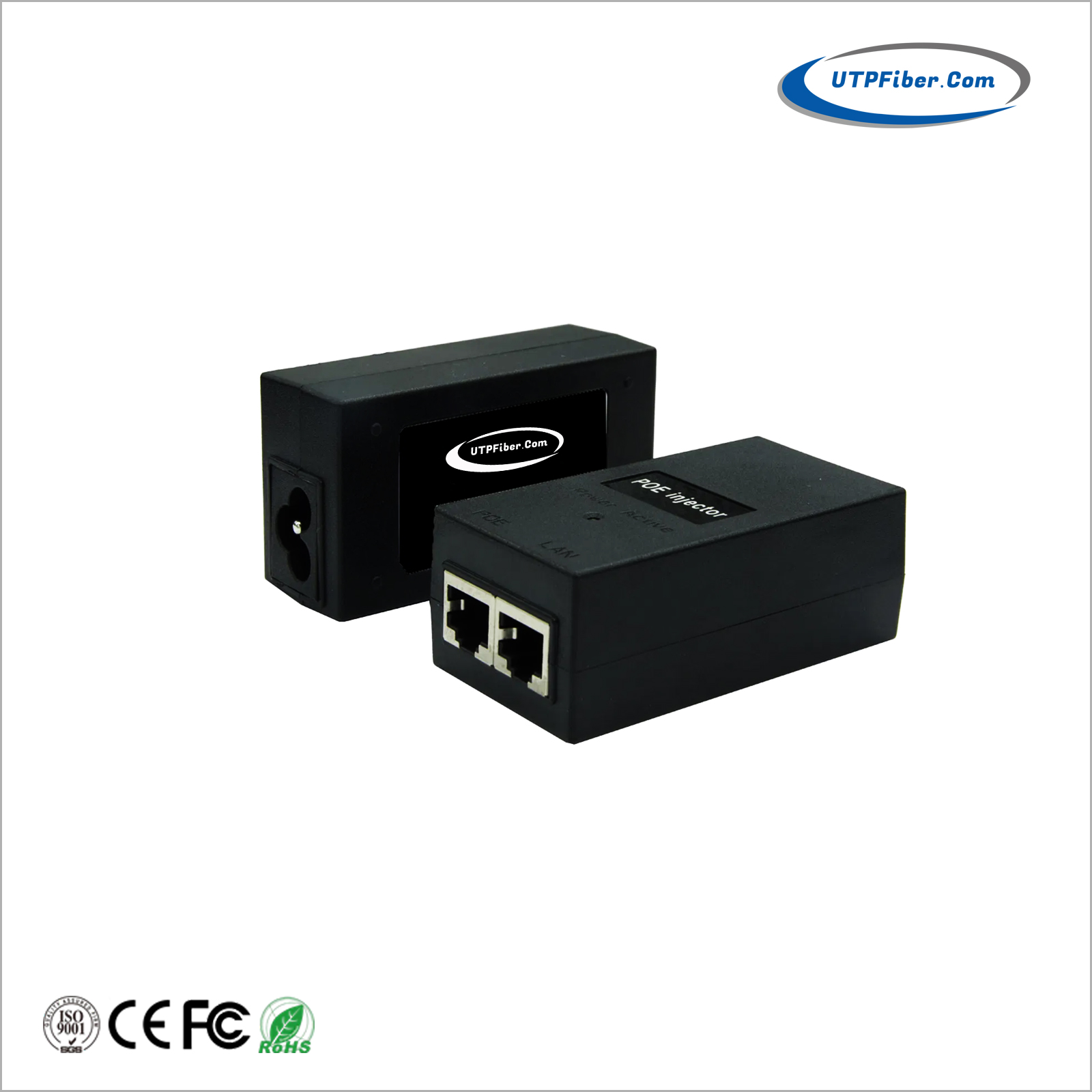

100-240VAC Powered 10/100/1000Mbps 24W/48V 0.5A Passive POE Injector
Model:UF-AP4824G
► Power remote equipment through CAT 5 Ethernet cable up to 100M
► Supports 10/100/1000 Base-T applications
► Auto-ranging switching power supply 100~240V AC
► Reliable 24W passive POE output
► 48V-0.5A Passive POE Injector Ethernet Adapter IP Phone/Camera Power Supply
The UF-AP4824G series passive PoE injector adapter is available with input voltage AC100-240V, output voltage DC48/0.5A and port speed 10/100/1000Mbps. This passive PoE power supply is compatible with most 10/100/1000Mbps IP cameras, IP phones, wireless IP points and other PoE devices.

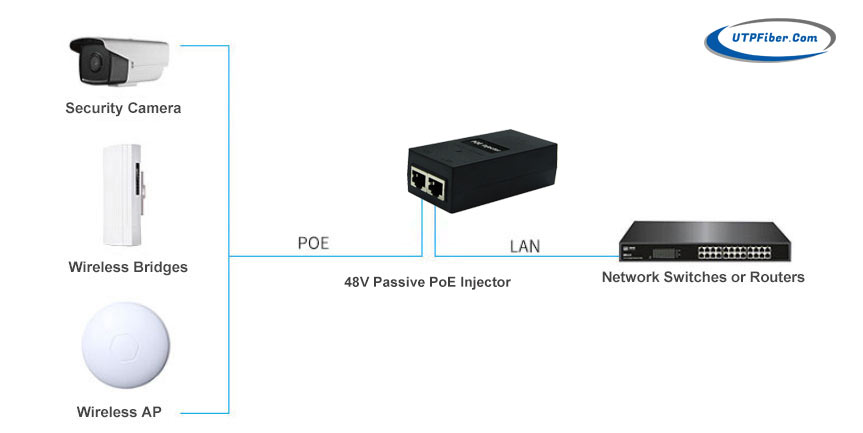

The passive PoE injector adapter features a user-friendly design and plug-and-play operation, simply connect the injector to your existing network switch or router and it will automatically detect and power compatible devices. The 48V passive PoE injector provides reliable power transmission to IP cameras, wireless access points, VoIP phones and more.
► Power remote equipment through CAT 5 Ethernet cable up to 100M
► Supports 10/100/1000 Base-T applications
► Auto-ranging switching power supply 100~240V AC
► Short circuit, over-current, and over-voltage protection
► Reliable 24W passive POE output
► Compact, portable size with convenient wall plug design
► 48V-0.5A Passive POE Injector Ethernet Adapter IP Phone/Camera Power Supply
► Provide 2 LED indicators include Power LED(Green) and PoE LED(Orange)
► Over-Voltage/Load/Temperature & Short Circuit protections
|
Ethernet |
|
|
Standards: |
IEEE 802.3 10Base-T Ethernet |
|
IEEE 802.3u 100Base-TX Fast Ethernet |
|
|
IEEE 802.3ab 1000Base-T Gigabit Ethernet |
|
|
Processing Type: |
Forward |
|
Half-duplex, Full-duplex |
|
|
Forward Filter Rate: |
1,488,000pps (1000Mbps) |
|
Cabling: |
10/100/1000Base-T: Cat5 or above |
|
Maximum Distance: |
Passive PoE (24W): 2-pair UTP Cat. 3, 4, 5, up to 100m (328ft) |
|
Connector: |
LAN: 1 x RJ-45 STP, “Data” Input Port POE: 1 x RJ-45 STP, “Data + Power” Output Port AC Connector: 1 x AC Input power socket, IEC-60320 C13 |
|
Environmental |
|
|
Operating Temperature: |
-10°C to 50°C (14°F to 122°F) |
|
Storage Temperature: |
-20°C to 70°C (-4°F to 158°F) |
|
Relative Humidity: |
5% to 95% non-condensing |
|
MTBF: |
>200,000hrs |
|
Electrical and Mechanical |
|
|
Input Voltage Range: |
100-240V AC @50/60Hz. |
|
Output Voltage: |
DC 48V |
|
Output Current: |
0.5A |
|
Power Consumption: |
24 watts max. |
|
PoE (Power over Ethernet) |
|
|
Port: |
RJ45 |
|
Pin Assignment |
+VDC on pins: 1, 2, 4 , 5 ; ‐VDC on pins: 3, 6, 7, 8 (Default) Data on Pins: full duplex; Note: The power out Pins assignment is optional, the default Pins is +45/-78; please specify it in your order. |
|
PoE Power Output |
DC 48V 0.5A/24-watt PoE via 2-pairs |
|
LED Indicators |
|
|
Power: |
Power Status |
|
PoE: |
PoE Status |
|
Dimensions (W×D×H): |
84 x 43 x 31mm |
|
Weight: |
0.2Kg |
|
Casing: |
Plastic Case |
|
Mounting Options: |
Desktop |
|
Regulatory Approvals |
|
|
ISO9001 |
|
|
FCC part 15, Class A |
|
|
EN55022:2006+A1: 2007 Class A |
|
|
Surge Protection: |
|
|
RJ45: 1KV |
|
|
Power: 500W |
|
|
ESD: 4KV/8KV |
|
- Download FileName：UF-AP4824G AC Powered Gigabit 48V 0.5A Passive PoE Injector Datasheet V1.1.pdf Size： 712KB
|
Model |
Description |
|
UF-AP4824G |
AC Powered 10/100/1000Mbps 24W/48V 0.5A Passive POE Injector |
|
Mounting Options |
► Desktop or Wall-mount installation |
|
Power Options |
► 100-240V voltage input |
