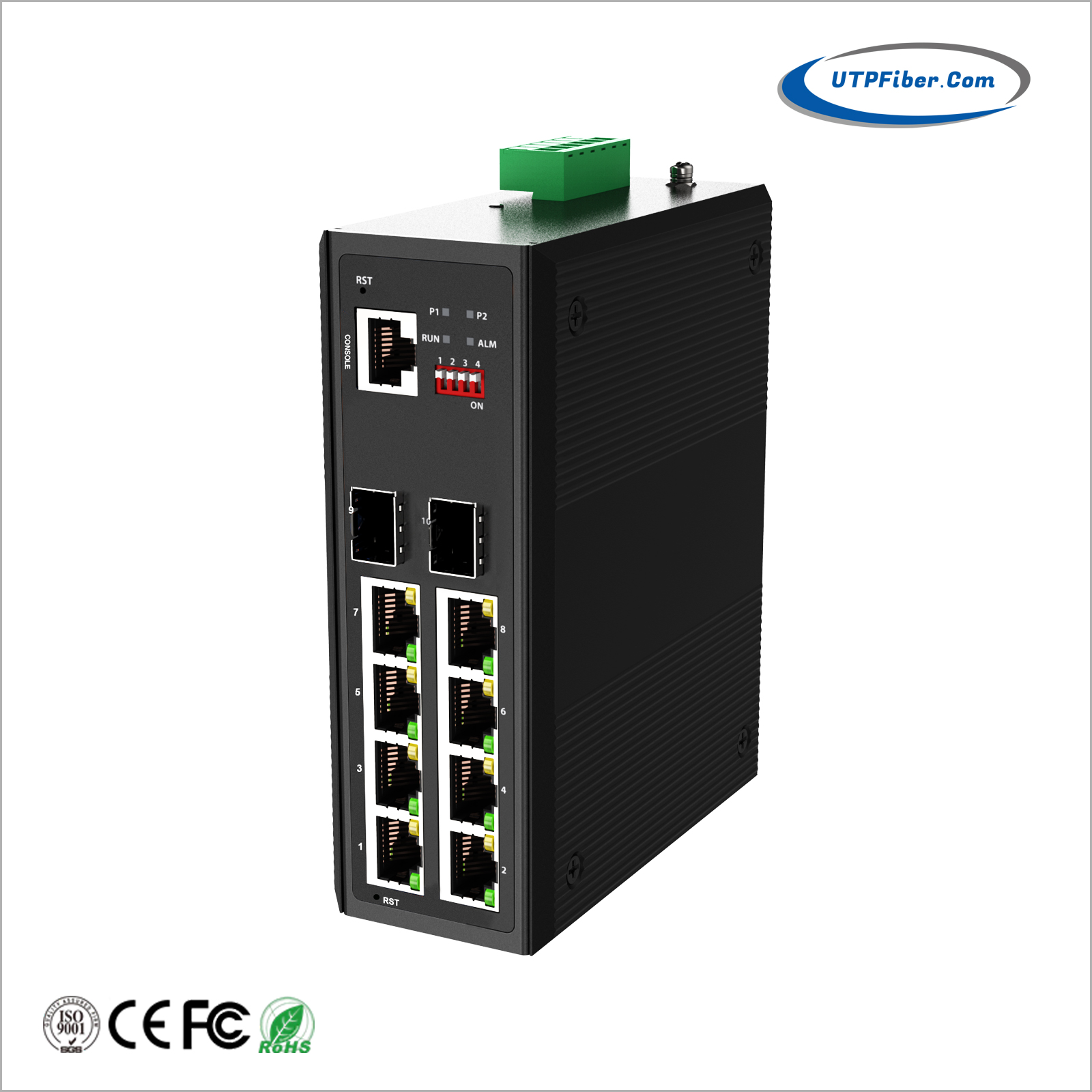

AC Powered L2+ Industrial 8-Port 10/100/1000T + 2-Port 100/1000X SFP Managed Ethernet Switch
Model:UF-MIES208GA-SFP
► 8x10/100/1000Base-T RJ45 ports, 2x100/1000Base-X SFP ports
► Integrated 100-240VAC power input, no need extra power adapter
► Full gigabit L2+ management, easy to manage the industrial network by CLI/WebGUI/NMS.
► Build up a redundant network with STP/RSTP/MSTP/ERPSv2

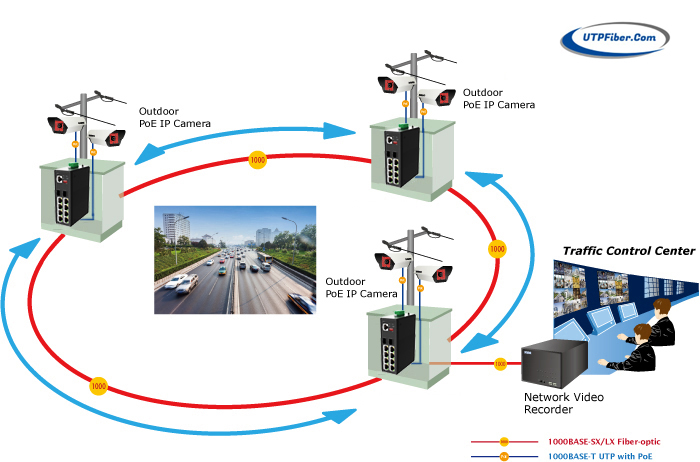

The UF-MIES208GA-SFP Managed Industrial Switch with 8-Port 10/100/1000Base-TX and 2xGigabit uplink ports provide stable and reliable Ethernet transmission. With high-quality design and reliability. The UF-MIES208GA-SFP support a wide range of management functions as well as Rapid Spanning Tree, Multiple Spanning Tree and Ethernet Ring Protection Switching (ERPS) protocols for network redundancy. IGMP functionality is supported to handle the multicast traffic, which is commonly used in IP CCTV deployment.
With 100-240VAC input, the converters don't need extra power adapter which will save cost and space for industrial power supply. It's suitable for small cabinet or box without DC-AC power supply. It can also operate either at an industry-standard operating temperature range of -40 to 80°C. Housed in rugged DIN rail or wall mountable IP40 enclosures, these switches are perfect choices for harsh environments, such as industrial networking, and intelligent transportation systems (ITS) and are also suitable for many militaries and utility markets applications where environmental conditions exceed commercial product specifications.
► 8x10/100/1000Base-T RJ45 ports, 2x100/1000Base-X SFP ports
► Integrated 100-240VAC power input, no need extra power adapter
► Support 10K bytes giant frame
► 8K MAC address table
► Support IEEE802.3az energy efficient Ethernet technology
► Electric 8KV surge protection, easy to use in outdoor environment
► Complete status indicator, working state at a glance
► Full gigabit L2+ management, easy to manage the industrial network by CLI/WebGUI/NMS.
► Build up a redundant network with STP/RSTP/MSTP/ERPSv2.
► RADIUS, IEEE 802.1X, SNMPv3, HTTPs and SSH to enhance network security.
► Bandwidth management prevents unpredictable network status with ”Lock Port” to restrict access to authorized MAC addresses.
► QoS, Priority mode based on 802.1P, Port & DSCP, queue scheduling algorithm including SP, WRR&SP+WRR
|
Physical Port |
|
|
RJ45 port and speed |
8x10/100/1000BASE-T |
|
Fiber port and speed |
2x100/1000BASE-X SFP (Dual Mode, Auto Detection) |
|
Console |
1 x RJ45-to-RS232 serial port (115200, 8, N, 1) |
|
Parameters |
|
|
Ethernet standards |
IEEE 802.3 10BASE-T IEEE 802.3u 100BASE-TX/100BASE-FX IEEE 802.3z Gigabit SX/LX IEEE 802.3ab Gigabit 1000T IEEE 802.3x flow control and back pressure IEEE 802.3af Power over Ethernet IEEE 802.3at Power over Ethernet Plus IEEE 802.3ad port trunk with LACP IEEE 802.1D Spanning Tree Protocol IEEE 802.1w Rapid Spanning Tree Protocol IEEE 802.1s Multiple Spanning Tree Protocol IEEE 802.1p Class of Service IEEE 802.1Q VLAN tagging IEEE 802.1ad Q-in-Q VLAN stacking IEEE 802.1x Port Authentication Network Control IEEE 802.1ab LLDP ITU G.8032 ERPS Ring RFC 768 UDP RFC 793 TFTP RFC 791 IP RFC 792 ICMP RFC 2068 HTTP RFC 1112 IGMP v1 RFC 2236 IGMP v2 |
|
Packet buffer |
4Mbits |
|
Packet length |
Up to 10K Bytes |
|
MAC address table |
8K |
|
Transmission mode |
Store and Forward (full/half duplex mode) |
|
Switch Fabric |
24Gbps/non-blocking |
|
Exchange property |
Delay time: < 7ps Backplane bandwidth: 20Gbps Packet forwarding rate: 14.88Mpps |
|
LED Indicator |
|
|
Power |
Connect-always |
|
RJ45 |
Link/Act: connect-always; data exchange-twinkle Speed light: 100Mbps-always; 10Mbps-twinkle |
|
Fiber |
Link/Act: connect-always; data exchange-twinkle |
|
Power Information |
|
|
Power access mode |
Phoenix terminal |
|
Power input |
100-240VAC |
|
Overload protection |
Yes |
|
Power reverse |
Support |
|
Power consumption |
Full-load<10W |
|
DIP Switch |
|
|
#1 |
ON: RSTP Disabled OFF: RSTP Enable(Default) |
|
#2 |
ON: Port VLAN Enable OFF: Port VLAN Disable(Default) |
|
#3 |
ON: SFP Port is 100M OFF: SFP Port 100/1000M(Default) |
|
#4 |
Function Reserve |
|
Physical Property |
|
|
Protection grade |
IP40 aluminum case |
|
Cooling mode |
Natural cooling, no fan design |
|
Dimensions |
138mm x 108mm x 49mm (L x W x H) |
|
Installation mode |
DIN trail/wall-mountable |
|
Weight |
650g |
|
Working Environment |
|
|
Operating Temperature |
-40℃~80℃ |
|
Operating Humidity |
5%~90% non-condensing |
|
Storage Temperature |
-40℃~80℃ |
|
Warranty |
|
|
MTBF |
500,000 hours |
|
Defects Liability Period |
5-year warranty, lifetime technical support |
|
Certification Standard |
|
|
EMI |
FCC Part15 Subpart B Class A, EN 55022 Class A |
|
EMS |
EN61000-4-2(ESD), EN61000-4-3(RS), EN61000-4-4(EFT), EN61000-4-5(Surge), EN61000-4-6(CS), EN61000-4-8, EN61000-4-11 |
|
Collision |
IEC60068-2-27 |
|
Drop |
IEC60068-2-32 |
|
Vibration |
IEC60068-2-6 |
|
Safety grade |
EN60950-1 |
|
Software Features |
|
|
Redundancy Protocols |
Support STP/RSTP/MSTP/ERPSv2(Sub-50ms), Link Aggregation |
|
Multicast Support |
Support IGMP Snooping V1/V2/V3，support GMRP, GVMP,802.1Q |
|
VLAN |
Support IEEE 802.1Q 4K VLAN, Support QINQ, Double VLAN, |
|
Time Management |
SNTP |
|
QOS |
Flow-based redirection |
|
ACL |
Port-based Issuing ACL |
|
Diagnostic Maintenance |
Support port mirroring, Syslog, Ping |
|
Management Function |
Support CLI、WEB、SNMPv1/v2/v3，Telnet server for management, EEE, LLDP, |
|
Alarm Management |
Support 1 way relay alarm output, RMON, TRAP |
|
Security |
Broadcast Storm Protection, HTTPS/SSLv3, AAA & RADIUS, SSH2.0 |
|
Advance Layer 2+ Features |
IPv4/IPv6 Management |
- Download FileName：UF-MIES208GA AC Powered Industrial 8G+2SFP Managed Ethernet Switch Datasheet V1.0.pdf Size： 577KB
|
Model |
Description |
|
UF-MIES208GA-SFP |
AC Powered L2+ Industrial 8-Port 10/100/1000T + 2-Port 100/1000X SFP Managed Ethernet Switch |
|
SFP Options |
► SFP option. Please select your SFP on our SFP Options Page (Industrial SFP). |
|
► SFP module is to be purchased separately. |
|
|
Mounting Options |
► Default DIN-Rail Bracket installed; Wall Mount Bracket is included. |
|
Power Options |
► 100-240VAC Power Supply. Open Wire for 3-Pin Terminal Block |
