ABS Box PLC Splitters
Model:UF-xxx-Px Series
- Low Insertion Loss (IL)
- High isolation
- Low Polarization Dependent Loss (PDL)
- Compact design

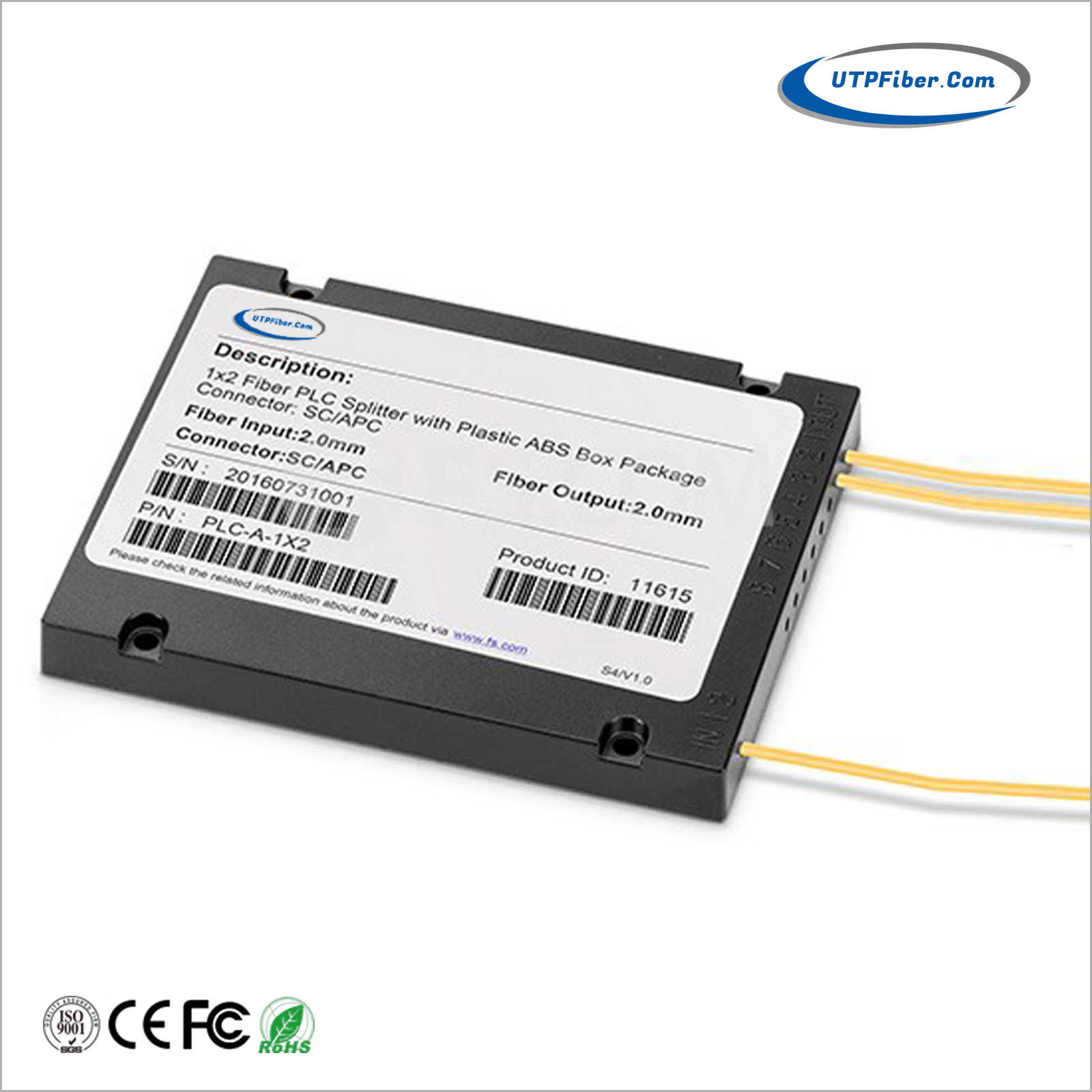

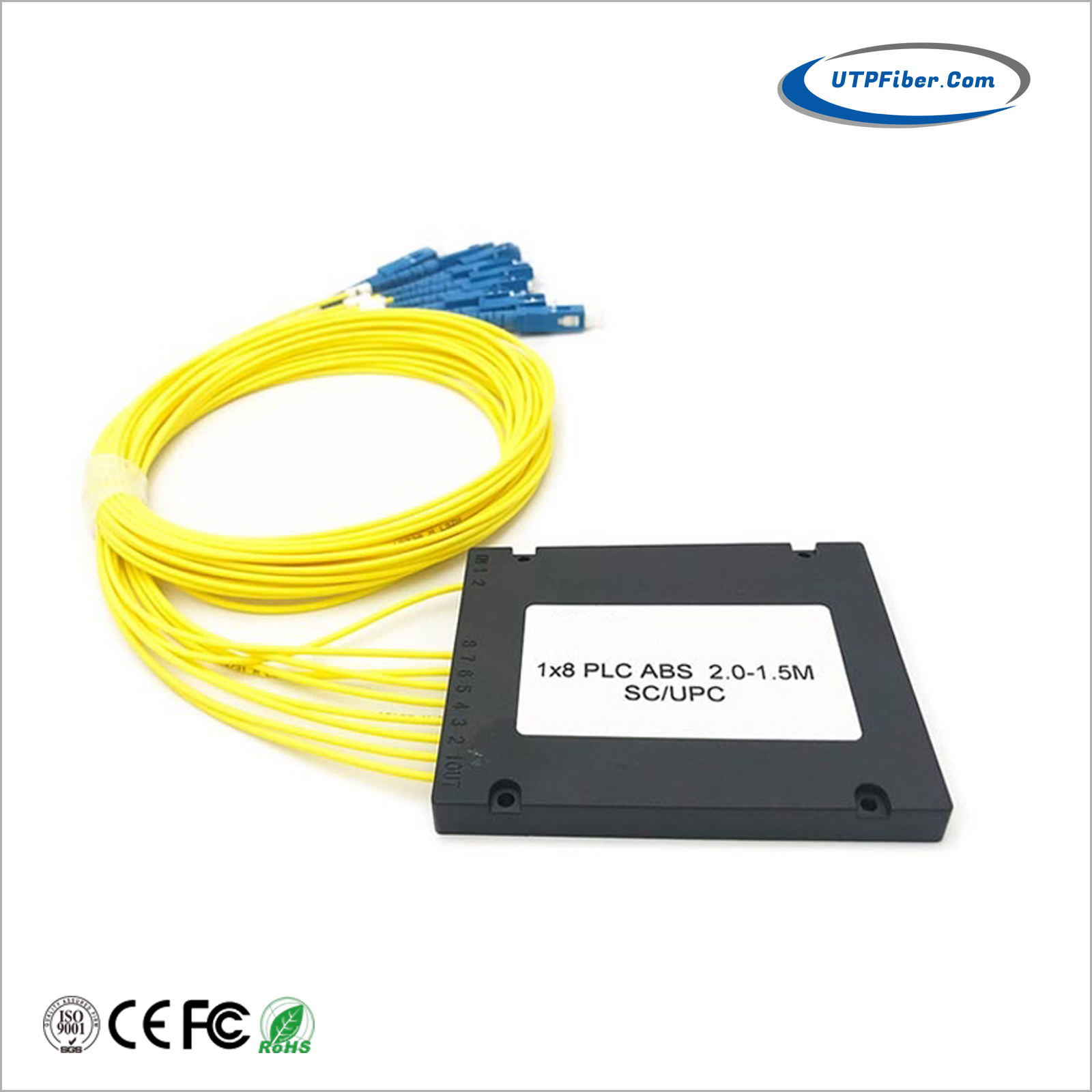

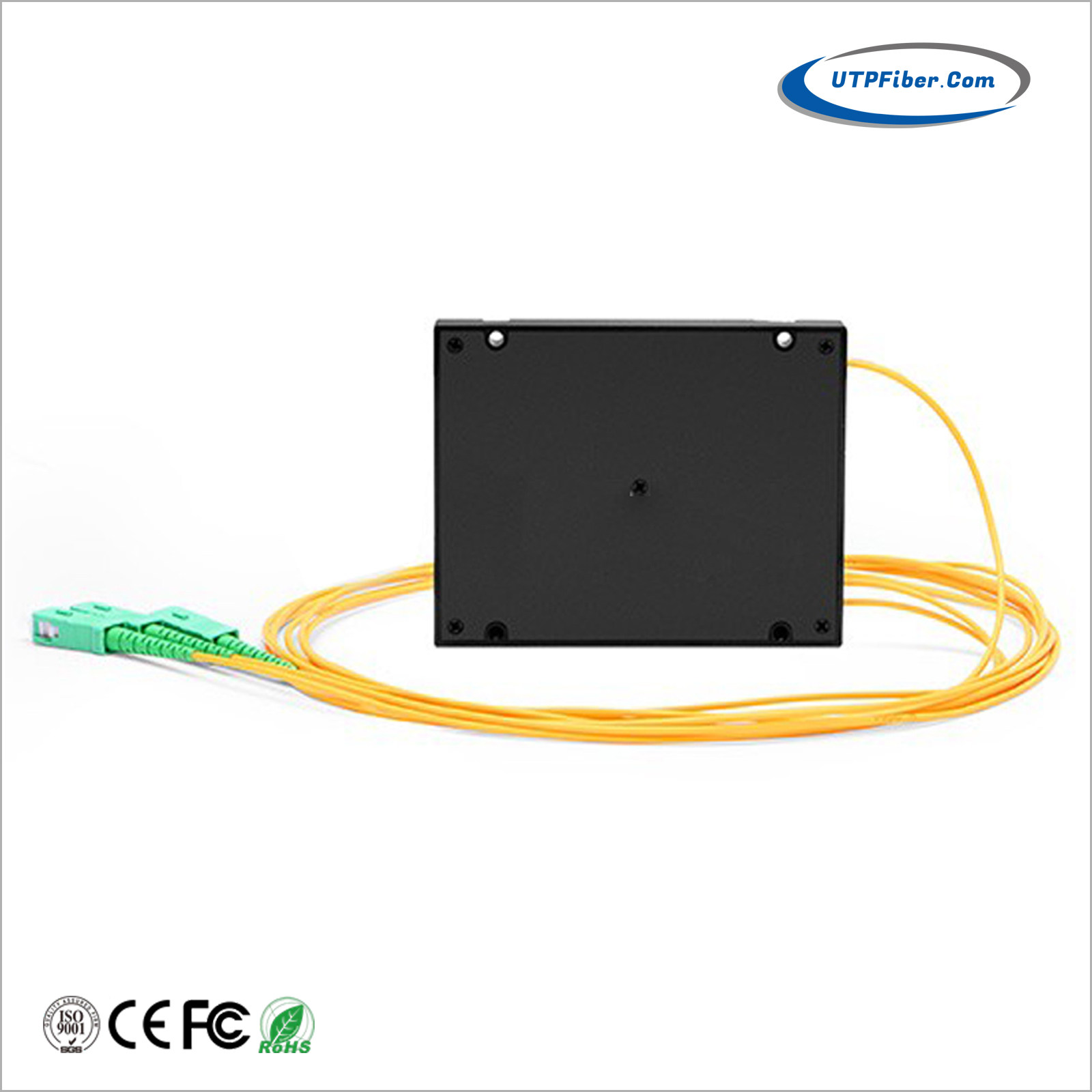

Shenzhen UTP Fiber Technology Co., Ltd. (hereinafter “UF”)’s ABS box PLC (Planar Lightwave Circuit) splitter is a type of optical power management device with plastic ABS box package fabricated using silica optical waveguide technology. It is widely used in PON/ODN networks to realize optical signal power splitting with 1xN or 2xN splitting ratio. UF provides a series of customized ABS box PLC splitters to meet different requirements on port configuration, cable type, fiber length, input connector, and output connector.
- Low Insertion Loss (IL)
- High isolation
- Low Polarization Dependent Loss (PDL)
- Compact design
- Wide operating wavelength range
- Good channel-to-channel uniformity
- High reliability and high stability
- Telcordia GR-1209-CORE-2001 compliant
- Telcordia GR-1221-CORE-1999 compliant
- YD/T-1272Q compliant
- Q/CT-2295 compliant
- RoHS-6 compliant (lead free)
- FTTH systems
- PON networks
- CATV links
- Communication Equipment
|
Parameters |
1×N ABS Box PLC Splitters |
|||||
|
Operating Wavelength (nm) |
1260～1650 |
|||||
|
Port Configuration |
1×2 |
1×4 |
1×8 |
1×16 |
1×32 |
1×64 |
|
Max Insertion Loss (dB) (P/S Grade) |
4.1/4.3 |
7.4/7.6 |
10.5/10.8 |
13.8/14.0 |
16.8/17.2 |
20.8/21.3 |
|
Max Loss Uniformity (dB) |
0.6 |
0.7 |
0.8 |
1.2 |
1.5 |
2.0 |
|
Max PDL (dB) |
0.2 |
0.25 |
0.35 |
|||
|
Min Return Loss (dB) |
55 |
|||||
|
Min Directivity (dB) |
55 |
|||||
|
Max Wavelength Dependent Loss (dB) |
0.5 |
0.8 |
1.0 |
|||
|
Max Temperature Stability (dB) |
0.5 |
|||||
|
Operating Temperature (℃) |
-5～75 |
|||||
|
Storage Temperature (℃) |
-40～85 |
|||||
|
Device Dimension L×W×H (mm) |
100×80×10 |
120x80x18 |
140x115x18 |
|||
Parameters
2×N ABS Box PLC
Splitters
Operating Wavelength (nm)
1260～1650
Port Configuration
2×2
2×4
2×8
2×16
2×32
2×64
Max Insertion Loss (dB)
4.5
7.9
11.3
14.7
17.8
21.3
Max Loss Uniformity (dB)
0.9
1.0
1.2
1.5
1.8
2.2
Max PDL (dB)
0.3
0.35
0.4
Min Return Loss (dB)
55
Min Directivity (dB)
55
Max Wavelength Dependent Loss (dB)
0.5
0.8
1.0
Max Temperature Stability (dB)
0.5
Operating Temperature (℃)
-5～75
Storage Temperature (℃)
-40～85
Device Dimension L×W×H (mm)
100×80×10
120x80x18
140x115x18
1)
All specifications are based on the devices with connectors.
2)
Fiber type is G657A1.
3) IL, PDL, WDL can
also be customer specified.
Note:
- Download FileName：UF ABS Box PLC Splitter Datasheet V1.0.pdf Size： 261KB
|
UF-xxx-Px- |
xx- |
xx- |
x |
x |
|
ABS Box PLC Splitter |
Fiber Type |
Fiber Length |
Input Connector |
Output Connector |
|
PS: 100×80×10 |
09=0.9mm loose tube |
10=1.0m |
0=None |
0=None |
|
PM: 120×80×18 |
20=2.0mm loose tube |
15=1.5m |
1=FC/UPC |
1=FC/UPC |
|
PL: 145×115×18 |
30=3.0mm loose tube |
20=2.0m |
2=FC/APC |
2=FC/APC |
|
xxx: |
|
25=2.5m |
3=SC/UPC |
3=SC/UPC |
|
102=1×2 |
|
... |
4=SC/APC |
4=SC/APC |
|
.. |
|
|
5=LC/UPC |
5=LC/UPC |
|
264=2×64 |
|
|
6=LC/APC |
6=LC/APC |
