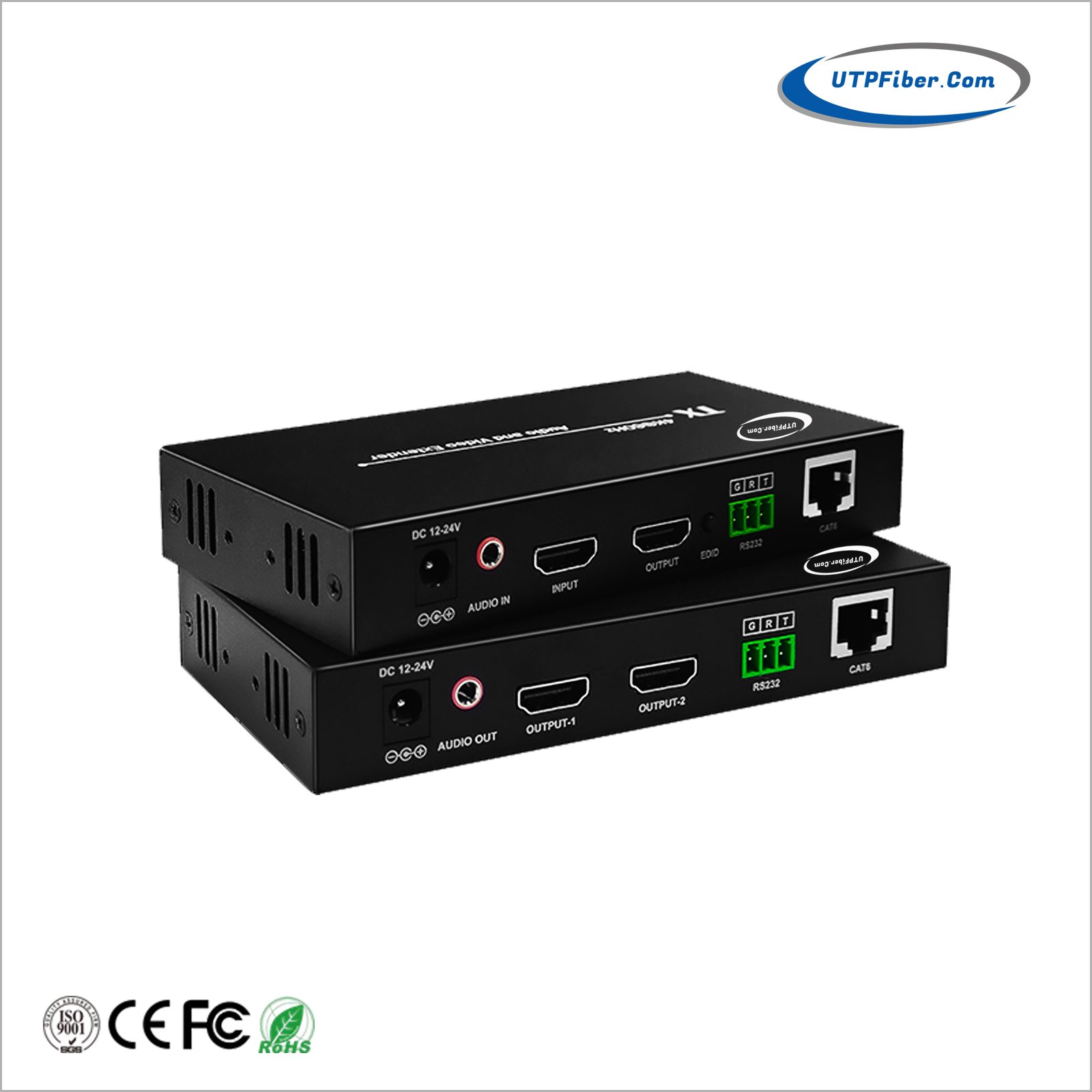

4Kx2K@60Hz HDMI HDBaseT Extender with IR/Audio/PoC/RS-232 and Loopout

Model:UF-HT6E-70

►     Using Cat6 up to 100 m at 1080p@60hz 70m at 4K@30Hz and 4K@60Hz;

►     Support RS232 serial port data transmission;

►     Support HDMI local loop-out in sender; 2 HDMI output in receiver;

►     Supports individual audio transmission;

►     Support infrared (20-60 Khz) signal bidirectional return control;

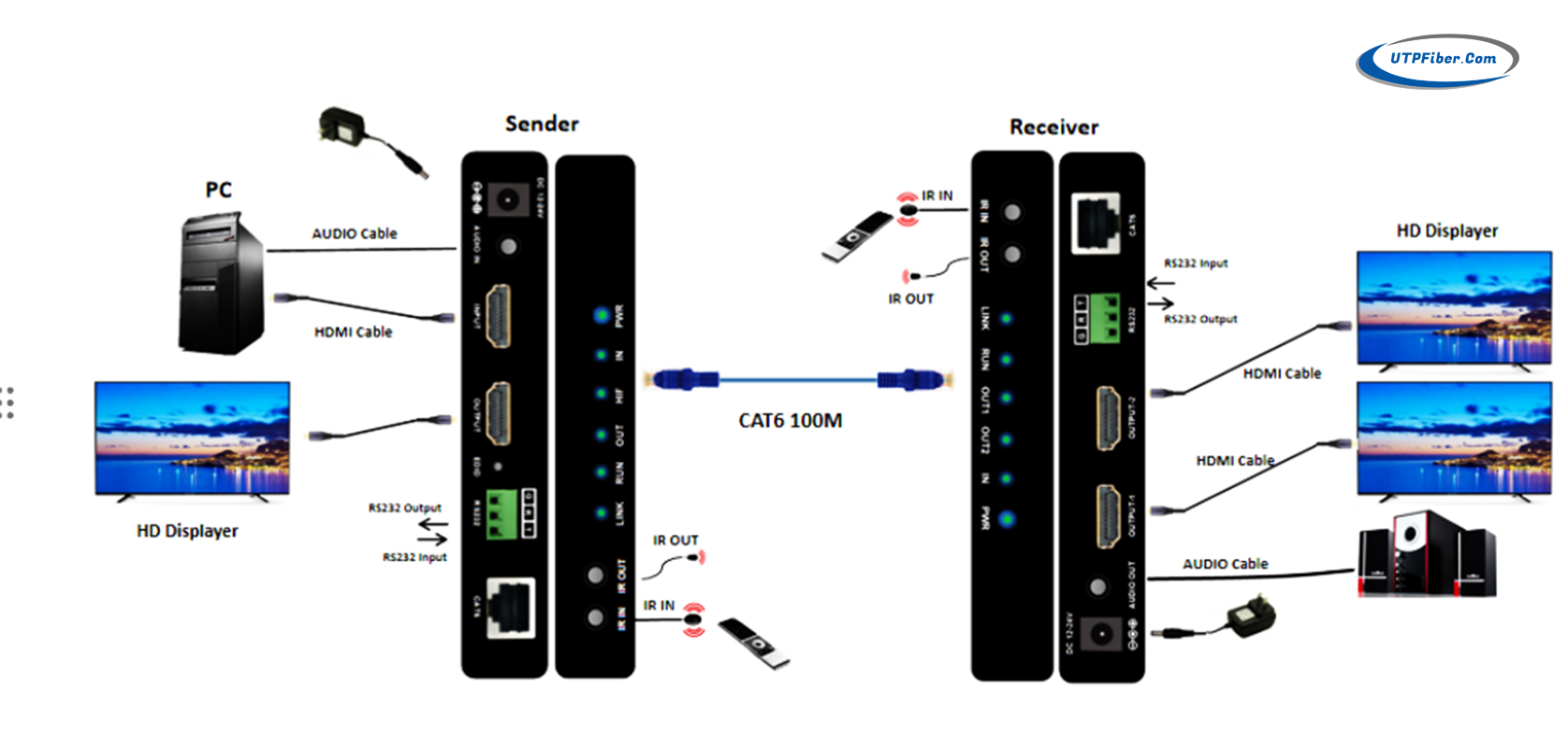

The UTP UF-HT6E-70 is to transmit 4K@60H HDMI audio and video signal. Longest distance up to 70 meters via a single network cable cat6/7, cost down for user while ensuring stable signal. It supports bidirectional infrared signal back transmission, independent audio transmission, RS232 serial data transmission.


The extender supports HDMI2.0 and HDCP2.2 function,support copy EDID, which greatly improves the compatibility of the device. It has a long transmission distance, low use cost, convenient installation, good compatibility, is a stable and efficient transmission mode, is widely used in high-definition conference system, high-definition film shooting, high-definition teaching system, high-definition digital advertising and other audio and video transmission.


4Kx2K@60Hz HDMI HDBaseT Extender with IR/Audio/PoC/RS-232 and Loopout, 4K60Hz HDMI2.0 HDBaseT Extender, HDBaseT 4K HDMI Extender Over Cat6a, 4K HDBaseT HDMI Extender, HDBaseT Extender 4K HDMI 2.0 Kit, True 4K HDMI HDBaseT 2.0 Extender, HDBaseT 2.0 4k@60Hz 4:4:4 HDMI 2.0 Extender, 4K HDMI 2.0 HDBaseT Extender up to 70m/230ft, 4K 60 Hz HDMI HDBaseT Extender, HDBaseT 4K@60Hz HDMI 2.0 Extender

►     Using Cat6 up to 100 m at 1080p@60hz 70m at 4K@30Hz and 4K@60Hz;

►     Support RS232 serial port data transmission;

►     Support HDMI local loop-out in sender; 2 HDMI output in receiver;

►     Supports individual audio transmission;

►     Support infrared (20-60 Khz) signal bidirectional return control;

►     Support HDMI 2.0a HDCP 2.2, UHD 4K/60Hz YUV 4:4:4, HDR, HDR10+, Dolby Vision, CEC; Support for DTS-HD, Dolby TrueHD, 7.1ch digital audio and all other HDMI standard formats copy

►     Suppor copy EDID, improve compatibility, match signal sources and display devices.

►     Built-in automatic adjustment system to make the image smooth, clear and stable;

►     Built-in ESD electrostatic protection circuit, easy to install, plug and play

Specification Name

Detailed parameters

Video

Standard

HDMI 2.0; HDCP 2.2

Pixel bandwidth

600MHztotal digital

Interface bandwidth

18Gbps

Max resolution

3840X2160@60Hz down compatible

Interface

HDMI-A

Interface impedance

100Ω

Recommended cable length

<5M1920X1080@60Hz

Audio

Interface

3.5mm Stereo audio socket

Format

44.1K,48K,96K,176K,192K

Type of signal

stereos

IR

Interface

3.5MM audio interface

Frequency

20-60KHz

Type of signal

Digital signal

Transmission direction

Bidirectional transmission

RS232

Interface

DB9

Signal direction

Two-way transparent transmission

Baud rate

Self-adaption ,115200bps

Data bit

8 bits

Internet

Interface

RJ45568B

Distance

Cat6: 3840*2160@60Hz/30Hz up 70m; 1080p@60hz-100m

Other

Power supply

Power adaptorDC 12V/2A x1

Power dissipation

MAX 12W

Temperature

-5 ~ +70

Humidity

5% ~ 90%

Dimension

142*67*23mm

The warranty

1-year free warranty

  • Download FileName:UF-HT6E-70 4Kx2K@60Hz HDBaseT 70M Extender Datasheet V1.0.pdf Size: 824KB

Model

Description

UF-HT6E-70T/R

4K60Hz HDMI2.0 HDBaseT Extender: Support RS232 and dualband IR, Supports individual audio transmission, Support HDMI local loopout; receiver have 2 HDMI output, Using Cat6 cable 4K@60Hz to 70m, 1080p@60hz to 100m, including Transmitter & Receiver, used by pairs

Mounting Options

► Desktop

Power Options

►2A 12VDC Power Supply or PoC

► 1 x 12V 2A external power adapter is included.
