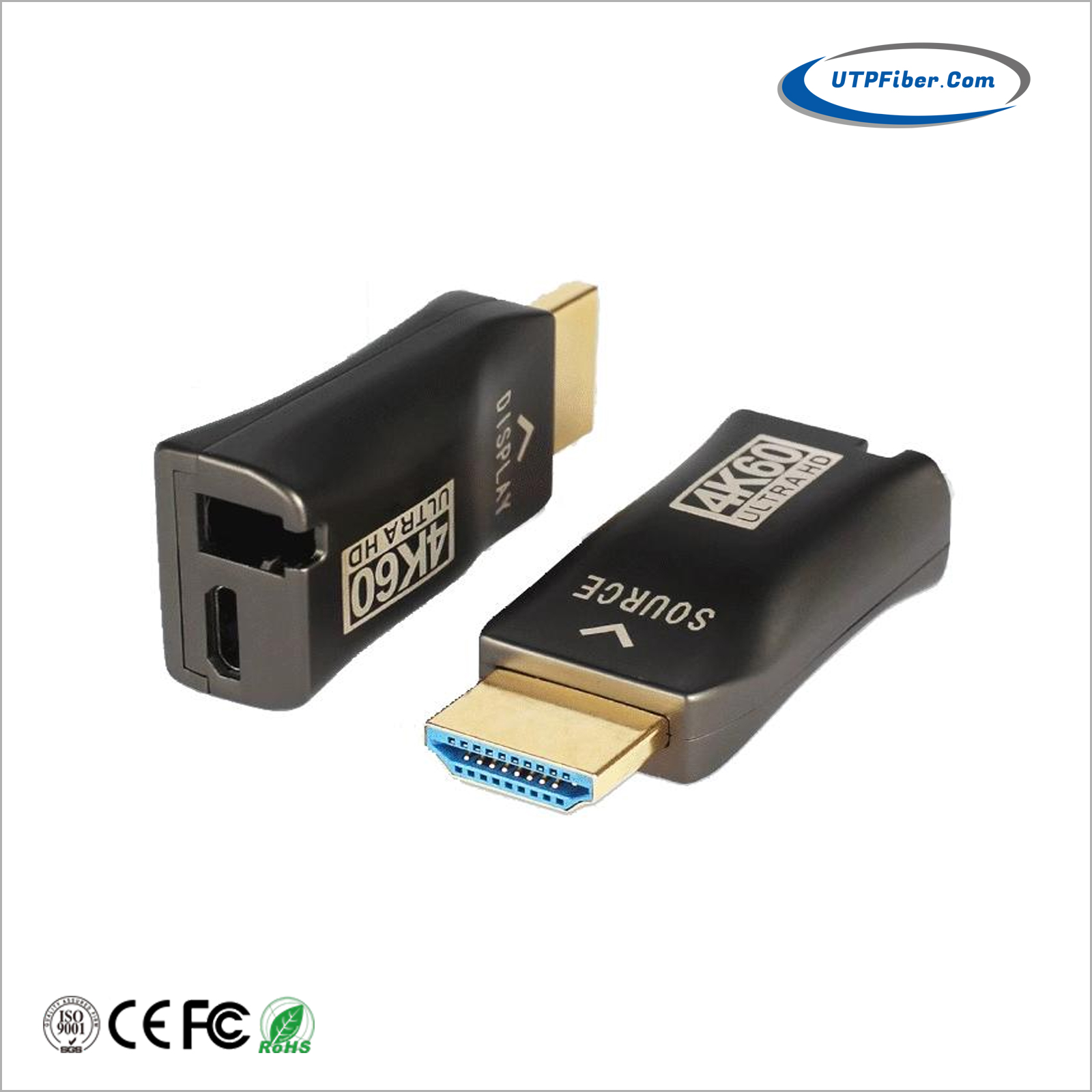

This UF-1802H-T/R mini HDMI 2.0 optical fiber extender can support Ultra HD 4K@60HZ YUV 4:4:4 uncompressed video and HDCP2.2. It can transmit high quality 4K signal up to 300meter (984ft)by only 1LC OM3 multi-mode fiber. The set also promotes secure data with negligible RFI/EMI emissions or loss of video quality due to no copper conductor present.

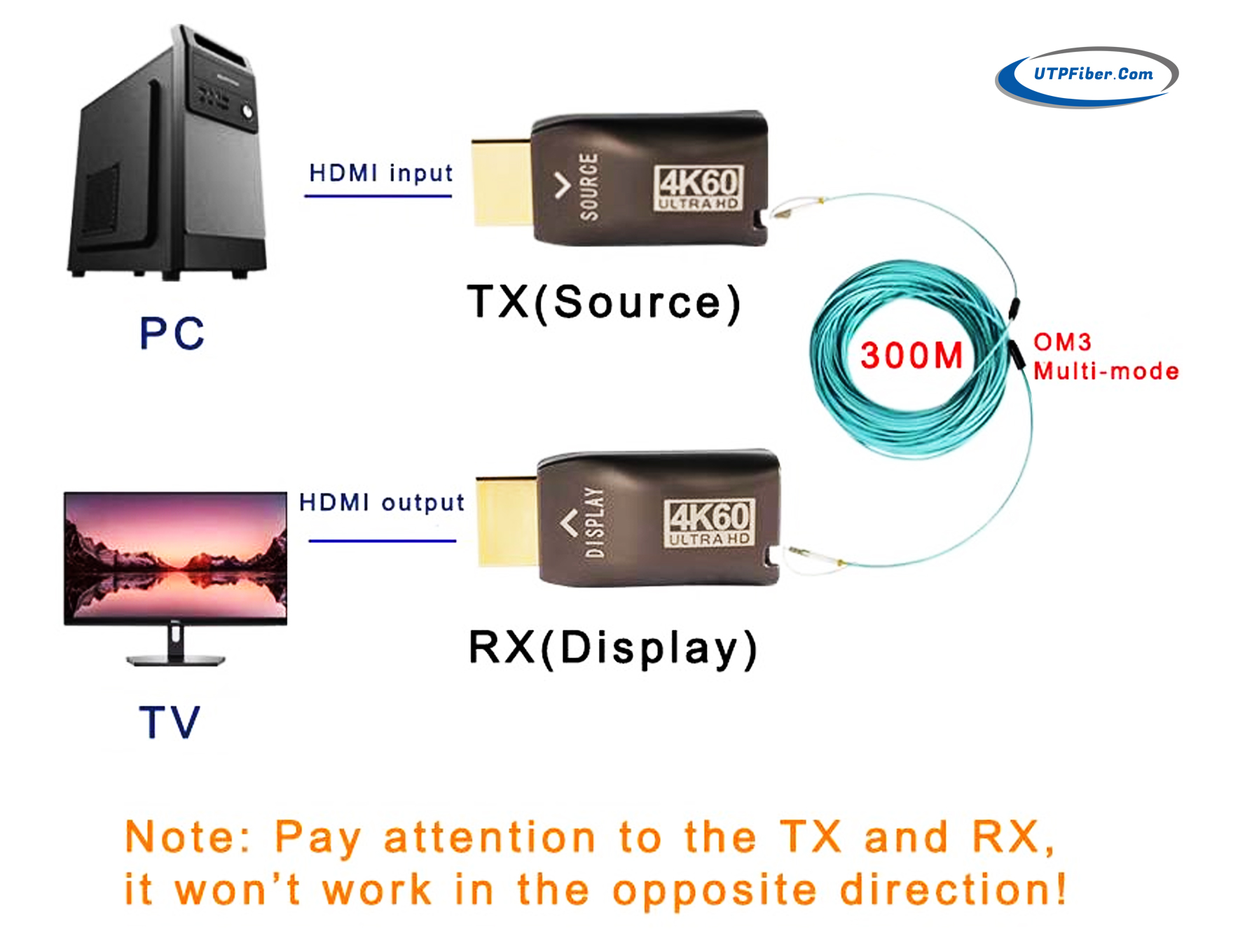

The 4K HDMI optical fiber extenders are enclosed HDMI optical modules designed to support transmission of an uncompressed lossless HDMI 2.0 signal over multimode optical fiber at 850nm, up to distances of 300m, at a resolution of 4Kx2K@60Hz. UF-1802H-T/R-T converts an HDMI signal to a single 18Gb/s serial data stream for transmission over single optical fibers. UF-1802H-T/R-R converts the serial data back to an HDMI signal. The transceivers are RoHS compliant and lead-free per requirements in Europe and China. This product is ideal for large-screen display, conferencing systems and home entertainment and so on. The device has the ability of anti-interference, to ensure the stability of the signal.

►     Supports HDMI2.0 Video up to 4K/60Hz (Y:U:V 4:4:4)

►     No Settings or Adjustments Necessary

►     Adopt WDM technology to realize high-definition audio and video transmission through a single OM4 multi-mode optical fiber

►     Supports up to 300m Transmission Distance with OM4 multimode fiber

►     Standard HDMI2.0 Connector

►     Integrated USB Connector for Power

►     Hot-Pluggable

►     The TMDS signal is transmitted through a multimode optical fiber, which has good anti-interference performance

►     Uses Small, Reliable LC Optical Connector

►     Support EDID, HDCP, CEC transparent transmission

• Download FileName：UF-1802H Mini 4K HDMI2.0 Fiber Extender Datasheet V1.0.pdf Size： 518KB
