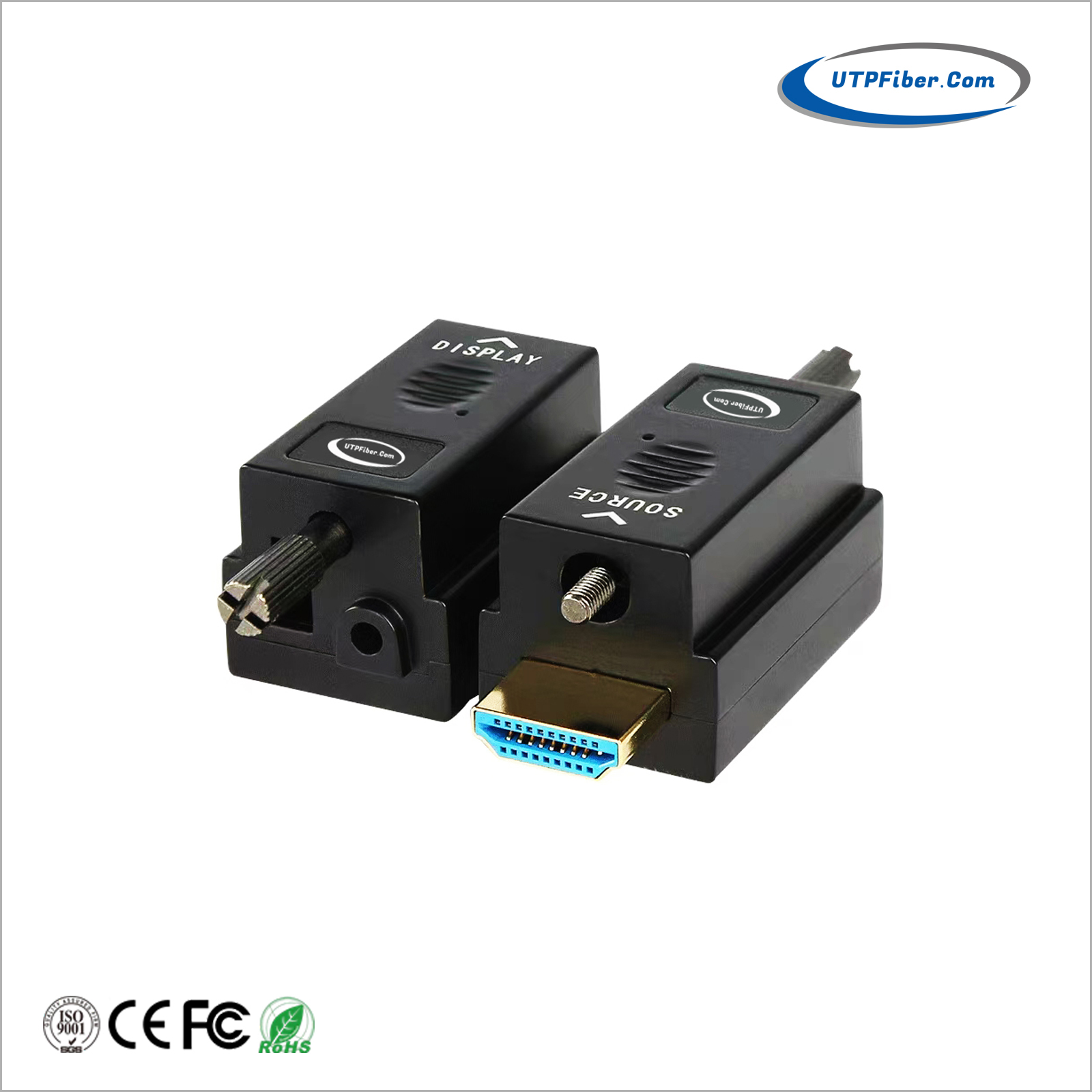

4K@60Hz Micro Mini HDMI2.0 Fiber Optic Extender
Model:UF-1801H-T/R
► Support resolutions up to 3840x2160@60Hz (4:4:4) or 4096x2160@60Hz (4:4:4)
► Support lossless transmission over 300 meters using OM3 or OM4 fiber optic cable
► Supports transparent transmission of HDCP, DDC, and CEC signals
The UF-1801H-T/R is an HDMI 2.0 Fiber Optic Extender with a transmission rate of 18 Gbps (6 Gbps per channel). It supports resolutions up to 3840x2160 at 60Hz (4:4:4) or 4096x2160 at 60Hz (4:4:4) for audio and video transmission, and is backward compatible with 4K at 30Hz, 1080p, and 720p.

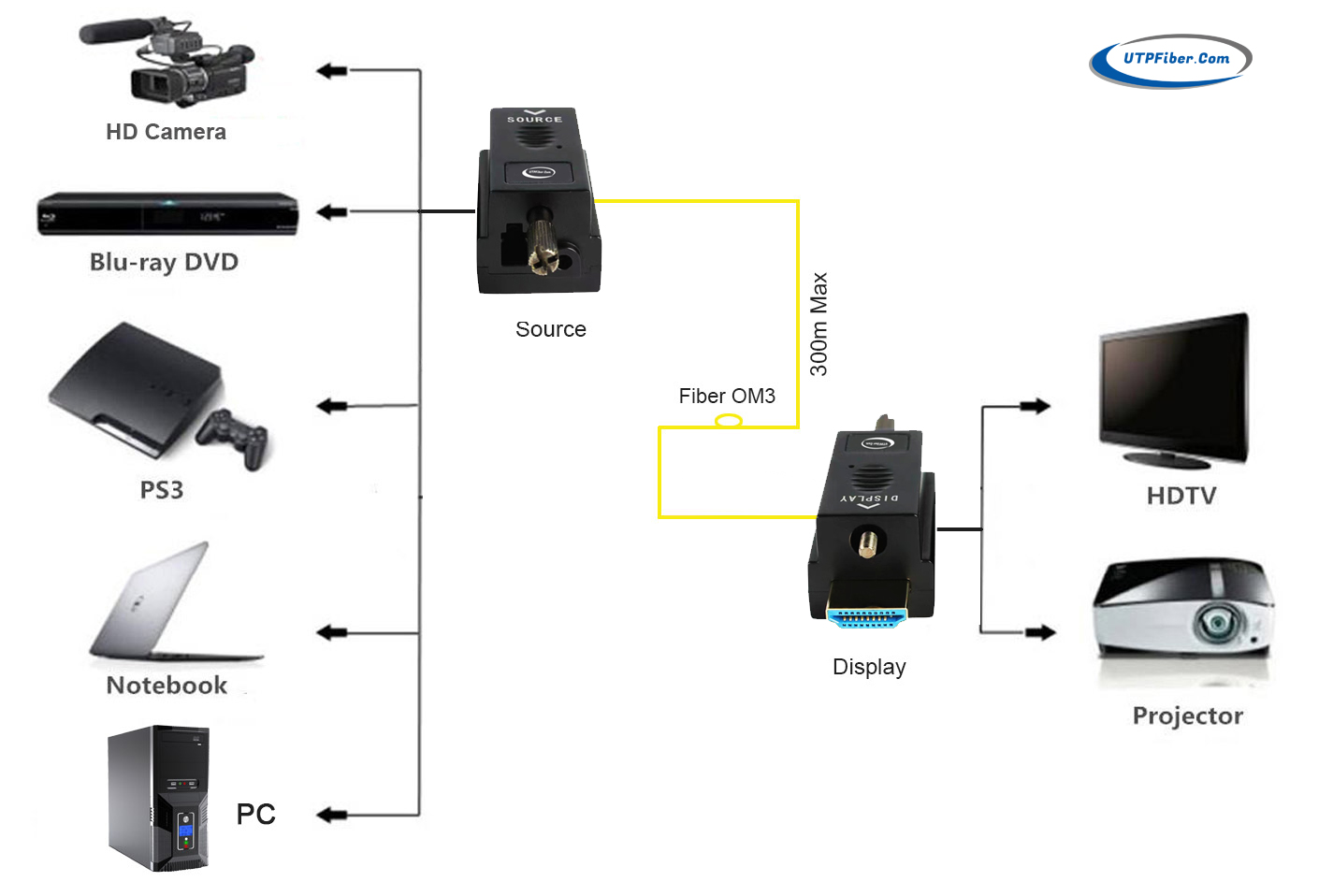

The HDMI2.0 Fiber Extender features our proprietary built-in micro-diffraction optical system and utilizes wavelength division multiplexing technology to achieve high-definition audio and video transmission over a single multimode LC fiber optic cable up to 300 meters. It is easy to assemble, offers stable performance, and meets the rapid production needs of customers. The product is primarily used for high-definition audio and video data transmission between HDMI-equipped players, computers, and HDMI-enabled devices such as HDTVs, monitors, and projectors.
► Support resolutions up to 3840x2160@60Hz (4:4:4) or 4096x2160@60Hz (4:4:4)
► Support lossless transmission over 300 meters using OM3 or OM4 fiber optic cable
► Supports transparent transmission of HDCP, DDC, and CEC signals
► Utilize WDM technology to achieve high-definition audio and video transmission over a single multimode LC fiber optic cable
► Built-in micro-diffraction optical system
► Offer simple and quick production processes, ensuring ease of assembly, strong anti-interference capabilities, and robust operability
► Transmit TMDS signals via a single multimode fiber optic cable, providing excellent anti-interference performance
► With USB to DC 5V Power Cord for USB Power Input
► Hot-Pluggable, EMI/RFI Resistant
|
Type of Extender |
Fiber Transmitter/Receiver for HDMI signal over Optical Fiber Cable |
|
Input Signals |
HDMI2.0 |
|
Interface |
HDMI Type-A |
|
Signal Support |
HDMI2.0 HDMI format standard and HDCP compliant |
|
Video Support |
4K 60Hz (4:4:4) / 4K 30Hz / 1080p / 1080i /720p |
|
Audio Support |
Dolby TrueHD, Dolby Digital Plus, DTS, DTS-ES 6.1, DTSHD, DTS-HD-HRA, DTS-HD Master, (PCM-2CH) |
|
Website Specifications |
Color space 4:4:4 |
|
Data Rate |
18Gbps (6Gbps/CH) |
|
Dynamic EDID |
Plug & Play, no need to learn |
|
Fiber Connector |
Single LC Receptacle |
|
Transmission Distance |
OM3 or OM4 Multi Mode, up to 984ft (300M) |
|
Operating Temperature |
-20°C to + 70°C |
|
Storage Temperature |
-40°C to + 85°C |
|
Humidity |
to 95% RH (non-condensing) |
|
Safety Approvals |
CE, RoHS, FCC |
|
Dimension (LxWxH) |
60 x 23 x 21mm |
|
Weight |
0.2 kg |
|
Power Input |
TX: 5VDC (Powered by HDMI source, when the HDMI port of the signal source provides insufficient power, it requires additional power through the USB interface) |
|
RX: 5VDC, powered via the USB interface |
|
|
Packing List |
(1) Transmitter (1) Receiver (2) Power Adapters (1) USB to DC 5V Power Cord (1) User Manual |
- Download FileName：UF-1801H Micro Mini 4K HDMI2.0 Fiber Extender Datasheet V1.0.pdf Size： 683KB
|
Model |
Description |
|
UF-1801H-T/R |
4K@60Hz Micro Mini Uncompressed HDMI2.0 Fiber Optic Extender, support 3840x2160@60Hz (4:4:4) or 4096x2160@60HZ (4:4:4), OM4 Multi-mode, Single Fiber, 300 meters, LC, including 1 transmitter & 1 receiver |
