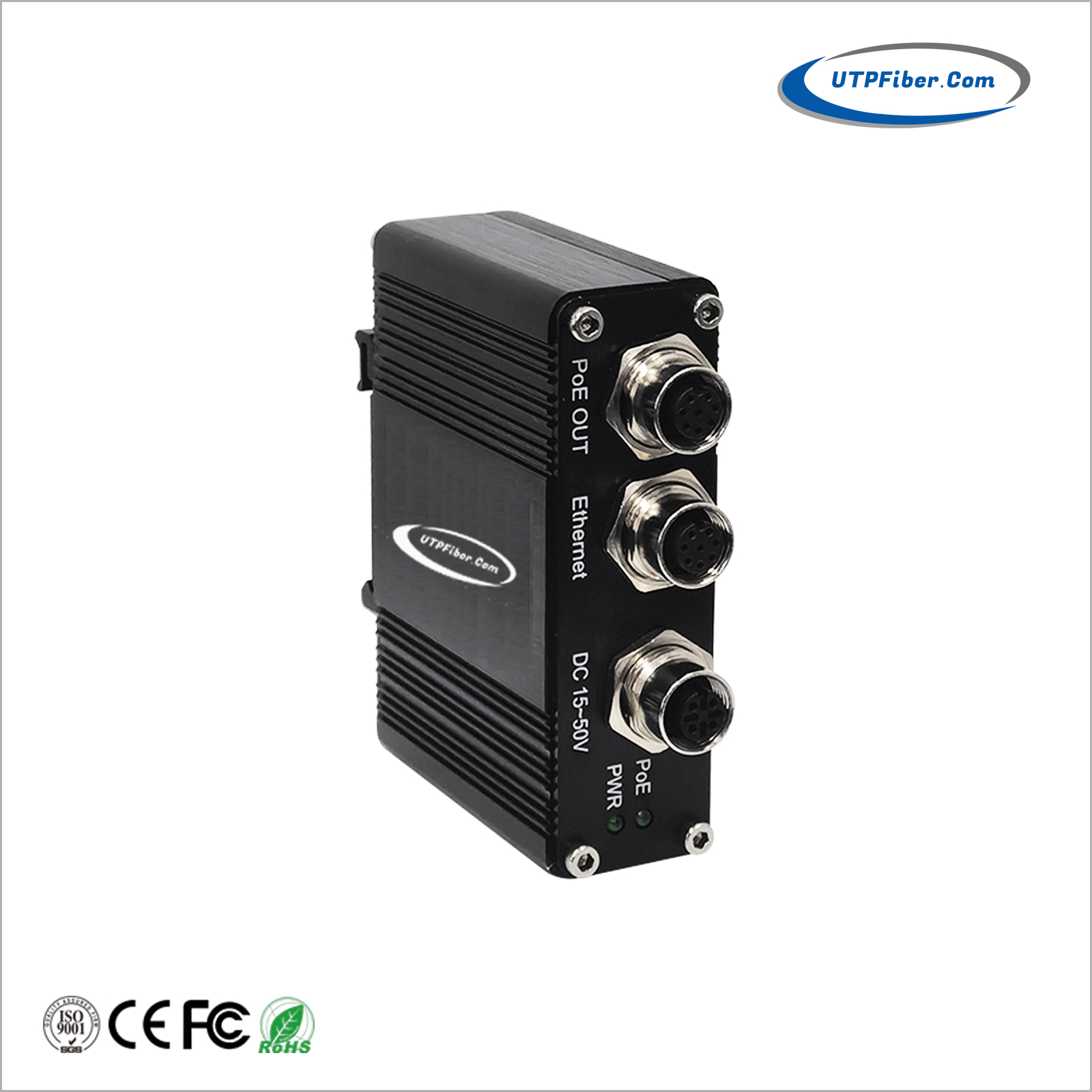

Industrial Gigabit M12 A-Code 802.3at 30W PoE+ Injector with 12-48VDC Power Input
Model:UF-IPOE30-M12
► 12-48VDC Wide Range Power Input with Power Booster Function
► Fully compliant with IEEE802.3af/at PoE standard
► Support 10/100/1000Base-TX for power and data output
► Support DIN-Rail & Wall-mount installation
► Use M12 A-code connectors to ensure tight and robust connections
► Plug and Play

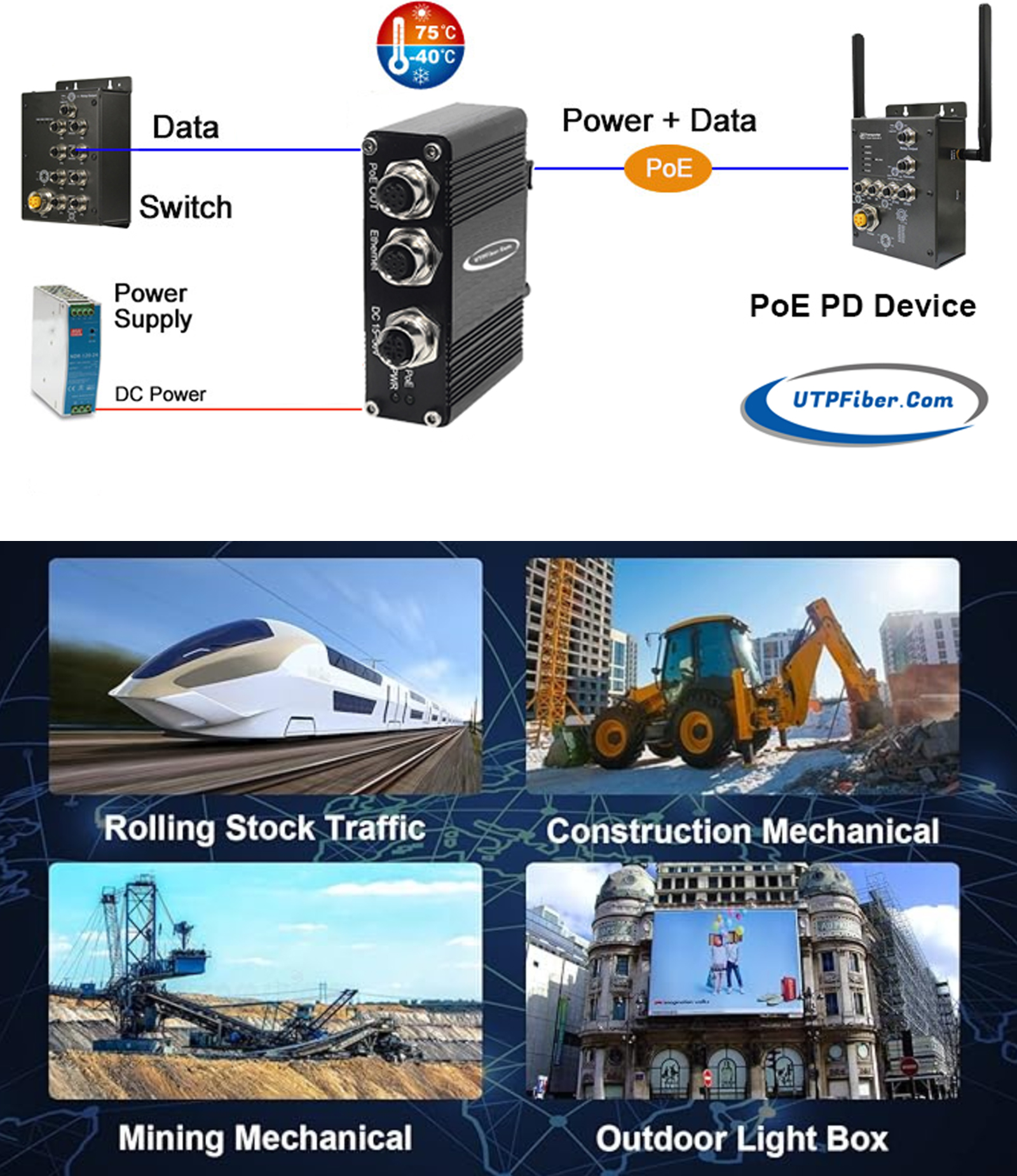

UTP UF-IPOE30-M12 Industrial Gigabit M12 A-Code 802.3at 30W PoE+ Injectors are designed for industrial applications, such as rolling stock, vehicle, and railway applications. The PoE Injector is an advanced IEEE802.3at compliant device with Intelligent Detection that provides 1-port 10/100/1000 Base-T(X) PoE output which is compliant with EN50155. It is specifically designed for the toughest industrial environments. The EN50155 PoE Injector uses M12 connectors to ensure tight, robust connections, and guarantee reliable operation during environmental disturbances, such as vibration and shock. The device does not turn on power until it detects a valid PoE signature from the PoE devices attached downstream in the network. This provides protection against damage to non-PoE compliant devices which may be connected to the Ethernet cable.
UF-IPOE30-M12 provides an integrated power solution with a wide range voltage of 12-48VDC with power booster function for high availability applications.
► 12-48VDC Wide Range Power Input with Power Booster Function
► Fully compliant with IEEE802.3af/at PoE standard
► Support 10/100/1000Base-TX for power and data output
► Support DIN-Rail & Wall-mount installation
► Use M12 A-code connectors to ensure tight and robust connections
► Small Size (LxWxH): 95 x 70 x 30mm
► Weight: 0.25KG
► Aluminum Case
► Plug and Play
► Extensive LED indicators for PoE diagnostics
► Environmentally Hardened -40°C to 80°C (-40°F to 176°F) operating temperature
|
Standards: |
IEEE 802.3 Ethernet |
|
IEEE 802.3u Fast Ethernet |
|
|
IEEE 802.3ab Gigabit Ethernet |
|
|
IEEE 802.3x Full-Duplex Flow Control |
|
|
IEEE 802.3az Energy Efficient Ethernet (EEE) |
|
|
Processing Type: |
Forward |
|
Half-duplex, Full-duplex |
|
|
Forward Filter Rate: |
1,488,000pps (1000Mbps) |
|
Cabling: |
10/100/1000Base-T |
|
Connector: |
2 x M12 connector (8-pin female M12 A-coding) |
|
Electrical |
|
|
Input Power: |
12~48VDC on 4-pin female M12 A-Coding |
|
Power Consumption: |
35W Max. |
|
PoE (Power over Ethernet) |
|
|
Standard: |
IEEE802.3af Power over Ethernet |
|
IEEE802.3at Power over Ethernet Plus |
|
|
Port: |
M12 connector (8-pin female M12 A-coding) |
|
PoE Budget: |
30W Max |
|
LED Indicators |
|
|
Power: |
Power Status |
|
PoE: |
PoE Status |
|
Mechanical |
|
|
Dimensions (WxDxH): |
95 x 70 x 30 mm |
|
Weight: |
0.25Kg |
|
Casing: |
Aluminum Case |
|
Mounting Options: |
DIN-Rail / Wall-mount |
|
Certifications |
|
|
Certifications |
ISO9001:2008, CE, FCC, RoHS |
|
EMI |
EN 55032:2015 EN 55035:2017 EN 61000–3–2: 2014 EN 61000–3–3: 2013 |
|
EMS |
IEC 61000–4–2: 2008 IEC 61000–4–3: 2010 IEC 61000–4–4: 2012 IEC 61000–4–5: 2014 IEC 61000–4–6: 2013 IEC 61000–4–8: 2009 IEC 61000–4–11: 2004 |
|
Reliability |
|
|
ESD |
Contact Discharge: ±8kV, Air Discharge: ±15kV |
|
Surge Protection |
±6kV |
|
Environmental |
|
|
Operating Temperature: |
-40°C to 80°C (-40°F to 176°F) |
|
Storage Temperature: |
-40°C to 85°C (-40°F to 185°F) |
|
Relative Humidity: |
5% to 95% non-condensing |
|
MTBF: |
>200,000hrs |
- Download FileName：UF-IPOE30-M12 Industrial Gigabit 30W PoE Injector Datasheet V1.0.pdf Size： 825KB
|
Model |
Description |
|
UF-IPOE30-M12 |
Industrial Gigabit M12 A-Code 802.3at 30W PoE+ Injector with 12-48VDC Power Input |
|
Mounting Options |
► Default DIN-Rail Bracket installed; Wall Mount Bracket is included. |
|
Power Options |
► Power Supply is to be purchased separately |
