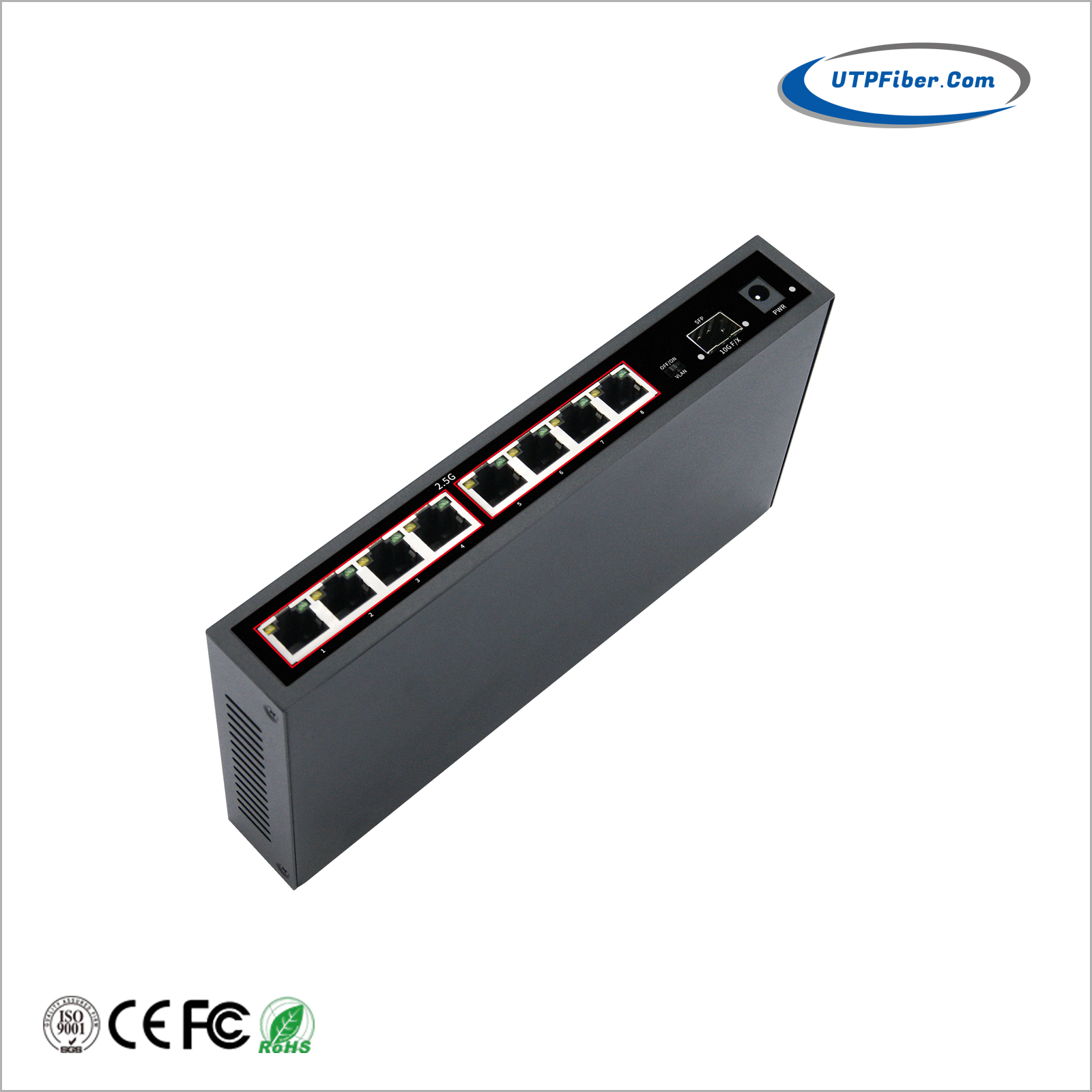

8-Port 2.5GBASE-T +1-Port 10G Base-X SFP+ Multi-Gigabit Ethernet Switch
Model:UF-SW8MG1X
► 8x10/100/1G/2.5G Base-T RJ-45+ 1x10G Base-X SFP+
► IEEE 802.3bz (2.5G) compliant
► 2.5GBASE-T supports up to 2.5Gbps connection speeds
► Support VLAN
► Backwards compatible with 10/100/1000Mbps devices
► 60Gbps switching capacity
UF-SW8MG1X is a 2.5G Ethernet switch that provides 8 ports of electrical 10M/100M/1G/2.5GBase-T via RJ-45s and 1 port SFP slots of 10G Base-X which provide stable and reliable long-distance Ethernet transmission over optical fiber. These 2.5G Ethernet switches are equipped with 2.5GBASE-T RJ-45 ports that provide multi-gigabit speeds capable of up to 2.5Gbps over your existing Cat5e or better cabling. The FANLESS design provides high MTBF in indoor environments of operating temperature from -10 to 60°C (14 to 160°F). These switches are perfect choices for use in many environments, such as Data Center Networking, Intelligent Transportation Systems (ITS) and wireless access points, PTZ IP cameras, and VoIP telephony systems.
► 8x10/100/1G/2.5G Base-T RJ-45+ 1x10G Base-X SFP+
► IEEE 802.3bz (2.5G) compliant
► 2.5GBASE-T supports up to 2.5Gbps connection speeds
► Support VLAN
► Backwards compatible with 10/100/1000Mbps devices
► 60Gbps switching capacity
► Compatible with existing Cat5e or better cabling
► Fanless design eliminates noise
|
Product Name |
8-Port 2.5GBASE-T +1-Port 10G Base-X SFP+ Multi-Gigabit Ethernet Switch |
|
Product Model |
UF-SW8MG1X |
|
Connector |
8*2.5Gbps RJ45 port, 1*10G SFP+ |
|
Network Medium |
Cat5 (UTP) or more |
|
Technology |
|
|
Network Standards |
IEEE 802.3 10BASE-T IEEE 802.3u 100BASE-TX IEEE 802.3ab Gigabit 1000BASE-T IEEE 802.3bz 2.5GBase-T IEEE 802.3ae 10Gb/s Ethernet IEEE 802.3x flow control and back pressure IEEE 802.3az Energy-Efficient Ethernet |
|
Processing types |
Store-and-forward Half-duplex back pressure and IEEE 802.3x full-duplex flow control |
|
Address database Table Size |
8K MAC address |
|
Buffer memory |
48Kb embedded memory per unit |
|
Backboard Bandwidth |
60Gpbs Full duplex |
|
Network Latency |
Less than 20us for 64-byte frames in store-and-forward mode for 100Mbps to 1000Mbps transmission |
|
VLAN DIP Switch Function |
|
|
OFF |
Port 1-8 of the Ethernet switch can communicate with each other |
|
ON |
Port 1-8 of the Ethernet switch are isolated from each other and can only communicate with the uplink SFP+ port respectively |
|
Power |
|
|
Input |
DC 12~55V |
|
Power Adapter |
DC 12V 1A |
|
Overload current protection |
Present |
|
Mechanical |
|
|
Casing |
Metal |
|
Installation |
Wall mounting/ Desktop |
|
Interface |
|
|
LED Indicators |
System: Power Per port: Link, Activity, Speed |
|
Environment specification |
|
|
Operating temperature |
-10-60℃(14-160℉) |
|
Storage temperature |
-40-70℃(14-158℉) |
|
Operating humidity |
90% maximum relative humidity, non-condensing |
|
Storage humidity |
95% maximum relative humidity, non-condensing |
|
Regulatory Approval |
|
|
ISO |
Manufactured in ISO9001 facility |
|
Safety |
CE/CCC/FCC |
|
Warranty |
2 Years |
|
Dimensions |
210*110*33mm (L*W*H) |
|
Weight |
N.W:1.1Kg G.W:1.3Kg |
- Download FileName：UF-SW8MG1X Unmanaged 8-Port 2.5G Ethernet Switch Datasheet V1.0.pdf Size： 521KB
|
Model |
Description |
|
UF-SW8MG1X |
8-Port 2.5GBASE-T +1-Port 10G Base-X SFP+ Multi-Gigabit Ethernet Switch |
|
Mounting Options |
► Wall mounting/ Desktop |
