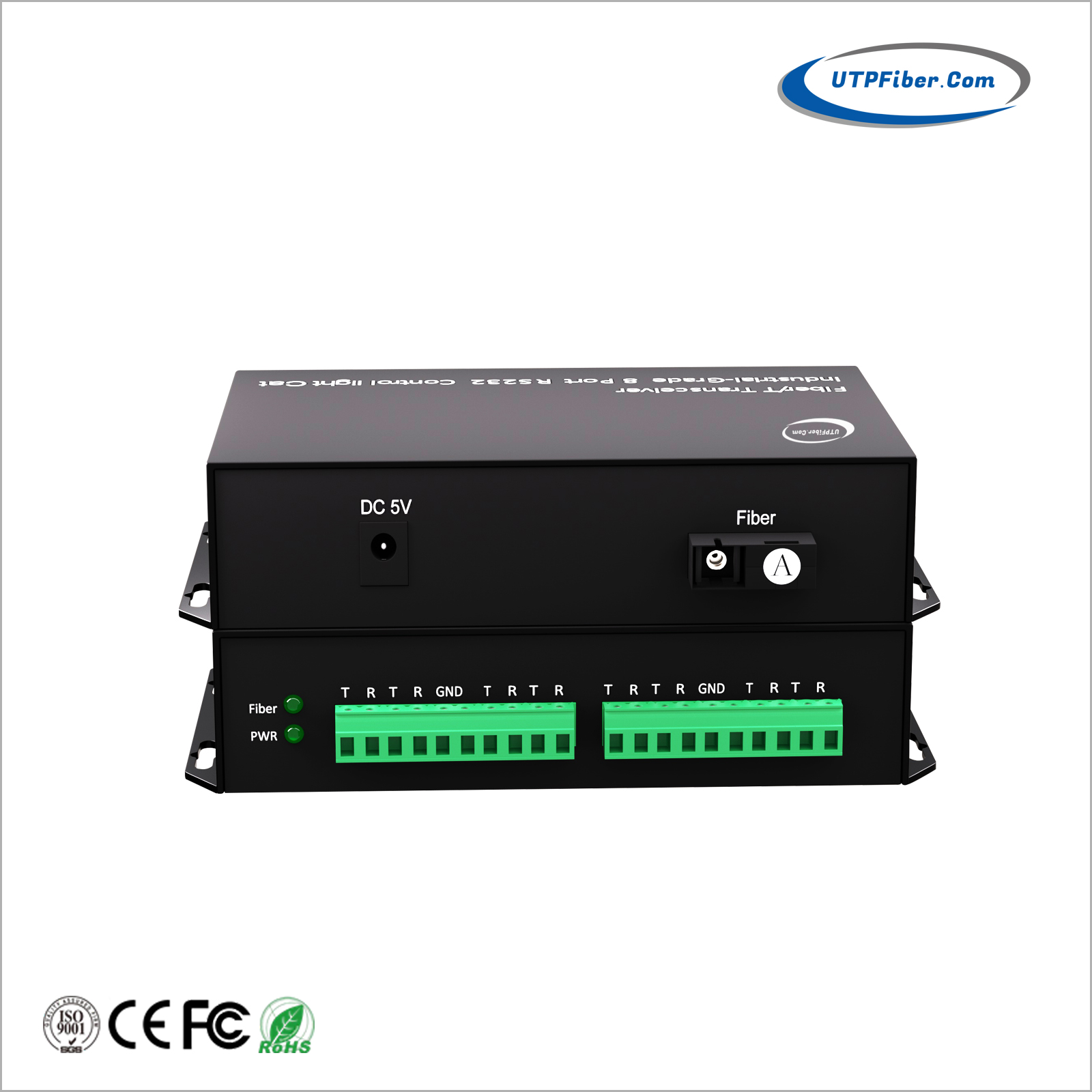

8-Channel Duplex RS232 Serial Data over Fiber Converter
Model:UF-F232-08
► Built-in Duplex RS232 (Terminal Block) Serial Port
► Supports 8-Channel RS232 Serial Data Ports
► RS232 Serial data over one fiber
► Multi-mode Fiber Support for Distances up to 2km
► Single-Mode Fiber Support for Distances up to 20km
The converter is designed to provide the most versatile connection possible between two RS-232 serial equipment using fiber optic cable. It allows any two pieces of serial equipment to communicate full-duplex over single fiber up to 20km. The converter supports transparent conversion for not only RS-232 data lines, but also all RS-232 control signals. It also supports all RS-232 baud rates with no need for user configuration.

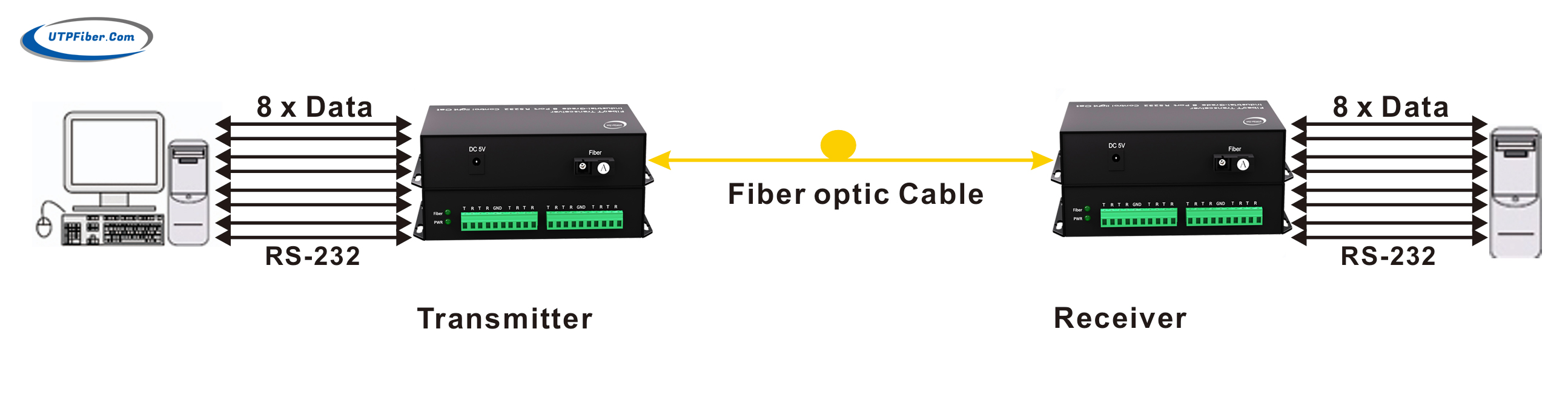

The UF-F232-08 series converter provides for the digital transmission of 8-Channel duplex RS-232 serial data signal over one fiber. Applications for PTZ Control for CCTV Surveillance Systems, Access Control System, Industirlia control, Data Control for Manufacturing / Assembly Platforms, ITS...etc.
The use of optical fiber communication solves the problems of electromagnetic interference, ground ring interference and lightning damage. It greatly improves the reliability, security, and confidentiality of data communication, and can be widely used in various industrial control, process control, Stage Lighting Control, and traffic control occasions.
► Serial data is fully transparent, baud rate is self-adaptive, no setting is required
► Built-in Duplex RS232 (Terminal Block) Serial Port
► Supports 8-Channel RS232 Serial Data Ports
► Support Point-to-Point connection
► RS232 Serial data over one fiber
► Multi-mode Fiber Support for Distances up to 2km
► Single-Mode Fiber Support for Distances up to 20km
► LED Status Provide Rapid Indication of Operating Parameters
► No EMI or RFI and no ground loops
► Support wall-mount installation
|
Fiber Optical Interface |
|
|
Fiber interface |
SC (FC or ST Optional) |
|
Cable requirement |
Multi-Mode: 50/125um, 62.5/125um Single-Mode: 9/125um |
|
Fiber port |
1 Fiber Port |
|
Transmission distance |
Multi-Mode: 2km Single-Mode: 20km |
|
Wavelength |
850nm/1310nm/1490nm/1550nm |
|
RS232 Serial Interface |
|
|
Physical interface |
Industrial standard screw terminal |
|
Data type |
Up to 8Ch Duplex RS232 |
|
RS-232 signals |
TxD, RxD, GND |
|
Baud rate |
0-115,200bps |
|
RS-232 data error rate |
Less than 10E-12 |
|
Maximum number RS-232 nodes |
32 |
|
Maximum RS-232 distance |
1200 meters |
|
RS-232 data protocol |
Fully transparent, supporting any RS-232 protocol, including RS-232 polling or Modbus protocol |
|
RS-232 network connection method |
Supports bidirectional full-duplex |
|
Power Requirements |
|
|
Power input |
DC5V 2A |
|
Power consumption |
<10W |
|
Power connector |
DC Connector |
|
Power protection |
Reverse polarity protection |
|
LED Indicator |
|
|
PWR |
Power Supply |
|
Fiber |
Fiber Link Status |
|
Mechanical |
|
|
Dimensions (LxWxH) |
135 x 95 x 26mm |
|
Weight |
1KG |
|
Casing |
Metal |
|
Mounting Options |
Wall Mount |
|
Environmental |
|
|
Working Temperature |
-25°C to 70°C (-13°F to 158°F) |
|
Storage Temperature |
-40°C to 85°C (-40°F to 185°F) |
|
Working Humidity |
5%~95% (Non-Condensing) |
|
MTBF |
> 200,000 hrs |
|
Regulatory Approvals |
|
|
EMI |
FCC Part15, CISPR (EN55022) Class A |
|
EMS |
EN61000-4-2 (ESD) Level 4, Criteria B EN61000-4-3 (RS) Level 3, Criteria A EN61000-4-4 (EFT) Level 3, Criteria A EN61000-4-5 (Surge) Level 3, Criteria B EN61000-4-6 (CS) Level 3, Criteria A |
|
Shock / Freefall / Vibration |
Shock: MIL-STD-810F Method 516.5 Free Fall: MIL-STD-810F Method 516.5 Vibration: MIL-STD-810F Method 514.5 C-1 & C-2 |
|
Green |
RoHS Compliant |
|
Certifications: |
FCC, CE |
- Download FileName：UF-F232-08 8Ch Duplex RS232 Fiber Converter Datasheet V1.0.pdf Size： 448KB
|
Model |
Description |
|
UF-F232-08M |
8-Channel Duplex RS232 Serial Data over Fiber Converter, Multimode Dual Fiber SC 2KM |
|
UF-F232-08 |
8-Channel Duplex RS232 Serial Data over Fiber Converter, Single Mode Single Fiber SC 20KM |
|
Power Options |
► DC5V 2A Power Supply |
|
► Power Adapter included |
|
|
Mounting Options |
► Desktop or Wall-Mount |
