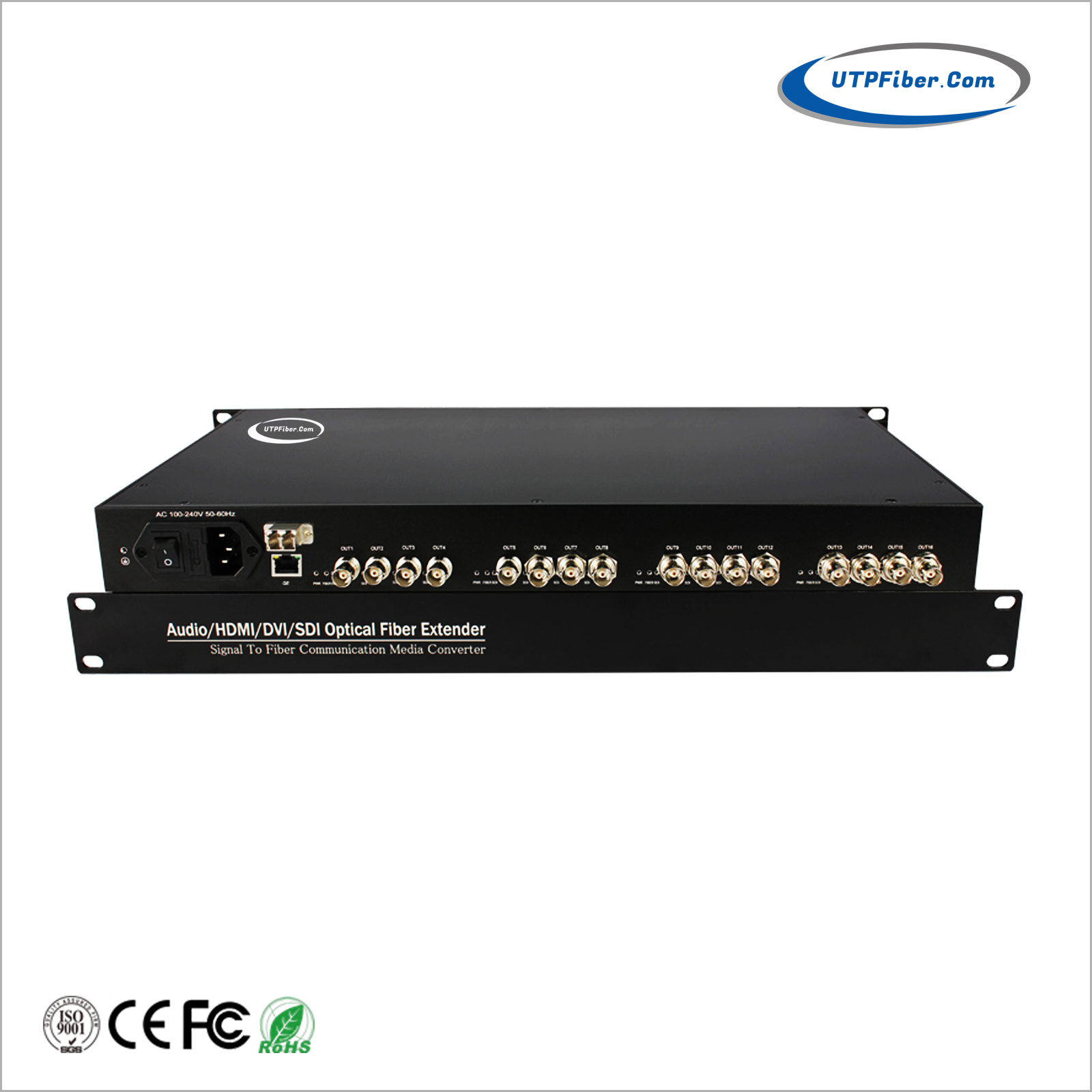

8 Ch Bi-Directional SD/HD 3G-SDI with Gigabit Ethernet over Fiber Converter
Model:UF-3GSDI-8BV1GE
► 8-Channel Bi-Directional 3G/HD/SD-SDI
► 1-Channel 10/100/1000M Gigabit Ethernet
► Automatic reclocking 270Mbit/s - 1.48Gbit/s-3Gbit/s
► Directly compatible with 3G/HD/SD-SDI camera systems
► CWDM technology to achieve multi-channel signal transmission
► Long transmission up to 20 km (12.5miles)
The UF-3GSDI-8BV1GE 8 Ch Bi-Directional SD/HD 3G-SDI with Gigabit Ethernet over Fiber Converter is a compact power house that will allow any user to transport 8-Channel Bi-Directional 2.97Gbps 3G-SDI Serial Data Interface over a 2-core fiber. Furthermore, this 3G SDI over Fiber Kit of Transmitter and Receiver are used by pairs. This sturdy Fiber Extender creates an easy drop environment for users that require multiple 3G-SDI sources on one Fiber across any application. UTP Fiber has an excellent reputation as a Manufacturer of high quality and low cost price products to help complete your project on time, in a loss free high quality kit that will ensure you stay under budget. Our Fiber Optic Extender is Commonly used in security applications, live performance environments, video surveillance, SDI distribution and control in any environment. Our 8-Channel Bi-Directional 3G SDI over Fiber Kit Unit supports 20km on a single mode fiber. This unit is an SDI over Fiber multiplexer and SDI over Fiber demultiplexer.

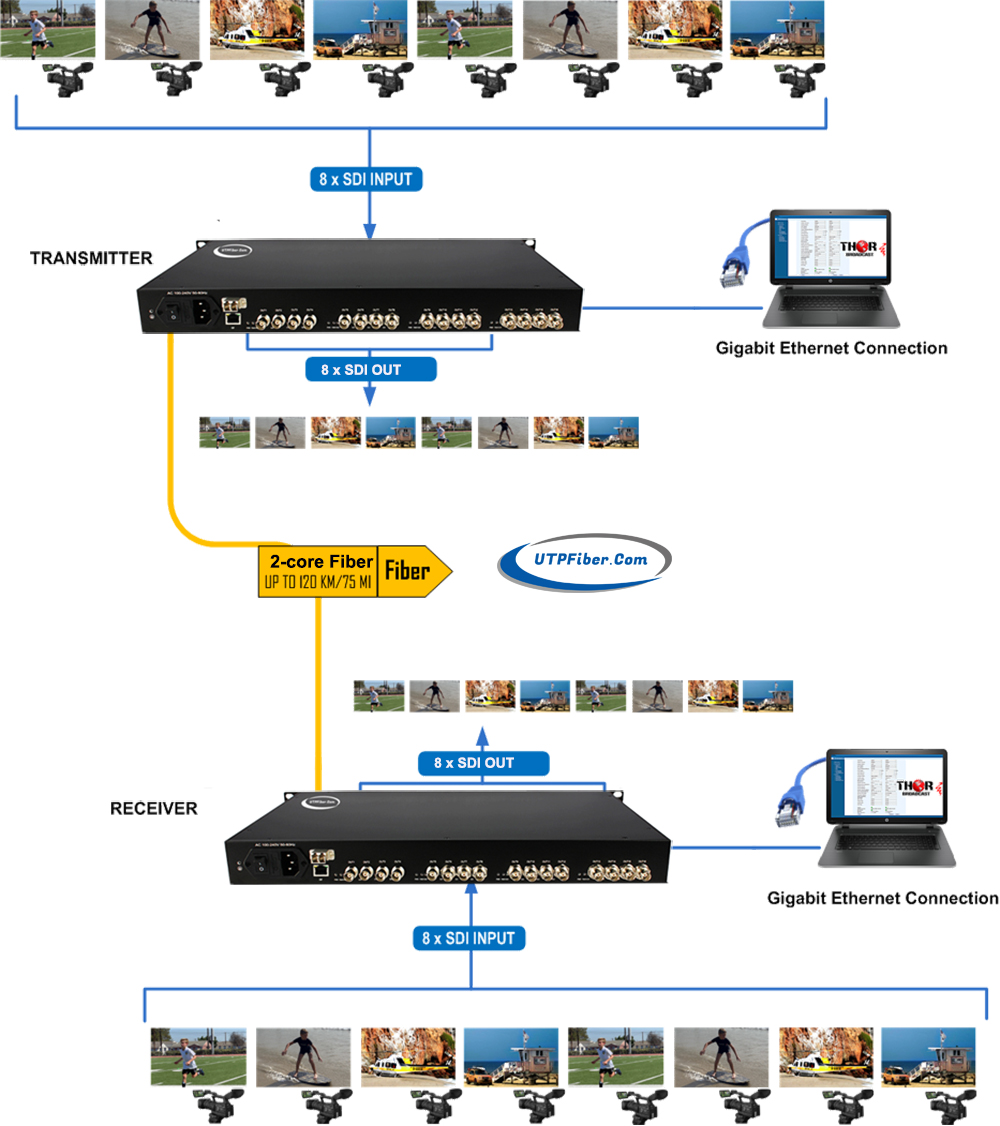

You can use this system to transport live video (3G-SDI) from Point A to Point B, while at the same time extending your LAN network over the same fiber connection. This means you can connect computers, routers, or any IP-enabled devices alongside your video signals. or instance, at a remote location, a video camera can send live footage back to the studio (3G-SDI), while a PC or networked device can send or receive data (Gigabit Ethernet) over the same fiber. Both video and data travel securely and efficiently over the same link.
► 8-Channel Bi-Directional 3G/HD/SD-SDI
► 1-Channel 10/100/1000M Gigabit Ethernet
► Comply with DVB-ASI, SMPTE424M, SMPTE292M, and SMPTE259M (C) standards
► Automatic cable equalization to ensure signal integrity
► Automatic reclocking 270Mbit/s - 1.48Gbit/s-3Gbit/s
► Directly compatible with 3G/HD/SD-SDI camera systems
► CWDM technology to achieve multi-channel signal transmission
► Long transmission up to 20 km (12.5miles)
► Full digital non-compression broadcast level transmission
► Working temperature range (-20°C ~75°C)
|
Fiber index |
|
|
Wavelength |
1270~1610nm (CWDM) |
|
Rate |
3Gbps |
|
Tx power |
＞-6db |
|
Rx sensitivity |
＞-14db |
|
Fiber Core |
2-Core |
|
Fiber connector |
LC (default) FC/SC/ST (optional) |
|
Video index |
|
|
Signal type |
DVB -ASI, SD-SDI, HD-SDI, 3G-SDI |
|
Work standards |
DVB-ASI , SMPTE259M-C, SMPTE292M, SMPTE424M |
|
Bit rates |
270 Mbps, 1. 485 Gbps, 2. 97Gbps |
|
Video input / output |
|
|
Signal type |
DVB-ASI, SD-SDI, HD-SDI, 3G-SDI digital video |
|
Video Channel |
8-Channel Bi-Directional (Forward + Backward) |
|
Loop Out |
8-Channel |
|
Input impedance |
75 Ohm |
|
Enter the automatic cable equalization |
>80m (1. 485 Gbps@BELDEN8281 cable) |
|
Clock recovery |
When 270 Mbps, 1. 485 Gbps, and 2. 97Gbps are automatic, the others are bypass |
|
Input level |
800mVp-p±10% |
|
Enter the echo loss |
＞10dB @ 2. 97 Gbps |
|
Output DC offset |
<±0. 5V |
|
Output echo loss |
＞10dB @ 2. 97 Gbps |
|
The biggest shake |
＜0. 1UI(1485Mbps) |
|
Signal overshoot |
＜5% (1485Mbps) |
|
Ethernet |
|
|
Standards |
IEEE 802.3, 10BASE-T IEEE 802.3u, 100BASE-TX/100BASE-FX IEEE 802.3ab, 1000BASE-T IEEE 802.3x Full-duplex flow control |
|
Interface |
1 x 10/100/1000BASE-T RJ45 |
|
Working mode |
Auto-negotiation by default |
|
Equipment information |
|
|
The shell metal |
Aluminum alloy |
|
Way to install |
19" Rack Mountable |
|
Dimensions (LxWxH) |
485 x 260 x 45 mm |
|
Product net weight (unit: pair) |
7. 5KG |
|
Product weight (including the outer packaging) |
8KG |
|
Packing size (LxWxH) |
522 x 210 x 90 mm |
|
Input voltage |
85VAC～220VAC, 50-60Hz |
|
Power dissipation |
＜15W |
|
Overload protection |
support |
|
Over current protection |
support |
|
LED Indicators: |
|
|
Fiber |
Fiber Status |
|
SDI Input |
V1~V8 |
|
SDI Output |
V1~V8 |
|
LNK/ACT |
Ethernet Status |
|
PWR |
Power Status |
|
Environmental |
|
|
Operating temperature |
-20°C ~75°C |
|
Storage temperature |
-40°C ~85°C |
|
Relative humidity |
From 5 to 95% (non-condensing) |
|
Working life |
> 100,000 hours |
|
Regulatory Approvals |
|
|
ISO9001 |
|
|
CE, RoHS and FCC |
|
- Download FileName：UF-3GSDI-8BV1GE 8Ch BiDi 3G-SDI + 1Ch Gigabit Ethernet over Fiber Converter Datasheet V1.0.pdf Size： 859KB
|
Model |
Description |
|
UF-3GSDI-8BV1GE |
8 Ch Bi-Directional SD/HD 3G-SDI with Gigabit Ethernet over Fiber Converter -19" Rack Mountable, SMF (2-core fiber), LC 20KM, including Transmitter and Receiver, used by pairs |
|
Mounting Options |
► Rack Mount Installation |
|
Power Options |
►Built-in AC Power Supply |
|
► Power Supply included |
