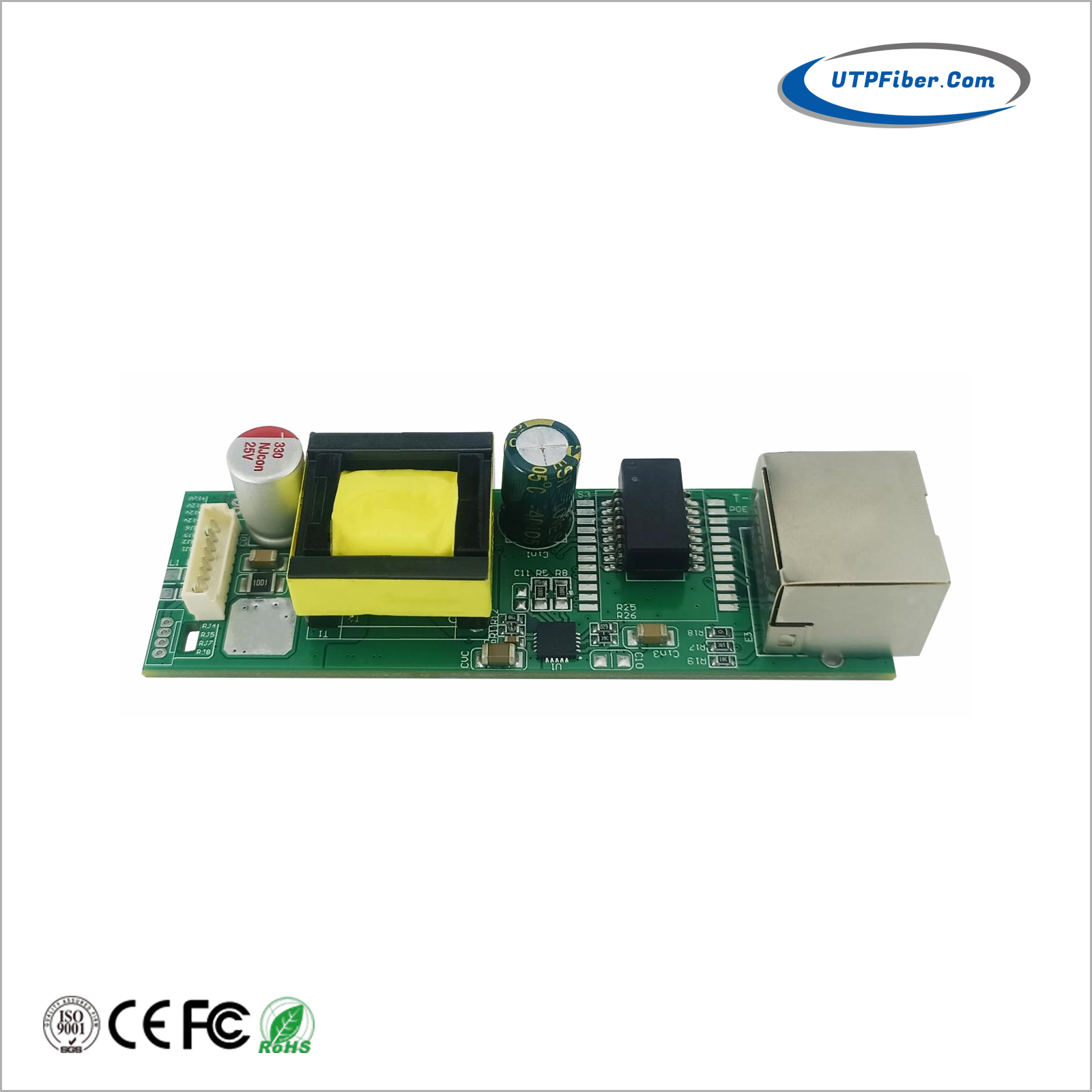

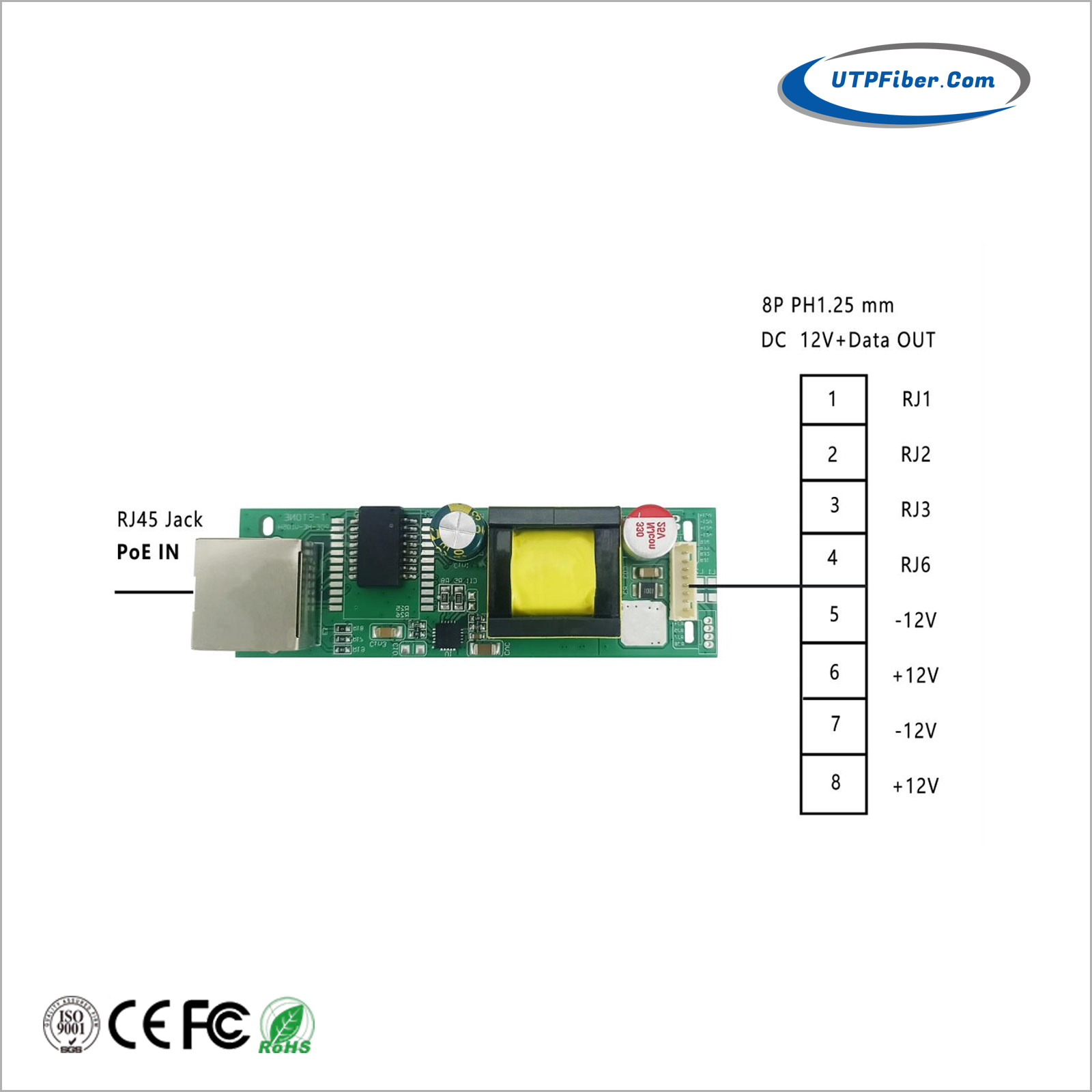

The UF-V105H module is equipped with one input Ethernet port and one output terminal block. Ethernet port (RJ45): It serves as a PoE input port, accepting an input DC voltage of 38 - 56V. 8 - pin PH1.25mm female socket: This is the output port, which provides data output along with a DC voltage of 12V and a current of 2.5A.

Dimensions and structure: The overall dimensions of the module are 80 * 23 * 17mm (Length * Width * Height). The thickness of the PCB board is 1.6mm, and the maximum thickness of the module is 17mm. The PCB adopts a double - layer structure with a square design. The components are arranged on both sides of the board, with large - sized components concentrated on the front side. The surface is coated with bright - green solder mask oil, making it both practical and aesthetically pleasing. The net weight of the module is 24g.

The UF-V105H complies with the IEEE 802.3af/at PoE standard protocol. It has an adaptive trans mission rate of 10/100M. The maximum output power of the module is 30W. It supports wide - voltage input of DC 38 - 56V, with a default output voltage of DC 12V. Other output voltages can be customize d upon request.

The UF-V105H is a PD module with isolation function. It is equipped with an EE19 skeleton isolation transformer, which can prevent faults such as electric leakage and short - circuits, effectively enhancing electrical safety performance. The EMC parameters of the module meet the requirements of IEC 61000 - 4 - 2/3/4/5/6 standards. It has obtained certifications such as CE, FC, and RoHS. The circuit is equipped with multiple protection functions, including over - heat protection, over - voltage protection, over - load protection, and short - circuit protection. The product has achieved remarkable sales performance bot h at home and abroad, and its quality and performance have won the deep trust and recognition of users.
