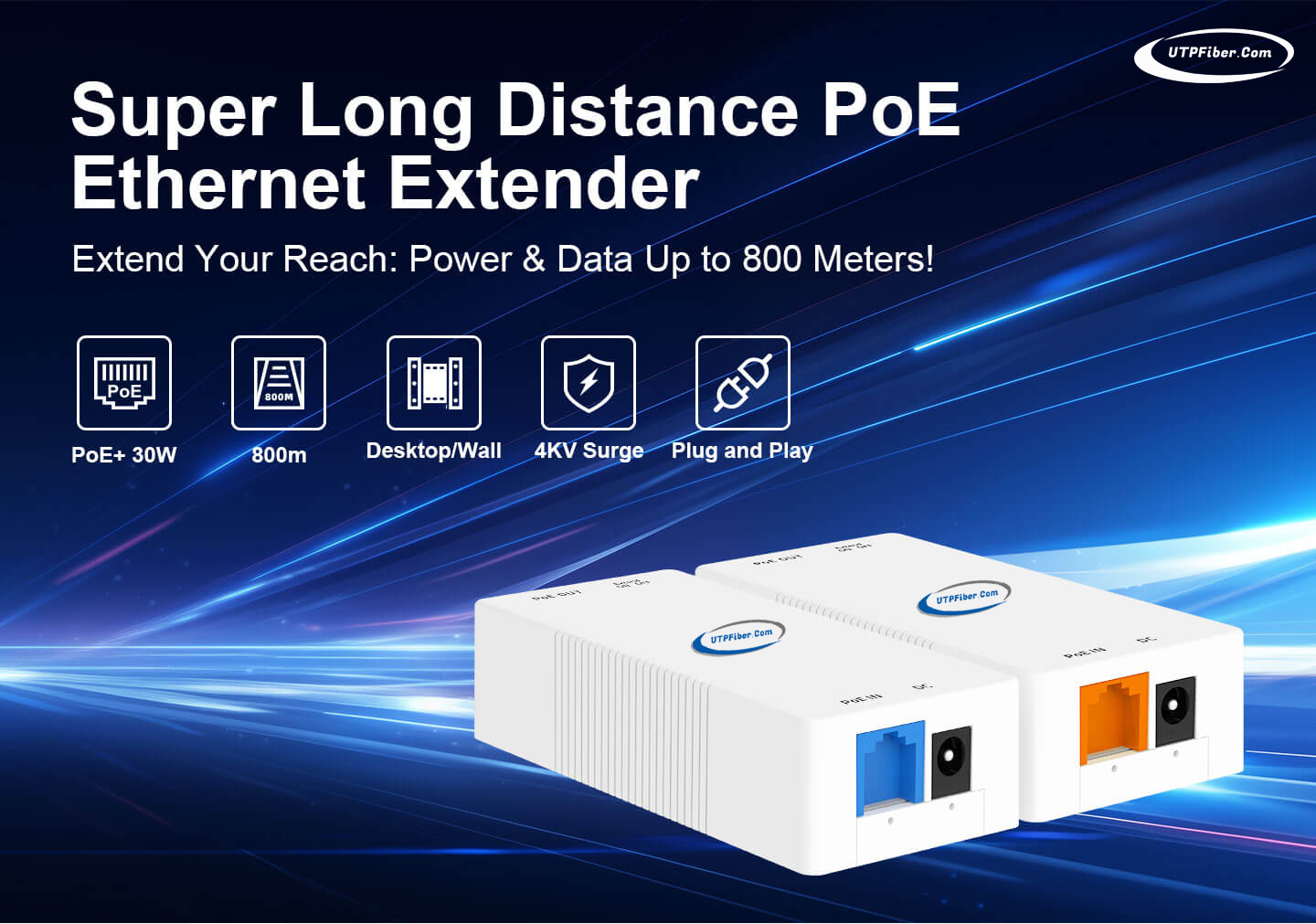

800 Meters Long Reach PoE Ethernet over UTP Extender
Model:UF-PE08-IPC+/SV+
► 1 x 100Mbps PoE in port + 1 x 100Mbps PoE out port
► Support IEEE802.3af/at PoE standard
► One-key smart DIP switch to enable long-distance mode (800 meters PoE Power)
► Support desktop/wall mounting
► Plug and Play
The UF-PE08-SV+ and UF-PE08-IPC+ are advanced 100Mbps 800 Meters Long Reach PoE Ethernet over UTP Extender designed to enhance your network connectivity and power solutions. These extenders allow for seamless data transmission and power delivery over long distances, making them ideal for expanding your network infrastructure, especially in remote locations where power outlets may be limited. With robust connectivity features and compliance with industry standards, these extenders offer a reliable solution for both home and industrial applications.
The UTP 100Mbps Ethernet PoE Extender greatly improves network performance by expanding both network and Power over Ethernet (PoE) capabilities. Featuring support for 100Mbps PoE input and output ports, this device ensures stable and efficient network connections. It adheres to IEEE standards, including IEEE 802.3af and IEEE 802.3at, providing a safe and reliable power supply for a variety of devices.
Additionally, this PoE extender can transmit signals up to 800 meters, making it an excellent choice for connecting devices at a distance. Whether in office settings, surveillance systems, or smart city projects, the UTP Gigabit Ethernet PoE Extender meets the requirements for long-range network transmission, offering users flexible and convenient options for network setup. By utilizing this device, users can easily power and send data to remote devices without the need for extra power cables, resulting in cost savings and enhanced installation efficiency.
► 1 x 100Mbps PoE in port + 1 x 100Mbps PoE out port
► Compliant with IEEE 802.3, IEEE 802.3u, and IEEE 802.3x standards
► Support IEEE802.3af/at PoE standard
► One-key smart DIP switch to enable long-distance mode (800 meters PoE Power)
► Support network and PoE expansion
► Support 4KV surge protection to ensure long-lasting performance
► Support desktop/wall mounting
► Compact design, saving installation space
► Plug and Play
|
Description |
Specification |
|
Model |
Transmitter: UF-PE08-SV+; Receiver: UF-PE08-IPC+ |
|
Interface |
1 *100Mbps PoE in port |
|
1 *100Mbps PoE out port |
|
|
Port Standard |
IEEE802.3 (Ethernet) |
|
IEEE802.3u (Fast Ethernet) |
|
|
IEEE802.3x (Flow Control) |
|
|
Switching Capacity |
0.4Gbps |
|
Packet Forwarding Rate |
0.297Mpps |
|
MAC Address Table |
2K |
|
Transmission Method |
Store and Forward |
|
PoE Standard |
IEEE802.3af (15.4W) |
|
IEEE802.3at (30W) |
|
|
PoE Port Output Voltage |
DC 44-57V |
|
PoE Port |
Port PoE power output <30W |
|
PoE Power Budget |
30W |
|
Structure Information |
Product Dimensions :100*49*25mm |
|
Packaging Dimensions: 102*50*27mm |
|
|
Product Net Weight:0.060KG |
|
|
Product Gross Weight:0.065KG |
|
|
Packing Information |
Carton Dimensions :430*295*275mm |
|
Packing Quantity: 200PCS |
|
|
Packing Weight: 14KG |
|
|
Package Contents |
Extender 1pcs,manual 1pcs，certificate of qualification 1pcs |
|
Installation |
Desktop |
|
Surge Protection |
Port Surge: common mode 4KV, differential mode 2KV Electronic ESD: air 8KV |
|
Operating Temperature |
0~40°C |
|
Storage Temperature |
-40 °C to 70 °C |
|
Operation Humidity |
10%~90%，non condensing |
|
Storage Humidity |
5%~95%，non condensing |
|
Extend Button |
ON: Normal mode, transmission distance is within 100 meters |
|
Extend: Link extension mode, PoE power supply and data transmission distance can be extended to 800 meters, transmission speed is 10Mbps |
|
|
Port Led |
On: Link normal |
|
Off: Link blocked |
|
|
Blinking: Data transmitting |
- Download FileName：UF-PE08 Long Reach PoE Extender Datasheet V1.0.pdf Size： 511KB
|
Model |
Description |
|
UF-PE08-IPC+/SV+ |
800 Meters Long Reach PoE Ethernet over UTP Extender, 1 *100Mbps PoE in port + 1 *100Mbps PoE out port, compliant with IEEE 802.3af/at, supporting up to 30W per port, One-key smart DIP switch to enable long-distance mode (800 meters PoE Power), including Transmitter & Receiver (Note: The Blue RJ45 port serves as the Transmitter, while the Orange RJ45 port serves as the Receiver) |
|
Mounting Options |
► Wall-mount or Desktop |
|
Power Options |

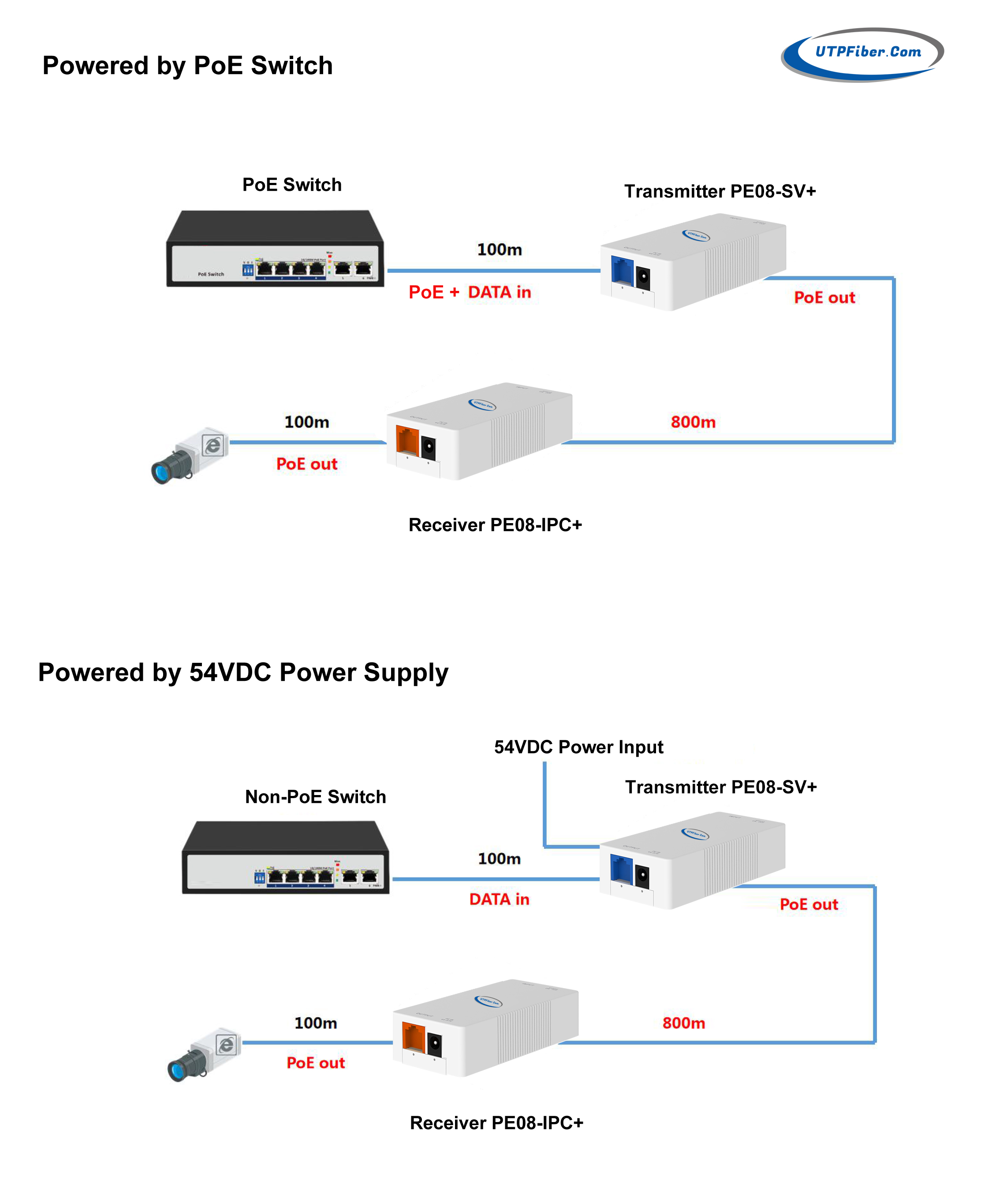

► Transmitter- UF-PE08-SV+: powered by PoE switch or DC power ► Receiver - UF-PE08-IPC+: powered by Transmitter |
