Technical Parameters

Input/Output Port

Power Input

AC100-240V 50/60Hz

Interface

8× 100Mbps/1Gbps/2.5Gbps/5Gbps/10Gbps Ports, Auto-Negotiation, Auto-MDI/MDIX

Chipset

RTL9303+RTL8261N

Performance

Switching Capacity

160Gbps

Packet Forwarding Rate

119.04Mpps

Memory

128MByte

Flash Memory

16MByte

Package Cache

12Mbit

MAC Address

16K

Jumbo Frame

12Kbyte

VLANs

4K

MTBF

100000 hours

Standard

Network Protocols

IEEE 802.3 Ethernet

IEEE 802.3u 100BASE-TX

IEEE 802.3ab 1000BASE-T

IEEE 802.3az Energy Efficient Ethernet (EEE)

IEEE 802.3ae 10GBASE-T

IEEE 802.3x Full-Duplex Flow Control

IEEE 802.3bz 5Gbps and 2.5Gbps Ethernet

Industry Standards

EMI: FCC 47 CFR Part 15 Subpart B (Class A)

EMS: EN61000-4-2 (ESD)、

EN61000-4-5 (Surge)

Network Cables

10G--Cat 6A/Cat 7

5G--Cat 6/Cat 6A/Cat 7

1G/2.5G--Cat 5e/Cat 6/Cat 6A/ Cat 7

100M--Cat 5/Cat 5e/Cat 6/Cat 6A/ Cat 7

Cat 5/5e/6/6A/7 UTP cable (100 meters, max.)

EIA/TIA-568 100-ohm STP (100 meters, max.)

Certificate

Safety Certificates

CE, FCC, RoHS

Environmental

Environment

• Operating Temperature: -10–50 °C (14–122 °F)

• Storage Temperature: -40–70 °C (-40–158 °F)

• Operating Humidity: 10–90% RH non-condensing

• Storage Humidity: 5–90% RH non-condensing

LED Indicator

PWR (Power)

On: power on

Off: no power

Port light (Green)

On: 5G/10G link connection is normal

Blinking: data transmission is normal

Off: the link is down

Port light (Yellow)

On: 100/1000M link connection is normal

Blinking: data transmission is normal

Off: the link is down

Hardware Features

Product

Product size: 320*207*45mm

Packing size: 370*290*85mm

Product net weight: 1.72KG

Product gross weight: 2.12KG

Package

Outer box size: 445*310*390mm

Packing quantity: 5 sets

Packing weight: 11.6KG

Power

Working voltage: AC100-240V,50/60Hz

Power supply: 12V8A

Consumption

38.6W

Package Contents

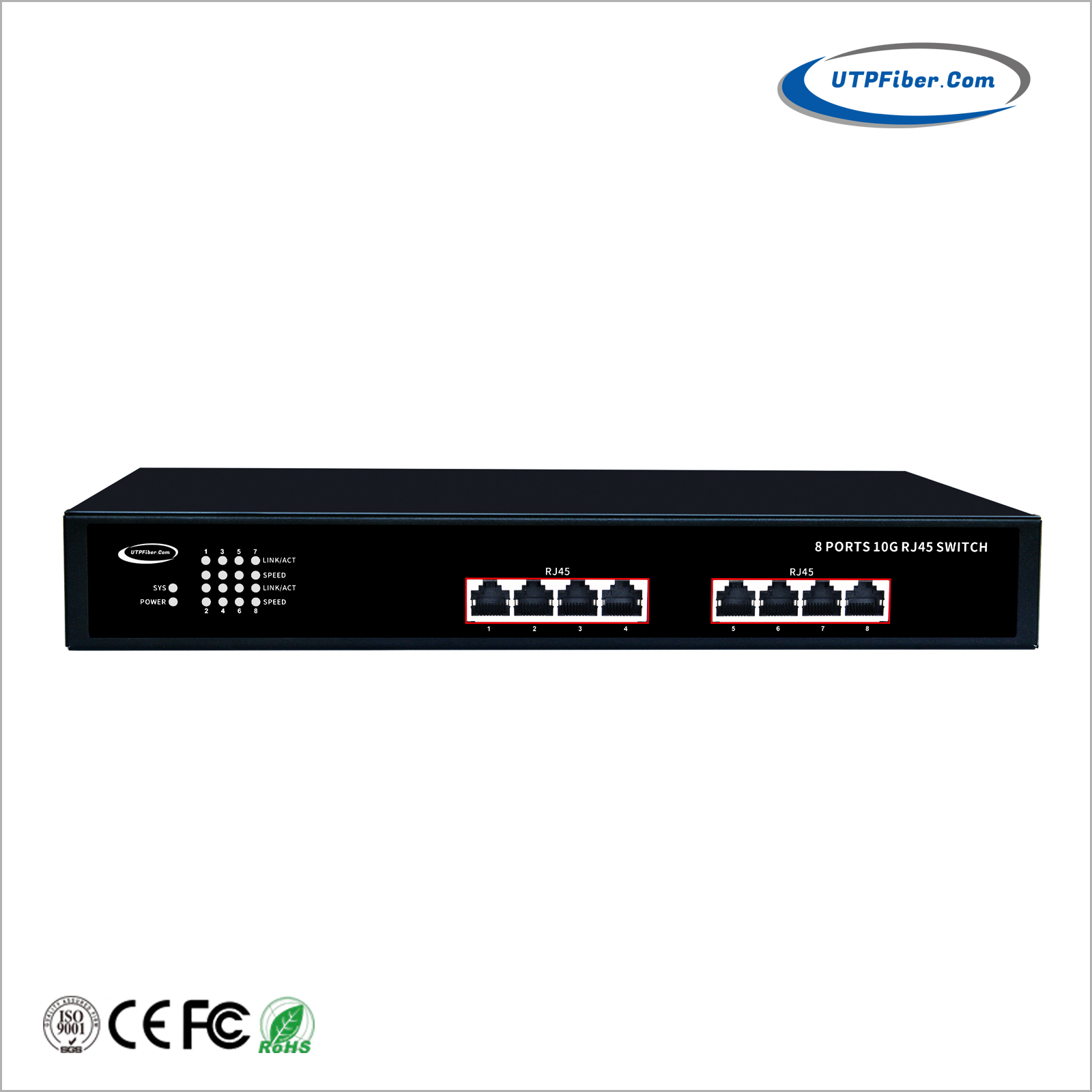

• 8-Port 10G Multi-Gigabit Desktop/Rackmount Switch

• Power Cord

• Installation Guide

• Rackmount Kit
