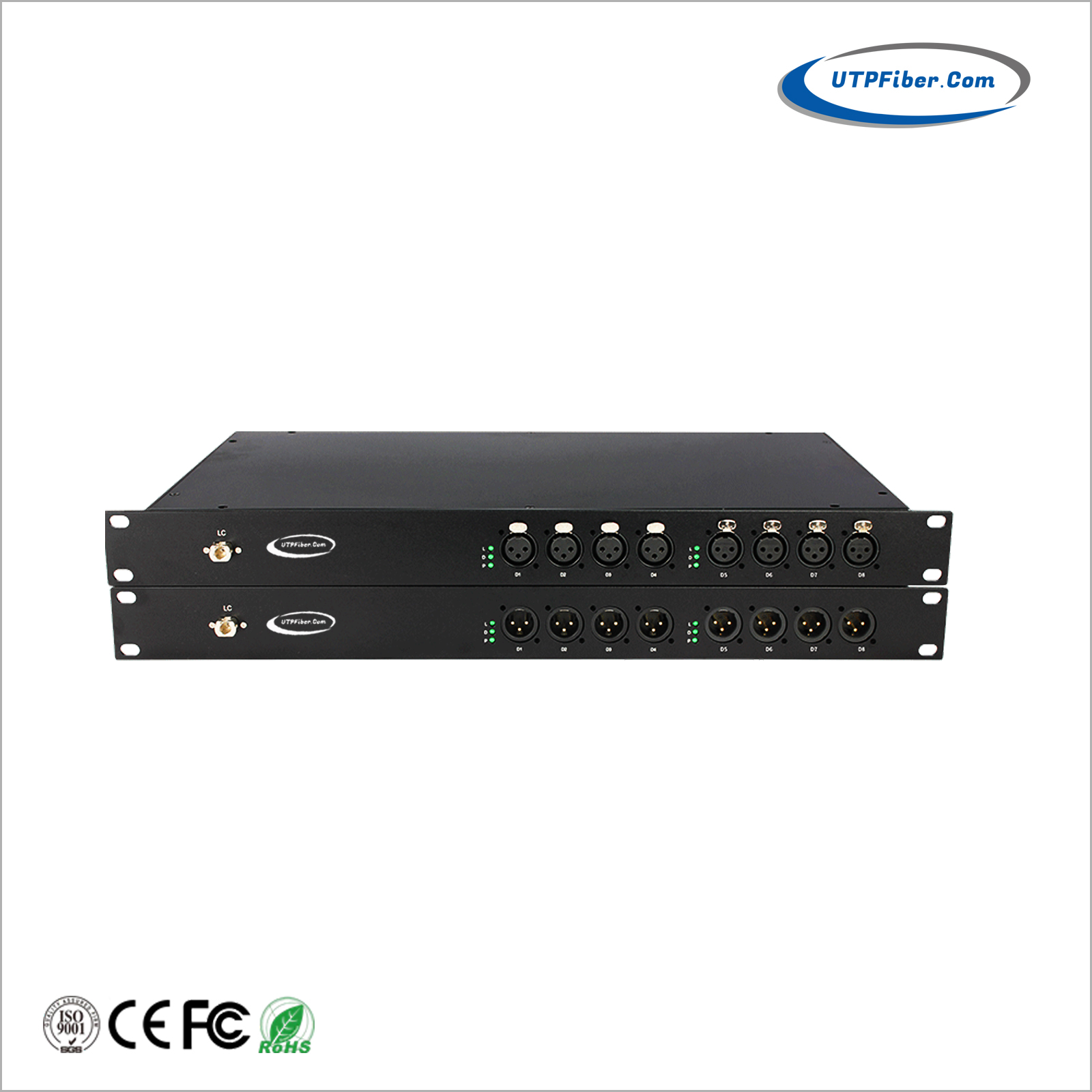

8-Channel DMX512 over Fiber Optic Converter
Model:UF-DMX08KN series
► Supports 8-Channel XLR (3-Pin) DMX512 signal input/output
► Enhanced Baud Rate: Optimized for high-speed data at 0-250Kbps
► LC, FC, ST, or SC fiber connectors (Optional)

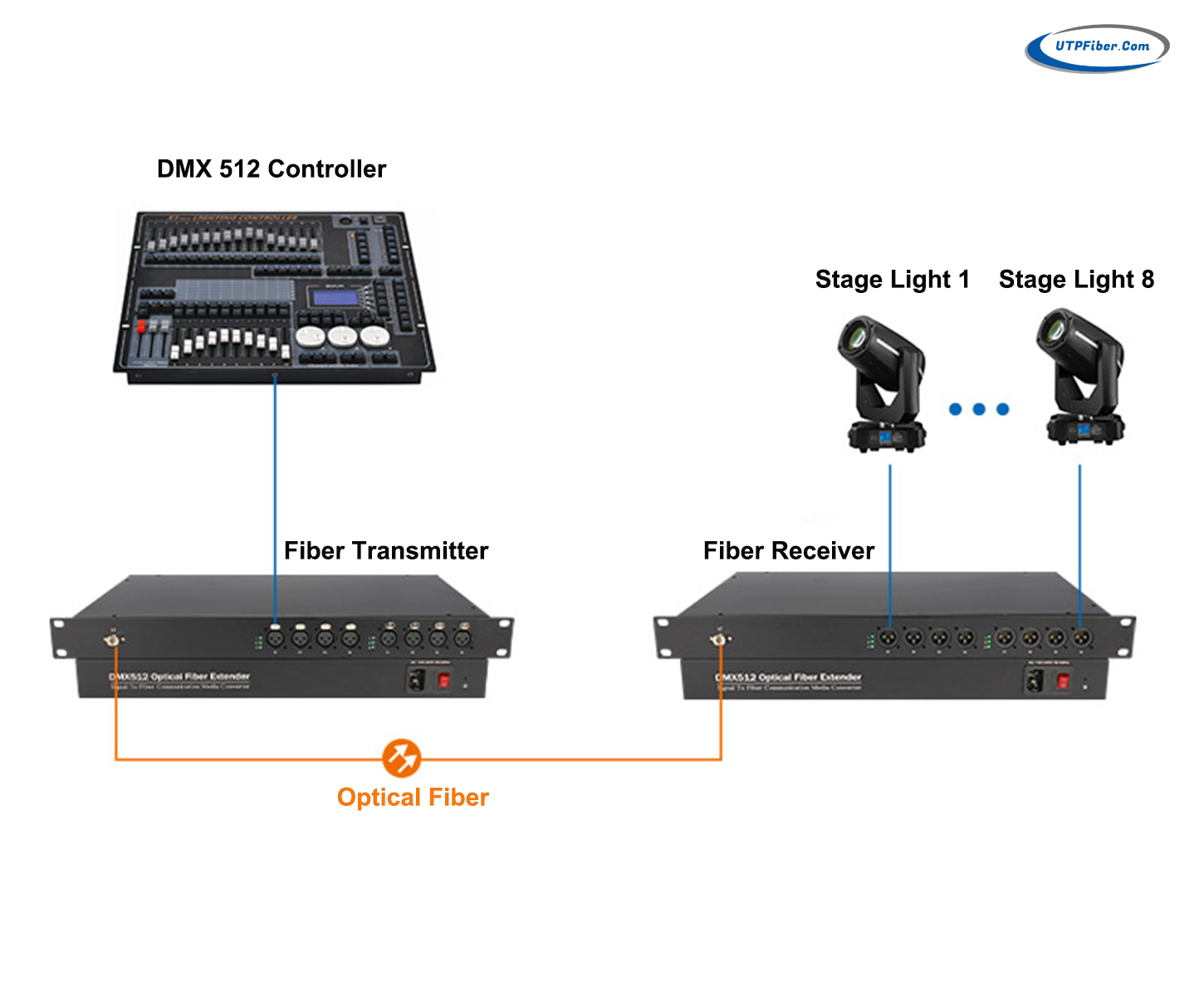

The UF-DMX08KN series 8-Channel XLR DMX512 Fiber Optic Converter is the professional-grade solution for connecting remote lighting equipment to a DMX512 control console through high-performance fiber optic cabling. Consisting of a dedicated Transmitter (Console Side) and Receiver (Lighting Side), the system utilizes optical fiber as a transmission medium to significantly enhance system performance and extend signal reach far beyond traditional copper limitations. While the electric interface supports standard DMX512 distances exceeding 100 meters, the optical interface supports up to 2km on multi-mode fiber and 20km–100km on single-mode fiber.
This advanced architecture effectively eliminates the threats of lightning strikes, power surges, and electromagnetic interference (EMI) commonly found in complex operating environments. The device supports 8-Channel standard DMX512 data interfaces with a transmission rate exceeding 250Kbps and features zero-latency automatic signal detection. Each individual DMX512 interface can support 32 terminal devices, which can be further expanded via DMX512 amplifiers.
Built for mission-critical reliability, the unit includes +/-15KV (Human Body Model) ESD protection and +/-8KV contact discharge protection. The system is highly versatile, offering adaptive compatibility with both single-mode and multi-mode fiber without requiring manual wavelength adjustments, and can be used with optical splitters to achieve point-to-multipoint (one-to-many) transmission. Housed in a rugged black aluminum enclosure, it is designed to operate in extreme industrial temperatures ranging from -40°C to 85°C. It is the ideal choice for large-scale stage performances, theme park lighting, stadium displays, and urban architectural beautification projects.
► Supports 8-Channel XLR (3-Pin) DMX512 signal input/output
► Enhanced Baud Rate: Optimized for high-speed data at 0-250Kbps
► LC, FC, ST, or SC fiber connectors (Optional)
► Broadcast-Grade Quality: Full digital, uncompressed, and lossless transmission
► Advanced Optical Integration: Supports WDM, CWDM, and DWDM technology
► Supports fiber transmission distances of 20/40/60/80km
► Support Point-to-Point connection
► LED Status Provide Rapid Indication of Operating Parameters
► Support 19” Rack-mount installation
► Plug-and-Play
|
Fiber Optical Interface |
|
|
Fiber interface |
LC (LC, FC or ST Optional) |
|
Cable requirement |
Single-Mode: 9/125um |
|
Fiber port |
1 Fiber Port |
|
Transmission distance |
Multimode: 2KM Single-Mode: 20KM in default (40/60/80KM optional) |
|
Wavelength |
1310nm/1490nm/1550nm |
|
DMX512 Interface |
|
|
Physical interface |
Transmitter: 3-Pin XLR (Female) Receiver: 3-Pin XLR (Male) |
|
Standard |
Fully compliant with DMX512 standards |
|
Data type |
Up to 8-Channel DMX512 |
|
DMX signals |
DMX512+, DMX512-, GND |
|
Baud rate |
>250Kbps |
|
Distance |
DMX512 >100 meters |
|
Bit error rate |
Less than < 10^-9 |
|
Latency |
< 10μs |
|
Power Requirements |
|
|
Power input |
AC100-240V 50-60Hz |
|
Power consumption |
<15W |
|
Power connector |
DC Connector |
|
Power protection |
Reverse polarity protection |
|
LED Indicator |
|
|
P |
Power Supply |
|
D |
DMX512 signal |
|
L |
Fiber Link Status |
|
Mechanical |
|
|
Dimensions (LxWxH) |
485 x 260 x 44mm (19” 1U) |
|
Weight |
5Kg/pair |
|
Casing |
Metal |
|
Mounting Options |
Rack Mount or Desktop |
|
Environmental |
|
|
Working Temperature |
-25°C to 70°C (-13°F to 158°F) |
|
Storage Temperature |
-40°C to 85°C (-40°F to 185°F) |
|
Working Humidity |
5%~95% (Non-Condensing) |
|
MTBF |
> 200,000 hrs |
|
Regulatory Approvals |
|
|
EMI |
FCC Part15, CISPR (EN55022) Class A |
|
EMS |
EN61000-4-2 (ESD) Level 4, Criteria B EN61000-4-3 (RS) Level 3, Criteria A EN61000-4-4 (EFT) Level 3, Criteria A EN61000-4-5 (Surge) Level 3, Criteria B EN61000-4-6 (CS) Level 3, Criteria A |
|
Shock / Freefall / Vibration |
Shock: MIL-STD-810F Method 516.5 Free Fall: MIL-STD-810F Method 516.5 Vibration: MIL-STD-810F Method 514.5 C-1 & C-2 |
|
Green |
RoHS Compliant |
|
Certifications: |
FCC, CE |
- Download FileName：UF-DMX08KN Series 8Ch DMX512 Fiber Converter Datasheet V1.0.pdf Size： 606KB
|
Model |
Description |
|
UF-DMX08KN-LC |
8-Channel DMX512 over Fiber Optic Converter, Single Mode Single Fiber LC 20KM, including Transmitter & Receiver, used by pairs |
|
UF-DMX08KN-SC |
8-Channel DMX512 over Fiber Optic Converter, Single Mode Single Fiber SC 20KM, including Transmitter & Receiver, used by pairs |
|
UF-DMX08KN-FC |
8-Channel DMX512 over Fiber Optic Converter, Single Mode Single Fiber FC 20KM, , including Transmitter & Receiver, used by pairs |
|
UF-DMX08KN-ST |
8-Channel DMX512 over Fiber Optic Converter, Single Mode Single Fiber ST 20KM, , including Transmitter & Receiver, used by pairs |
|
Power Options |
► Built-in Power Supply (AC100-240V 50-60Hz) |
|
► Power Cord included |
|
|
Mounting Options |
► Rack Mount or Desktop |
