Ethernet

Standards:

IEEE 802.3 10Base-T Ethernet

IEEE 802.3u 100Base-TX Fast Ethernet

IEEE 802.3ab 1000Base-T Gigabit Ethernet

Processing Type:

Forward

Half-duplex, Full-duplex

Forward Filter Rate:

1,488,000pps (1000Mbps)

Cabling:

10/100/1000Base-T: Cat5 or above

Maximum Distance:

Passive PoE (60W): 4-pair UTP Cat. 5, 5e, 6 up to 100m (328ft)

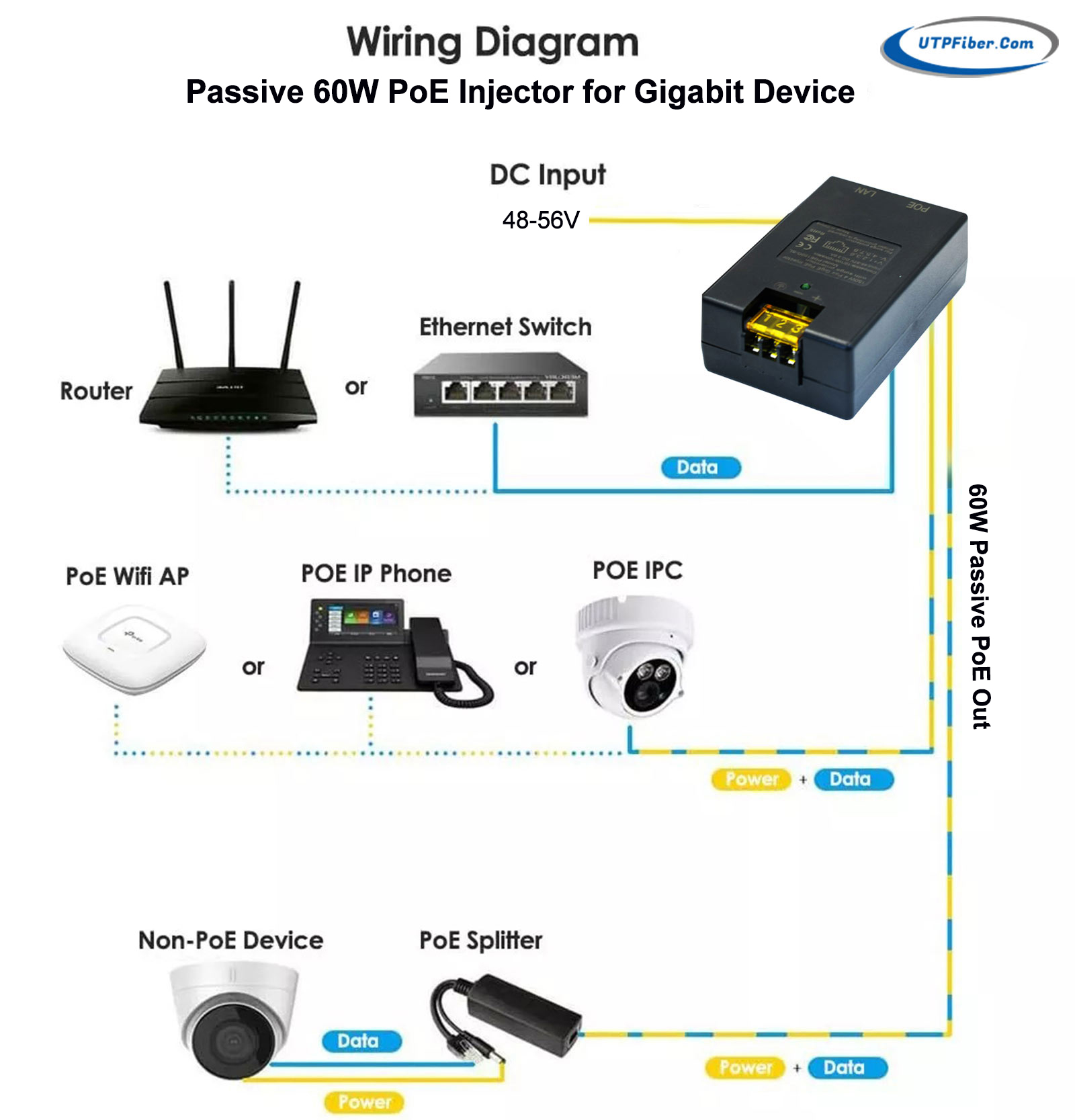

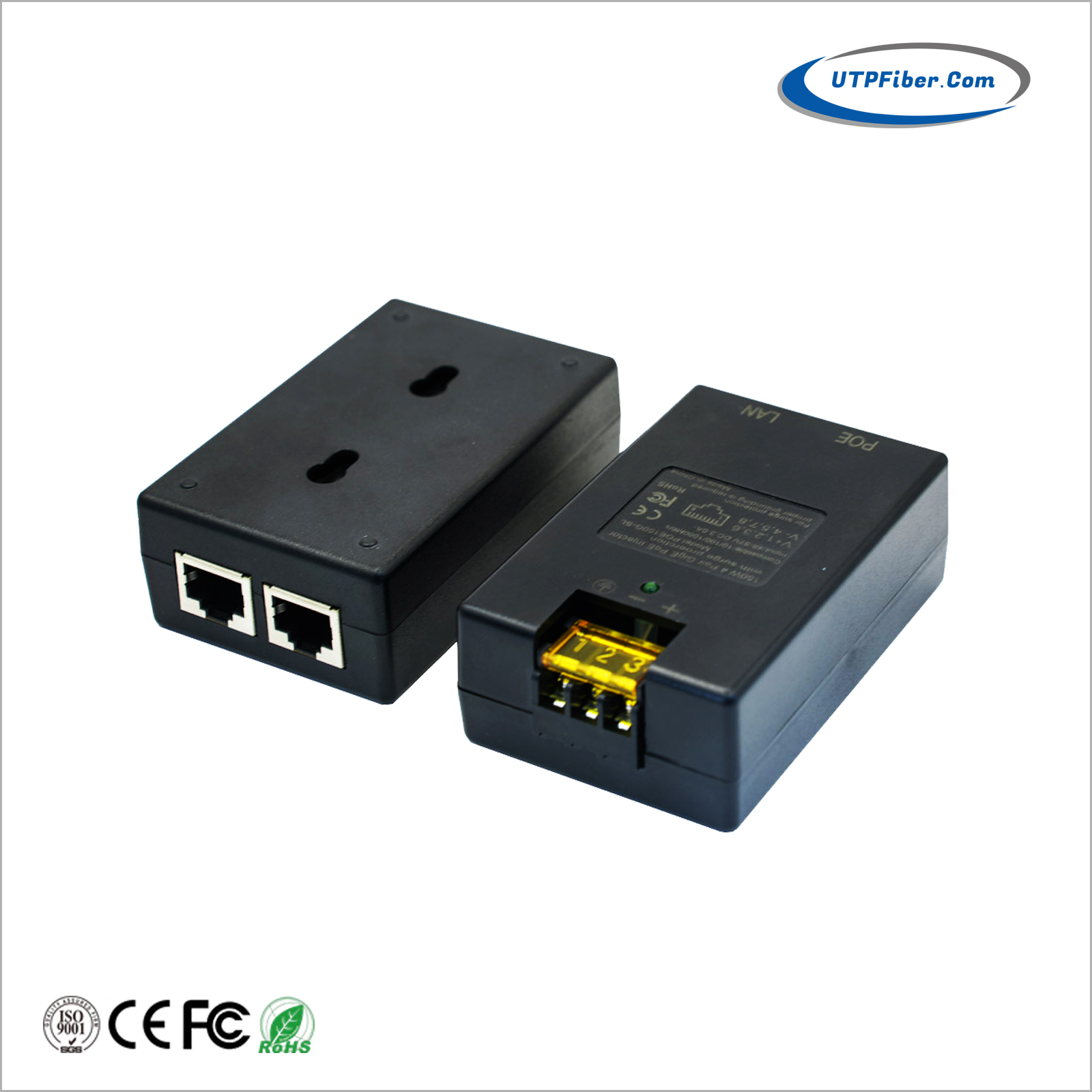

Connector:

LAN: 1 x RJ-45 STP, “Data” Input Port

POE: 1 x RJ-45 STP, “Data + Power” Output Port

DC Connector: 1 x DC Input power Terminal Block

Environmental

Operating Temperature:

-10°C to 50°C (14°F to 122°F)

Storage Temperature:

-20°C to 70°C (-4°F to 158°F)

Relative Humidity:

5% to 95% non-condensing

MTBF:

>200,000hrs

Electrical and Mechanical

Input Voltage Range:

48-56VDC

Output Power:

60W

Power Consumption:

65 watts max.

PoE (Power over Ethernet)

Port:

RJ45

Pin Assignment

+VDC on pins: 1, 2, 4 , 5 ;  ‐VDC on pins: 3, 6, 7, 8 (Default)

Data on Pins: full duplex;

PoE Power Output

60-watt PoE via 4-pairs

LED Indicators

Power:

Power Status (Orange Color)

PoE:

PoE Status (Green Color)

Dimensions (L×W×H):

85 x 55 x 30mm

Weight:

86g

Casing:

Plastic Case

Mounting Options:

Desktop or Wall-mounting (with wall-mount hole)

Regulatory Approvals

ISO9001

FCC part 15, Class A

EN55022:2006+A1: 2007 Class A

Surge Protection:

RJ45: 1KV

Power: 500W

ESD: 4KV/8KV
