4K60Hz HDMI KVM USB over Fiber Optic Extender

Model:UF-HD460KM series

► Uncompressed 4K Ultra-HD: Supports resolutions up to 3840x2160 or 4096x2160 @ 60Hz, delivering crystal-clear imagery without digital artifacts.

► HDMI2.0 Compliance: Fully compatible with HDMI2.0/HDCP2.2 standards.

► Integrated KVM Functionality: Supports USB 1.1 for remote control of host systems via keyboard and mouse.

► Flexible Deployment: Features a modular, plug-in card design that supports integration into a 16-slot 2U 19-inch rack-mount chassis.

上一张

下一张

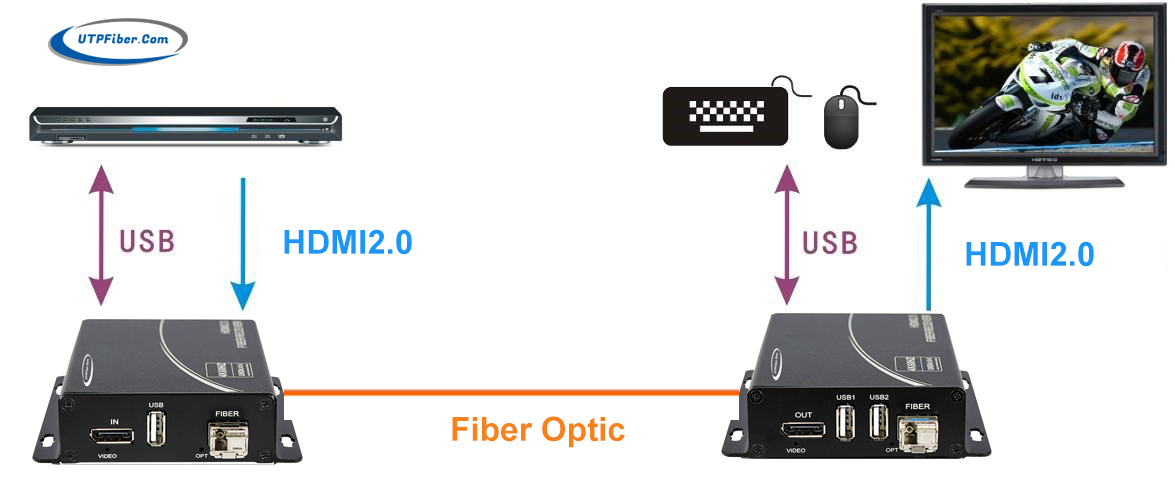

The UF-HD460KM series is a high-performance HDMI2.0 and USB KVM fiber optic extender designed for professional-grade, long-distance signal transmission. By leveraging advanced uncompressed digital high-definition video and high-speed optical fiber technology, this solution ensures the seamless extension of 4K video and USB peripherals from source devices—such as workstations, high-definition DVRs, and DVDs—to remote displays with zero latency. Using single-mode fiber, it extends signals up to 10km, while optional SFP modules allow multi-mode fiber extension up to 300m over OM3.

Designed for mission-critical environments, the system provides exceptional anti-interference capabilities to maintain signal integrity and stability over vast distances. Engineered with strong anti-interference capability, high security, compact design, and lightweight construction, the UF-HD460KM is ideal for mission-critical applications, control rooms, and high-end AV environments requiring stable, long-distance HDMI2.0 signal delivery.

► Uncompressed 4K Ultra-HD: Supports resolutions up to 3840x2160 or 4096x2160 @ 60Hz, delivering crystal-clear imagery without digital artifacts.

► HDMI2.0 Compliance: Fully compatible with HDMI2.0/HDCP2.2 standards.

► Integrated KVM Functionality: Supports USB 1.1 for remote control of host systems via keyboard and mouse.

► Flexible Deployment: Features a modular, plug-in card design that supports integration into a 16-slot 2U 19-inch rack-mount chassis.

► Extended Reach: Utilizes SFP+ (LC) fiber modules with support for distances ranging from 300M up to 80KM, depending on the module selection.

► Intelligent Adaptation: Features automatic identification and configuration of various display modes, complemented by built-in automatic equalization for consistent picture quality.

► Industrial Reliability: Built-in ESD protection circuitry safeguards the hardware against static damage.

► Plug-and-Play Installation: Simplified field setup requires no software or complex configurations.

Video:
Interface	HDMI
Compliance	HDMI2.0/HDCP2.2
Pixel Bandwidth	594MHz
Supported Resolutions	1280x1024P60 1360x768P60 1366x768P60 1400x1050P60 1440x900P60 1600x900P60 1600x1200P60 1680x1050P60 1280x720P50 1280x720P60 1920x1080P24 1920x1080P50 1920x1080P60 1920x1200P60 3840x2160P30 3840x2160P60 4096x2160P60
KVM USB:
Interface	USB Type-A
Max Data Rate	12Mbps
Compatibility	Backward compatible with USB 1.1 and 1.0
Optical Fiber:
Optical Connector	LC
Fiber Interface	SFP+
Optical Wavelengh	850nm/1270nm/1310nm/1490nm/1550nm
Optical Attenuation	-3dB
Transmission Bandwidth	10Gbps
Transmission Distance	OM3 MMF 300 meters 9/125μ single-mode optical fiber 10/20/40/60/80KM (Depending on SFP+ Module’s transmission distance)
Mechanical:
Construction	Extruded Aluminum enclosure with black anodized finish
Dimensions (LxWxH)	130 x 103 x 27mm
Weight	700g per pair
Environmental:
Operating Temperature	-5° to +70° C
Storage Temperature	-20° to +80° C
Humidity (storage / operating)	5% to 90% (non-condensing)
Power Requirements:
Power Source	Both Tx and Rx units must be powered using the supplied external AC power adapters
External AC Power Adapter	Input: 100~240VAC / 50-60Hz, 0.5A Output: 12VDC, 1.0A
Maximum Power Consumption	TX Unit: 4 watts RX Unit: 4 watts
Regulatory Approvals:
EMI	FCC Part15, CISPR (EN55022) Class A
EMS	EN61000-4-2 (ESD) Level 4, Criteria B EN61000-4-3 (RS) Level 3, Criteria A EN61000-4-4 (EFT) Level 3, Criteria A EN61000-4-5 (Surge) Level 3, Criteria B EN61000-4-6 (CS) Level 3, Criteria A
Shock / Freefall / Vibration	Shock: MIL-STD-810F Method 516.5 Free Fall: MIL-STD-810F Method 516.5 Vibration: MIL-STD-810F Method 514.5 C-1 & C-2
Green	RoHS Compliant
Certifications:	FCC, CE

Download FileName：UF-HD460KM Series 4K60Hz HDMI KVM Fiber Extender Datasheet V1.0.pdf Size： 681KB

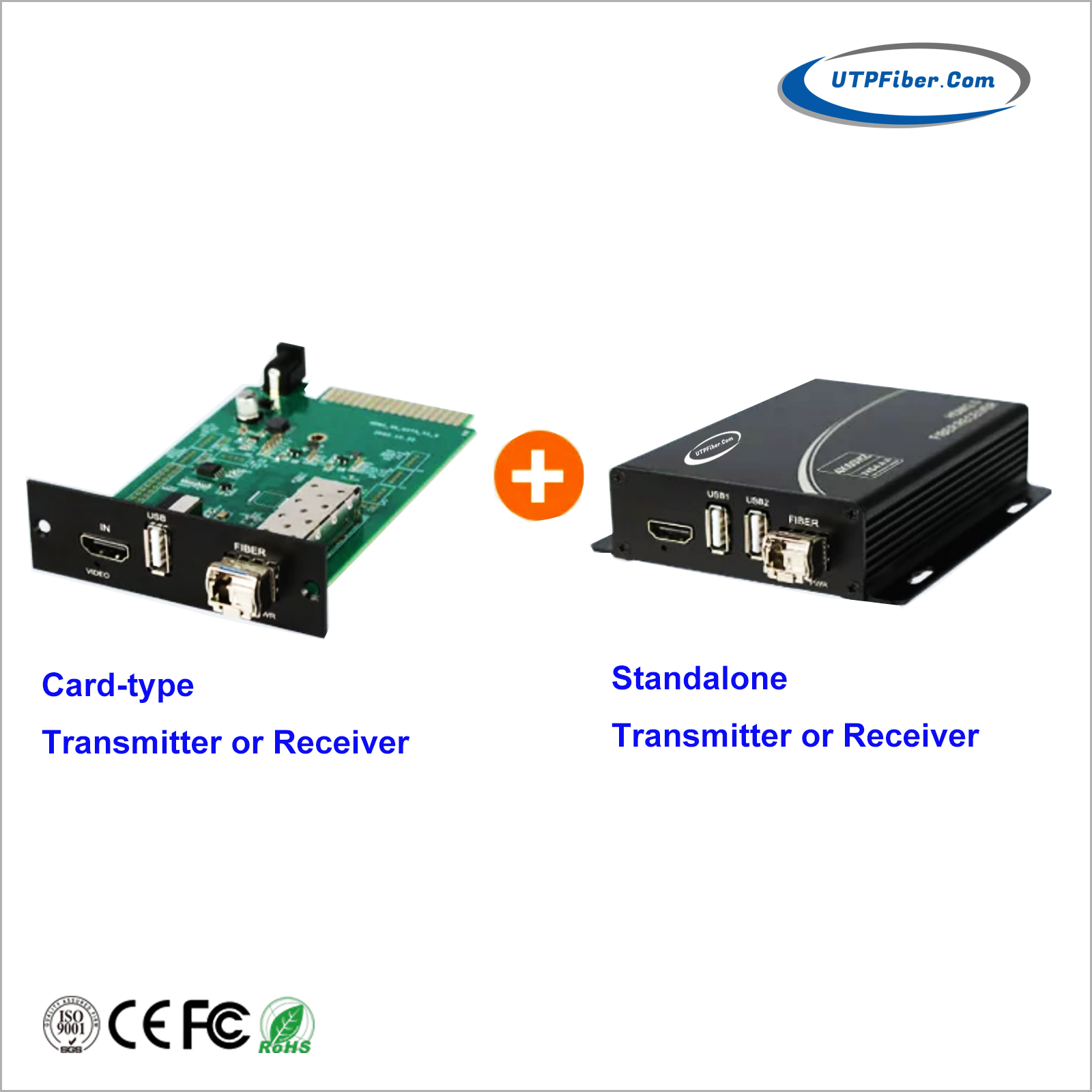

Model	Description

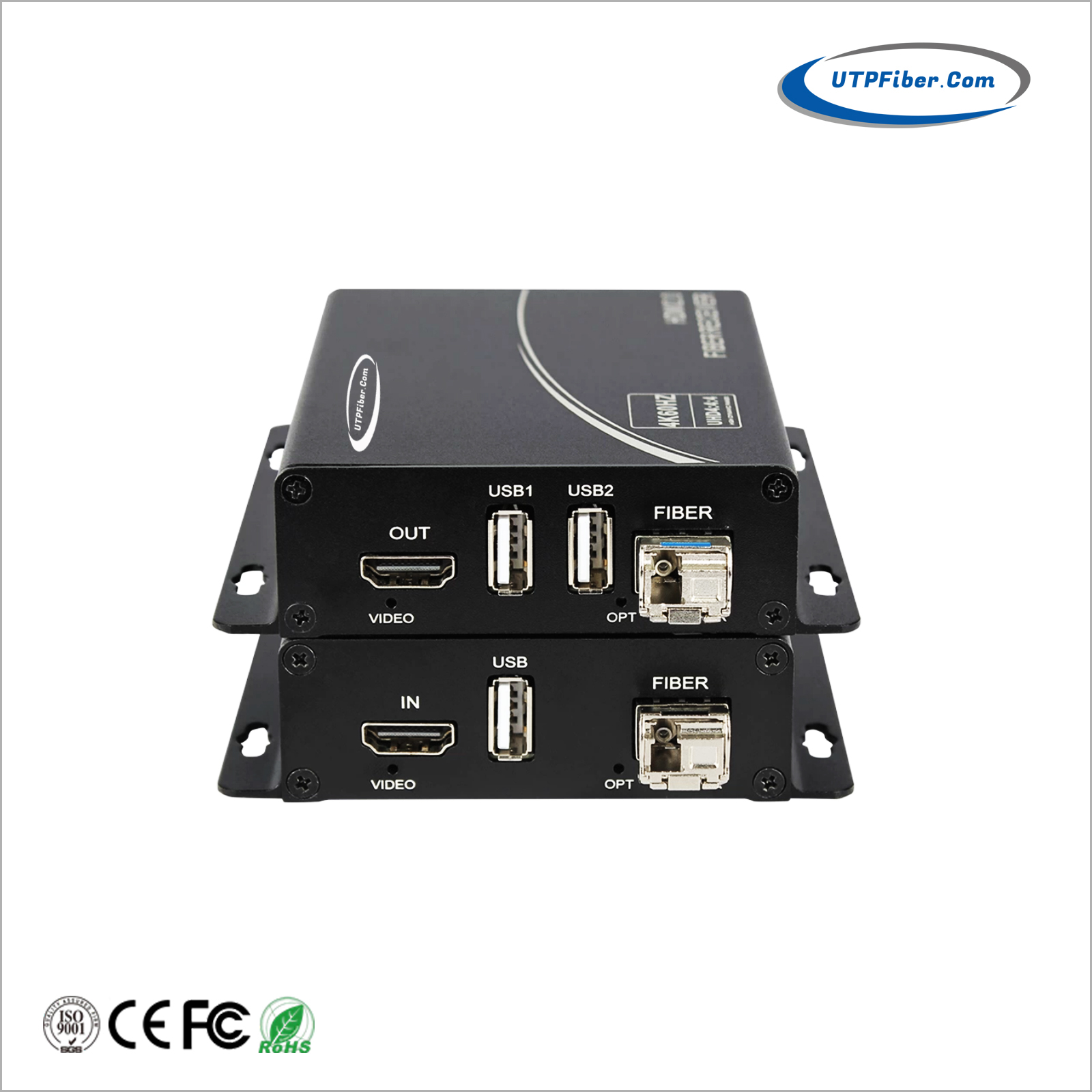

UF-HD460KM	Standalone 4K60Hz HDMI2.0 KVM over Fiber Optic Extender, OM3 Multimode Dual Fiber LC 300 Meters, including Transmitter & Receiver, used by pairs

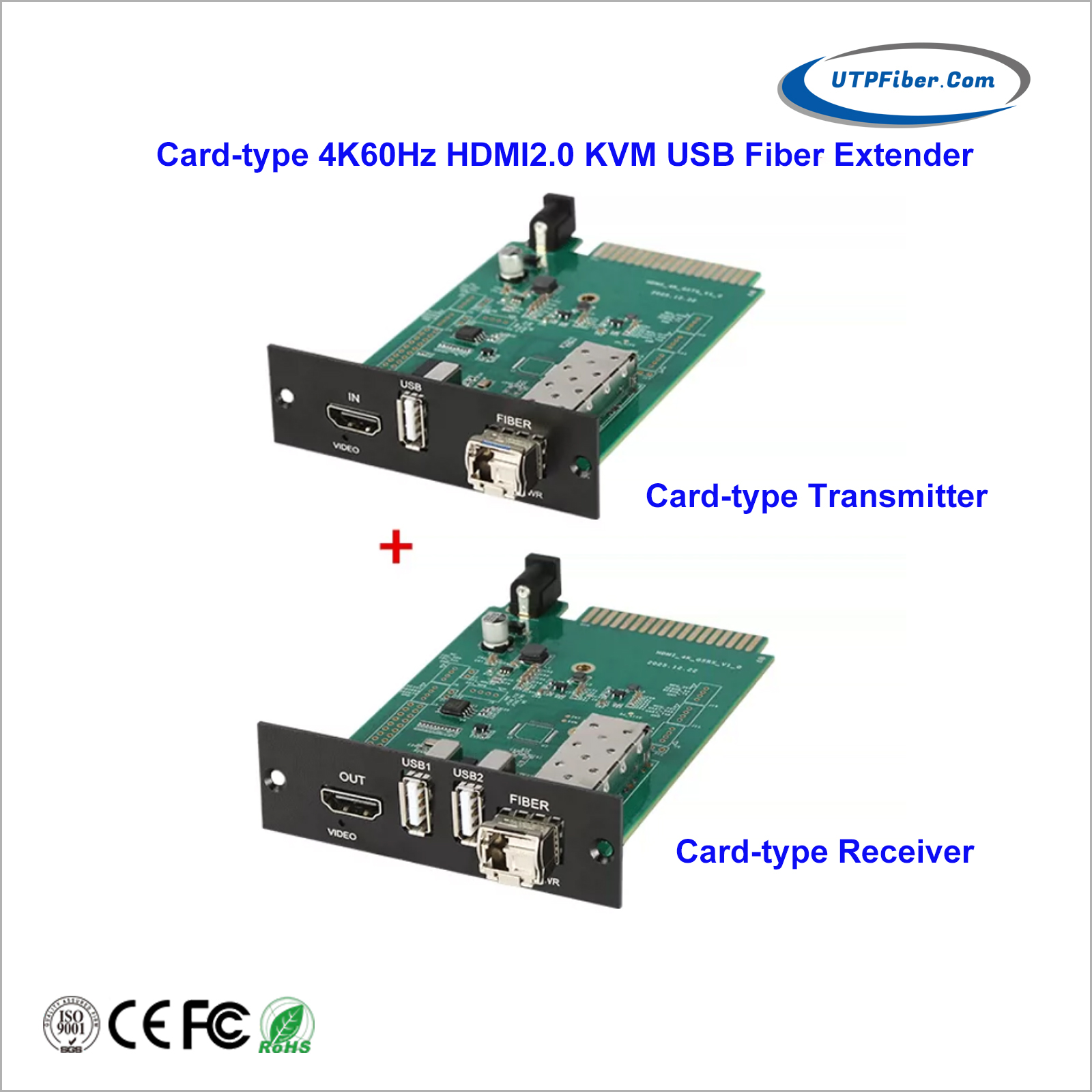

UF-HD460KM-C	Card-type 4K60Hz HDMI2.0 KVM over Fiber Optic Extender, OM3 Multimode Dual Fiber LC 300 Meters, for 16-Slot 2U Rack
UF-HD460KM-10	Standalone 4K60Hz HDMI2.0 KVM over Fiber Optic Extender, Single Mode Dual Fiber LC 10KM, including Transmitter & Receiver, used by pairs
UF-HD460KM-C10	Card-type 4K60Hz HDMI2.0 KVM over Fiber Optic Extender, Single Mode Dual Fiber LC 10KM, for 16-Slot 2U Rack
UF-HD460KM-S10	Standalone 4K60Hz HDMI2.0 KVM over Fiber Optic Extender, Single Mode Single Fiber LC 10KM, including Transmitter & Receiver, used by pairs
UF-HD460KM-CS10	Card-type 4K60Hz HDMI2.0 KVM over Fiber Optic Extender, Single Mode Single Fiber LC 10KM, for 16-Slot 2U Rack
UF-R16-2A	19” 2U 16-Slot Rack for Card-type HDMI2.0 KVM Fiber Transmitter or Receiver
Power Options	► DC12V 1A Power Supply
Power Options	► Power Adapter included
Mounting Options	► Wall-Mount or Rack Mount (16-slot card-type rack)
