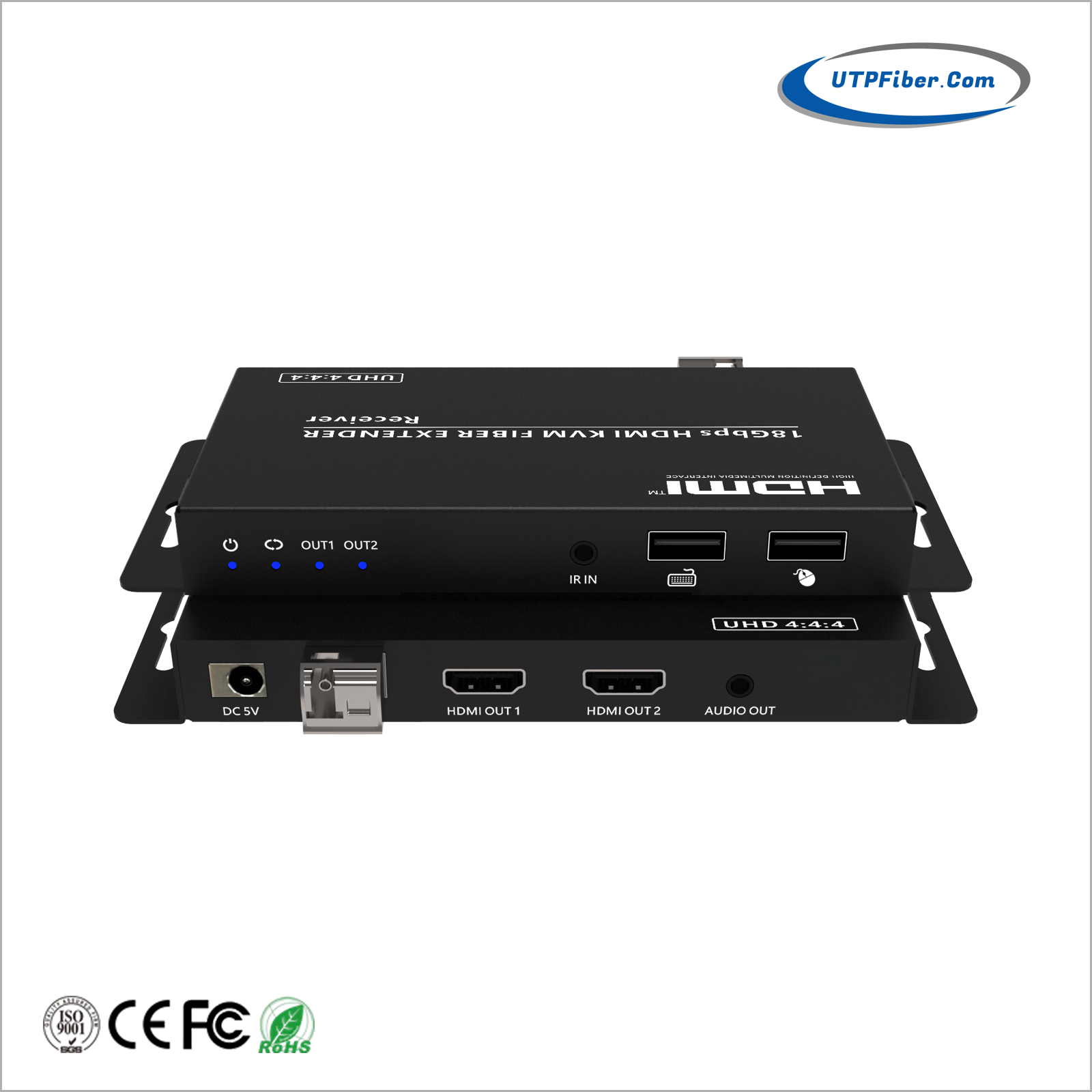

4K HDMI 2.0 KVM USB over Fiber Optic Extender w/ IR Control, Loop-out and Audio Embedder/De-embedder
Model:UF-HDF201KM Series
► Compliant with HDMI 2.0, HDCP 2.2
► Support video resolution up to 4K@60Hz YUV 4:4:4
► Support USB KVM function
► Support HDMI Loop-out for local monitor
► Support 3.5mm audio embedding on the Transmitter, Support 3.5mm audio extracting on the Receiver
► Support IR control, frequency range 20KHz~60KHz
► Support EDID management
► Distance to 20 km over single fiber/300 m over OM3 multi-mode fiber
The UF-HDF201KM series 18Gbps HDMI KVM Optical Fiber Extender extends HDMI signals, USB KVM signals up to 20 km (single-mode fiber), 300 m (OM3 multi-mode fiber) with uncompressed video resolution up to 4K@60Hz YUV 4:4:4. The transmitter supports HDMI loop output, 3.5mm audio embedding, and EDID management. The receiving supports audio extracting and 2-way HDMI output. The extender also supports IR signal transmission; you can control the signal source equipment on the display side. This extender has the advantages of strong anti-interference, high security, small size, light weight, etc. It is widely used in video conference system, multimedia signal broadcasting, HDMI signal extension and other fields.
► Uncompressed transmission, latency within 2 frames(<33ms)
► Compliant with HDMI 2.0, HDCP 2.2
► Support 18Gbps video bandwidth
► Support video resolution up to 4K@60Hz YUV 4:4:4
► Support USB KVM function
► Support HDMI Loop-out for local monitor
► Support 2 HDMI outputs on the Receiver side
► Support 3.5mm audio embedding on the Transmitter
► Support 3.5mm audio extracting on the Receiver
► Support IR control, frequency range 20KHz~60KHz
► Support EDID management
► Distance to 20 km over single fiber/300 m over OM3 multi-mode fiber
► Plug and play
|
Parameter Specifications |
|
|
HDMI/ HDCP |
HDMI2.0, HDCP2.2 |
|
Video Bandwidth |
18Gbps uncompressed |
|
Video Resolution |
480i~1080p50/60Hz, 4Kx2K@24/30Hz, 4K2K@60Hz |
|
Latency |
Latency less than 33ms (within 2 frames) |
|
Color Space |
RGB, YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0 |
|
Color Depth |
8/10/12-bit (1080P60Hz), 8-bit (4K60Hz) |
|
HDMI Video |
HDR format video |
|
HDMI Audio |
LPCM 2.0/5.1/7.1CH, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24, DTS High Res. DTS-HD Master Audio, DSD |
|
USB Protocol |
USB 1.1 |
|
Transmission Distance |
20km (single mode fiber) 300m (OM3 multi-mode fiber) |
|
Electrostatic Protection |
Human body model: ±8kV (air discharge), ±4kV (contact discharge) |
|
Power supply |
DC5V/1A |
|
Power consumption |
Transmitter/Receiver: 4W |
|
Operating Temperature |
0℃～40 ℃/32 ℉～104 ℉ |
|
Storage Temperature |
-20 ℃～60 ℃/-4 ℉～140 ℉ |
|

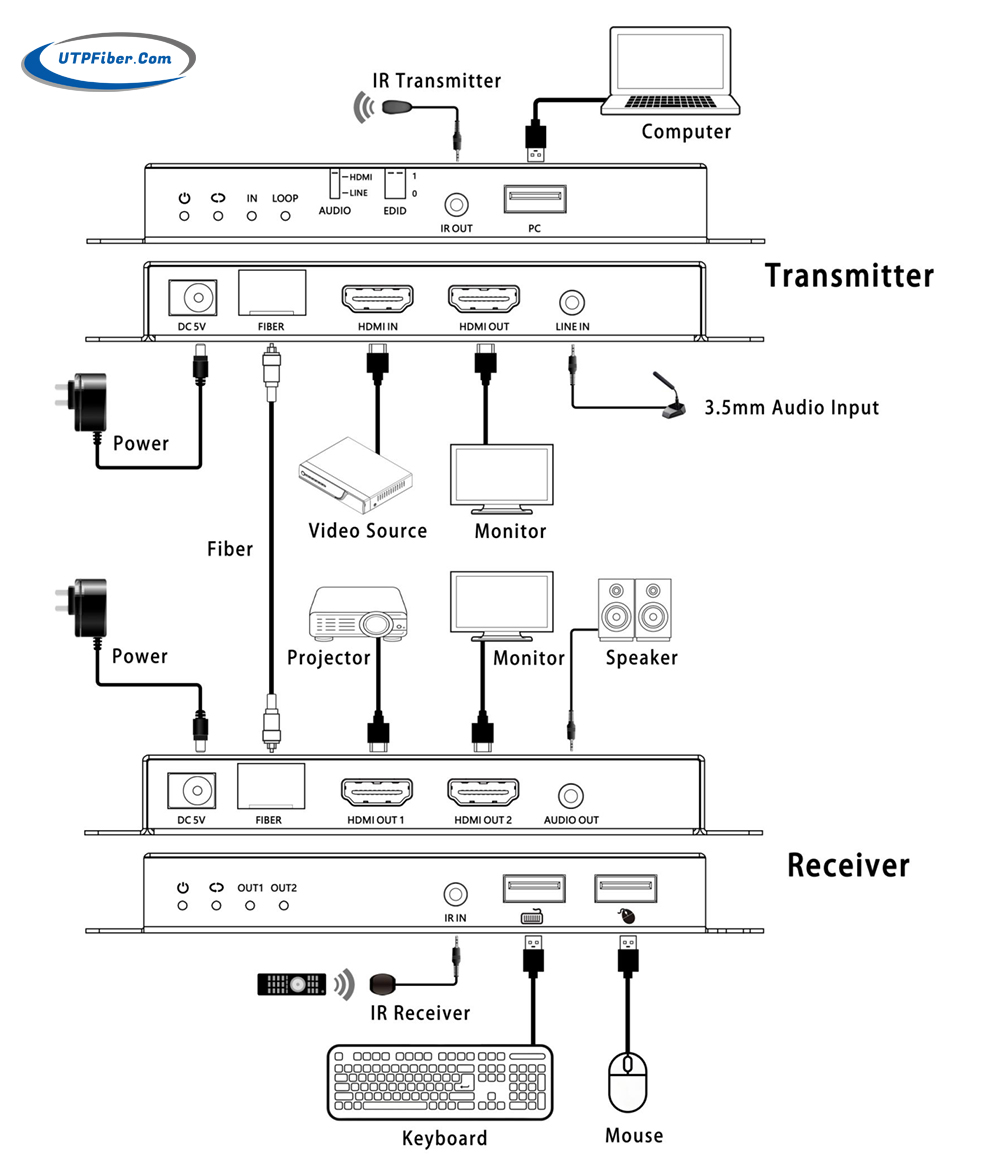

Connection |
|
|
Transmitter |
Input Port: 1 x HDMI IN [Type A, 19-pin Female] 1 x LINE IN [3.5mm Stereo Mini-Jack] 1 x DC 5V [5.5x2.1 connector] Output port: 1 x HDMI OUT [Type A, 19-pin female] 1 x FIBER OUT [LC female connector] Control port: 1 x USB [USB-A 4-pin female] 1 x IR OUT [3.5mm Stereo Mini-Jack] |
|
Receiver |
Input Ports: 1 x FIBER IN [LC female] 1 x DC 5V [5.5x2.1 socket] Output port: 2 x HDMI OUT [Type A, 19-pin female] 1 x AUDIO OUT [3.5mm Mini-Jack] Control port: 2 x USB [USB-A 4-pin female] 1 x IR IN [3.5mm Stereo Mini-Jack] |
|
Enclosure |
|
|
Housing / Color |
Metal housing / Black |
|
Dimensions |
154mm (L) × 73mm (W) × 18mm (H) |
|
Weight |
Transmitter/Receiver: 260g |
- Download FileName：UF-HDF201KM 4K HDMI2.0 KVM Fiber Extender Datasheet V3.0.pdf Size： 865KB
|
Model |
Description |
|
UF-HDF201KM-M |
4K HDMI 2.0 KVM USB over Fiber Optic Extender w/ IR Control, Loop-out and Audio Embedder/De-embedder, OM3 Multimode Fiber, 300 meters |
|
UF-HDF201KM -20 |
4K HDMI 2.0 KVM USB over Fiber Optic Extender w/ IR Control, Loop-out and Audio Embedder/De-embedder, Single-mode Fiber, 20km |
