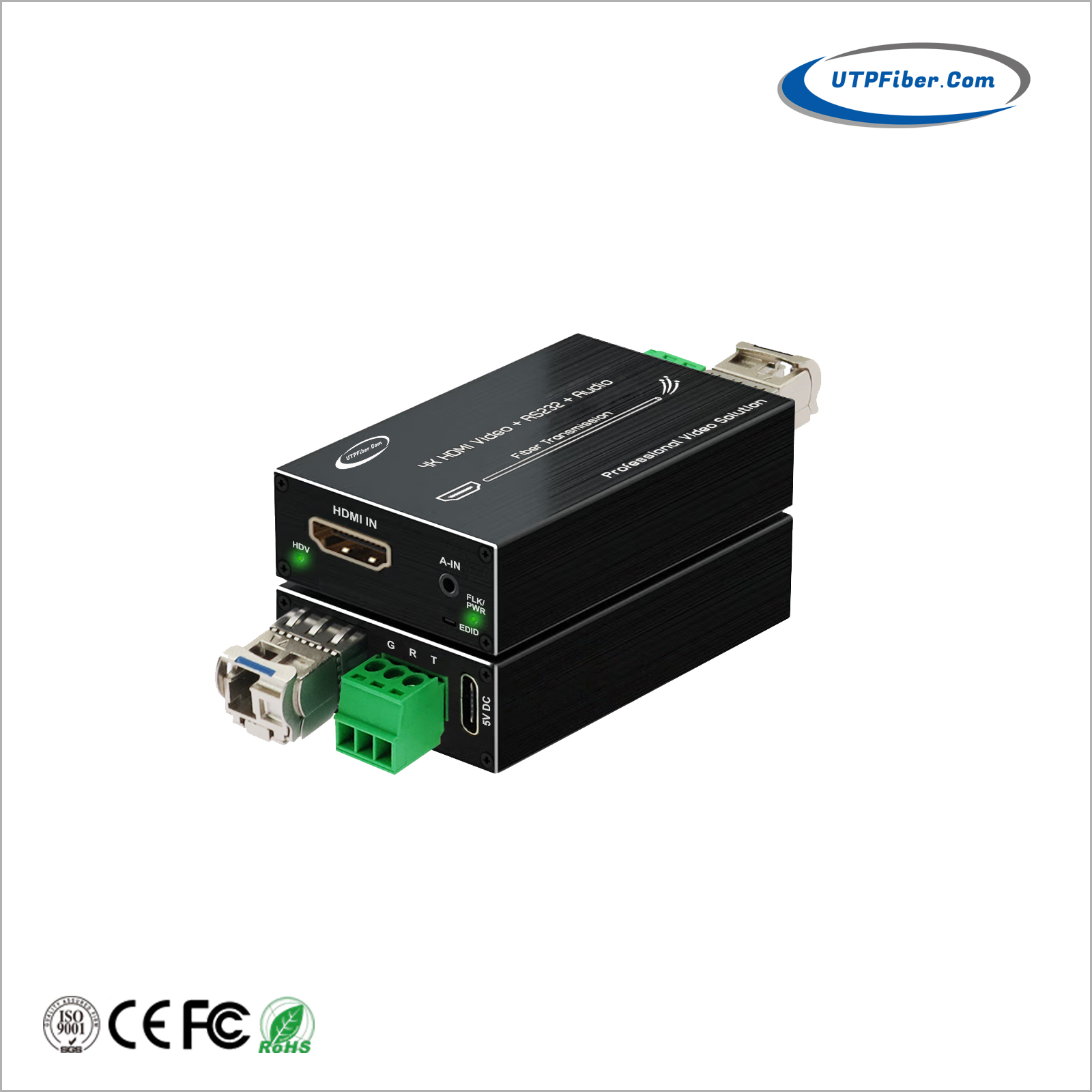

Mini 4K HDMI Fiber Extender with Backward RS232 & Stereo Audio
Model:UF-HDF460-1A1D Series
► Data rate up to 10.2Gbps
► Transmission distance up to 80km over fiber cable
► Supports All Modes up to maximum 4K*2K@60Hz, YUV 4:2:0
► Support external stereo audio
► Support Serial RS232 Signal
The UF-HDF460-1A1D Series Mini 4K HDMI Fiber Extender are designed to support transmission of an uncompressed lossless HDMI 1.4a signal, backward RS232 data signal and stereo audio over optical fiber up to distances of 80km, at a resolution of maximum 4K*2K@60Hz, YUV 4:2:0.

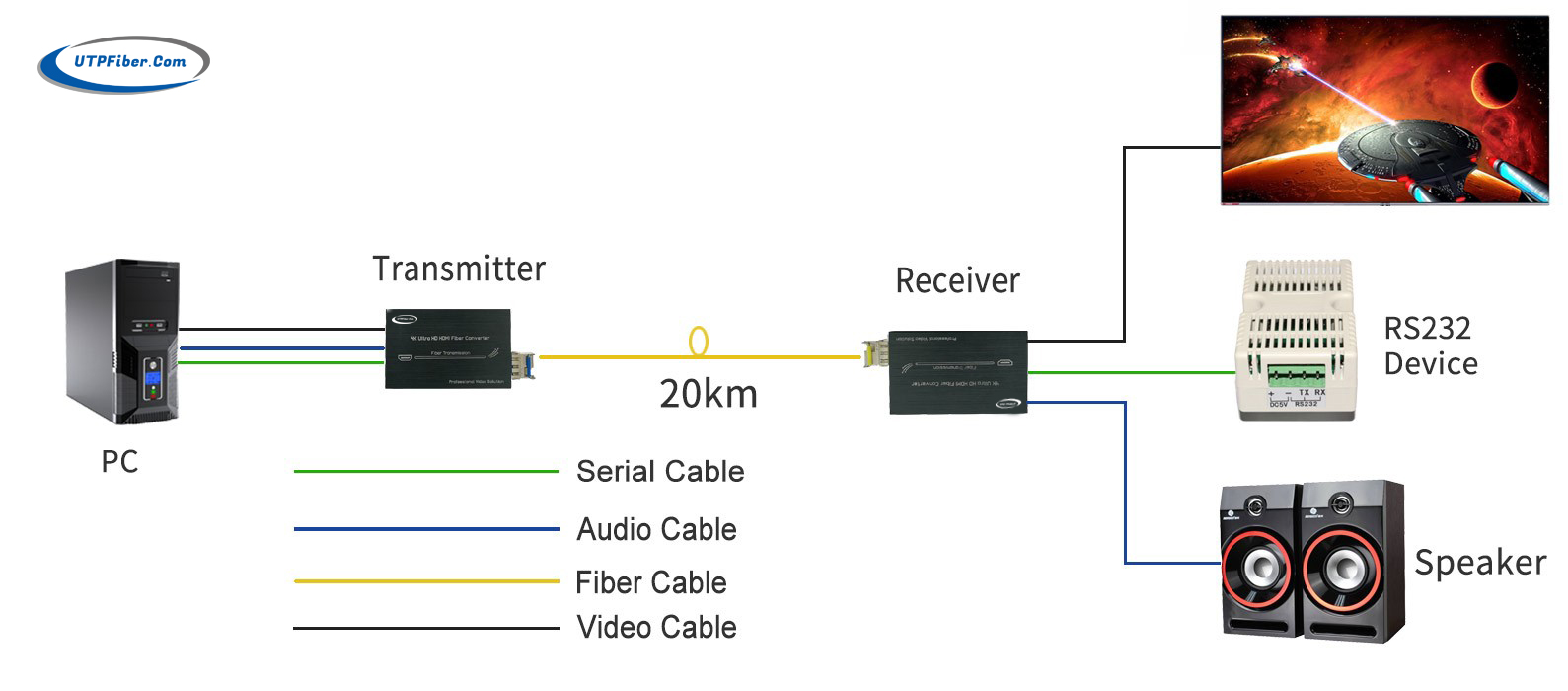

The Transmitter converts an HDMI signal to a single 10Gb/s serial data stream for transmission over optical fiber. The Receiver converts the serial data back to an HDMI signal. The transceivers are RoHS compliant and lead-free per requirements in Europe and China. This product is ideal for large-screen display, conferencing systems and home entertainment and so on. The device has the ability of anti-interference, to ensure the stability of the signal.
► HDMI 1.4a and HDCP1.2 Support
► Uncompressed transmission, No delay, No losses
► DDC HPDT Signal Support
► Data rate up to 10.2Gbps
► Transmission distance up to 80km over fiber cable
► Supports All Modes up to maximum 4K*2K@60Hz, YUV 4:2:0
► Support external stereo audio
► Support Serial RS232 Signal
► Hot-Pluggable, EMI/RFI Resistant
► Miniature form factor for ease of use and installation
► Operating Case Temperature: -10~50°C
|
Type of Extender |
Fiber Transmitter for HDMI signal over Optical Fiber Cable |
|
Input Signals |
HDMI |
|
Connector |
Female HDMI type A |
|
Signal Support |
HDMI 1.4a HDMI format standard and HDCP compliant |
|
Video Support |
Up to 720P/960P/1080p@60Hz, 4K*2K@30Hz |
|
Audio Support |
Dolby TrueHD, Dolby Digital Plus, DTS, DTS-ES 6.1, DTSHD, DTS-HD-HRA, DTS-HD Master, (PCM-2CH) |
|
Chroma Subsampling |
Max 3840*2160@60Hz (4:2:0) Max 3840*2160@30Hz (4:4:4, 4:2:2) |
|
EDID |
Bi-Directional (Forward + Backward) Transmission: Support Dynamic EDID, Plug & Play, no need to learn Single-Directional (Forward) Transmission: Support EDID learning manually |
|
Audio Interface |
3.5MM external stereo audio |
|
Backward RS232 |
3 Pin terminal, Baud rate ≤ 38400 |
|
Fiber Connector |
SFP/LC |
|
Bandwidth |
10.2Gbps |
|
Transmission Distance |
300m (Over OM3 Fiber) |
|
Up to 80km (Over Single-mode Fiber) |
|
|
Operating Temperature |
-10 to + 50°C |
|
Storage Temperature |
-20 to + 80°C |
|
Humidity |
5% to 90% RH (non-condensing) |
|
MTBF |
100,000 hours |
|
Dimension (WxDxH) |
2.87 x 1.73 x 0.69in (73x44x17mm) |
|
Weight |
60g / 0.13 lb |
|
Power Supply |
5V DC, USB Typ-C |
|
Power dissipation |
<5W |
|
Safety Approvals |
CE, FCC, RoHS |
- Download FileName：UF-HDF430-1A1D Mini 4K HDMI with Audio and RS232 Fiber Extender Datasheet V1.1.pdf Size： 706KB
|
Model |
Description |
|
|
|
UF-HDF430-1A1D-MM |
Micro Mini HDMI Fiber Extender: 1-Ch HDMI Signal(4K*2K) + 1Ch Backward RS232 + 1Ch Stereo Audio, OM3 Multi-mode Dual Fiber, 300 meters, LC, including 1 transmitter & 1 receiver, 5VDC Power Input |
||
|
F-HDF430-1A1D-S20 |
Micro Mini HDMI Extender: 1-Ch HDMI Signal(4K*2K) + 1Ch Backward RS232 + 1Ch Stereo Audio, Single-mode Single Fiber, 20km, LC, including 1 transmitter & 1 receiver, 5VDC Power Input |
||
|
UF-HDF430-1A1D-S40 |
Micro Mini HDMI Extender: 1-Ch HDMI Signal(4K*2K) + 1Ch Backward RS232 + 1Ch Stereo Audio, Single-mode Single Fiber, 40km, LC, including 1 transmitter & 1 receiver, 5VDC Power Input |
||
|
UF-HDF430-1A1D-S60 |
Micro Mini HDMI Extender: 1-Ch HDMI Signal(4K*2K) + 1Ch Backward RS232 + 1Ch Stereo Audio, Single-mode Dual Fiber, 60km, LC, including 1 transmitter & 1 receiver, 5VDC Power Input |
||
|
UF-HDF430-1A1D-S80 |
Micro Mini HDMI Extender: 1-Ch HDMI Signal(4K*2K) + 1Ch Backward RS232 + 1Ch Stereo Audio, Single-mode Dual Fiber, 80km, LC, including 1 transmitter & 1 receiver, 5VDC Power Input |
