Description

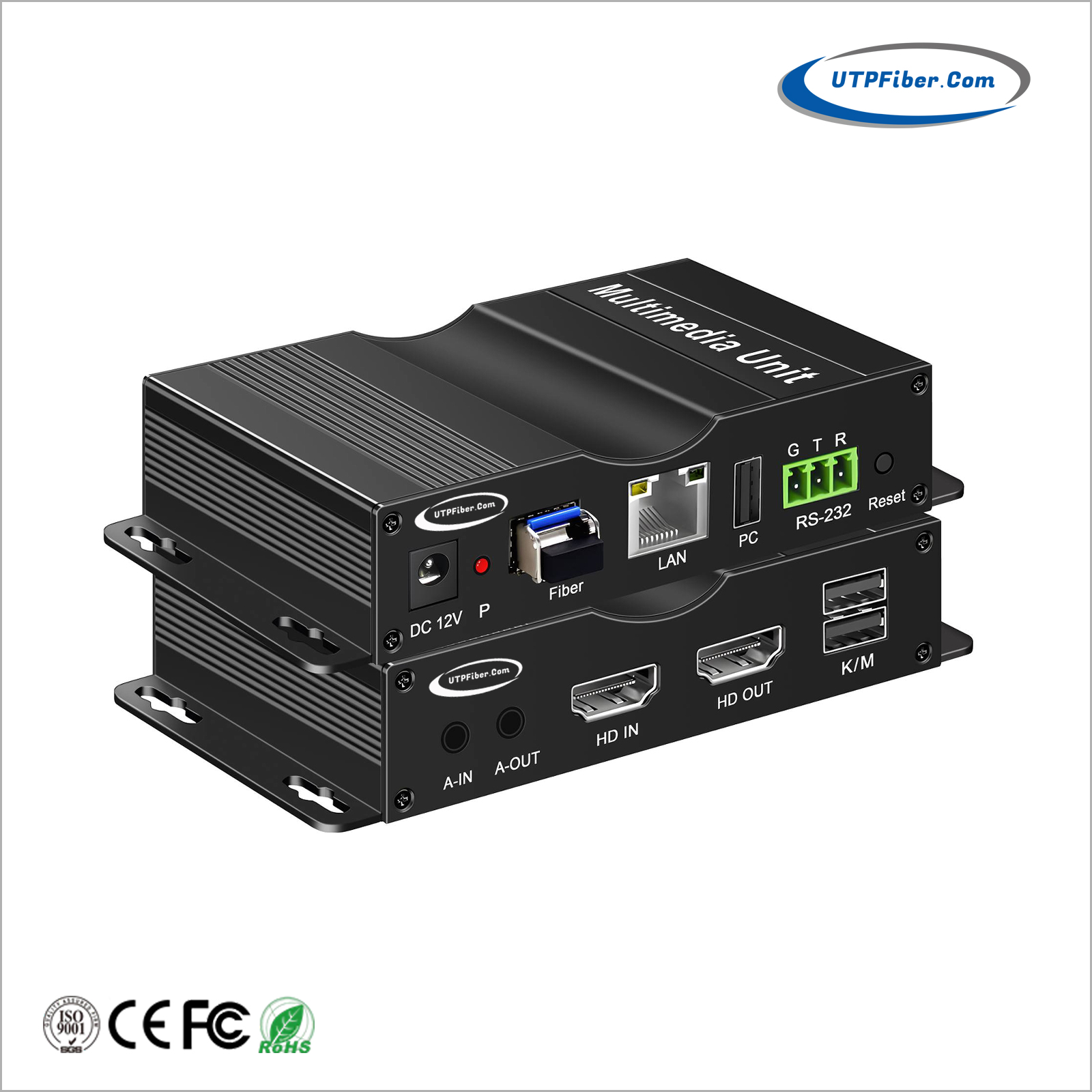

UF-HT1001K is an all-in-one system for long-distance transmission of HD audio and video signals via a single network cable or optical fiber. It provides bi-directional transmission of an HDMI signal, with local output, supports RS232 control, OSD, independent audio, and provides an ideal solution for installations requiring stable, high-performance, and low-cost transmission.

Thanks to its purely hardware-based network architecture and modular design, this product guarantees exceptional stability while allowing flexible combinations of modules according to specific needs. Perfectly suited for modern control centers in the fields of energy, security, transportation, industry, finance, education and more.

Specifications

• Long distance transmission:
  To 20 km via optical fiber ou 250 meters via network cable standard.

• Resolution up to 4K@30Hz (3840×2160), HDMI 1.4 and HDCP 1.3 compatible.

• Support for multiple interfaces:
  HDMI, RS232, Independent bidirectional audio, USB for keyboard/mouse.

• Integrated OSD and UI Interface
  Ease of use and on-screen display.

• Reset & Switching Function:
  Multifunction physical button (long reset >10s / fast switching <1s).

• Remote control :
  Support RS232 command transmission and remote keyboard/mouse control.

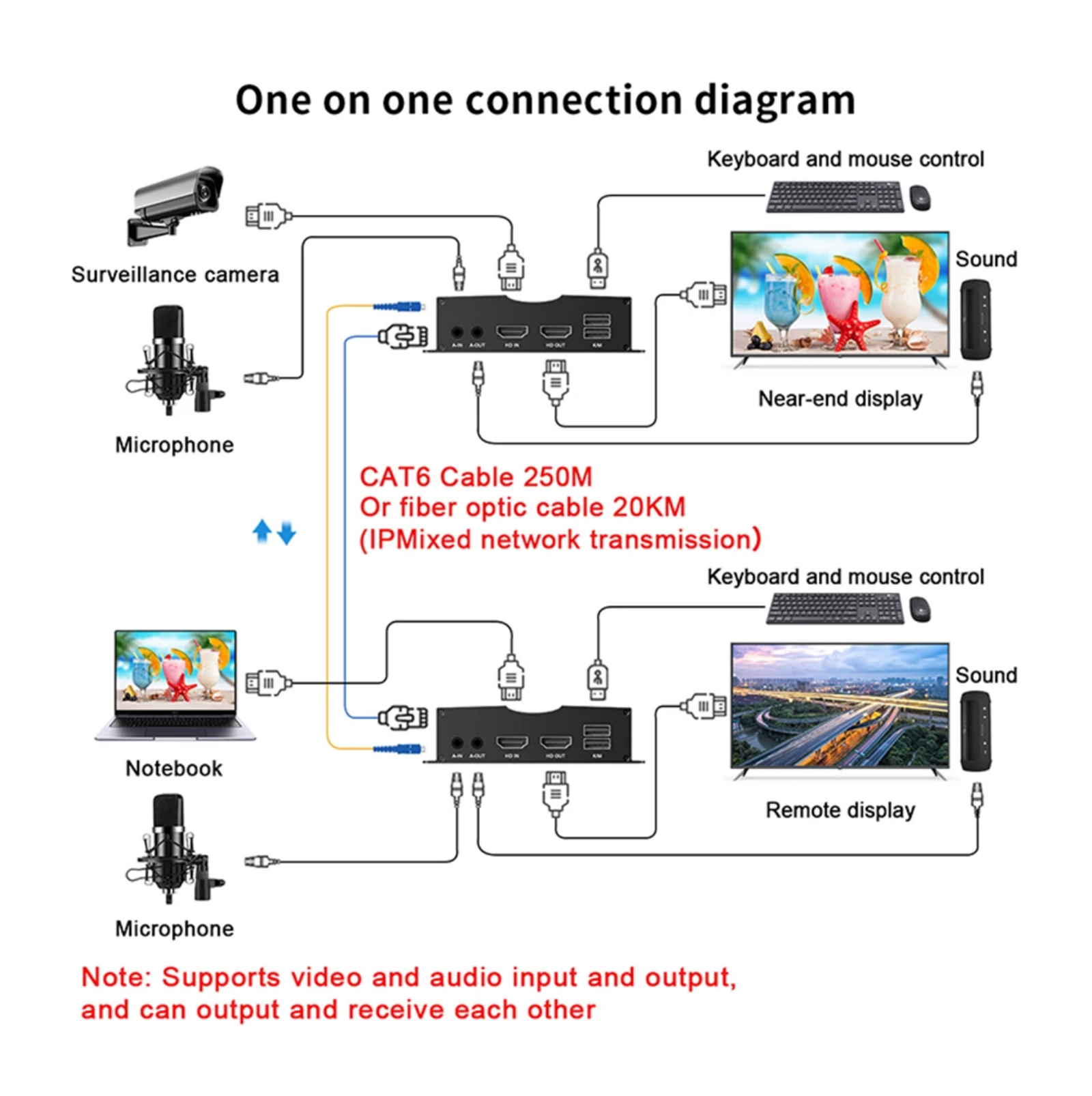

• Independent IP mode:

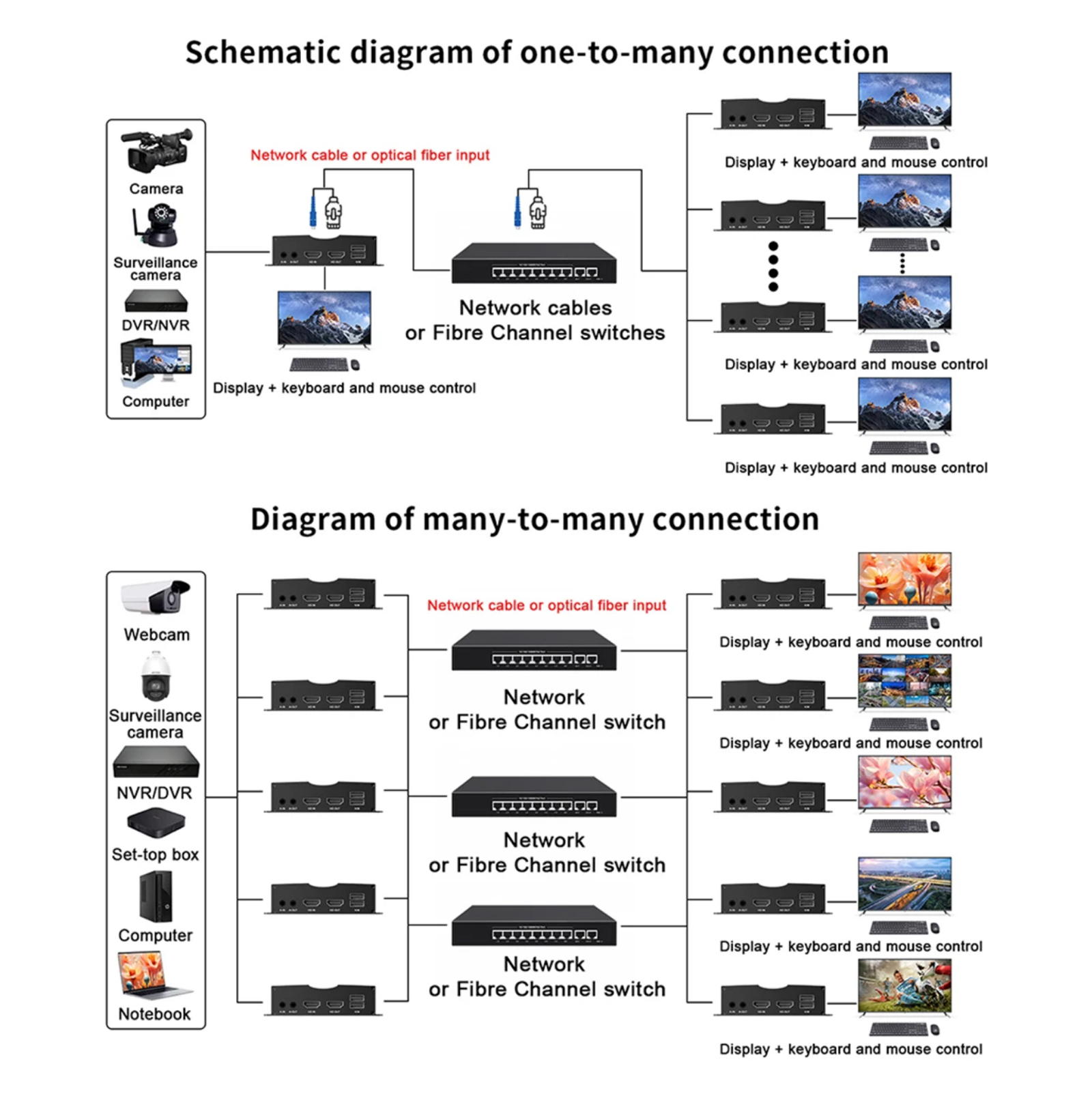

  Supports 1 to 1, 1 to N, N to N transmissions in mixed network (fiber/network).

• Built-in ESD protection:
  Increased safety against electrostatic discharges.

• Plug & play installation
  No setup required, immediate commissioning.

Advanced Features

• Multi-signal data transmission:
  Video, audio, control commands, sensors, I/O data — everything is centralized.

• Universal Network Compatibility:
  Transmission possible without fixed IP, via TCP/IP network.

• Multi-screen display:
  Compatible with LED screens, monitors, video walls, projectors, advertising screens, etc.

• Professional audio processing:
  HDMI audio input/output + independent audio input/output for two-way intercom.

• Built-in matrix function:
  Multiple video sources that can be displayed in mosaic or full screen.

• Linux Embedded System:
  Maximum stability for critical environments.

Display Quality & Network

• Real-time processing:
  4K@30Hz display without compression or frame loss, faithful color and smooth rendering.

• High density compatibility:
  Ideal for data centers or control rooms with multi-source display.

• Architecture without borders:
  Unlimited network expansion by stacking multiple devices over IP.

Applications

• Supervision and control centers

• Transportation and security networks

• Government and urban infrastructure

• Conference rooms, museums, stadiums

• Industrial factories, power plants

• Education, hospitals, military command

Reliability & Security

• Integrated ESD protection system

• Reinforced equipment for industrial environments

• Stable transmission without EMI interference

• Ultra-low latency rate: < 0,2 seconds

• Download FileName：UF-HT1001K 4K HDMI USB Audio RS232 over CAT6 or Fiber KVM Extender Datasheet V1.0.pdf Size： 1.35MB
