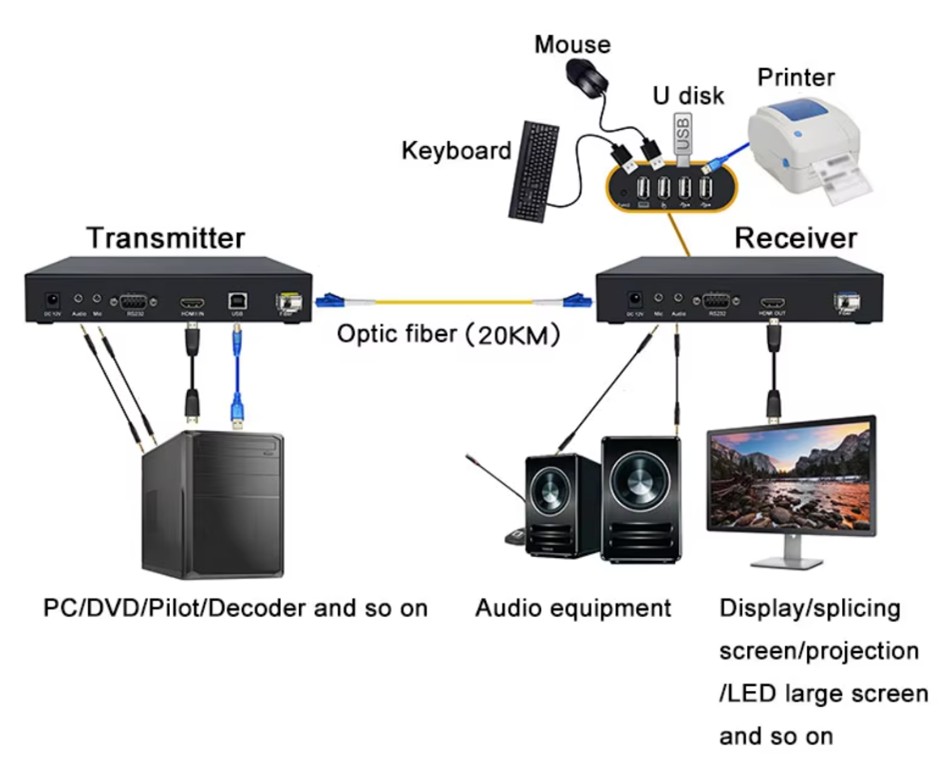

Transmitter

Receiver

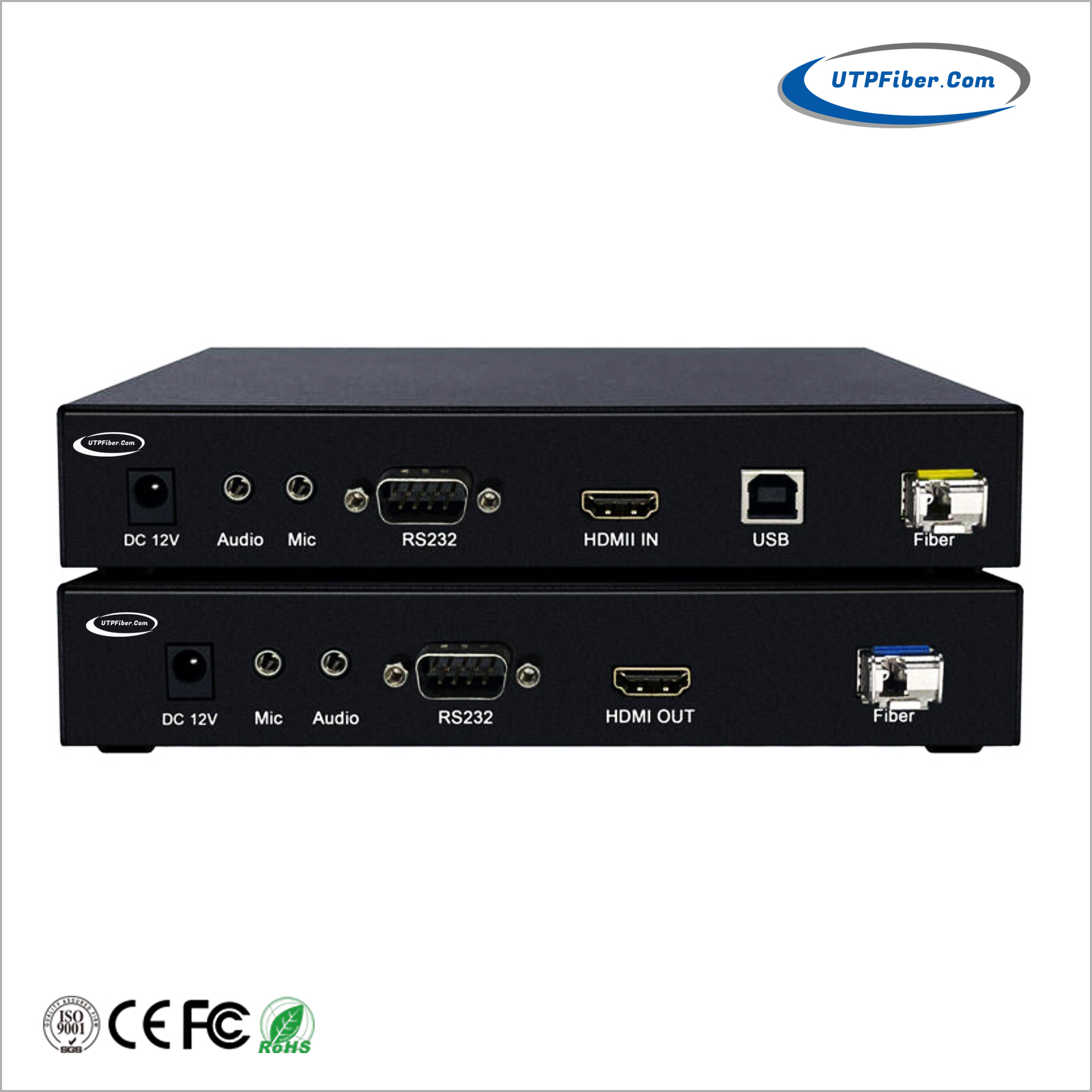

Interface

1* HDMI female

1* HDMI female

1*RS232 serial port

1*RS232 serial port

1* USB Type B

4*USB Type A

1* Audio

1* Audio

1*Mic

1*Mic

1*SFP s lot

1*SFP s lot

LED indicator

Video*1

Video*1

Link*1

Link*1

Power*1

Power*1

FW*1

FW*1

Resolution

3840*2160@30Hz ( Max)

1920*1080@60Hz

3840*2160@30Hz ( Max)

1920*1080@60Hz

Power supply

DC power interface

DC power interface

12V2A

12V2A

Working

environment

Operating temperature： 0~50°C

Operating temperature： 0~50°C

Storage temperature： -20~60°C

Storage temperature： -20~60°C

Humidity 0~90% RH, no condensation

Humidity 0~90% RH, no condensation

Physical properties

Iron shell

Iron shell

Size: 185*105*33（ L*W*H） mm

Size: 185*105*33（ L*W*H） mm
