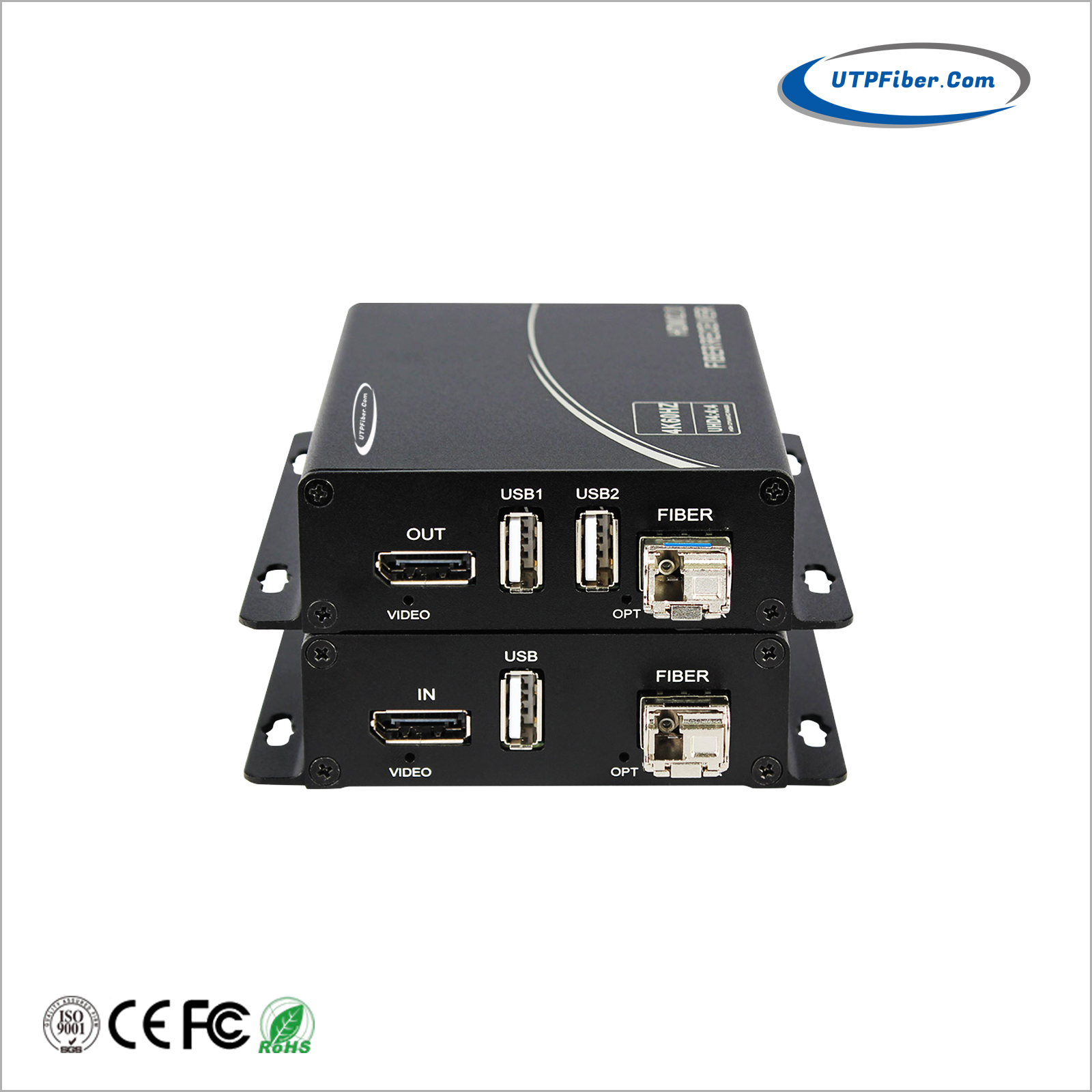

4K DisplayPort KVM USB over Fiber Optic Extender
Model:UF-DP101KM Series
► Support DisplayPort V1.1; Supports HDCP, DPCD, DDC2B; Support USB (keyboard & mouse)
► Supports Max Ultra-HD 4K (3840x2160@30Hz), Backwards Compatible with 720p/60Hz, 1080i/60Hz, 1080p/30Hz,1080p/60Hz, 1080p/120Hz, 1920x1200, 2560x1440
UF-DP101KM 4K DisplayPort KVM USB over Fiber Optic Extender includes a transmitter and a receiver, which is a high-speed, HDCP compliant fiber optic transport system capable of extending 4K/2K DisplayPort and USB (keyboard or mouse) signals over 1 or 2 fiber cable. The maximum cable distance can be up to 10 km via Single Mode Fiber or 300 meters via OM3 Multimode Fiber.
► Support DisplayPort V1.1; Supports HDCP, DPCD, DDC2B; Support USB (keyboard & mouse)
► Supports Max Ultra-HD 4K (3840x2160@30Hz), Backwards Compatible with 720p/60Hz, 1080i/60Hz, 1080p/30Hz,1080p/60Hz, 1080p/120Hz, 1920x1200, 2560x1440
► Max extension distance:10 Kilometers over 9/125μ single-mode optical fiber; 300 Meters over OM3 Multimode Fiber;
► Maximum Video Bandwidth: 10.8Gbps

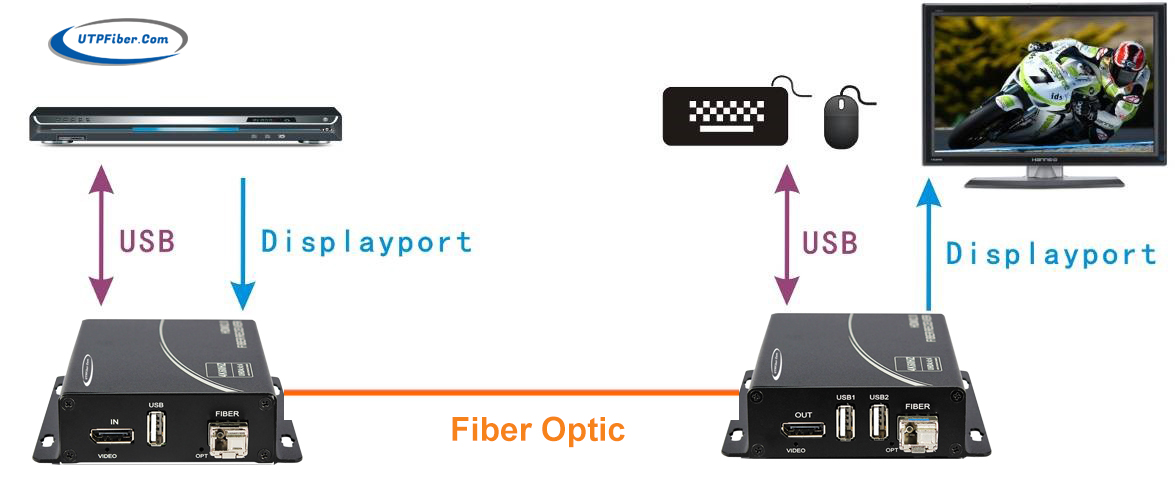

► A DisplayPort input and USB signals from a source device such as a set-top box or Blue-Ray player is converted into light pulses by an optical transmitter module for transmission over 1 or 2 fiber optic. On the display side, an optical receiver module converts the light pulses back to a DisplayPort and USB (keyboard or mouse) signals.
|
Performance: |
|
|
Compliance |
DisplayPort V1.1 |
|
Maximum Video Bandwidth |
10.8Gbps |
|
Digital Audio Support |
Dolby Digital, Dolby Digital Plus, Dolby True HD and DTS-HD Master Audio |
|
Supported HDTV Formats |
Supports all HDTV resolutions including 1080p, 2K and 4K (UHD) formats |
|
Supported PC Resolutions |
720p/60Hz, 1080i/60Hz, 1080p/30Hz,1080p/60Hz, 1080p/120Hz，1920x1200，2560x1440，Ultra-HD 4K (3840x2160@30Hz) |
|
Optical Fiber: |
|
|
Optical Transmitter |
Laser Source: 1310nm / 1550nm |
|
Optical Receiver |
PIN Photo Diode O/E Converter |
|
Fiber Cable Type / Max. Length |
OM3 MMF 300 meters |
|
Connections: |
|
|
DisplayPort |
20-pin DisplayPort female connectors |
|
Optical Input / Output |
female LC optical connectors |
|
Mechanical: |
|
|
Construction |
Extruded Aluminum enclosure with black anodized finish |
|
Dimensions |
104 mm x 104 mm x 28 mm |
|
Weight |
700g per pair |
|
Environmental: |
|
|
Operating Temperature |
0° to +50° C |
|
Storage Temperature |
-20° to +70° C |
|
Humidity (storage / operating) |
10% to 90% (non-condensing) |
|
Power Requirements: |
|
|
Power Source |
Both Tx and Rx units must be powered using the supplied external AC power adapters |
|
External AC Power Adapter |
Input: 100~240VAC / 50-60Hz, 0.5A Output: 5VDC, 2.0A |
|
Maximum Power Consumption |
TX Unit: 3.5 watts RX Unit: 3.5 watts |
|
USB interface: |
|
|
TX |
1 port, connect to Computer/ HDMI source |
|
RX |
2 ports, connect to Cable keyboard or mouse |
- Download FileName：UF-DP101KM 4K DP KVM Fiber Extender Datasheet V1.0.pdf Size： 755KB
|
Model |
Description |
|
UF-DP101KM-M |
4K DisplayPort KVM USB over Fiber Optic Extender, OM3 Multimode Dual Fiber, 300 meters |
|
UF-DP101KM-10 |
4K DisplayPort KVM USB over Fiber Optic Extender, Single-mode Dual Fiber, 10km |
|
UF-DP101KM-10S |
4K DisplayPort KVM USB over Fiber Optic Extender, Single-mode Single Fiber, 10km |
