4K@60HZ HDMI KVM over CAT6a/7 Extender with Loop-out - 197 ft (60m)
Model:UF-HK6E-60K
► Uncompressed transmits HDMI video and audio signals up to 60M over a single CAT6a/7 cable
► Support video resolution up to 3840*2160@60Hz, 3D signal
► Support keyboard and mouse control
► Support local loop-out in sender
► YUV4:4:4, HDMI 2.0 and HDCP 2.2 standard

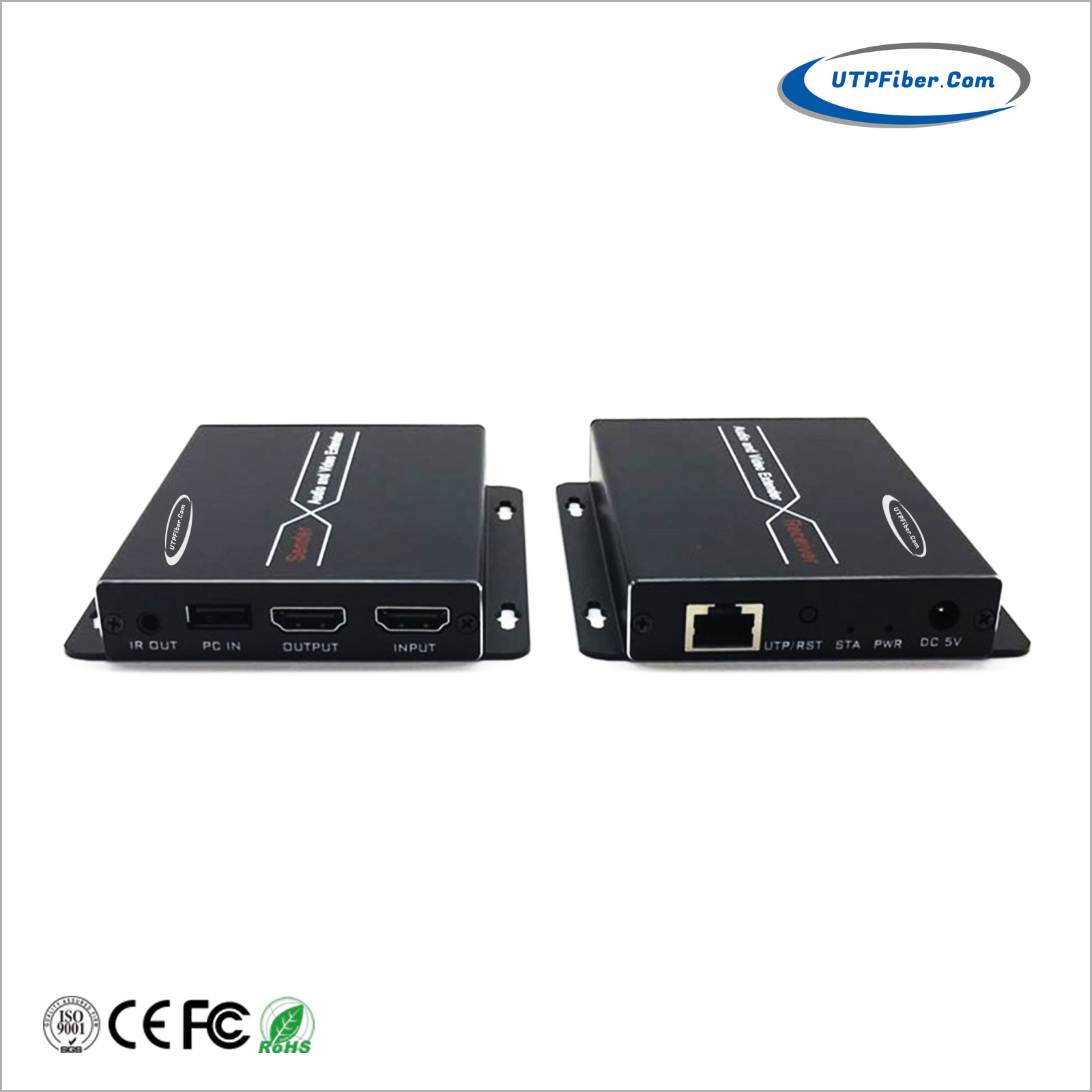

This HDMI Extender includes a transmitter unit (TX) and a receiver unit (RX), working as a pair. It allows for transmission and extension uncompressed full HD 4K@60Hz HDMI signal via CAT6/6A/7 network cable, the transmission distance is up to 60 meters with zero latency. At the same time, the signal is stable, and the built-in EDID greatly improves the compatibility of the device. It supports keyboard mouse control and local loop-out. This product is perfect for AV transmission in applications of HD conference system, HD video shooting, HD multimedia education system, HD digital advertising and signage etc.
► Aluminum housing, strong anti-interference
► Wall-mounted type
► Uncompressed transmits HDMI video and audio signals up to 60M over a single CAT6a/7 cable
► Support video resolution up to 3840*2160@60Hz, 3D signal
► Support keyboard and mouse control
► Support local loop-out in sender
► Build-in EDID function, can match many kinds display device
► YUV4:4:4, HDMI 2.0 and HDCP 2.2 standard
► Ethernet cables with a standard IEEE - 568b connection, convenient installation
► Built-in ESD protection
► High compatibility, can auto-match source and display device
► Built-in automatic adjustment system, make the image smooth, clear and stable
|
Video |
|
|
HDMI Compliance |
HDMI 2.0 |
|
HDCP Compliance |
HDCP 2.2 |
|
Maximum Pixel Clock: |
340MHz Digital |
|
Maximum Data Rate: |
18 Gbps |
|
Resolution: |
Up to 3840*2160@60Hz 4:4:4 |
|
Color Space: |
RGB / YCbCr 4:4:4, YCbCr 4:2:2/4:2:0, YUV 4:4:4 |
|
Color Depth: |
8/10/12-bit (1080P60Hz, 4K30Hz, 4K60Hz YCbCr 4:2:2/4:2:0) 8-bit (4K60Hz 4:4:4 ) |
|
HDMI Audio Formats: |
LPCM 2.0/2.1/5.1/6.1/7.1, Dolby Digital, Dolby TrueHD, Dolby Digital Plus(DD+), DTS-ES, DTS HD Master, DTS HD-HRA, DTS-X |
|
ESD Protection: |
Human body model — ±8kV (air-gap discharge) & ±4kV (contact discharge) |
|
Impedance: |
100Ω |
|
Connector: |
HDMI-A [19-pin female] |
|
HDMI Cable: |
Less than 5m at 3840*2160@60Hz |
|
KVM (USB) |
|
|
Interface: |
PC: Standard
USB-A |
|
USB Signal: |
HID Signal |
|
UTP |
|
|
Interface: |
RJ45 (IEEE - 568b connectioN) |
|
Transmission Distance: |
CAT6a/7--- 60m at 3840*2160@60Hz NOTE: Distance depends on the characteristics and quality of the cables and the type of HDMI source and display. Higher resolutions and longer transmission distances require low-skew cables (<25 ns/100 m) for best performance. We recommend using unshielded solid core CAT6/7 cable. |
|
Network Cable: |
Low resistance and consumption oxygen-free copper core (CAT6, CAT6A or CAT7)-UTP |
|
Environmental |
|
|
Operating Temperature: |
-5°C to 70°C (23°F to 158°F) |
|
Storage Temperature: |
-40°C to 80°C (-40°F to 176°F) |
|
Relative Humidity: |
5% to 95% non-condensing |
|
Storage Humidity: |
5% to 95% non-condensing |
|
Electrical and Mechanical |
|
|
Input Power: |
5V DC, 1A max. |
|
Power Consumption: |
3W max. |
|
LED Indicators |
|
|
P: |
Power Status |
|
S: |
Signal Status |
|
Dimensions (WxDxH): |
82 x 85 x 17mm (3.23' 'x 3.35'' x 0.67'') |
|
Weight: |
0.6KG |
|
Casing: |
Aluminum Case |
|
Mounting Options: |
Desktop, Wall Mount |
|
Regulatory Approvals |
|
|
CE, RoHS, FCC |
|
- Download FileName：UF-HK6E-60K 4K60Hz HDMI KVM over CAT6,7 Extender with Loop-out 60m Datasheet V1.0.pdf Size： 735KB
|
Model |
Description |
|
UF-HK6E-60K |
4K@60HZ HDMI KVM over CAT6a/7 Extender with Loop-out - 197 ft (60m) |
|
Mounting Options: |
► Desktop, wall mountable |
|
Power Options: |
► 1A 5VDC Power Supply |
