4Kx2K@60Hz 18Gbps HDMI2.0 HDBaseT Extender with IR/ARC/PoC/RS-232 and Audio De-/Embedding up to 70m
Model:UF-HK6B-70
► HDMI2.0b and HDCP 2.2 compliant
► Support 18Gbps video bandwidth
► Support video resolution up to 4Kx2K@60Hz RGB/YCBCR 4:4:4
► The transmission distance can be extended up to 70m / 230ft via a single CAT5e/6 cable
► Support Bi-Directional IR and RS-232 control signal pass-through
Thanks to high transfer rates of up to 18Gbps the UF-HK6B-70 is capable of video resolutions of up to 4K2K @60Hz 4:4:4 providing crystal clear images. The UF-HK6B-70 also supports ARC and various audio formats such as Dolby 5.1, DTS 5.1, and PCM 2.0. The bi-directional IR signal pass-through enables easy control of a source or display device on either end of the system. This set of robust features in such a compact design makes for easy and flexible installation options.
► HDMI2.0b and HDCP 2.2 compliant
► Support 18Gbps video bandwidth
► Support video resolution up to 4Kx2K@60Hz RGB/YCBCR 4:4:4
► The transmission distance can be extended up to 70m / 230ft via a single CAT5e/6 cable
► Support Bi-Directional IR and RS-232 control signal pass-through
► Audio Formats: HDMI: LPCM 7.1CH, Dolby True HD, and DTS-HD Master Optical: Dolby 5.1, DTS 5.1, PCM 2.0
► ARC and audio de-embedding through S/PDIF optical port on receiver
► Advanced EDID management
► Support POC (Power over Cable) function
► Compact design for easy and flexible installation
|
Technical |
|
|
HDMI Compliance |
HDMI 2.0b |
|
HDCP Compliance |
HDCP 2.2 |
|
Video Bandwidth |
18Gbps |
|
Video Resolution |
Up to 4K2K@60Hz RGB/YCBCR 4:4:4 |
|
IR Level |
5Vp-p |
|
IR Frequency |
Wideband 20K-60KHz |
|
Transmission Distance |
70m via a single CAT5e/6 cable |
|
Color Space |
RGB, YCbCr 4:4:4, YCbCr 4:2:2 |
|
Color Depth |
8-bit, 10-bit, 12-bit (1080P) 8-bit (4K60) 8-bit, 10-bit, 12-bit (4K24/30) |
|
HDR |
HDR, HDR10, HDR10+, Dolby Vision, HLG |
|
Audio Formats |
HDMI: LPCM 7.1CH, Dolby True HD, and DTS-HD Master Optical: Dolby 5.1, DTS 5.1, PCM 2.0 |
|

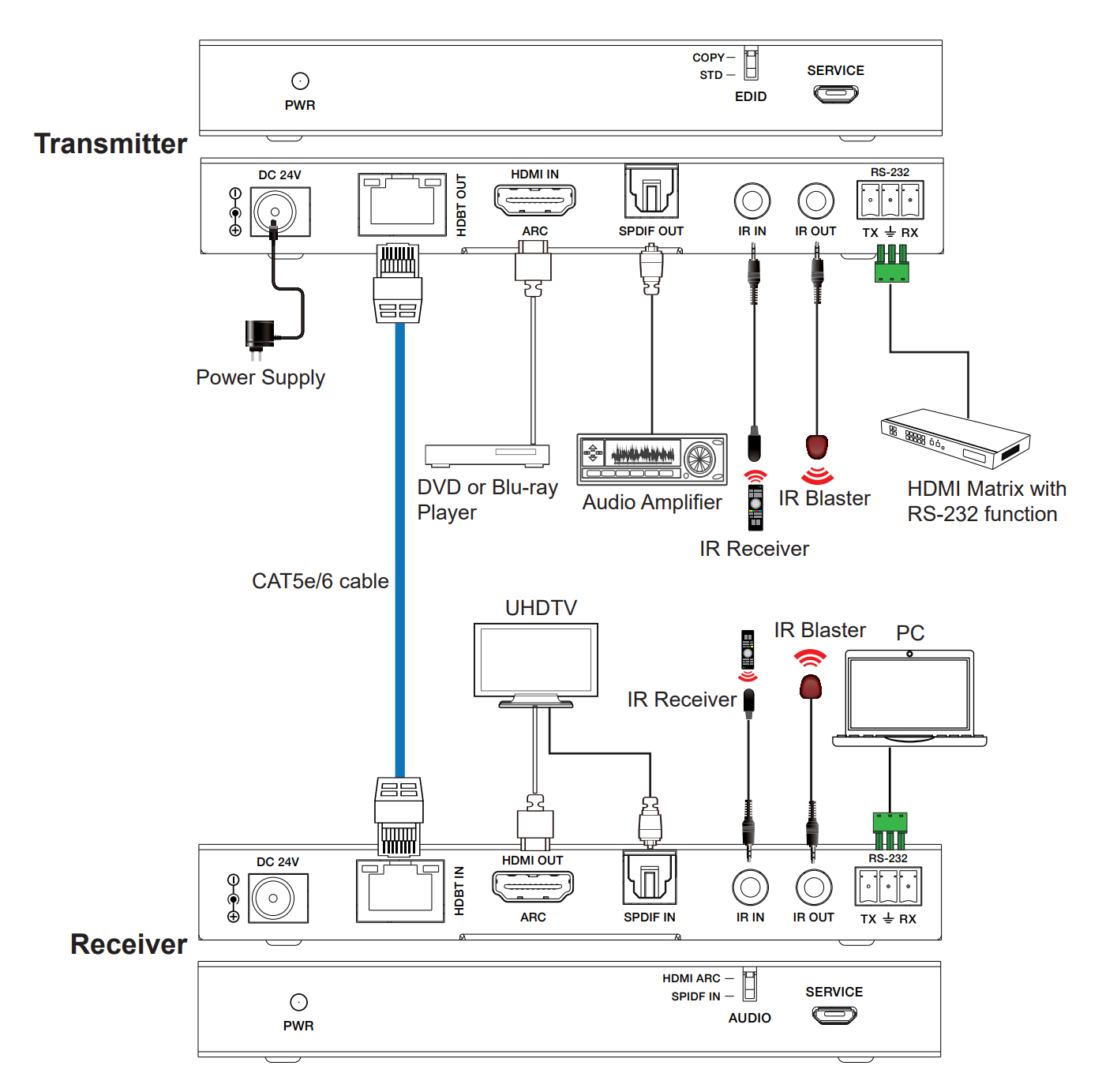

Connection |
|
|
Transmitter |
Input: 1×HDMI IN [TypeA, 19-pin female] Output: 1×HDBT OUT [RJ45] 1×SPDIF OUT Control: 1×RS-232 [3pin-3.81mm Phoenix connector] 1×SERVICE [Micro-USB jack] 1×IR IN [3.5mm Stereo Mini-jack] 1×IR OUT [3.5mm Stereo Mini-jack] |
|

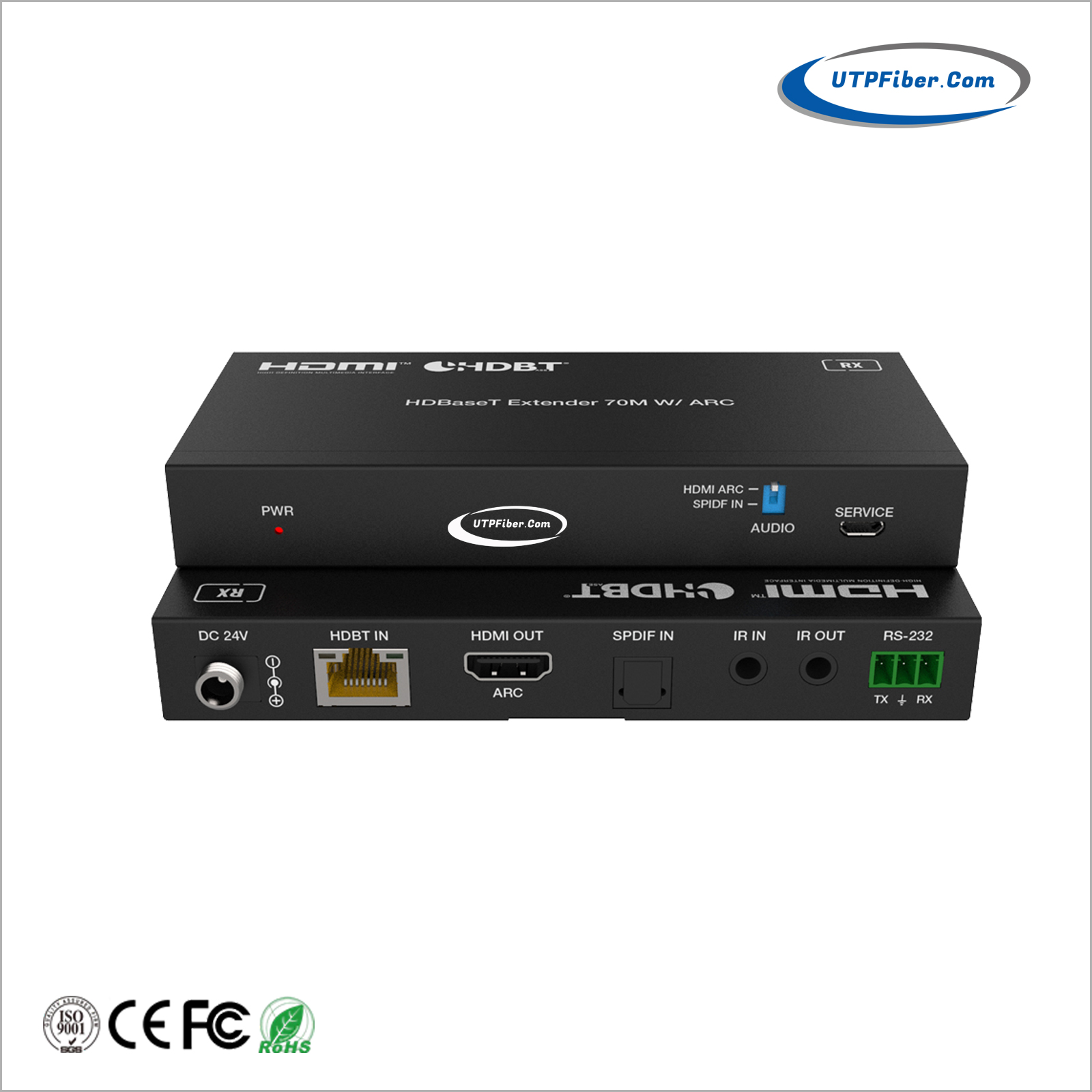

Receiver |
Input: 1×HDBT IN [RJ45] 1×SPDIF IN Output: 1×HDMI OUT [TypeA, 19-pin female] Control: 1×RS-232 [3pin-3.81mm Phoenix connector] 1×SERVICE [Micro-USB jack] 1×IR IN [3.5mm Stereo Mini-jack] 1×IR OUT [3.5mm Stereo Mini-jack] |
|
Mechanical |
|
|
Housing |
Metal Enclosure |
|
Color |
Black |
|
Dimensions |
Transmitter / Receiver:140mm (W)×65mm (D)×18mm (H) |
|
Weight |
Transmitter: 235 g, Receiver: 239 g |
|
Power Supply |
DC 24V/1A; Support bi-directional POC function |
|
Power Consumption |
9.6 W (max) |
|
Operating Temperature |
0°C ~ 40°C / 32°F ~ 104°F |
|
Storage Temperature |
-20°C ~ 60°C / -4°F ~ 140°F |
|
Relative Humidity |
20~90% RH (non-condensing) |
- Download FileName：UF-HK6B-70 4Kx2K@60Hz HDBaseT 70M Extender Datasheet V1.0.pdf Size： 865KB
|
Model |
Description |
|
UF-HK6B-70 |
4Kx2K 60Hz HDBaseT 70M Extender, extend HDMI signal, bi-directional IR control signal, ARC signal and RS-232 control signal to a distance up to 70m / 230ft via a single CAT5e/6 cable, including Transmitter & Receiver, used by pairs |
|
Mounting Options |
► Desktop or Wall Mount |
|
Power Options |
►1A 24VDC Power Supply or PoC |
|
► 1 x 24V 1A external power adapter is included. |
