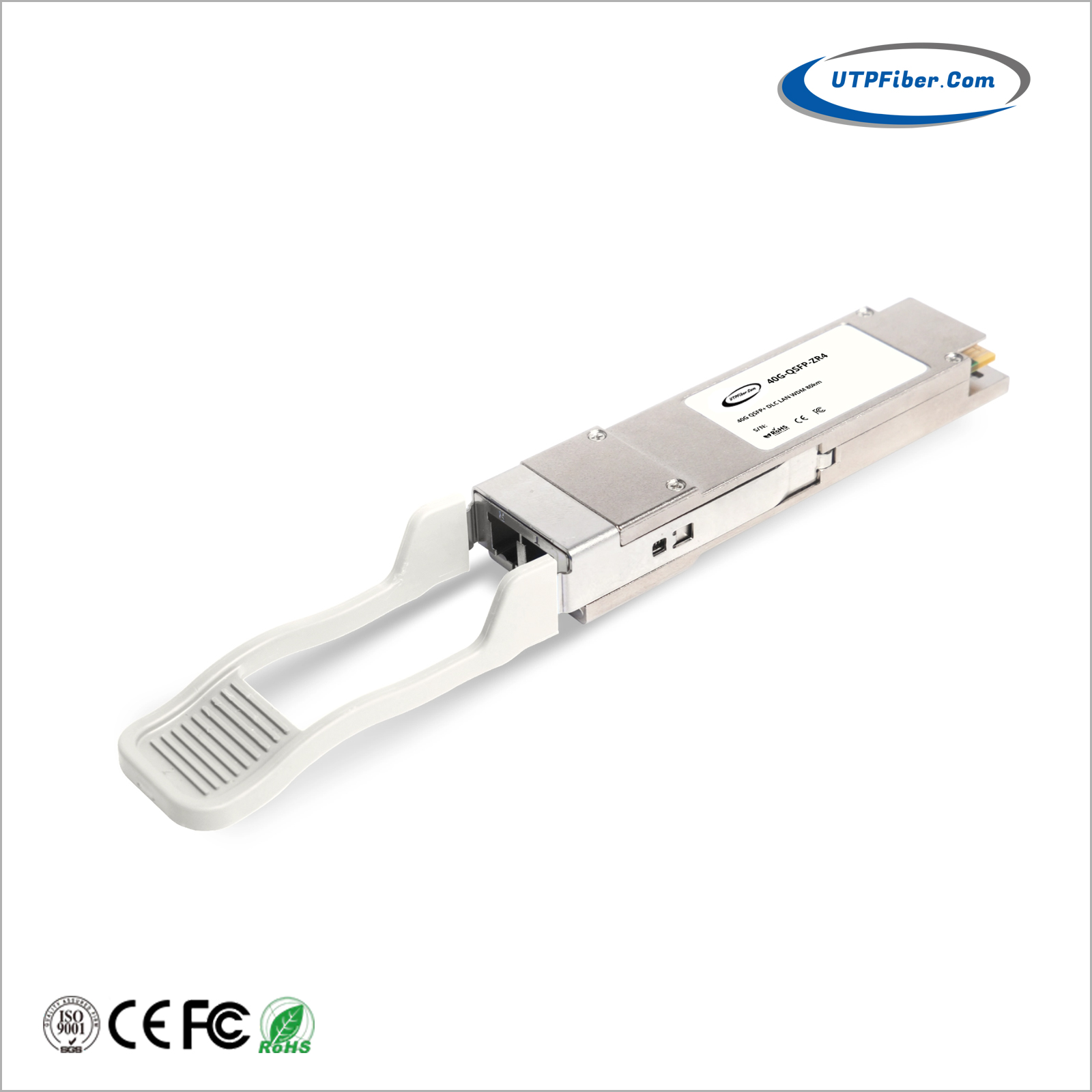

40G QSFP+ ZR4 LAN WDM 80km Duplex LC SMF Optical Transceiver Module

Model:UF-QSFP-ZR4-80

Support line rates from 41.2 Gb/s;
Lane bit rate 10.3125 Gb/s
Up to 80km transmission on single mode fiber.
LAN WDM EML laser and PIN receiver with SOA;
QSFP+ MSA package with duplex LC connector;
Operating case temperature: 0 to +70 °C;

上一张

下一张

The QSFP+ 40GBASE ZR4 transceiver module supports 4x 10.3125G data transmission of 80km over SMF. The 40G ER4 optical module complies with QSFP MSA and RoHS standards. The module uses CWDM technology to achieve 4 channels of electrical data into 4 channels of LAN WDM optical signals. Moreover, multiplexing these optical signals into a single channel for 40Gb/s optical transmission. the module de-multiplexes a 40Gb/s optical input into 4 channels of LAN WDM optical signals and then converts them to 4 output channels of electrical data. The lower power consumption is 6W and is RoHS-compliant. This module is ideal for 40-gigabit ethernet, data center, and metro network applications.

Support line rates from 41.2 Gb/s;
Lane bit rate 10.3125 Gb/s
Up to 80km transmission on single mode fiber.
LAN WDM EML laser and PIN receiver with SOA;
Support Multi-Pin function with IntL/RxLOSL and LPMode/TxDIS;
High speed I/O electrical interface (CAUI-4);
I2C interface with integrated Digital Diagnostic monitoring;
QSFP+ MSA package with duplex LC connector;
Single +3.3V power supply;
Maximum power consumption 6 W;
Operating case temperature: 0 to +70 °C;
Complies with EU Directive 2015/863/EU;

40GBASE-ZR4
40G Datacom& Telecom connections

P/N	UF-QSFP-ZR4-80	Vendor Name	UTP Fiber
Form Factor	QSFP+	Max Data Rate	40Gbps
Wavelength	1295.56nm, 1300.05nm, 1304.58nm, 1309.14nm	Max Distance	80km
Connector	LC Duplex	Transmitter Type	DFB
Cable Type	SMF	Receiver Type	APD
TX Power	+4.0~+7.0dBm	Receiver Sensitivity	< -26.0dBm
Protocols	40G Ethernet IEEE802.3ba and 40GBASE-ZR4, MSA, QDR/DDR Infiniband	Operation Temperature	0 to 70°C (32 to 158°F)

Download FileName：UTP 40G QSFP+ ZR4 LAN WDM 80km Datasheet V1.0.pdf Size： 493KB

Part Number	Product Description
UF-QSFP-ZR4-80	40G QSFP+ ZR4 LAN WDM 80km

40G QSFP+ ZR4 LAN WDM 80km Duplex LC SMF Optical Transceiver Module

Model:UF-QSFP-ZR4-80
