40G QSFP+ to QSFP+ OEO Fiber Converter 3R Repeater
Model:UF-MC40G-3R
- Support 2U Rack (16 Slots) and independent use.
- 3R function.
- Transparent Transport and very low delay.
- Support DMI function for QSFP fiber module.
- Support 1*40G Mode and 4*10G Mode.
- Support Loopback test function.

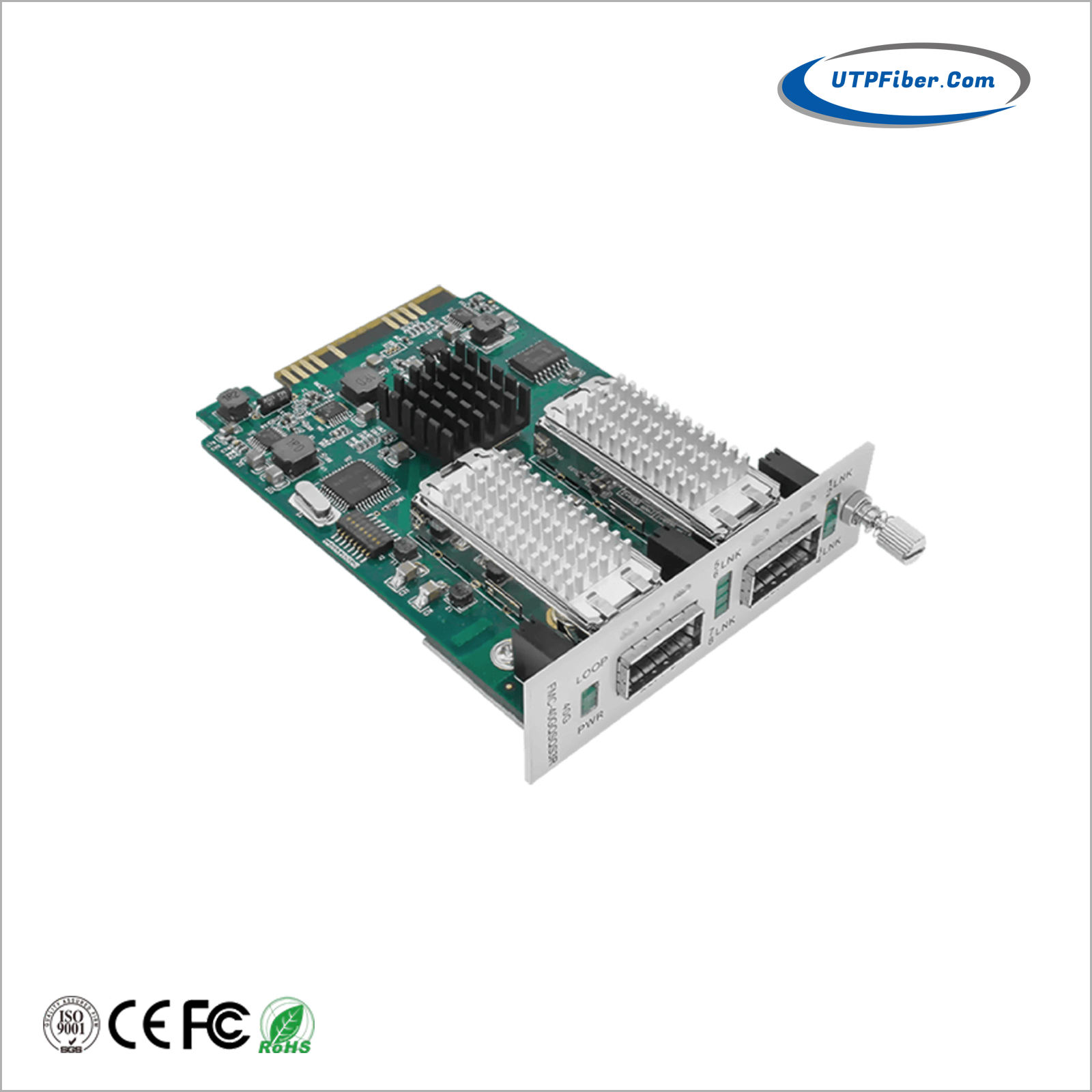

UTP UF-MC40G-3R provides media conversion and distance extension for 40G or 10G Ethernet links. It is hot-swappable with two QSFP sockets for QSFP transceivers. Installation and setup is simple plug and play. Insert the module into any powered Fiber Driver chassis with the QSFP transceivers required for the application, and then connect to the network.
- Support 2U Rack (16 Slots) and independent use.
- Support network management (Web SNMP, Console).
- 3R function.
- Support Jumbo Frame.
- Transparent Transport and very low delay.
- Support DMI function for QSFP fiber module.
- Support 1*40G Mode and 4*10G Mode.
- Support Loopback test function.
- Support hot plugging.
- Full State Led display.
- Easy installation.
Applications include:
Media conversion and distance extension for 40G or 10G Ethernet links.
Media conversion (multi-mode to single-mode) and link range extension. (The multi-mode QSFP may be used with MPO MM (40G) or with fan-out cables for quad 10G interfaces.)
|
Performance Data |
Technical Indexes |
|
Equipment function |
3R Repeater |
|
Protocols |
Multiple functions in one module: --40G converter/repeater --Quad 10G optical multiplexer 40G link interface --Ethernet/IEEE: 802.3ba 40GE-LR4 /SR4 10G interfaces: --9.95 - 11.35 Gbps |
|
Access Type |
40G Ethernet |
|
Network management Information |
|
|
Interface Type |
QSFP To/From QSFP |
|
Transmission Distance |
Up to QSFP module ( Max 10Km ) |
|
Power requirement |
Rack-mountable : AC 85 ～ 220V OR DC -48V Standalone: AC 220V OR -48V Power consumption: ≤8W |
|
Work Environment |
Operating Temp: 0~ 50 ℃ Storage Temp: -10~ 70 ℃ Humidity: 5%~90% ( non-condensing ) |
|
Dimension |
Card: 11.5mm ( W ) × 78mm ( D ) Standalone: 156mm ( W ) ×128mm ( D ) ×32mm ( H ) |
- Download FileName：UF-MC40G-3R 40G OEO Converter 3R Repeater Datasheet V1.0.pdf Size： 281KB
|
Model |
Description |
|
UF-MC40G-3R |
40G QSFP+ to QSFP+ OEO Fiber Converter 3R Repeater |
|
QSFP Options: |
► QSFP+ option. Please select your QSFP+ on our SFP Options Page |
|
► QSFP+ module is to be purchased separately. |
|
|
Mounting Options: |

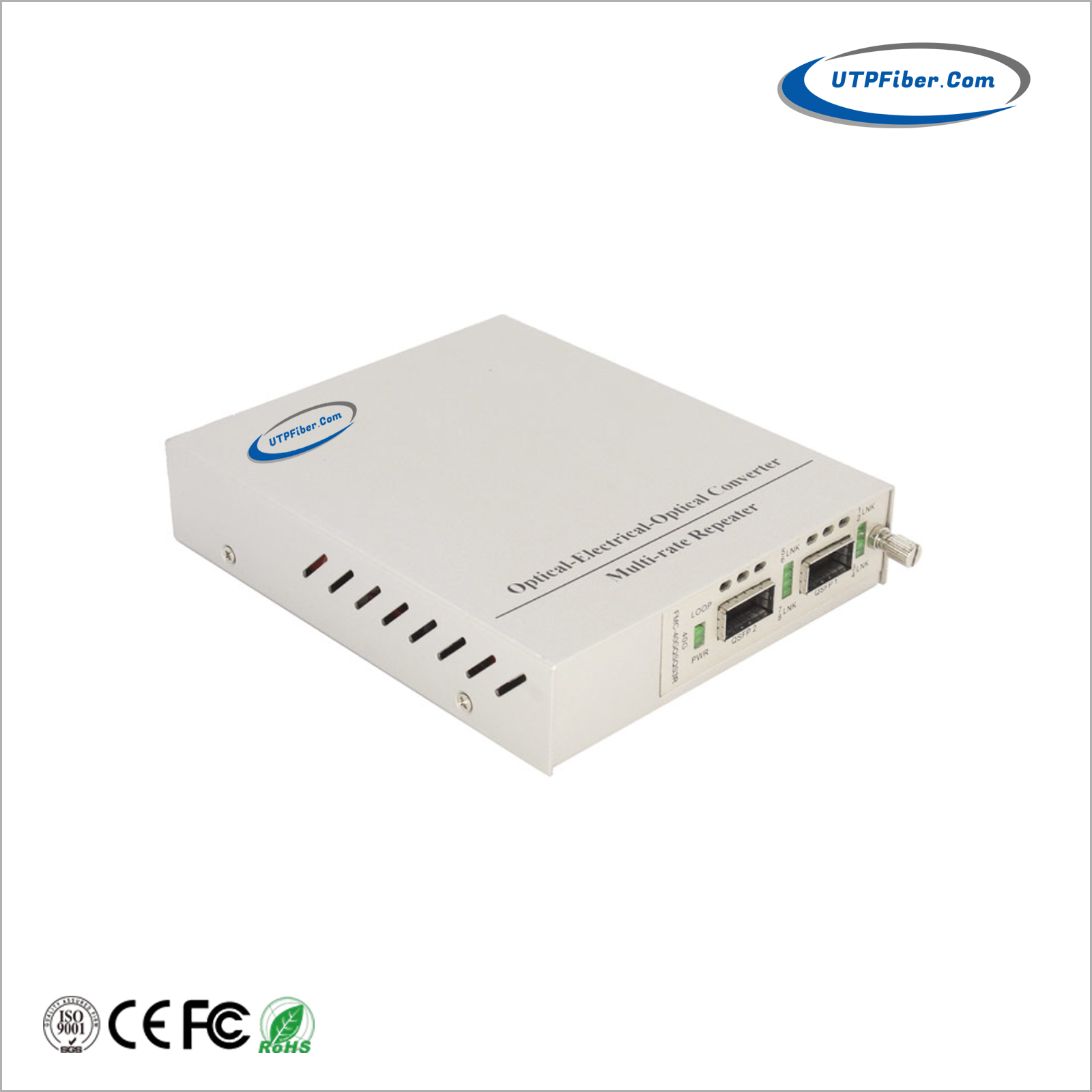

► Desktop ►Media converter Chassis installation |
|
Power Options: |
► 220VAC Power Supply |
