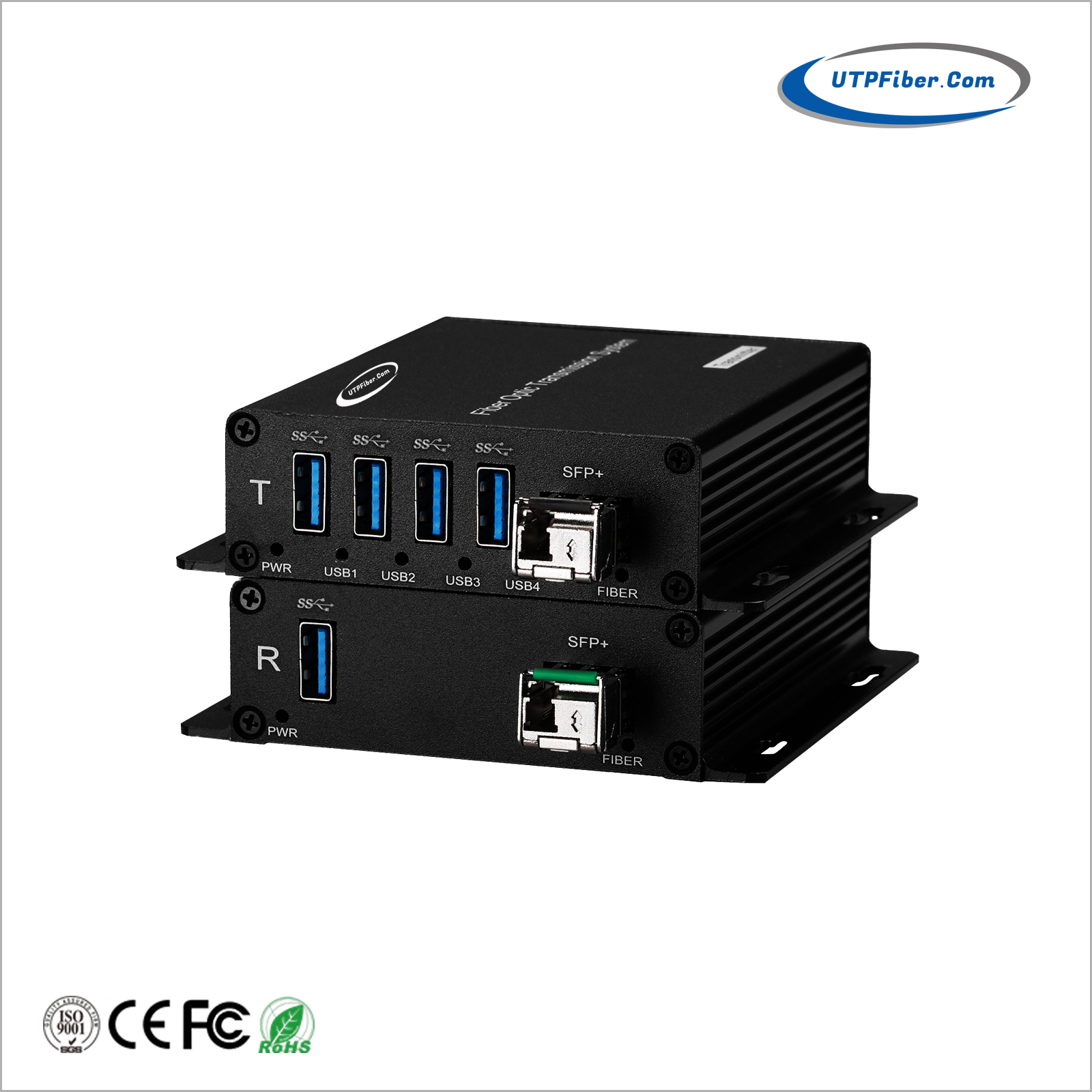

4-Port USB3.2 Fiber Optic Extender
Model:UF-4USB3-T/R
► Support 4 channels independent configuration of USB3.2 signal input
► Downward compatible with USB3.2 Gen 1 (3.0), not compatible with USB2.0 and USB1.1
► No drivers required
► Integrated mounting brackets for easy surface/wall mounting

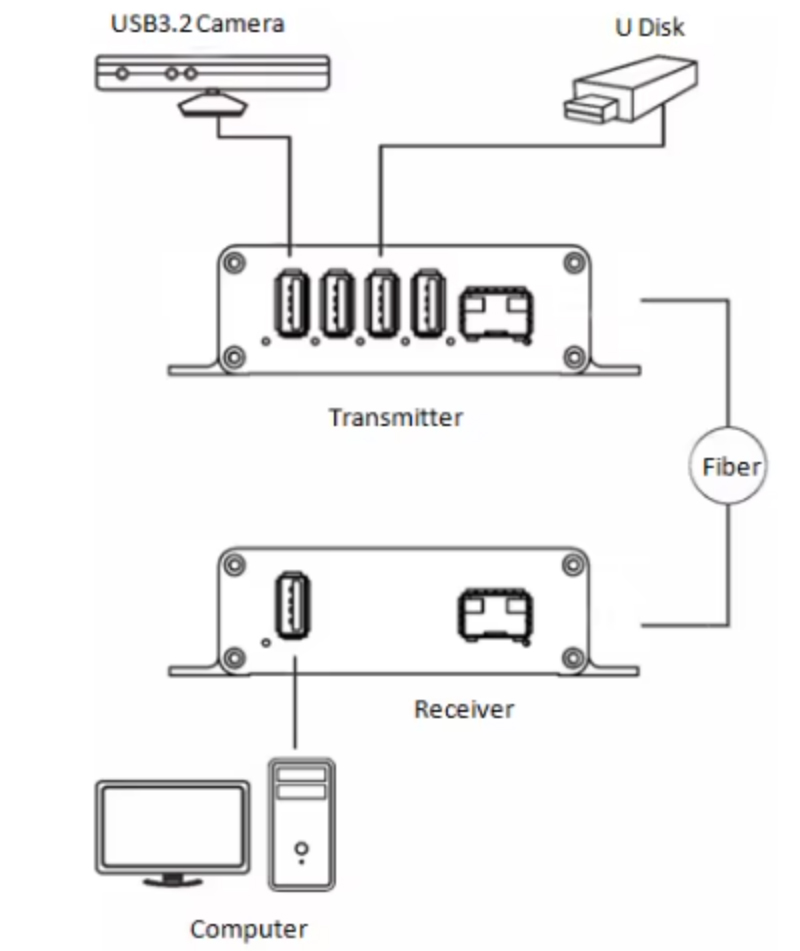

The UF-4USB3 Series 4-Port USB 3.2 Extender via Fiber Optic Cable extends four USB 3.2 devices up to 820 feet (250 meters) using a single LC single mode fiber optic cable. Each extender consists of a local unit (Receiver) that connects to a computer, and a remote unit (Transmitter) that connects to four USB devices. The local and remote units are interconnected via a single-strand LC 9-micron single mode fiber optic cable.
The USB3.2 fiber extender uses a special USB PHY to meet the requirements of USB3.2 protocol, and uses 10Gbps SFP+ to complete the photoelectric conversion and realize the stable transmission of USB3.2 SuperSpeed Plus ultra-high-speed signal. The USB3.2 fiber extender consists of a transmitter and a receiver that provides 5V power throught the host USB 3.2 type A connector, the transmitter is powered by an external power supply and supplies power to the USB3.2 device through the USB3.2 A type connector.
Please note that the bandwidth of 10Gbps is not 10Gbps divided by 8 to get 1250MB/s, it uses the same 10-bit transmission mode as SATA, so its full speed is only 1000MB/s. Also note that 10Gbps (1000MB/s) is the theoretical transmission value. If several devices share a USB channel, the master control chip will allocate and control the bandwidth available to each device.
► Complies with the general serial bus 3.2 specification
► Complies with USB power delivery 3.2 Gen 1 specification
► Supports SuperSpeed Plus (10G bps), SuperSpeed (5G bps) rate
► Meet the USB Type-C ® standard
► Internal USB PHY adopts advanced CMOS process to achieve low power consumption
► Support 4 channels independent configuration of USB3.2 signal input
► Downward compatible with USB3.2 Gen 1 (3.0), not compatible with USB2.0 and USB1.1
► Support LED status indicator
► Supports Plug-n-Play specification
► Low RFI/EMI for sensitive applications
► No drivers required
► Integrated mounting brackets for easy surface/wall mounting
|
Fiber index |
|
|
Wavelength |
1270-1330nm |
|
Rate |
10Gbps |
|
Tx power |
＞-3db |
|
Rx sensitivity |
＞-10db |
|
Fiber connector |
LC (Single fiber MM/SM) |
|
USB index |
|
|
Version |
Universal Serial Bus 3.2 |
|
Transmission rate |
10Gbps（1000MB/s） |
|
USB toal load current |
≤2A |
|
Supply voltage |
5V |
|
Single USB port supply current |
900mA |
|
Physical interface |
USB3.2 Type A connector |
|
Power index |
|
|
Transmitter input voltage |
DC 12V |
|
Transmitter power consumption |
1.2W |
|
Receiver input voltage |
DC 5V |
|
Receiver power consumption |
1.2W |
|
Mechanical index |
|
|
The shell metal |
Aluminium alloy |
|
Product size (LxWxH) |
104*104*28mm |
|
Net weight |
0.4KG |
|
Way to install |
Wall-mount or Desktop |
|
Color |
Black |
|
Packing |
|
|
Material |
Kraft paper |
|
Package size (LxWxH) |
275*220*55mm |
|
Gross weight |
0.65KG |
|
Working environment |
|
|
Working temperature |
-20°C ~75°C |
|
Storage temperature |
-40℃~85℃ |
|
Relative humidity |
From 5 to 95% (non-condensing) |
- Download FileName：UF-4USB3 4-Port USB3.2 Fiber Extender Datasheet V1.0.pdf Size： 387KB
|
Model |
Description |
|
UF-4USB3-T/R |
4-Port USB3.2 Fiber Optic Extender, 4 USB for Remote Unit (Transmitter), 1 USB for Local Unit (Receiver), Single Mode, Single Fiber, LC, up to 820 feet (250 meters), including Transmitter & Receiver, used by pairs |
|
Mounting Options |
► Wall-mount or Desktop |
|
Power Options |
► Local unit (Receiver): powered from attached computer. ► Remote unit (Transmitter): 12VDC 1A |
