► Compatible with USB3.0/2.0/1.1 protocols
► Special technology is used to ensure that the USB3.0/USB2.0 Optical Transceiver will not die when the computer USB interface is reconnected by optical fiber or restarted by power down
► OM3 Multimode fiber transmission distance 0-200m, single mode fiber transmission 0-200m (single mode fiber)
► No driver required, compatible with any system, plug and play

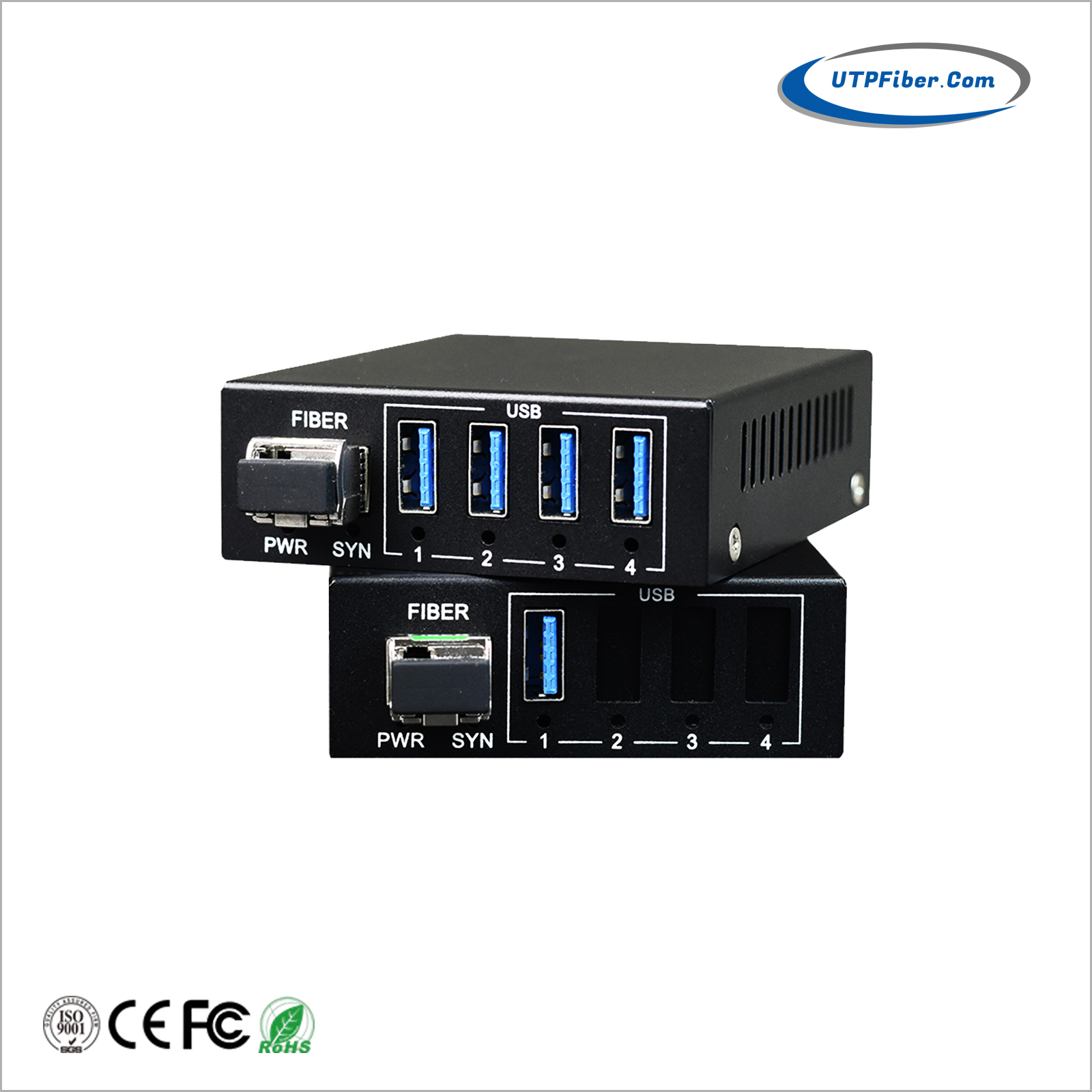

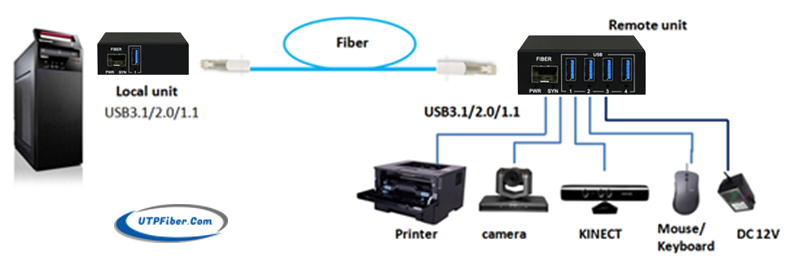

The UF-F4USB321-T/R USB3.0/USB2.0/USB1.1 Fiber Optical Extender consists of a transmitter and a receiver, which extends the USB interface (USB3.0) of the host computer to the remote end and expands it to 4 USB ports through single-mode or OM3 multi-mode optical fiber. Maximum transmission distance is 200m (single mode fiber).
Support 3.0 type of high-speed cameras, hard disk drives, printers, scanners, audio devices, touch screens, game controllers and other devices, and downward support for USB2.0/USB 1.1.
The device can extend high bandwidth USB 3.0 webcams and storage devices, can be widely used in military command and control system, police command and control system, traffic management system, energy and electricity supply industry, government office, medical system, commercial presentation, multimedia and public utilities, Kinect devices etc.
Note: the USB-IF organization has decided to include USB 3.0 / 3.1 interface into the category of USB 3.2 interface. USB 3.0 interface is called USB 3.2 Gen 1, USB 3.1 interface is called USB 3.2 Gen 2, and USB 3.2 interface is called USB 3.2 Gen 2x2.
► Compatible with USB3.0/2.0/1.1 protocols
► Special technology is used to ensure that the USB3.0/USB2.0 Optical Transceiver will not die when the computer USB interface is reconnected by optical fiber or restarted by power down
► Speed 5Gbps with no latency and downward support for USB 2.0/USB 1.1 -Automatically recognizes high-speed High-speed (25Mbps to 480Mbps), full-speed Full-speed (500Kbps to 12Mbps), and low-speed Low-speed (10Kbps to 1.5Mbps) USB devices
► OM3 Multimode fiber transmission distance 0-200m, single mode fiber transmission 0-200m (single mode fiber)
► Fiber optic extension to the remote end extends to 4 USB ports with a total current of up to 2000mA current
► Remote extension 4 USB3.0 ports can be connected to USB HUB extension
► Low RFI/EMI for sensitive electromagnetic environment applications
► No driver required, compatible with any system, plug and play
Fiber index |
|
Wavelength |
OM3 Multimode: 850 nm / 1310 nm Single-mode: 1310 nm / 1550 nm |
Rate |
10Gbps |
Typical Transmitter Power |
Single-mode (1310/1550 nm): ≥ –9 dBm Multimode (850 nm): –18 dBm Multimode (1310 nm): –25 dBm |
Receiver sensitivity |
–28 dBm to –40 dBm |
Fiber connector |
LC (Single fiber MM/SM) |
USB index |
|
Standard |
USB3.0/USB2.0/USB1.1 |
Data Transfer Speed |
Up to 5 Gbps |
Input Port |
1 USB3.0 Type-A female port |
Output Ports |
4 USB3.0 Type-A female ports |
Maximum Total Current |
2000mA |
Power index |
|
Transmitter input voltage |
DC 5V |
Transmitter power consumption |
1.2W |
Receiver input voltage |
DC 5V |
Receiver power consumption |
1.2W |
Mechanical index |
|
The shell metal |
Aluminium alloy |
Product size (LxWxH) |
93*70*26mm |
Net weight |
0.75KG |
Way to install |
Wall-mount or Desktop |
Color |
Black |
Packing |
|
Material |
Kraft paper |
Package size (LxWxH) |
275*220*55mm |
Gross weight |
0.95KG |
Working environment |
|
Working temperature |
–10°C to +60°C |
Storage temperature |
-–40°C to +85°C |
Operating humidity |
0%–95% (non-condensing) |
MTBF |
> 100,000 hours |
Model |
Description |
UF-F4USB321-T/R |
4-Port USB3.0/2.0/1.1 Fiber Extender, 4 USB for Remote Unit (Transmitter), 1 USB for Local Unit (Receiver), Single Mode, Single Fiber, LC, up to 820 feet (250 meters), including Transmitter & Receiver, used by pairs |
Mounting Options |
► Wall-mount or Desktop |
Power Options |
► Local unit (Transmitter): powered from attached computer. ► Remote unit (Receiver): 5VDC 1A |
