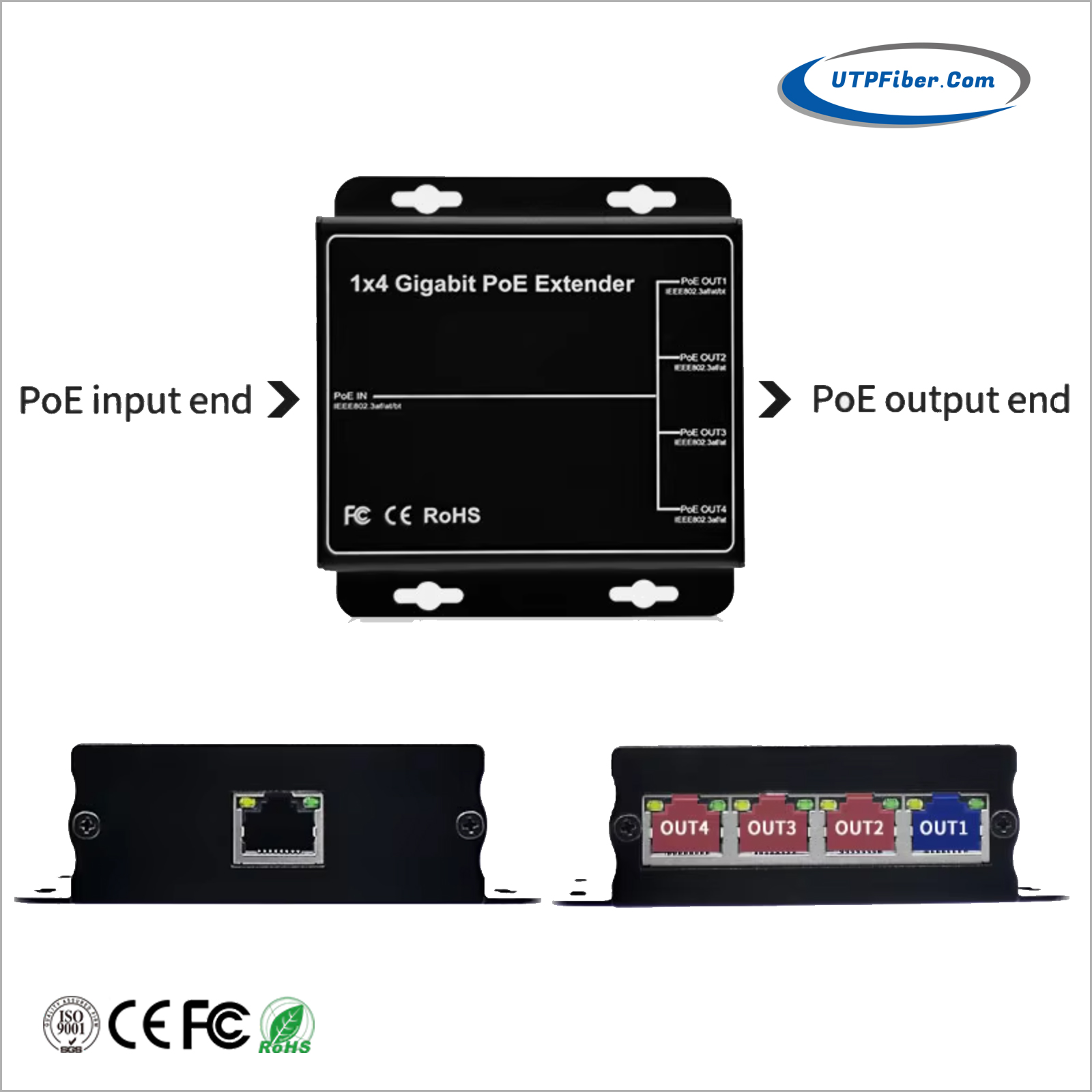

1-Port 802.3bt PoE++ to 4-Port 802.3af/at/bt Gigabit PoE Extender
Model:UF-PE104G
► Data Speed:10/100/1000Mbps
► PoE input: 1 RJ45 port (DC 48-57V)
► PoE output: 4 RJ45 port
► Comply with IEEE 802.3af/at/bt Power over Ethernet
► Delivers up to 90W to four connected PoE devices with up to 60W per port
The UTP 4-Port Gigabit PoE Extender adds up to 100 m (328 ft.) to the connection distance from a PoE source to two output devices via Cat5e or Cat6 cable. 1-4 ports support IEEE 802.3af/at/bt standard POE power supply, and the POE power of a single port is up to 60 Watt for PoE Out Port 1 and 30 Watt for PoE Out Port 2-4. The POE extender does not need to be connected to an additional power supply. Its power supply is placed at the end of a 100 m network cable from a POE switch. It can extend the network and POE power supply for another 100m at full rate. As a POE power supply device, it can automatically detect and identify the compliant power receiving devices and supply power to them through network cables. POE terminals such as wireless AP, webcams, Internet telephones, and visual access control intercom can be powered by network cables, which can meet the requirements for high-density POE power supply in the network environment and can be used for twist-pair POE transmission applications within 200 meters without loss of bandwidth. Suitable for hotels, campuses, parks, scenic spots, factory dormitories and SMB small and medium-sized enterprises to establish an economical and efficient network.
► Data Speed:10/100/1000Mbps
► PoE input: 1 RJ45 port (DC 48-57V)
► PoE output: 4 RJ45 port
► Comply with IEEE 802.3af/at/bt Power over Ethernet
► Delivers up to 90W to four connected PoE devices with up to 60W per port
► Doubles the maximum connection distance between PoE source and device from 100 m (328 ft.) to 200 m (656 ft.)

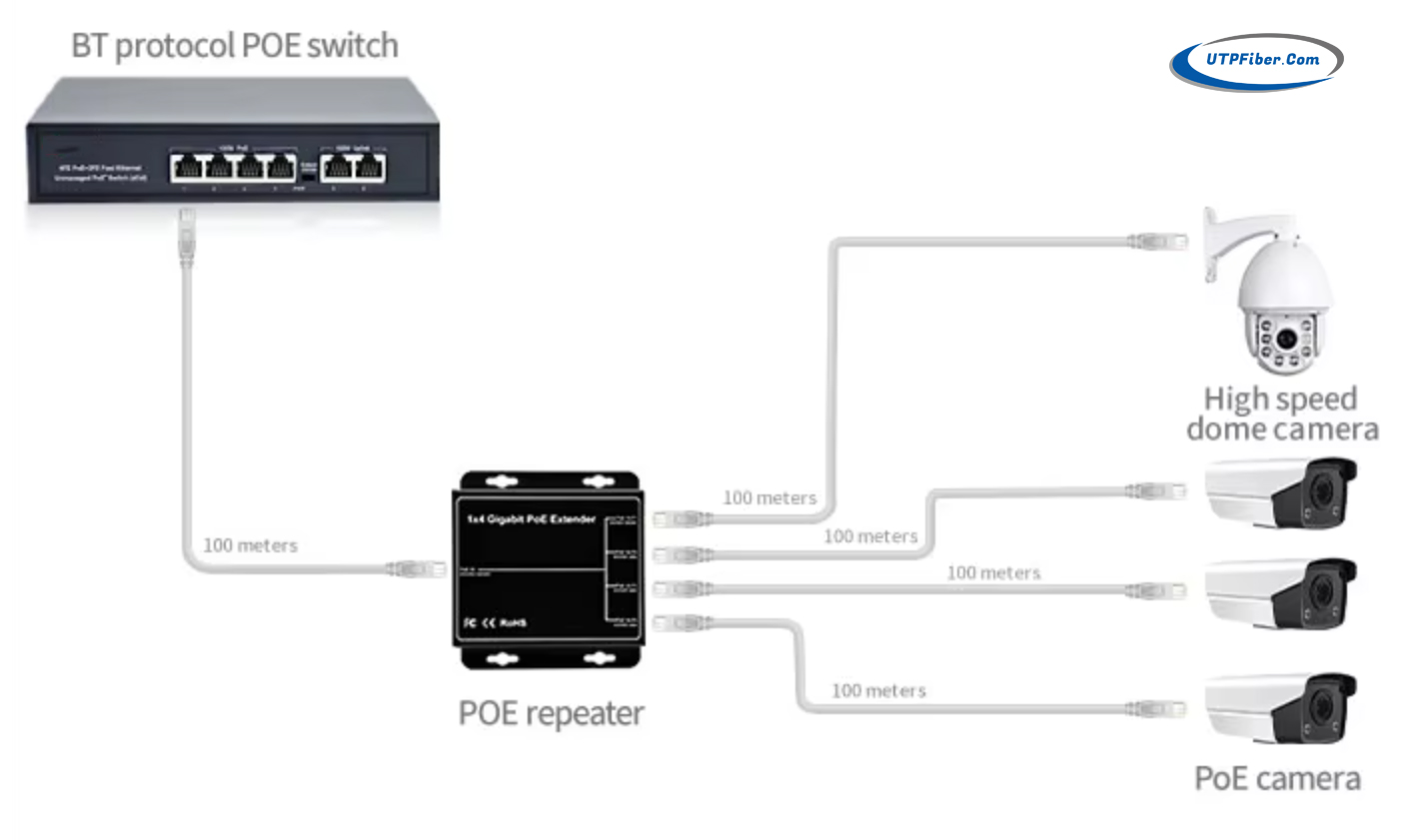

► Connects and powers four PoE devices such as network cameras, wireless access points or VoIP phones, from one PoE injector or PoE switch PSE port
► Plug and play, no configuration, easy to use and maintenance
|
Ethernet Port |
|
|
PoE Input Port |
1*10/100/1000Base-T RJ45, IEEE 802.3bt PoE Input Input Power 48~57V DC, Max 30W |
|
PoE Output Port |
4*10/100/1000Base-T RJ45, IEEE 802.3af/at/bt PoE Output Output Power: Max 90W in total OUT1:60W(max), OUT2-OUT4: 30W(max) 1-4 ports intelligently assigned |
|

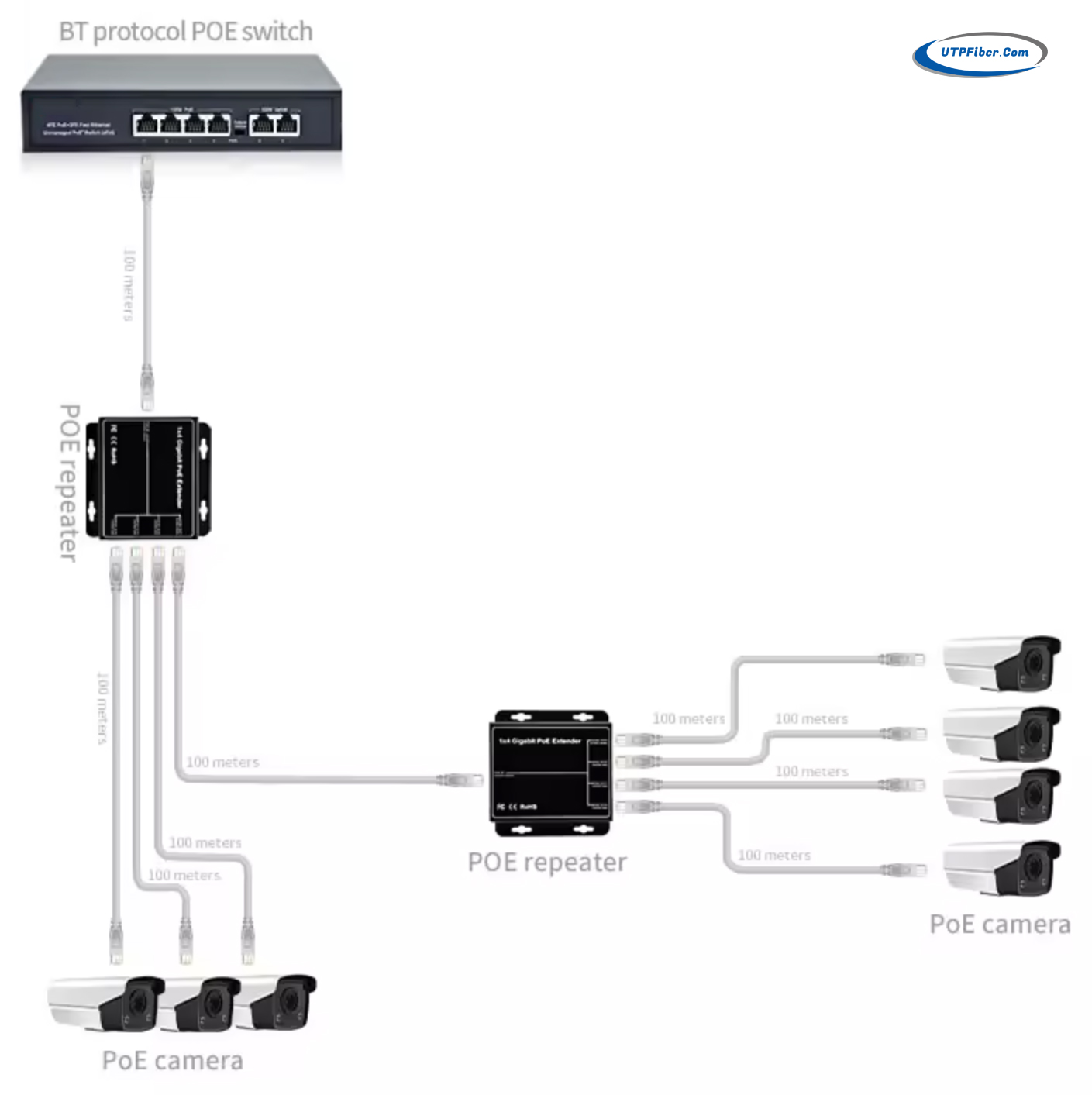

Cascade connection |
Support 4 grade |
|
Power over Ethernet |
|
|
PoE Standard |
IEEE 802.3af Power over Ethernet IEEE 802.3at Power over Ethernet Plus IEEE 802.3bt 4-pair Power over Ethernet Plus Plus |
|
PoE Power Supply Type |
End-span + Mid-span |
|
PoE Pin Assignment |
Pair 1 End-span: 1/2 (-), 3/6 (+) Pair 2 Mid-span: 4/5 (+), 7/8 (-) |
|
Switch Property |
|
Standards |
IEEE 802.3 Ethernet IEEE 802.3u Fast Ethernet IEEE 802.3ab Gigabit Ethernet IEEE 802.3az Energy-Efficient Ethernet IEEE 802.3x Flow Control |
|
Forwarding Modes |
Store and forward |
|
Transmission Distance |
120m |
|
MAC Table |
2K |
|
Switching Capacity |
10Gbps |
|
Package Forwarding Rate |
5.792Mbps |
|
Flow Control |
IEEE 802.3x pause frame for full duplex, Back pressure for half duplex |
|
Environment |
|
|
Operating Temperature |
- 20~+60 degrees C |
|
Storage Temperature |
- 30~+70 degrees C |
|
Operating Humidity |
10~90% (non-condensing) |
|
Physical Parameter |
|
|
Dimensions (LxWxH) |
97x90x29mm |
|
Gross Weight |
180g |
|
Net Weight |
170g |
|
Material |
Aluminum |
|
LED Display |
PoE working status, Ethernet |
|
Certifications |
|
Certifications |
FCC Part 15B RoHs Directive 2011/65/EU Low Voltage Directive 2014/35/EU Electromagnetic Compatibility Diective 2004/108/EC |
- Download FileName：UF-PE104G 4-Port Gigabit PoE Extender Datasheet V1.0.pdf Size： 465KB
|
Model |
Description |
|
UF-PE104G |
1-Port 802.3bt PoE++ to 4-Port 802.3af/at/bt Gigabit PoE Extender |
|
Mounting Options |
► Desktop or Wallmount |
