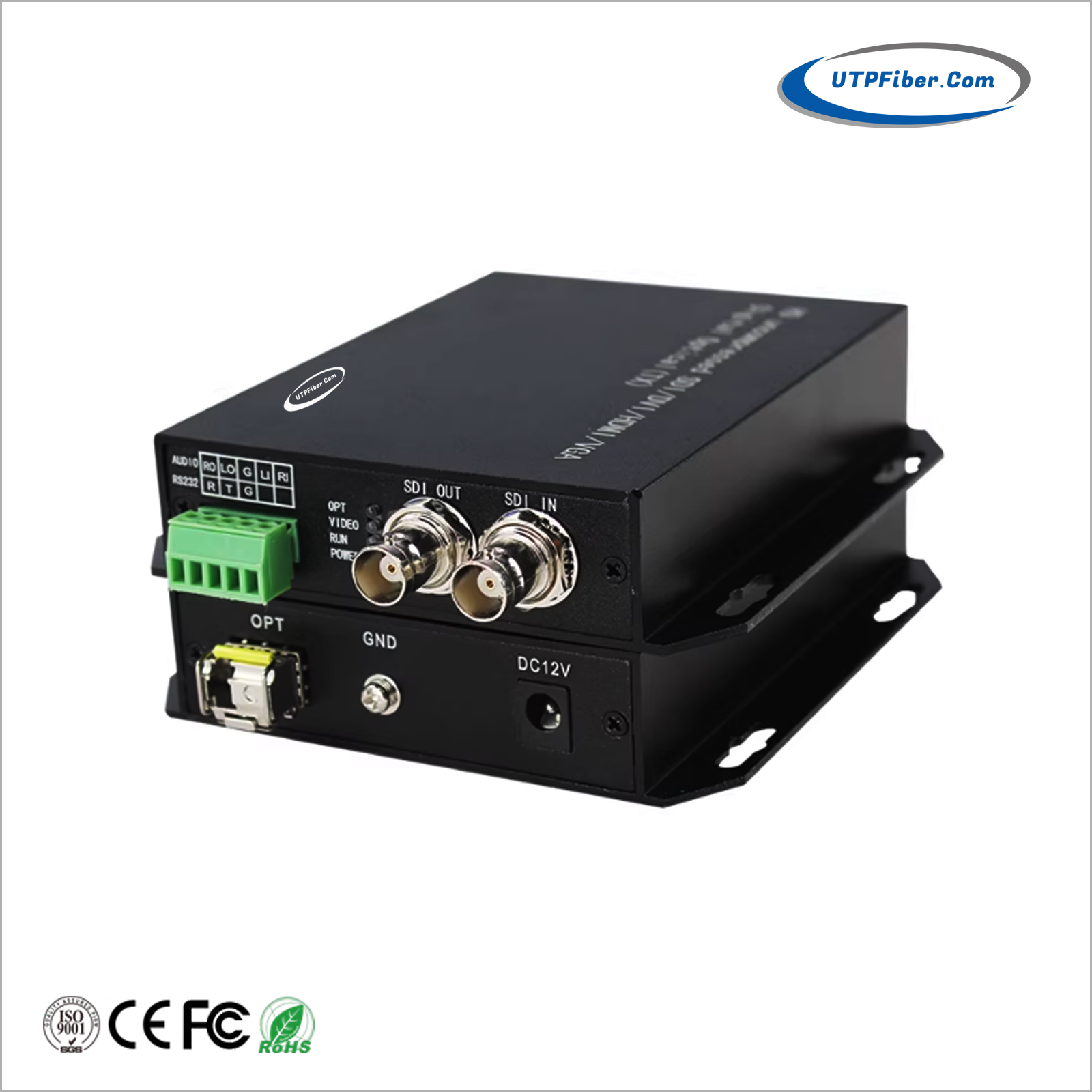

3G-SDI Fiber Optic Extender with Loop-out & 1-Ch Duplex Audio/RS232/422/485 Selectable
Model:UF-3G-1V Series

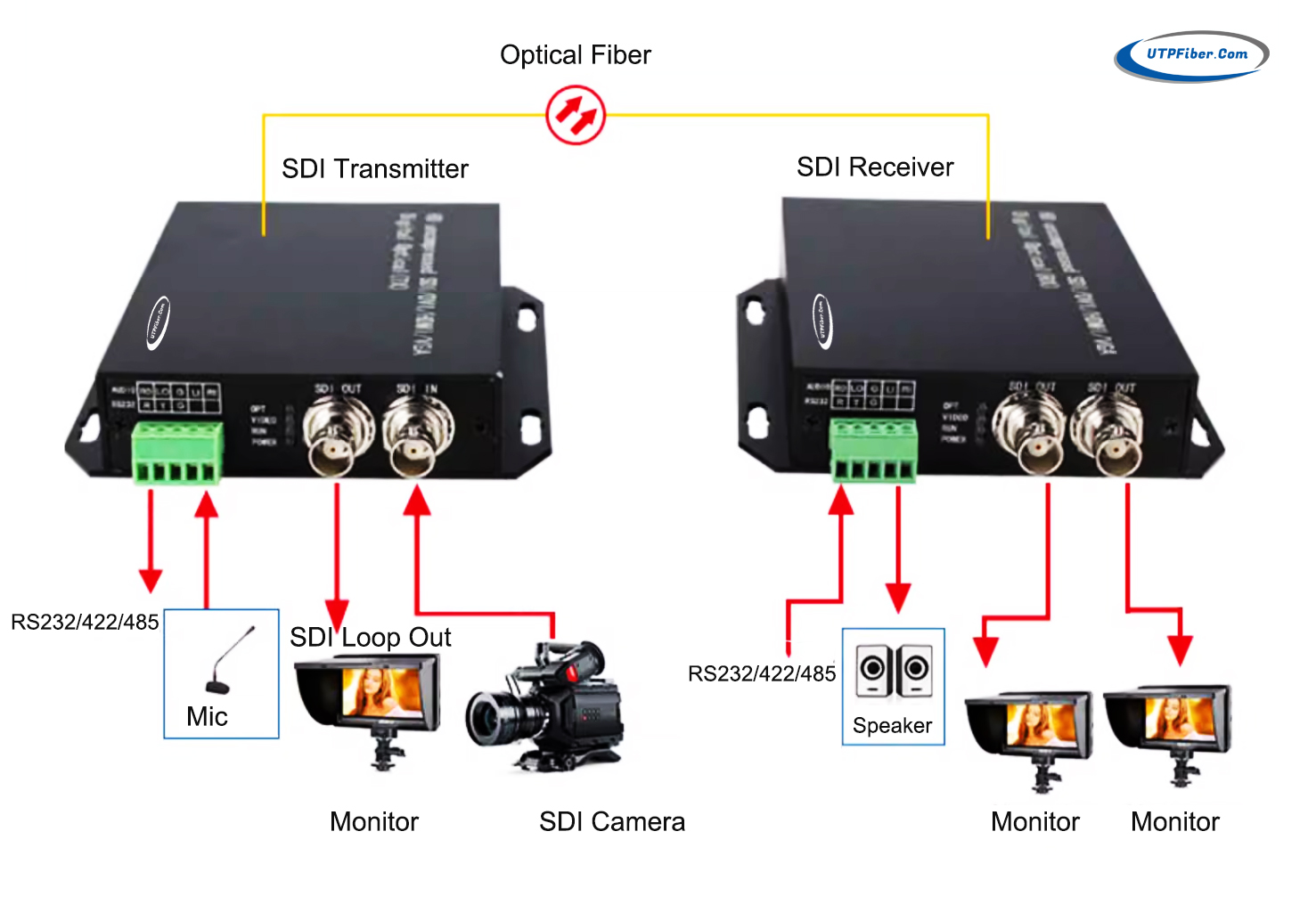

► 1-Channel 3G/HD/SD-SDI w/ Loop Out video transmission over optic fiber
► Support 1-Ch Duplex Audio/RS232/422/485 Selectable
► Automatic reclocking 270Mbit/s - 1.48Gbit/s-3Gbit/s
► Long transmission up to 20 km (12.5miles)
The UF-3G-1V Series Fiber Optic Extender utilizes advanced non-compressed digital HD video and high-speed optical fiber transmission technology to seamlessly transmit SDI signals over long distances. By maintaining signal integrity and exceptional stability, this system offers powerful anti-interference capabilities suitable for demanding professional environments. It supports a full range of SDI standards, including SD-SDI, HD-SDI, and 3G-SDI, with a pixel bandwidth of 165MHz and resolutions up to 1080P @ 60Hz.
Engineered for versatility, the device features a multi-functional auxiliary port that allows for one of four factory-configured options: 1-channel Analog Audio, RS232, RS485, or RS422. To ensure a "plug-and-play" experience, the system includes built-in automatic equalization for clear imagery and automatically identifies various display modes without requiring manual setup. For enhanced reliability, the unit is equipped with internal ESD protection circuits to prevent static damage. The hardware uses an SFP (LC) optical interface supporting single-mode fiber with transmission distance options ranging from 10KM to 80KM. With a wide operating temperature range of -20°C to +75°C and a compact industrial design, the SDI-1V1A1D is an ideal solution for broadcasting, medical imaging, and high-end security surveillance.
► 1-Channel 3G/HD/SD-SDI w/ Loop Out video transmission over optic fiber
► Support 1-Ch Duplex Audio/RS232/422/485 Selectable
► Automatic cable equalization to ensure signal integrity
► Automatic reclocking 270Mbit/s - 1.48Gbit/s-3Gbit/s
► Directly compatible with 3G/HD/SD-SDI camera systems
► CWDM technology to achieve multi-channel signal transmission
► Long transmission up to 20 km (12.5miles)
► Full digital non-compression broadcast level transmission
► Working temperature range (-20°C ~75°C)
|
Fiber index |
|
|
Wavelength |
1470~1610nm |
|
Rate |
3Gbps |
|
Tx power |
＞-6db |
|
Rx sensitivity |
＞-14db |
|
Fiber Core |
1-Core |
|
Fiber connector |
LC |
|
Video index |
|
|
Signal type |
DVB -ASI, SD-SDI, HD-SDI, 3G-SDI |
|
Work standards |
DVB-ASI , SMPTE259M-C, SMPTE292M, SMPTE424M |
|
Bit rates |
270 Mbps, 1. 485 Gbps, 2. 97Gbps |
|
Video input / output |
|
|
Signal type |
DVB-ASI, SD-SDI, HD-SDI, 3G-SDI digital video |
|
Resolution |
SD-SDI: 576I 480I HD-SDI: 720P50 720P60 1080P24 1080P25 1080P30 1080I50 1080I60 3G-SDI: 1080P50 1080P60 |
|
Pixel Bandwidth |
165MHz |
|
Video Channel |
1-Channel |
|
Input impedance |
75 Ohm |
|
Enter the automatic cable equalization |
>80m (1. 485 Gbps@BELDEN8281 cable) |
|
Clock recovery |
When 270 Mbps, 1. 485 Gbps, and 2. 97Gbps are automatic, the others are bypass |
|
Input level |
800mVp-p±10% |
|
Enter the echo loss |
＞10dB @ 2. 97 Gbps |
|
Output DC offset |
<±0. 5V |
|
Output echo loss |
＞10dB @ 2. 97 Gbps |
|
The biggest shake |
＜0. 1UI(1485Mbps) |
|
Signal overshoot |
＜5% (1485Mbps) |
|
Audio Parameter |
|
|
Interface Port |
Terminal Block of Industrial Standard |
|
Audio Sampling Rate |
44.1kHz, 48kHz, 96kHz, 176kHz, 192kHz |
|
600（balance / imbalance） |
|
|
Audio Input / Output Voltage |
2Vpp（typical value） |
|
Audio Input / Output Electrical Level |
0dBm（typical value） |
|
Audio Digital Bit Width |
24bit |
|
Audio SNR |
S/N≥95dB(weighted) |
|
RS232/422/485 Data Parameter |
|
|
Physical Interface |
|
|
Data Type |
RS485/RS422/RS232 |
|
Baud Rate |
Up to 115200 bps (Backward Compatible) |
|
Data Bits |
8-bit |
|
Bit Error Rate |
<10－9 |
|
Equipment information |
|
|
The shell metal |
Aluminum alloy |
|
Way to install |
Wall-mounted or Desktop |
|
Dimensions (LxWxH): |
140 x 110 x 25 mm |
|
Product net weight (unit: pair) |
1.45KG |
|
Input voltage |
100VAC～242VAC, 50-60Hz |
|
Power supply |
DC 12V 1A |
|
Power dissipation |
＜5W |
|
Overload protection |
support |
|
Over current protection |
support |
|
LED Indicators: |
|
|
OPT |
Fiber Status |
|
VIDEO |
SDI Video Status |
|
RUN |
PCBA Working Status |
|
POWER |
Power Status |
|
Environmental |
|
|
Operating temperature |
-20°C ~75°C |
|
Storage temperature |
-40°C ~85°C |
|
Relative humidity |
From 5 to 95% (non-condensing) |
|
Working life |
> 100,000 hours |
|
Regulatory Approvals |
|
|
ISO9001 |
|
|
CE, RoHS and FCC |
|
- Download FileName：UF-3G-1V Series 3G-SDI Fiber Converter w Audio RS232 422 485 Datasheet V1.0.pdf Size： 804KB
|
Model |
Description |
|
UF-3G-1V1A |
3G-SDI Fiber Converter w/ Loopout & 1Ch Duplex Audio, SMF, LC 20KM, including Transmitter and Receiver, used by pairs |
|
UF-3G-1V232 |
3G-SDI Fiber Converter w/ Loopout & 1Ch Duplex RS232 Data, SMF, LC 20KM, including Transmitter and Receiver, used by pairs |
|
UF-3G-1V422 |
3G-SDI Fiber Converter w/ Loopout & 1Ch Duplex RS422 Data, SMF, LC 20KM, including Transmitter and Receiver, used by pairs |
|
UF-3G-1V485 |
3G-SDI Fiber Converter w/ Loopout & 1Ch Duplex RS485 Data, SMF, LC 20KM, including Transmitter and Receiver, used by pairs |
|
Mounting Options |
► Wall Mount or Desktop Installation |
|
Power Options |
►12V 1A Power Supply |
|
► Power Supply included |
