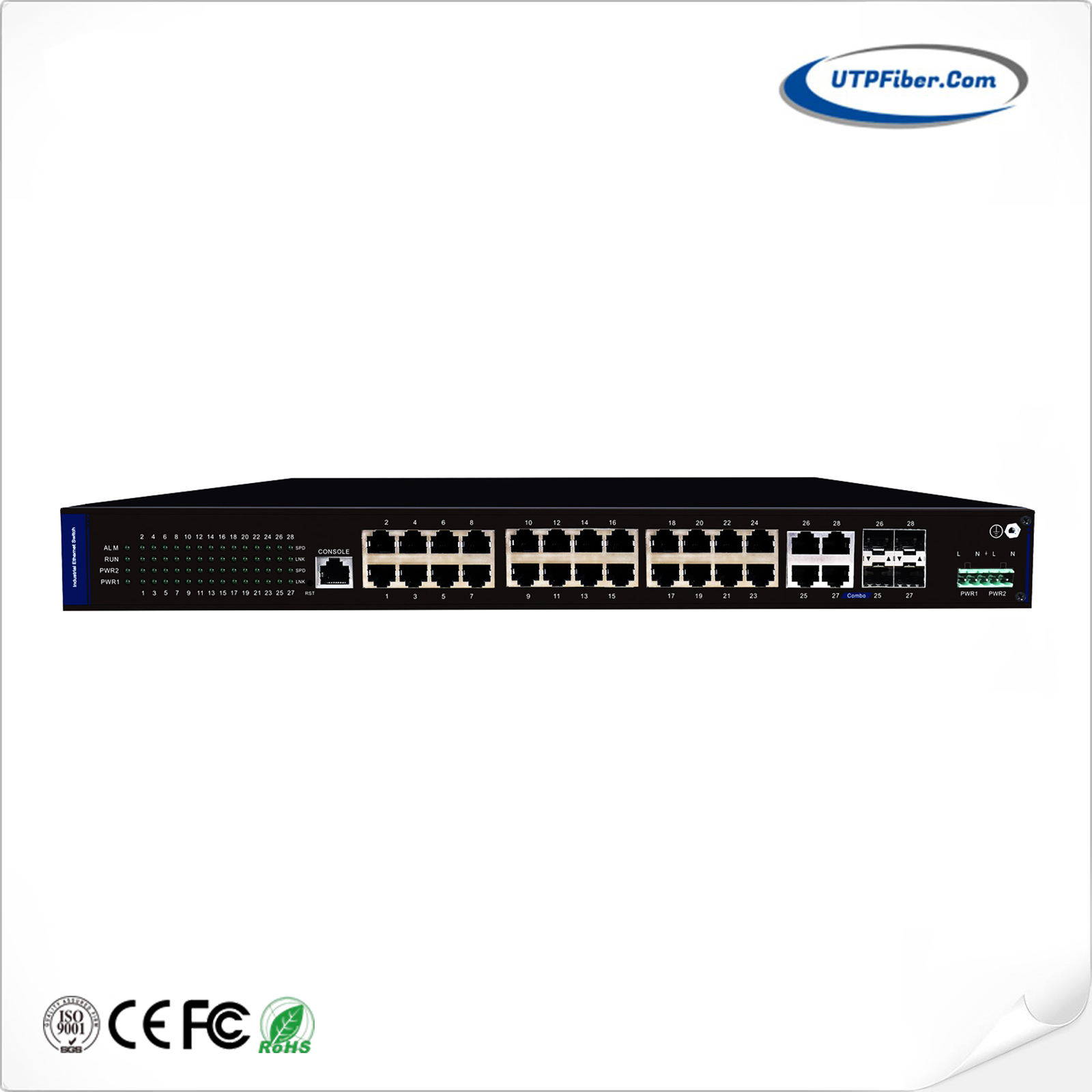

L2+ Industrial 24-Port 10/100/1000T 802.3at PoE + 4-Port TP/SFP Combo Managed Ethernet Switch

Model:UF-MIES424GP-SFP Series

►    24 x 10/100/1000Base-T PoE+ ports, 4 x TP/SFP Combo ports

►    100/1000BASE-X mini-GBIC/SFP slots for SFP type auto detection

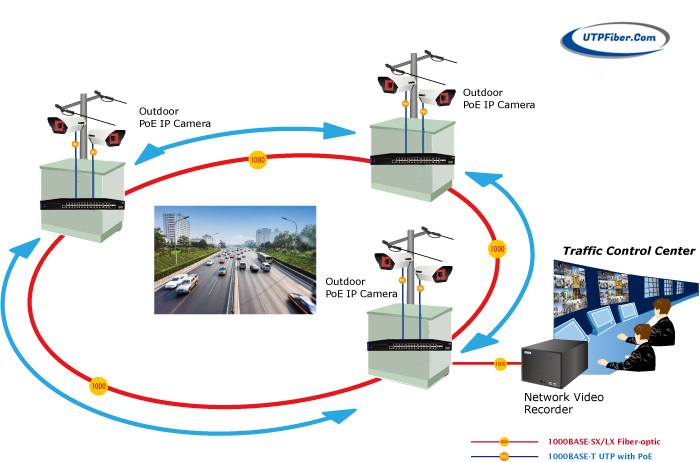

UF-MIES4C24GP-SFP Series is an industrial Managed switch with 24-Port 10/100/1000BASE-T 802.3at PoE+ and 4-Port 100/1000Base-X SFP. The industrial switch complies with various characteristics such as mini size, no fan, low power consumption, high reliability and stability, and easy to maintain. With dual power input design, UF-MIES4C24GP-SFP can offer redundant mechanisms for critical applications that need always-on connections. It can also operate either at standard operating temperature range -40 to 80°C. Housed in rugged IP40 enclosures, these switches are perfect choices for harsh environments, such as industrial networking, intelligent transportation systems (ITS) and are also suitable for many military and utility market applications where environmental conditions exceed commercial product specifications.




Industrial Managed PoE Switches, Managed Industrial PoE Switches, L2/L3 PoE Switch - Industrial Grade, Managed 24 Port Industrial PoE Switch, L2+ Industrial 24-Port 10/100/1000T + 4-Port 100/1000X SFP Managed PoE Switch, Managed Industrial PoE Switch with Gigabit Fiber 24 x 10/100/1000Base-T 802.3at PoE and 4 x 100/1000Base-X LC/SC/ST

►    24 x 10/100/1000Base-T PoE+ ports, 4 x TP/SFP Combo ports

►    100/1000BASE-X mini-GBIC/SFP slots for SFP type auto detection

►    Support 10K bytes giant frame, compatible with various extension protocol

►    Support IEEE802.3az energy efficient Ethernet technology, 8K MAC address table

►    IPv6 Protocol, Electric 8KV surge protection

►    Power input polarity protection design, no worry about wrong operation

►    Aluminum case, no fan design

►    Installation method: Rack mounting

►    DHCP RFC 1541, 1542


Physical Port

RJ45 port and speed

24x10/100/1000BASE-T 802.3at PoE + 4 Combo 10/100/1000BASE-T

Fiber port and speed

4x100/1000BASE-X SFP (Dual Mode, Auto Detection)

Console

1 x RJ45-to-RS232 serial port (115200, 8, N, 1)

Parameters

Ethernet standards

IEEE 802.3 10BASE-T

IEEE 802.3u 100BASE-TX/100BASE-FX

IEEE 802.3z Gigabit SX/LX

IEEE 802.3ab Gigabit 1000T

IEEE 802.3x flow control and back pressure

IEEE 802.3af Power over Ethernet

IEEE 802.3at Power over Ethernet Plus

IEEE 802.3ad port trunk with LACP

IEEE802.3az energy efficient Ethernet

IEEE 802.1D Spanning Tree Protocol

IEEE 802.1w Rapid Spanning Tree Protocol

IEEE 802.1s Multiple Spanning Tree Protocol

IEEE 802.1p Class of Service

IEEE 802.1Q VLAN tagging

IEEE 802.1ad Q-in-Q VLAN stacking

IEEE 802.1x Port Authentication Network Control

IEEE 802.1ab LLDP

ITU G.8032 ERPS Ring

RFC 768 UDP

RFC 793 TFTP

RFC 791 IP

RFC 792 ICMP

RFC 2068 HTTP

RFC 1112 IGMP v1

RFC 2236 IGMP v2

Packet buffer

4Mbits

Packet length

Up to 10K Bytes

MAC address table

8K

Transmission mode

Store and Forward (full/half duplex mode)

Switch Fabric

56Gbps/non-blocking

Exchange property

Delay time: < 7ps

Backplane bandwidth: 56Gbps

Packet forwarding rate: 14.88Mpps

PoE

PoE Standard

8 x IEEE 802.3af /IEEE 802.3at PoE

Power budget

Max. PoE output power budget 30W

Power Pin Assignment

1/2, 4/5(+); 3/6, 7/8(-) in default

LED Indicator

Power

Connect-always

RJ45

Link/Act: connect-always; data exchange-twinkle Speed light: 100Mbps-always; 10Mbps-twinkle

Fiber

Link/Act: connect-always; data exchange-twinkle

Power Information

Power type

Internal Power

Power input

AC 100~240V, 50/60Hz, auto-sensing

Power consumption

350 watts (max.)

Physical Property

Enclusure

Metal

Cooling mode

Natural cooling, no fan design

Dimensions

440mm x 295mm x 45mm (L x W x H), 19-inch, 1U height

Installation mode

Rack-mount

Weight

2500g

Working Environment

Operating Temperature

-40~80

Operating Humidity

5%~90% non-condensing

Storage Temperature

-40~80

Warranty

MTBF

500,000 hours

Defects Liability Period

5-year warranty, lifetime technical support

Certification Standard

EMI

FCC Part15 Subpart B Class A,

EN 55022 Class A

EMS

EN61000-4-2(ESD),

EN61000-4-3(RS),

EN61000-4-4(EFT),

EN61000-4-5(Surge),

EN61000-4-6(CS),

EN61000-4-8,

EN61000-4-11

Collision

IEC60068-2-27

Drop

IEC60068-2-32

Vibration

IEC60068-2-6

Safety grade

EN60950-1

Software

Software Features

Redundant network: STP/RSTP

Multicast: IGMP Snooping V1/V2

VLAN: IEEE 802.1Q 4K VLAN, QINQ

Link Aggregation: manual

Management Function: CLI/WEB/SNMP

Diagnostic Maintenance: Port mirroring, Ping

Alarm management: 1 way relay alarm output, RMON, SNMP Trap

Security: DHCP Snooping, User hierarchical management

Data control Port-based ingress/egress speed limit, Full duplex IEEE 802.3x, half duplex back-pressure flow control.
Broadcast storm suppression, Unknown-Multicast suppression and Unknown-Unicast suppression

  • Download FileName:UF-MIES4C24GP Industrial 24G+4TP SFP Combo Managed PoE Switch Datasheet V1.0.pdf Size: 643KB

Model

Description

UF-MIES4C24GP-SFP

L2+ Industrial 24-Port 10/100/1000T 802.3at PoE + 4-Port × 100/1000Base-Fx SFP&1000M RJ45 Combo Managed Ethernet Switch
