1-Port 802.3at PoE+ to 3-Port 802.3af/at Gigabit PoE Extender

Model:UF-PE103G

►     Data Speed:10/100/1000Mbps

►     PoE input:1 RJ45 port(DC 48-57V)

►     PoE output:3 RJ45 port

►     Comply with IEEE 802.3af/at Power over Ethernet

►     Delivers up to 30W to three connected PoE devices with up to 30W per port


The UTP 3-Port Gigabit PoE Extender adds up to 100 m (328 ft.) to the connection distance from a PoE source to two output devices via Cat5e or Cat6 cable. 1-3 ports support IEEE 802.3af/at standard POE power supply, and the POE power of a single port is up to 30 Watt. The POE extender does not need to be connected to an additional power supply. Its power supply is placed at the end of a 100 m network cable from a POE switch. It can extend the network and POE power supply for another 100m at full rate. As a POE power supply device, it can automatically detect and identify the compliant power receiving devices and supply power to them through network cables. POE terminals such as wireless AP, webcams, Internet telephones, and visual access control intercom can be powered by network cables, which can meet the requirements for high-density POE power supply in the network environment and can be used for twist-pair POE transmission applications within 200 meters without loss of bandwidth. Suitable for hotels, campuses, parks, scenic spots, factory dormitories and SMB small and medium-sized enterprises to establish an economical and efficient network.



3-Port Gigabit PoE+ Extender Repeater, 3 Port Gigabit PoE Extender, 3-Port 10/100/1000M PoE Extender, 802.3at PoE+ splitter, 802.3af/at Ethernet extender, Power over Ethernet hub, Network extender device, Gigabit Ethernet extender, 802.3af/at PoE Extender, Ethernet PoE repeater, Indoor PoE extender, IEEE802.3af/at extender, 1000Mbps PoE extender, IEEE802.3at PoE splitter, Ethernet transmission extender, High-speed PoE extender, PoE signal repeater, PoE Repeater, PoE Extender Repeater, Mini 3-Port PoE Extender

►     Data Speed:10/100/1000Mbps

►     PoE input: 1 RJ45 port (DC 48-57V)

►     PoE output: 3 RJ45 port

►     Comply with IEEE 802.3af/at Power over Ethernet

►     Delivers up to 30W to three connected PoE devices with up to 30W per port

►     Doubles the maximum connection distance between PoE source and device from 100 m (328 ft.) to 200 m (656 ft.)

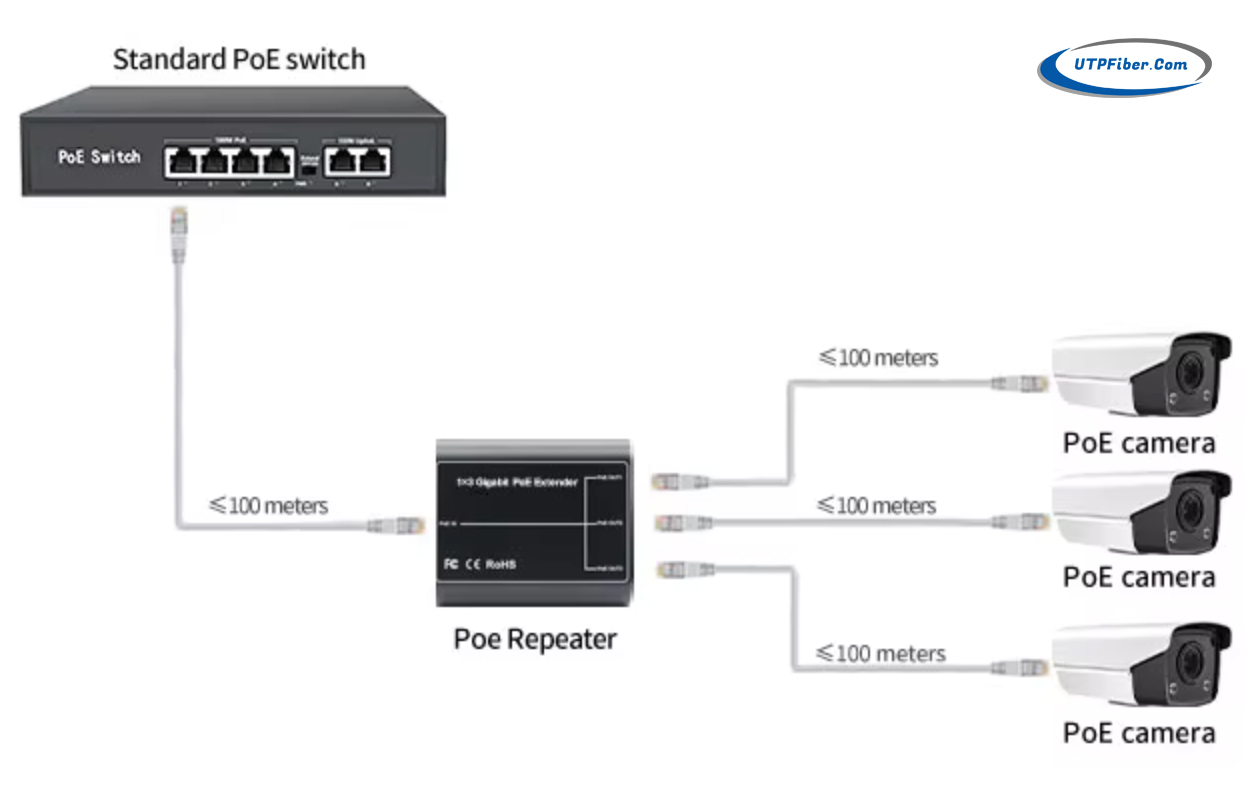

►     Connects and powers three PoE devices such as network cameras, wireless access points or VoIP phones, from one PoE injector or PoE switch PSE port

►     Plug and play, no configuration, easy to use and maintenance

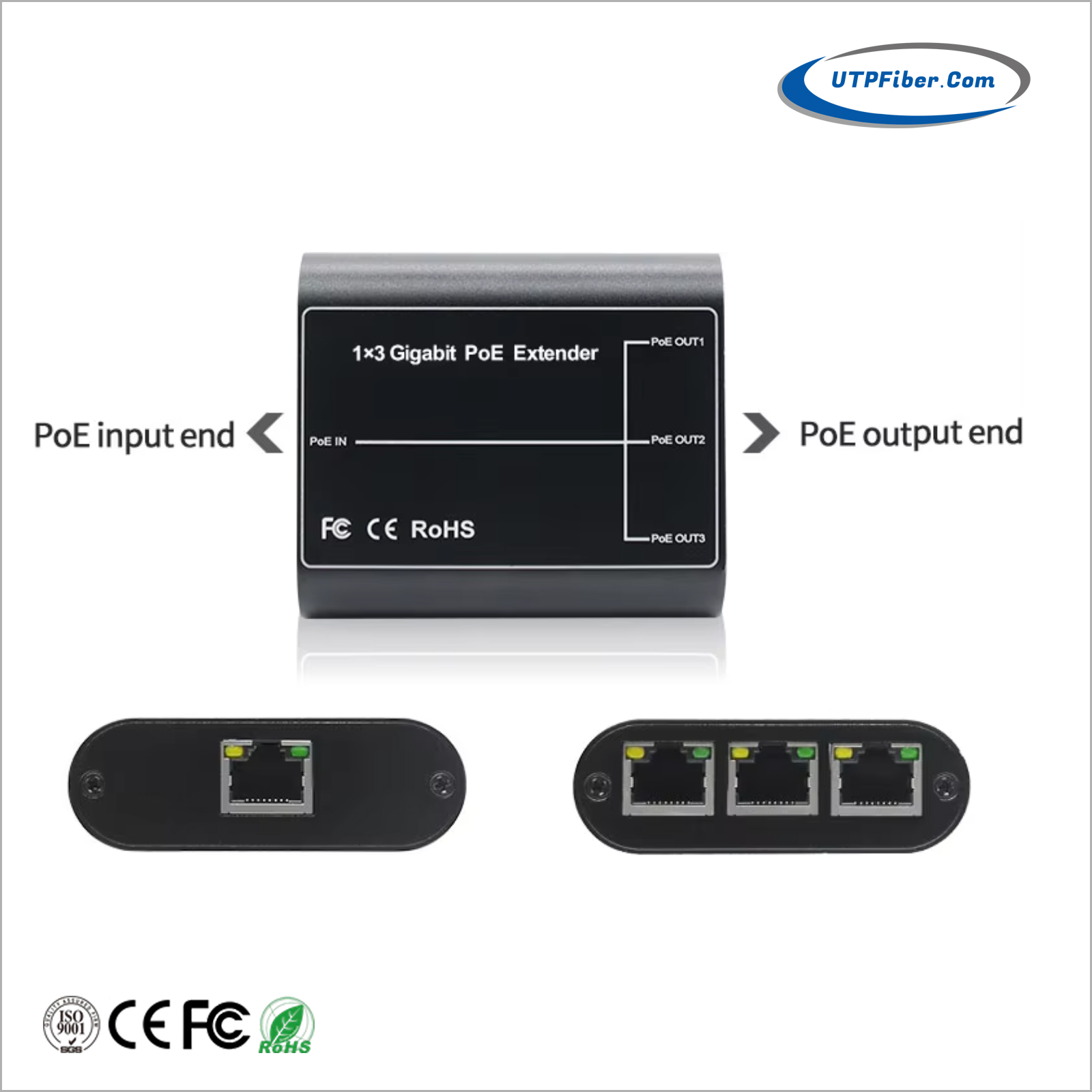

Ethernet Port

PoE Input Port

1*10/100/1000Base-T RJ45, IEEE 802.3af/at PoE Input

Input Power 48~57V DC, Max 30W

PoE Output Port

3*10/100/1000Base-T RJ45, IEEE 802.3af/at PoE Output

Output Power: Max 30W in total

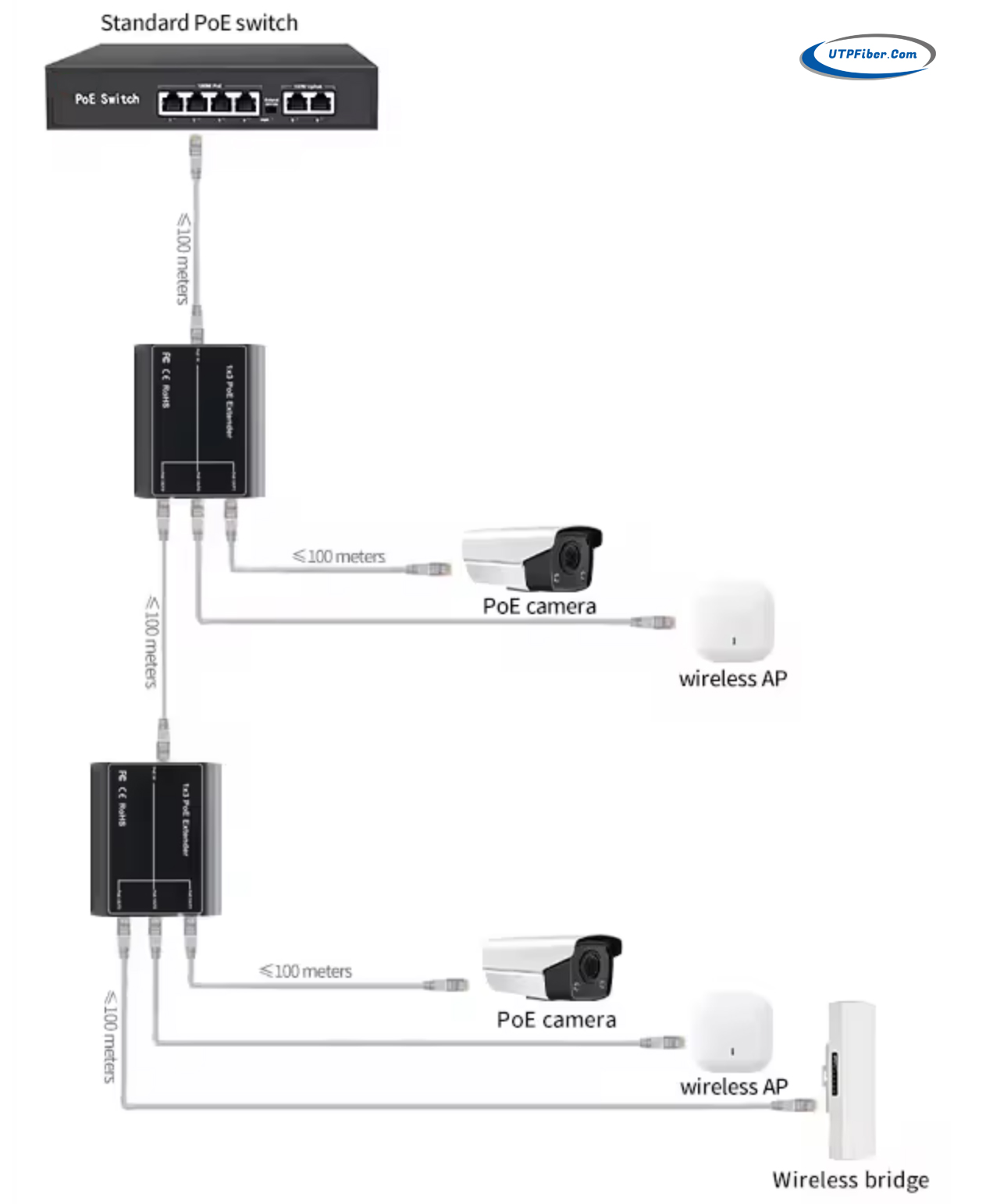

Cascade connection

Support 4 grade

Power over Ethernet

PoE Standard

IEEE 802.3af Power over Ethernet

IEEE 802.3at Power over Ethernet Plus

PoE Power Supply Type

End-span

PoE Pin Assignment

1/2(+), 3/6(-)

Switch Property

Standards

IEEE 802.3 Ethernet

IEEE 802.3u Fast Ethernet

IEEE 802.3ab Gigabit Ethernet

IEEE 802.3az Energy-Efficient Ethernet

IEEE 802.3x Flow Control

Forwarding Modes

Store and forward

Transmission Distance

120m

MAC Table

2K

Switching Capacity

8Gbps

Package Forwarding Rate

5.792Mbps

Flow Control

IEEE 802.3x pause frame for full duplex, Back pressure for half duplex

Environment

Operating Temperature

- 20~+60 degrees C

Storage Temperature

- 30~+70 degrees C

Operating Humidity

10~90% (non-condensing)

Physical Parameter

Dimensions (LxWxH)

79x70x24mm

Gross Weight

100g

Net Weight

90g

Material

Aluminum

LED Display

PoE working status, Ethernet

Certifications

Certications

FCC Part 15B

RoHs Directive 2011/65/EU

Low Voltage Directive 2014/35/EU

Electromagnetic Compatibility Diective 2004/108/EC


  • Download FileName:UF-PE103G 3-Port Gigabit PoE Extender Datasheet V1.0.pdf Size: 441KB

Model

Description

UF-PE103G

1-Port 802.3at PoE+ to 3-Port 802.3af/at Gigabit PoE Extender

Mounting Options

► Desktop
