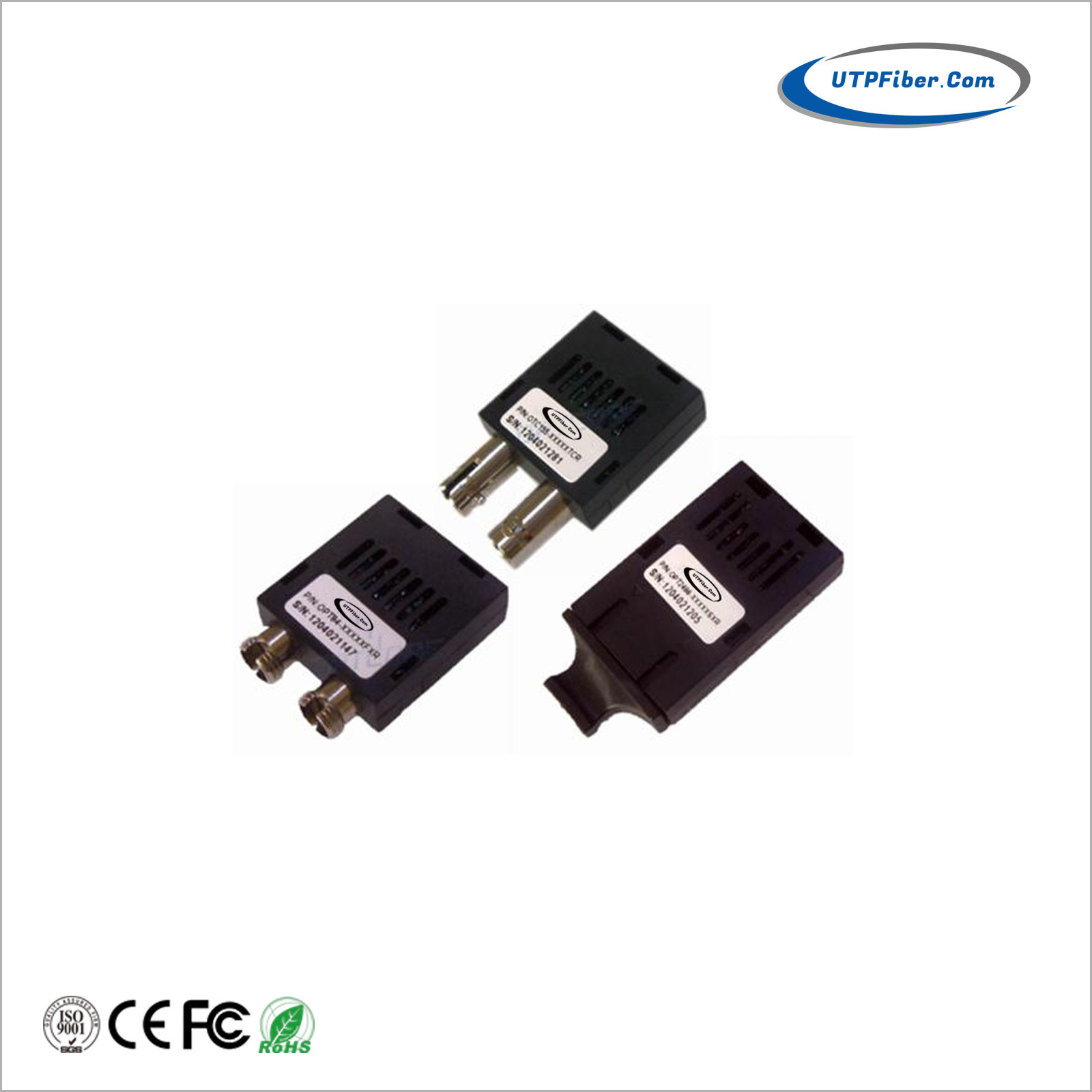

Ultra-Low Data Rate TTL 1x9 CWDM Fiber Optical Transceiver, Single Mode, 2Mbps, 20km

Model:UF-1x9-2M-20-Cxx-3V

●  SC/ST/FC receptacle optical interface

●  1x9 SIP package

●  1270nm~1610nm 18 CWDM Wavelengths Available

●  Optional transmission bit rate with down to 0bps and up to 2Mbps

●  Standard TTL data output with signal detect indication

●  Compliant with RS485 function

The UF-1x9-2M-20-Cxx-3V family CWDM optical transceivers from UTP provide the system designer and manufacturers with products to implement a range of industrial control, special low data rate Ethernet designs at the 0Mb/s-2Mb/s rate. This series fiber optic transceivers are all supplied in the industry standard 1x9 SIP package. The transceivers are high-performance, cost-effective modules with TTL data interface that supporting data-rate of 0~2Mbps and 20km transmission distance over single mode fiber cable (SMF).



The UF-1x9-2M-20-Cxx-3V series single mode transceiver help you convert copper signals to optical fiber. They are usually used for serial communications over fiber like RS-232/422/485 serial to fiber media converter and industrial Ethernet networks to fiber networks communications like industrial fiber optic converters and industrial Ethernet switches.



The UF-1x9-2M-20-Cxx-3V series features a duplex SC or ST or FC connector receptacle, which provide the choice of different connector for client. They provide 3 types operating temperature for different applications:

●  Standard type (0~70ºC) for commonly commercial application, provided with lowest cost

●  Extended type (-10~85ºC) for extended temperature application, provides wider operating temperature

Industrial grade (-40~85ºC) is made with robust and reliable components, to meet the needs of Industrial Ethernet application under hardened environmental conditions. It is designed for industrial media converter, Industrial Ethernet Switches, rugged switch and other industrial fiber connection equipment.
TTL 1x9 CWDM Fiber Optical Transceiver, 1x9 TTL Transceiver, 1x9 Transceiver, Ultra-Low Data-Rate 1X9 Transceiver, 2Mb/s 1x9 TTL Optical Transceiver, CWDM Optical Transceiver, 1X9 Optical module, 2Mbs Low Speed 1x9 Transceiver, CWDM Optical transceivers

●  SC/ST/FC receptacle optical interface

●  Single +3.3V Power Supply

●  1x9 SIP package

●  1270nm~1610nm 18 CWDM Wavelengths Available

●  Super low power consumption design, applied to some special require

●  Optional transmission bit rate with down to 0bps and up to 2Mbps

●  Standard TTL data output with signal detect indication

●  Compliant with RS485 function

●  RoHS Compliance

●  Operating case temperature:

Standard: 0 to +70°C Extended: -10 to +85°C Industrial: -40 to +85°C

Applications

●  Industrial Ethernet Applications: industrial Ethernet switches, Ethernet media converters and fiber converters

●  Serial Communications over fiber: Industrial RS-232/RS-422/RS-485 serial to fiber media converter, industrial RS-232 to RS-422 and RS-485 Adapters

●  RS232/RS485/RS422 optical-electrical converter for electric power control, industrial control, industrial computing

Part Number UF-1x9-2M-20-Cxx-3V-IND   Form Factor Industrial 1×9
  Data Rate 0~2 Mb/s   Wavelength xx stands for 1270nm~1610nm 18 CWDM Wavelengths
  Max Distance 20 km   Fiber Type Single Mode (SMF)
  Voltage 3.3v or 5v   Optical Components FP/PIN
  Transmitter Power -7 ~ -3 dBm   Extinction ratio > 9 dB
  Receiver Sensitivity < -18 dBm   Connector Duplex SC,ST or FC
  Environment Operating: Industrial grade -40°C to 85°C
Storage: -40°C to 85°C
  Weight 0.02 kg
  Application • Industrial Ethernet Applications such as Industrial Ethernet
Switches, industrial Ethernet Media Converters, Industrial Fiber
Converters
• Serial Communications over fiber: Industrial
RS-232/RS-422/RS-485 serial to fiber media converter, industrial
RS-232 to RS-422 and RS-485 Adapters
• RS232/RS485/RS422 optical-electrical converter for electric
power control, industrial control,industrial computing
  Compliance IEC/EN 61000-4-2,IEC-60825
FDA 21CFR 1040.10 and 1040.11
RoHS
  • Download FileName:UF-1x9-2M-20-Cxx-3V 2Mbps 1×9 TTL CWDM Optical Transceiver Datasheet V1.0.pdf Size: 411KB

UF-1x9-2M-20-Cxx-3V

Ultra-Low Data Rate TTL 1x9 CWDM Fiber Optical Transceiver, Single Mode, 2Mbps, 20km

(xx stands for 1270nm~1610nm 18 CWDM Wavelengths)
