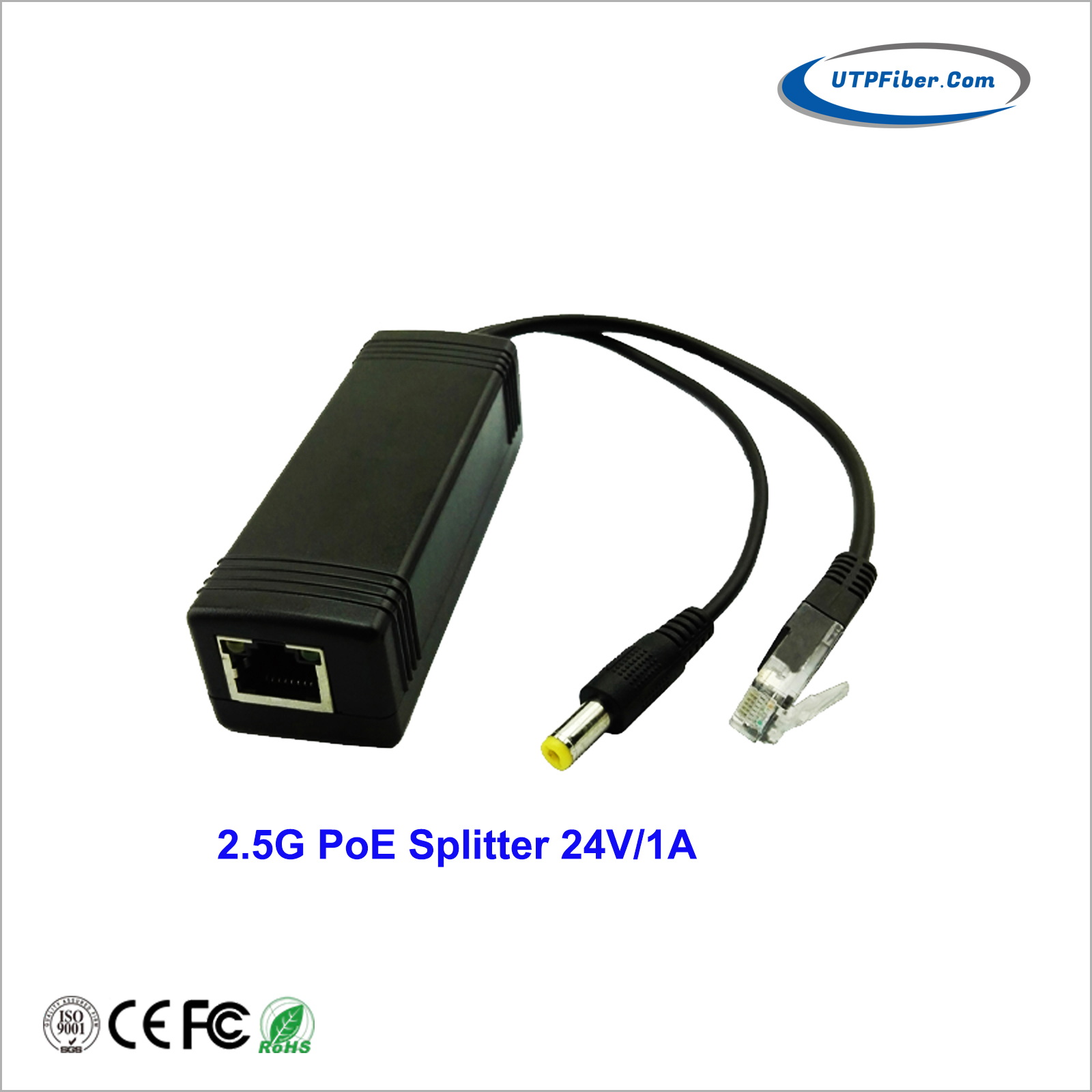

10/100/1000/2500Mbps 24V 1A PoE Splitter

Model:UF-SPG2401-2.5G

► Support international standard IEEE802.3 af/at(30W);

► POE port Support 2.5Gbps data transmission

► 24V 1A power output, easy to access Poe network for non-PoE terminal

► Plug & Play

上一张

下一张

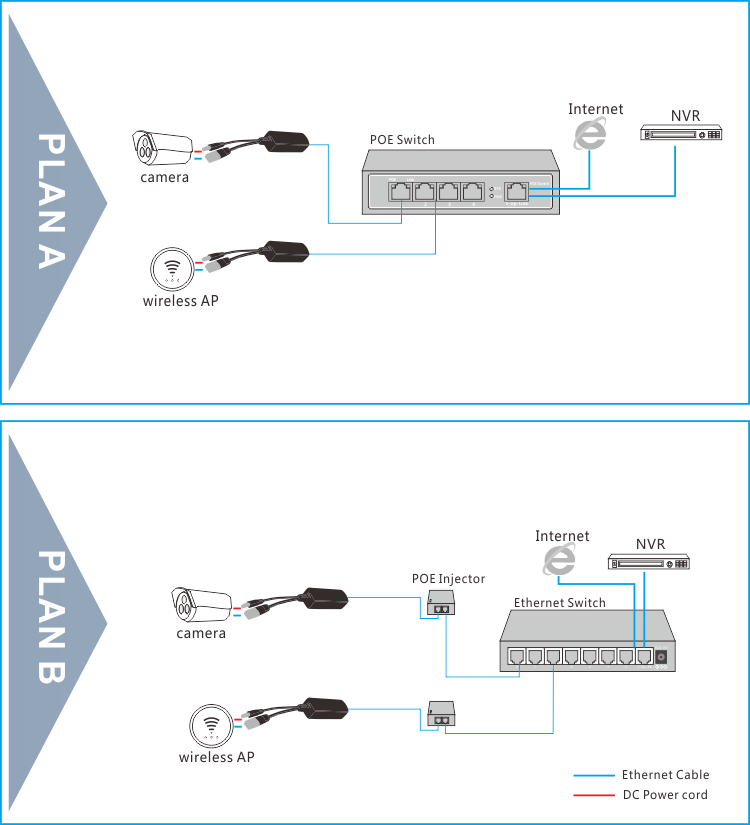

UF-SPG2401-2.5G PoE splitter, wiith RJ45 port and DC Jack 5.5 * 2.1mm (Type-C, Micro-USB，DC Jack 5.5 * 2.5mm optional), it is an economical and practical PoE remote power equipment base on IEEE802.3af/at standard. It can separate the power and data via cable transmission. Proper matching use with PoE switch or PSE injector which meet standard IEEE802.3af/at, Provides power and data at the same time for the terminal device does not support PoE.

The 2.5G PoE Splitter 24V/1A, output voltage of 24V use with the power supply equipment, It helps to expand wireless city, Security monitoring and other poe practical place, and is not restricted by layout of power line.

► Support international standard IEEE802.3 af/at(30W);

► POE port Support 2.5Gbps data transmission

► PD support 38-56V voltage transmission, Automatically detects power supply from PSE power supply module

► 24V 1A power output, easy to access Poe network for non-PoE terminal

► Support the isolation circuit protection, can effectively protect electrical equipment.

► Support the short circuit, overvoltage protection

► 1500V high voltage isolation

► Plug & Play

► Built-in overheat protection, overvoltage protection, and short circuit protection circuits

► Full bridge design, non polarity input

Model	UF-SPG2401-2.5G
DC out	24V 1A
Power	25W
distance	10BASE-T: cat 5 UTP(≤100m) 100BASE-TX: cat 5 and above UTP(≤100m) 1000BASE-T: cat 5 and above UTP(≤100m) 2500BASE-T: cat 5 and above UTP(≤100m)
Port	2.5G(10/100/1000/2500M) POE input+1 Network+1 DC output
POE	IEEE POE++/IEEE 802.3af /IEEE802.3at, IEEE802.1af DTE Power via MDI
Network protocol	IEEE 802.3i 10BASET； IEEE 802.3u 100BASE-TX； IEEE 802.3ab 1000BASE-T IEEE 802.3bz 2.5GBASE-T IEEE 802.3x Flow Control
Environmental	Working Temperature:-20°～55°C Storage temperature:-40°～85°C Working Humidity: 10%～90% RH non-condensing Storage Humidity: 5%～90% RH non-condensing
Radiation	CE mark, FCC Part 15 Class B，RoHS
Product Size	90 x 32 x 28mm + 200mm (cable)
Weight	60g

Download FileName：UF-SPG2401-2.5G 24V 1A PoE Splitter Datasheet V1.0.pdf Size： 419KB

Model	Description
UF-SPG2401-2.5G	PoE Splitter: 1x2.5G PoE input + 1xNetwork +1xDC output, MAX 25 watts, DC output 24V 1A
